COMMERCIAL AUDIO

MC 5002

PROFESSIONAL DESKTOP MICROPHONE

Functioning modality FLAT, BOOST and LOW CUT
Resistant metal body
Red LED lit when the microphone is ON
Phantom power supply 12 ÷ 48 V DC

Where to buy

Features

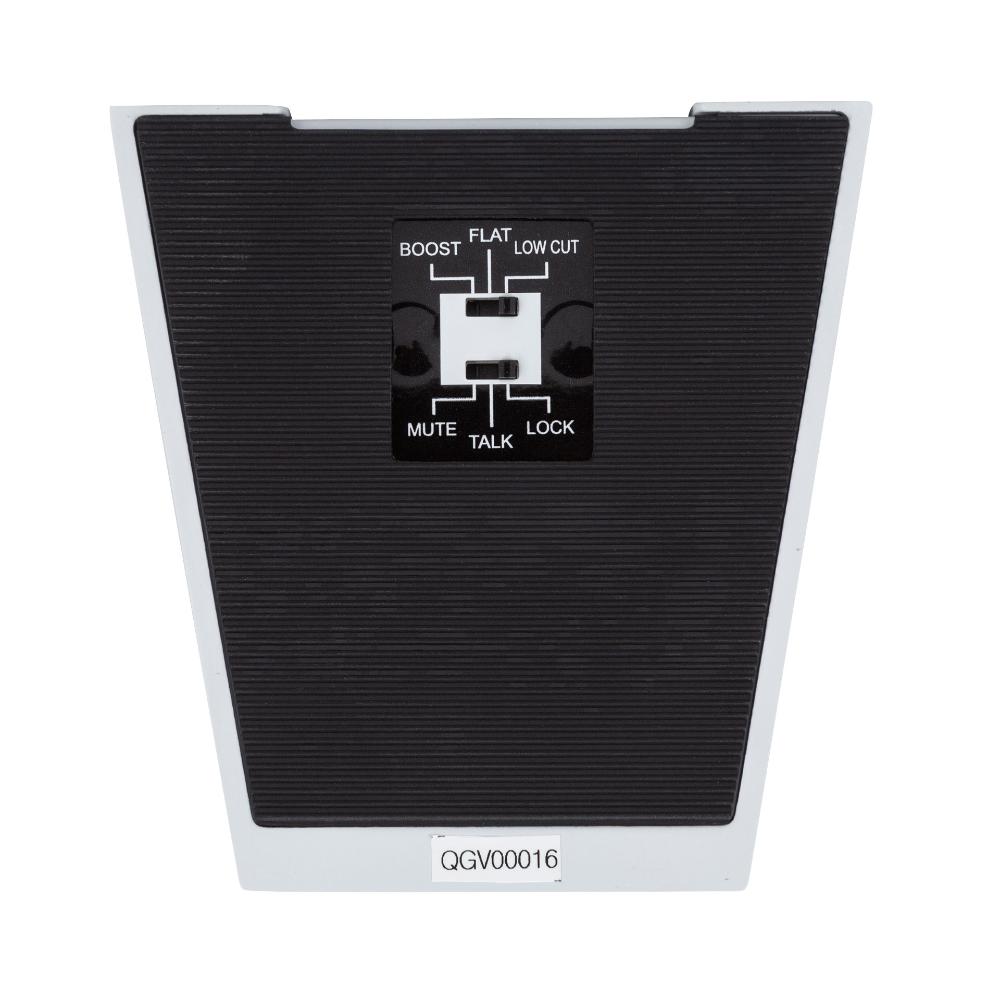

Functioning modality FLAT, BOOST and LOW CUT
Resistant metal body
Red LED lit when the microphone is ON
Phantom power supply 12 ÷ 48 V DC

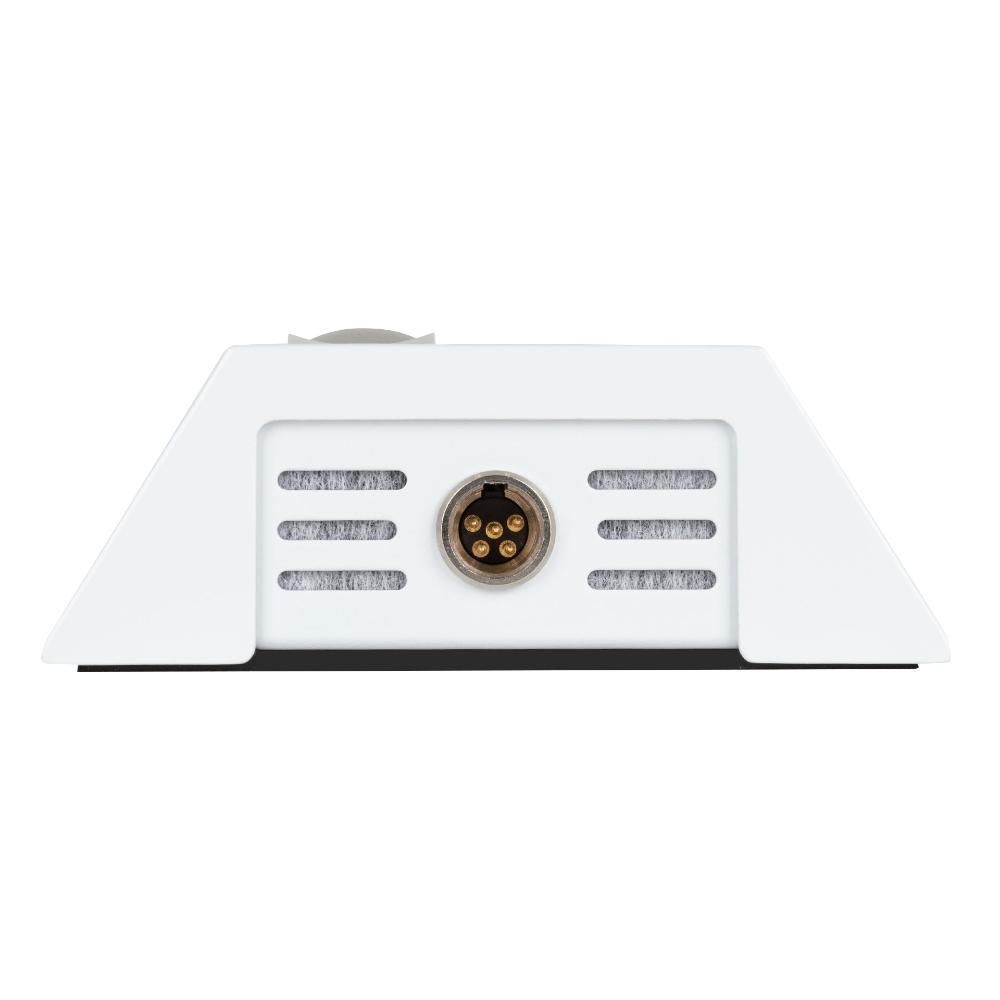

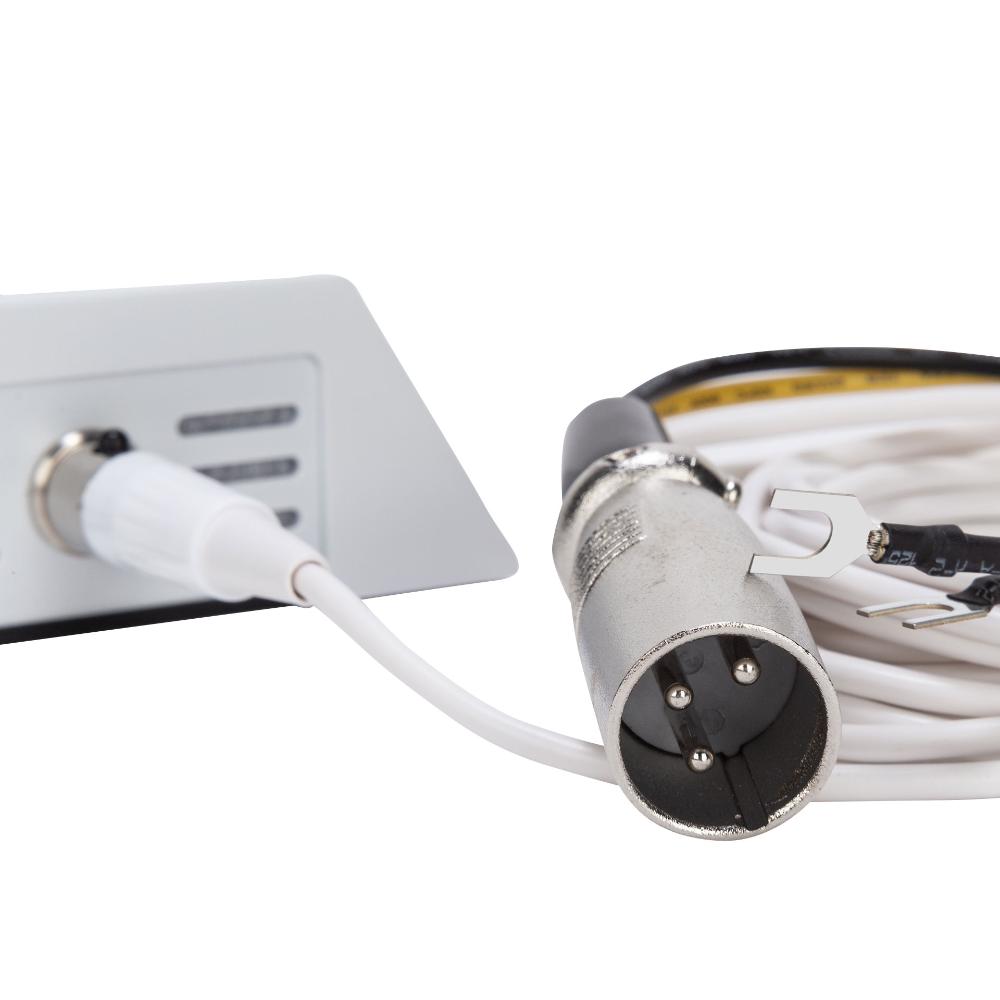

3 m cable male XLR to 5 poles mini XLR, dry contact connectors
Color white RAL 9003

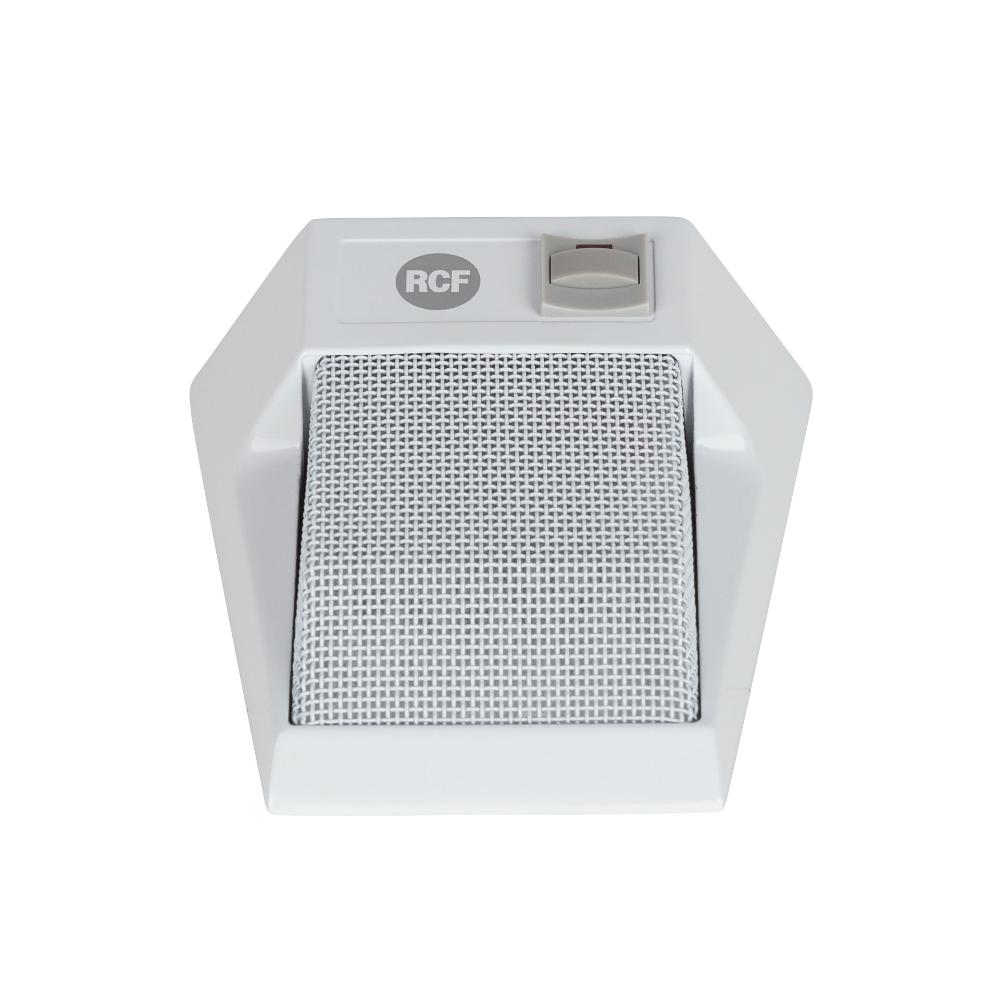

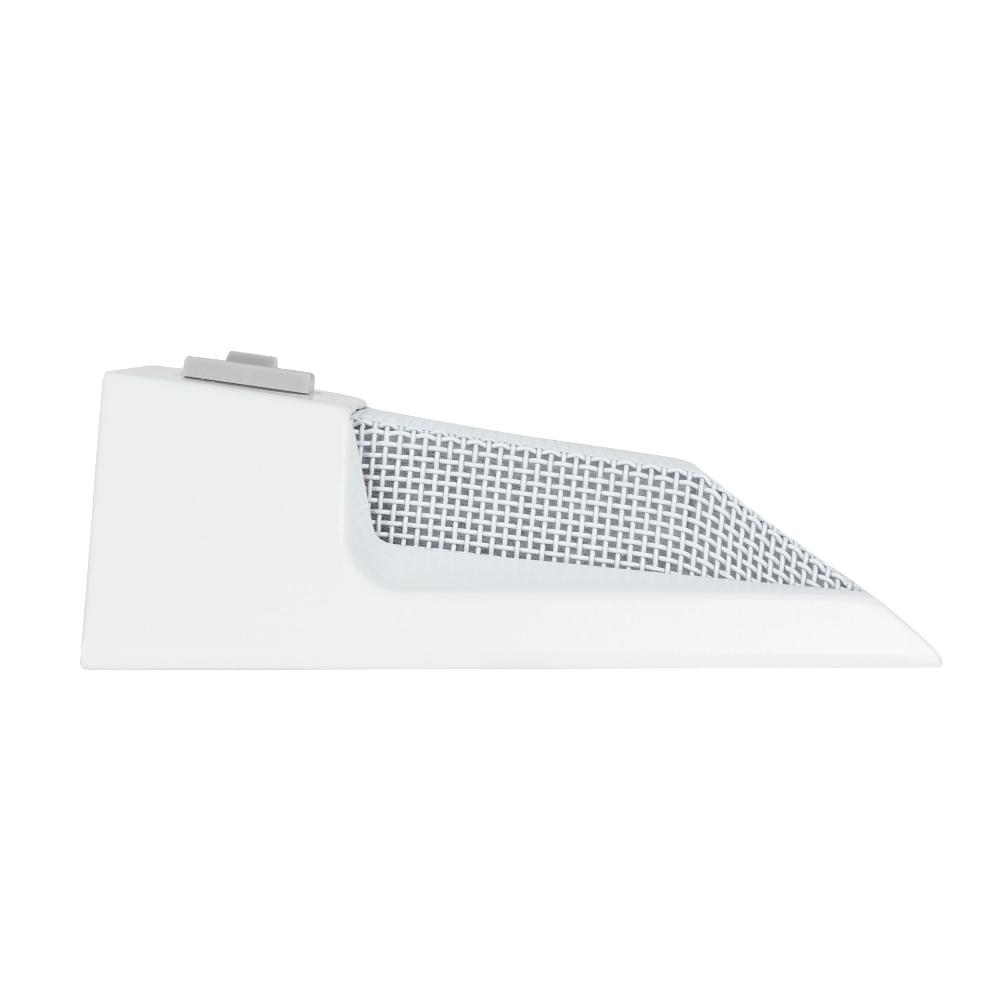

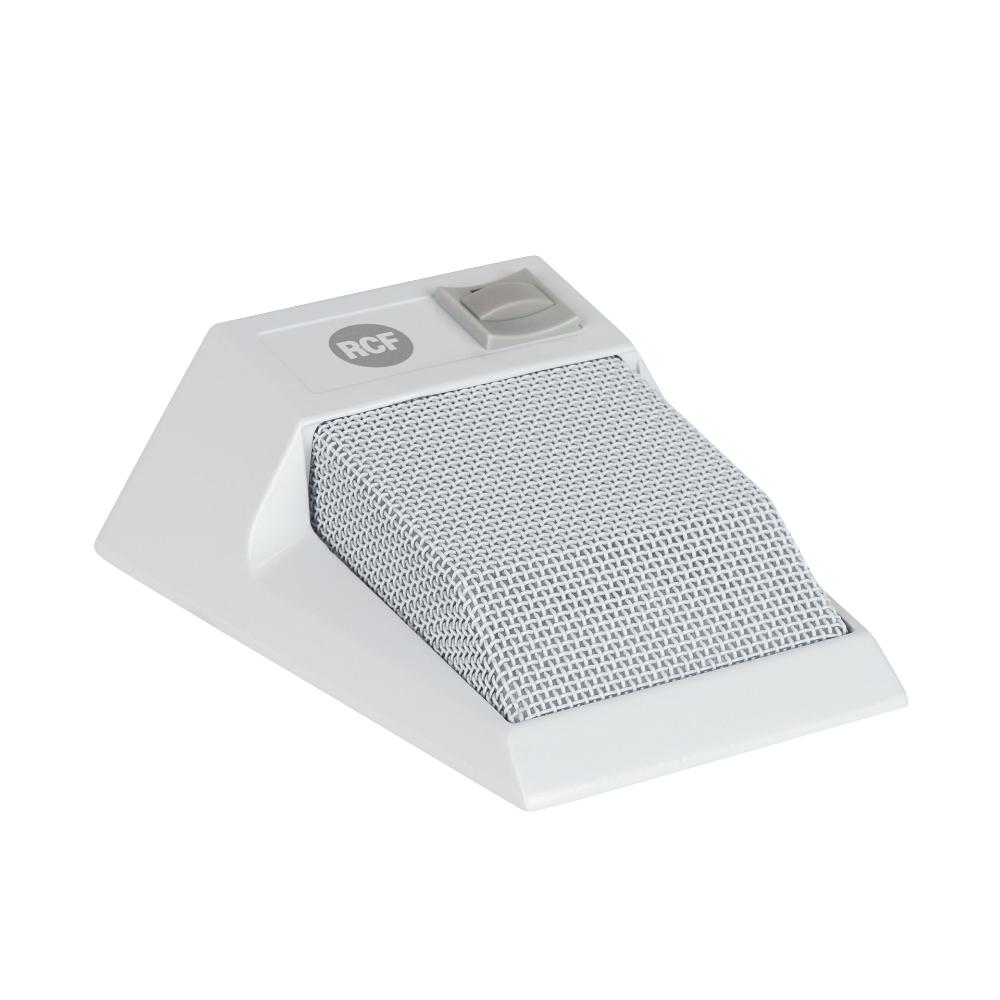

MC 5002 is a desktop microphone suitable for use on any flat surface. Offers the speaker greater freedom of movement and feature high sensitivity and extremely clear, intelligible speech reproduction. The standard Phantom power supply is easy to combine with most amplifiers on the market.

Part number:

14115026
MC 5002
EAN 8024530012021

Specifications

Microphone specifications

Type

Electret

Directivity

Unidirectional

Sensitivity

-58 dB

Frequency Response (-3dB)

50 Hz ÷ 18 kHz

Output impedance (ohm)

300.00 ohm

Phantom power

Yes

Phantom Power

12 V DC - 48 V DC

Console specifications

LED indicators

Yes

Connections

Connectors

Mini XLR

Accessories

Cable included

Yes

Cable length (m)

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Metal

Color

White - RAL 9003

Size / Weight

Height

34 mm / 1.34 inches

Width

92 mm / 3.62 inches

Depth

92 mm / 3.62 inches

Weight

0.25 kg / 0.55 lbs

Shipping information

Package Weight

0.33 kg / 0.73 lbs

Downloads

MANUALS

USER MANUAL

PDF

533 KB

25-05-2016

USER MANUAL

PDF

2.9 MB

22-03-2022

SPECIFICATIONS

SPECSHEET - DEU

PDF

632 KB

25-11-2024

SPECSHEET - ENG

PDF

626 KB

25-11-2024

SPECSHEET - FRA

PDF

630 KB

25-11-2024

SPECSHEET - ITA

PDF

627 KB

25-11-2024

SPECSHEET - SPA

PDF

630 KB

25-11-2024

STANDARD COMPLIANCES

CE DECLARATION OF CONFORMITY - ENG

PDF

28 KB

25-11-2024

DRAWINGS

LINE ART 2D

PDF

349 KB

10-07-2024
