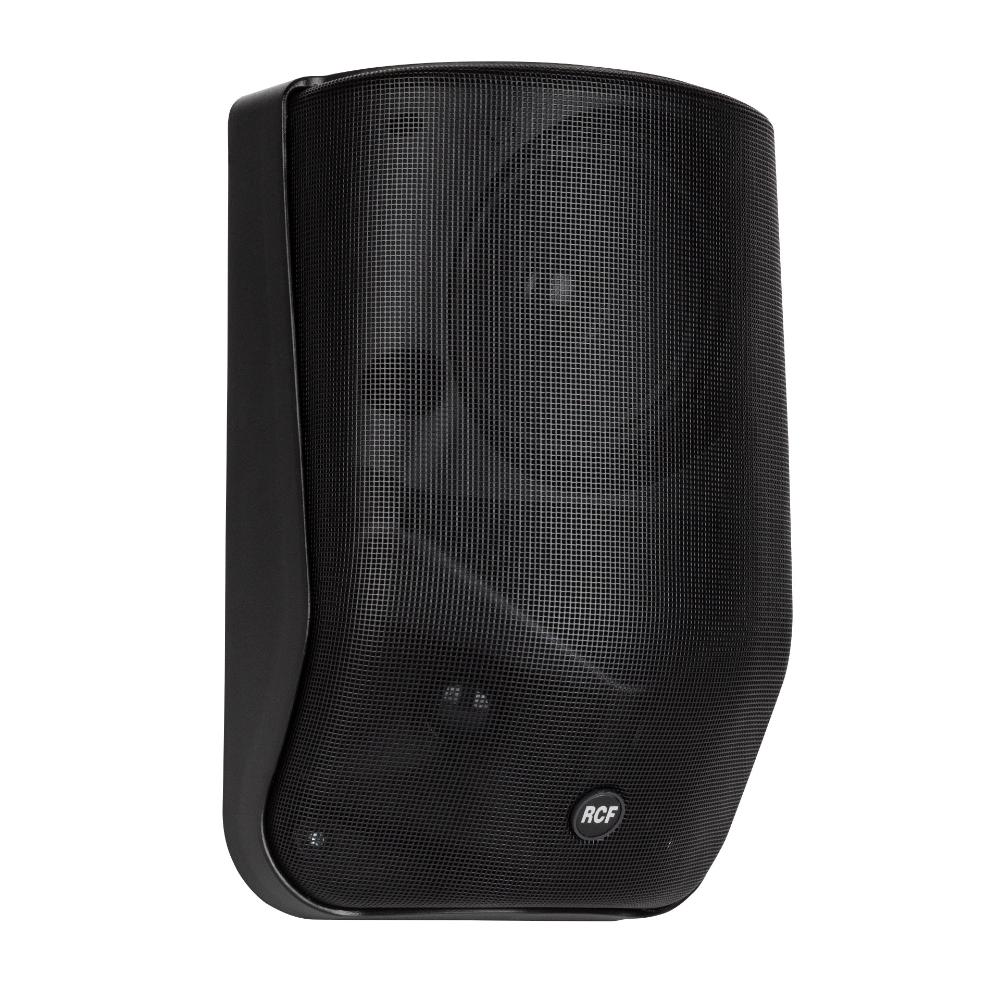

MQ 60H

TWO-WAY WALL MOUNT SPEAKER
  • 5" woofer with 2 x 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 88 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
Support
Features
  • 5" woofer with 2 x 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 88 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Plastic body, steel grille

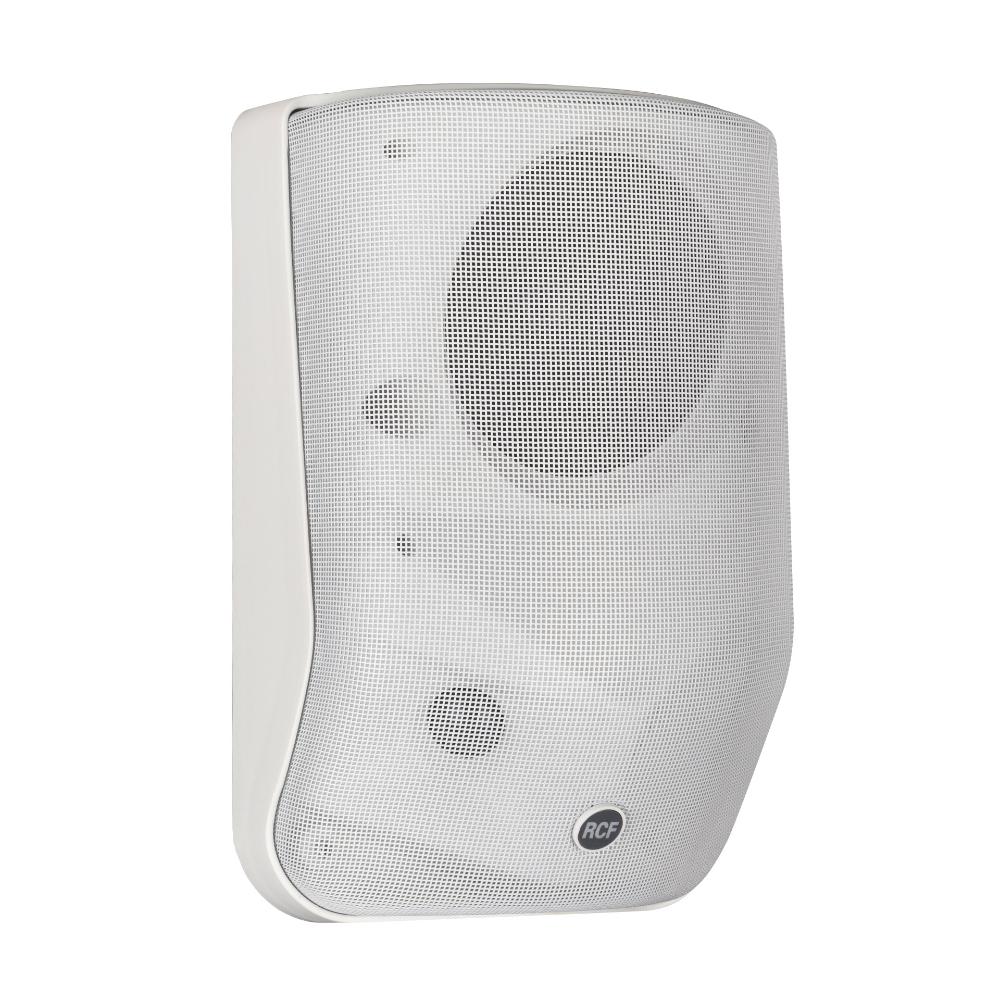

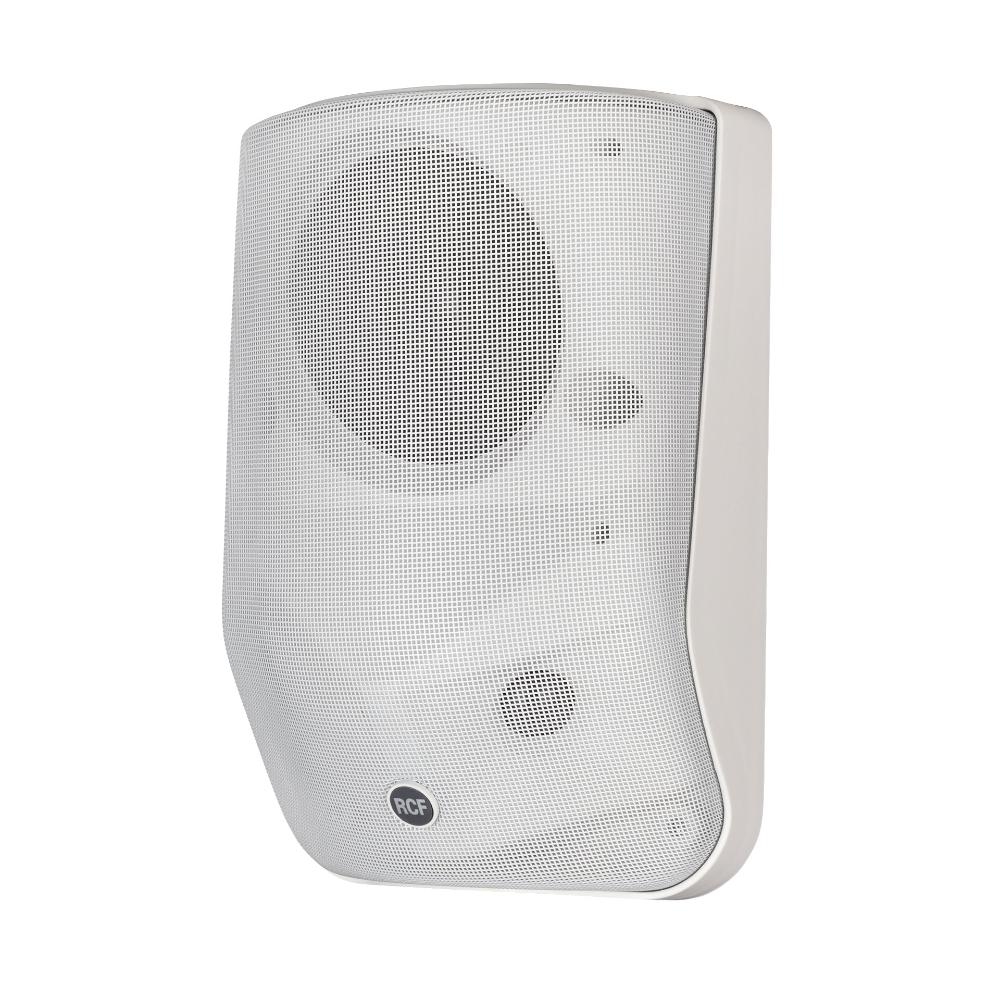

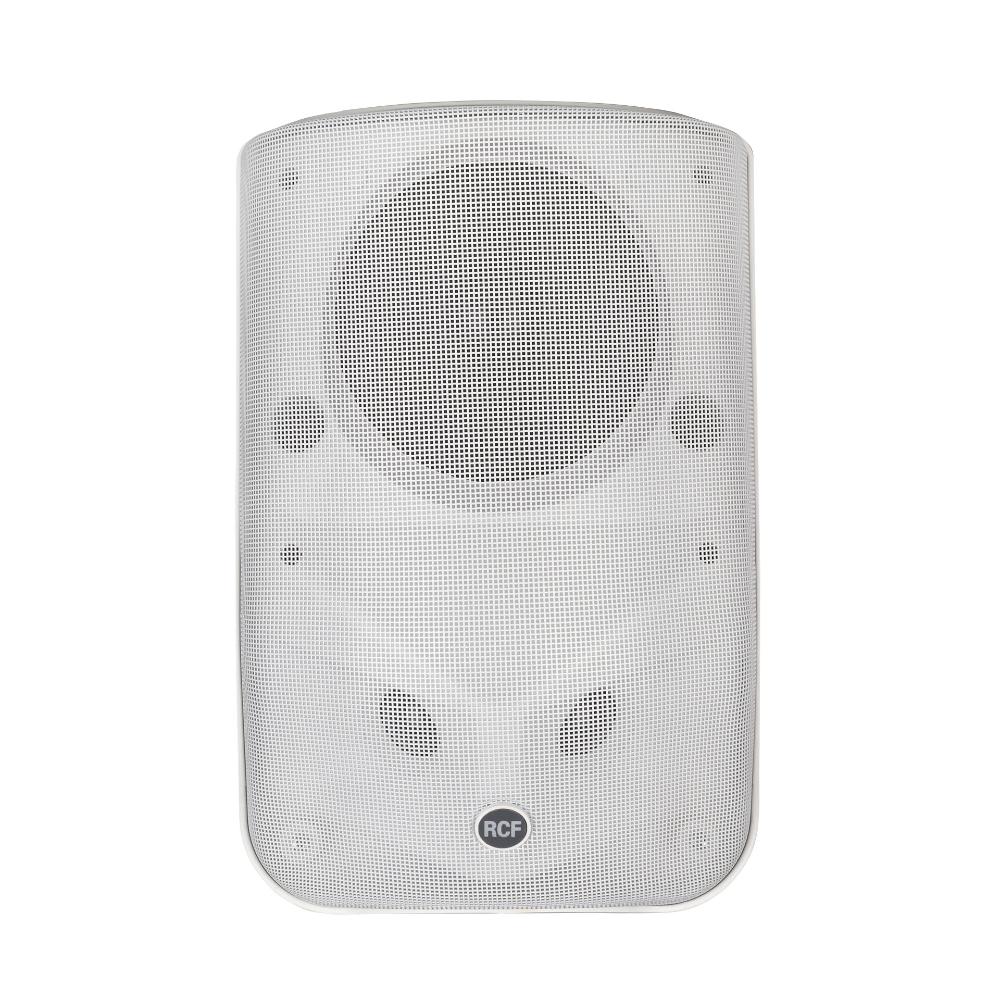

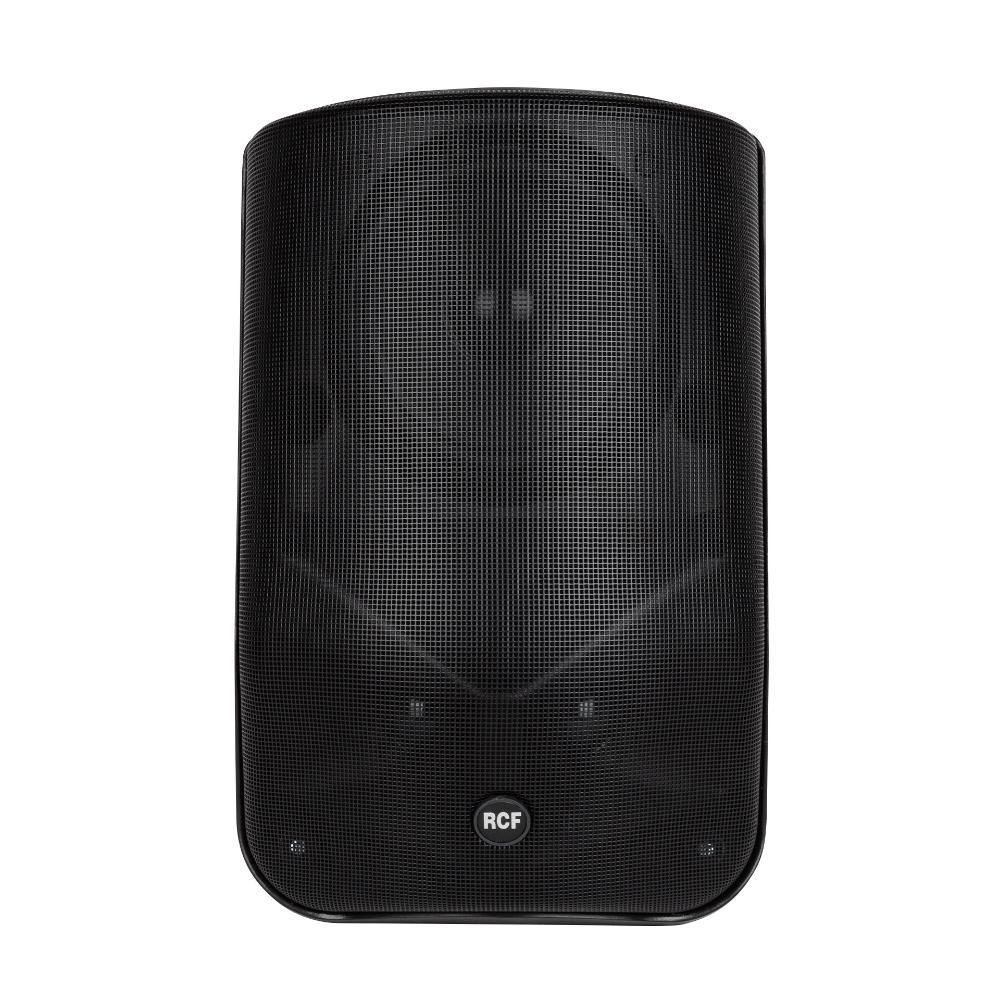

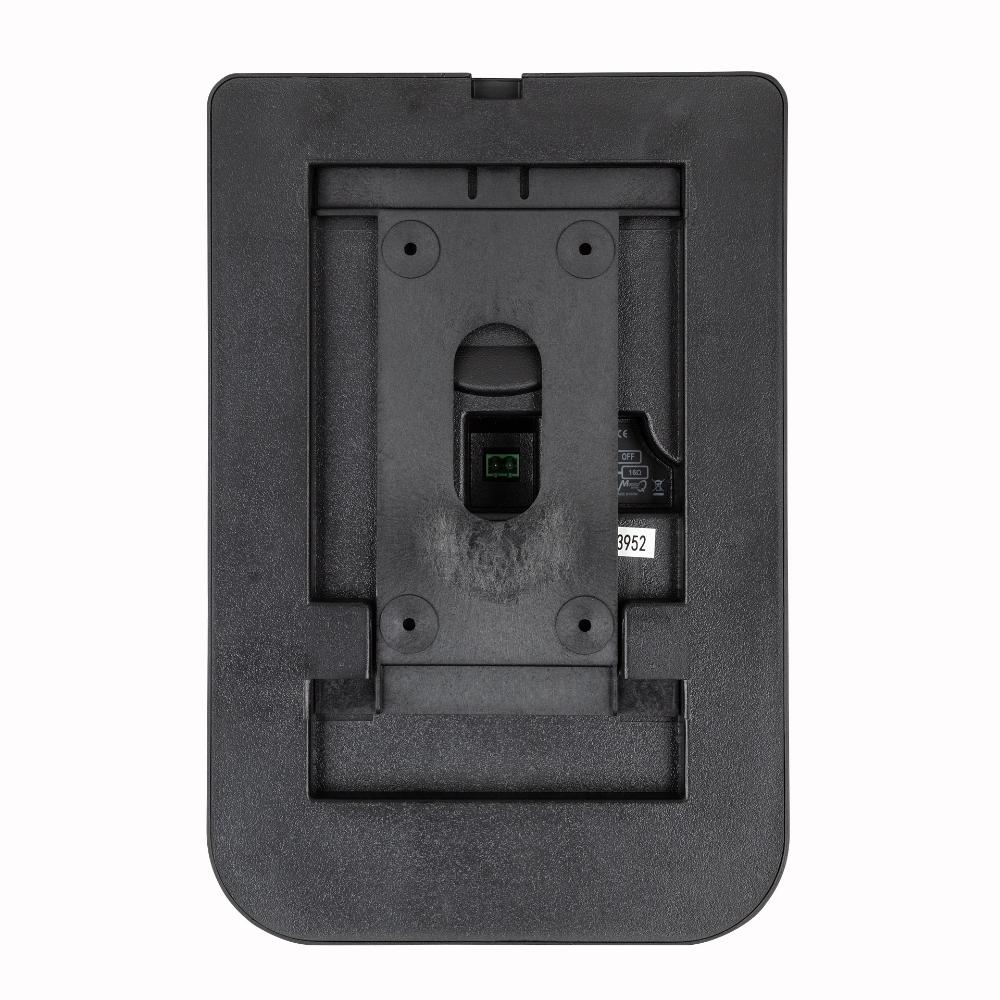

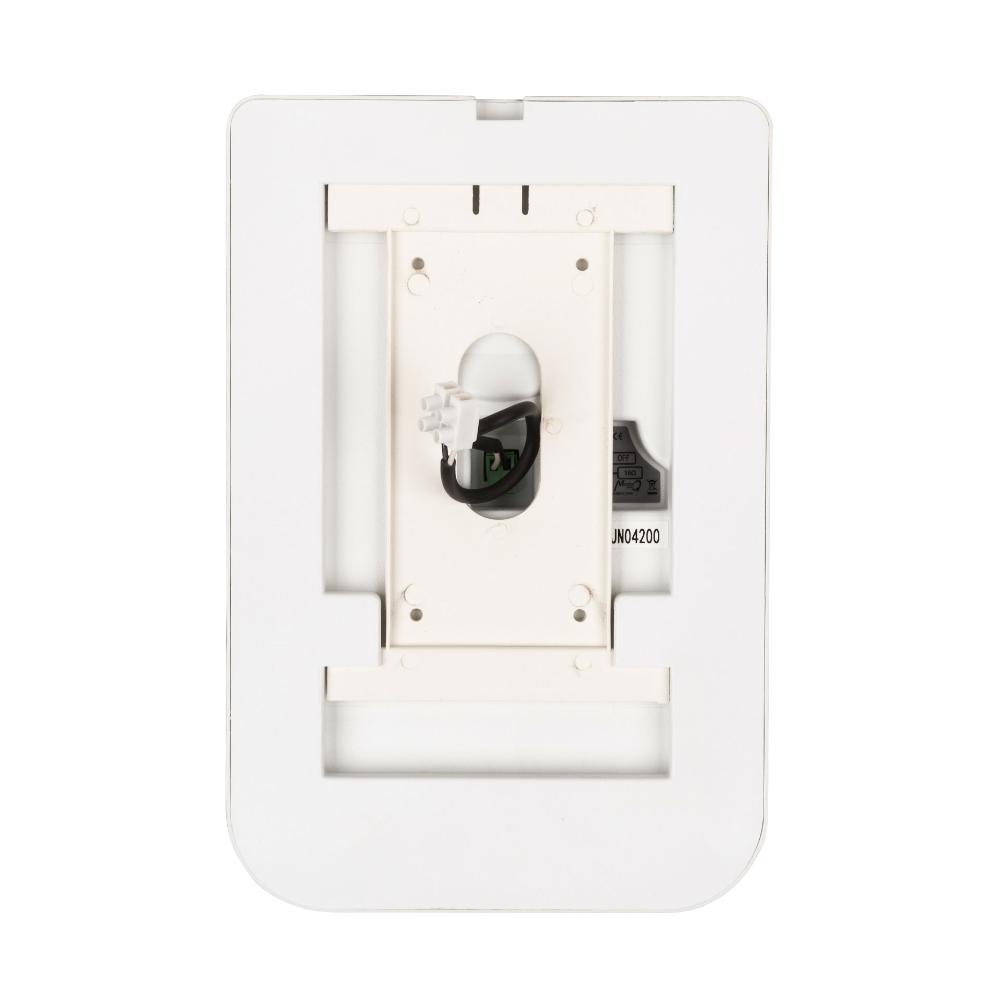

The MQ60H is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points. It is a two-way speaker with three transducers: the 5“ woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered. Installation is carried out in two phases: first, you mount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.

ARCHIVED

Part number:

13000060
MQ 60H W
White - RAL 9016, EAN 8024530005498

13000072
MQ 60H B
Black - RAL 9005, EAN 8024530005559

Specifications
Acoustical specifications
Frequency Response (-10dB):
100 Hz ÷ 19000 Hz
Max SPL @ 1m:
109 dB
Horizontal coverage angle:
180°
Vertical coverage angle:
100°
System Sensitivity:
88 dB
Power section
Nominal Impedance:
16 ohm
Power Handling:
60 W RMS
Peak Power Handling:
240 W PEAK
Recommended Amplifier:
120 W
Crossover Frequencies:
2000 Hz
Transducers
Dome Tweeter:
2 x 1.0''
Woofer:
5.0''
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Constant Voltage Transformer:
100 V
Power selection 1:
30 W - 333 ohm
Power selection 2:
20 W - 500 ohm
Power selection 3:
10 W - 1000 ohm
Power selection 4:
5 W - 2000 ohm
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:

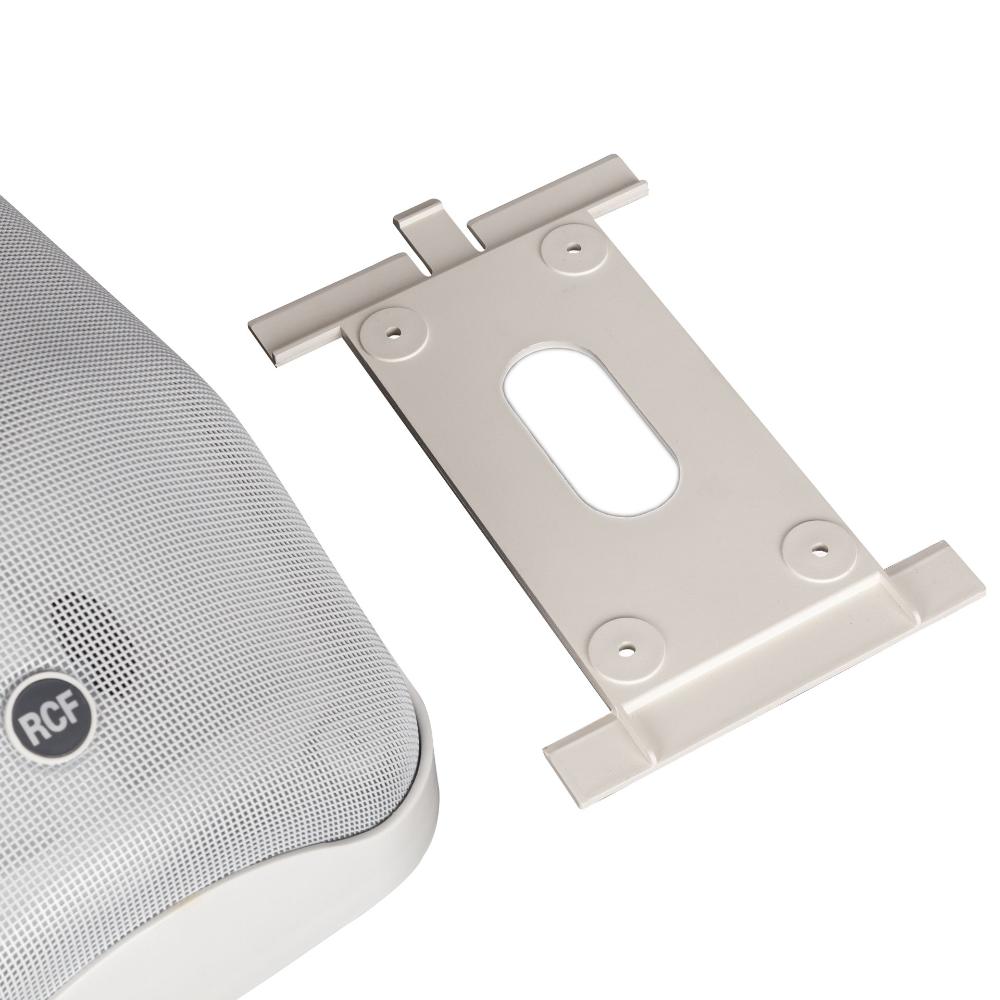

Wall mount bracket
Grille:
Steel
Color:
White - RAL 9016, Black - RAL 9005
Size
Height:
297 mm / 11.69 inches
Width:
198 mm / 7.8 inches
Depth:
122 mm / 4.8 inches
Weight:
2.85 kg / 6.28 lbs
Shipping information
Package Height:
340 mm / 13.39 inches
Package Width:
265 mm / 10.43 inches
Package Depth:
180 mm / 7.09 inches
Package Weight:
3.39 kg / 7.47 lbs
