Features
  • 5" woofer with 1" dome tweeter
  • Power selectable (100 V): 30 W – 15 W – 7.5 W – 3.75 W
  • 89 dB sensitivity
  • Colour white RAL 9016

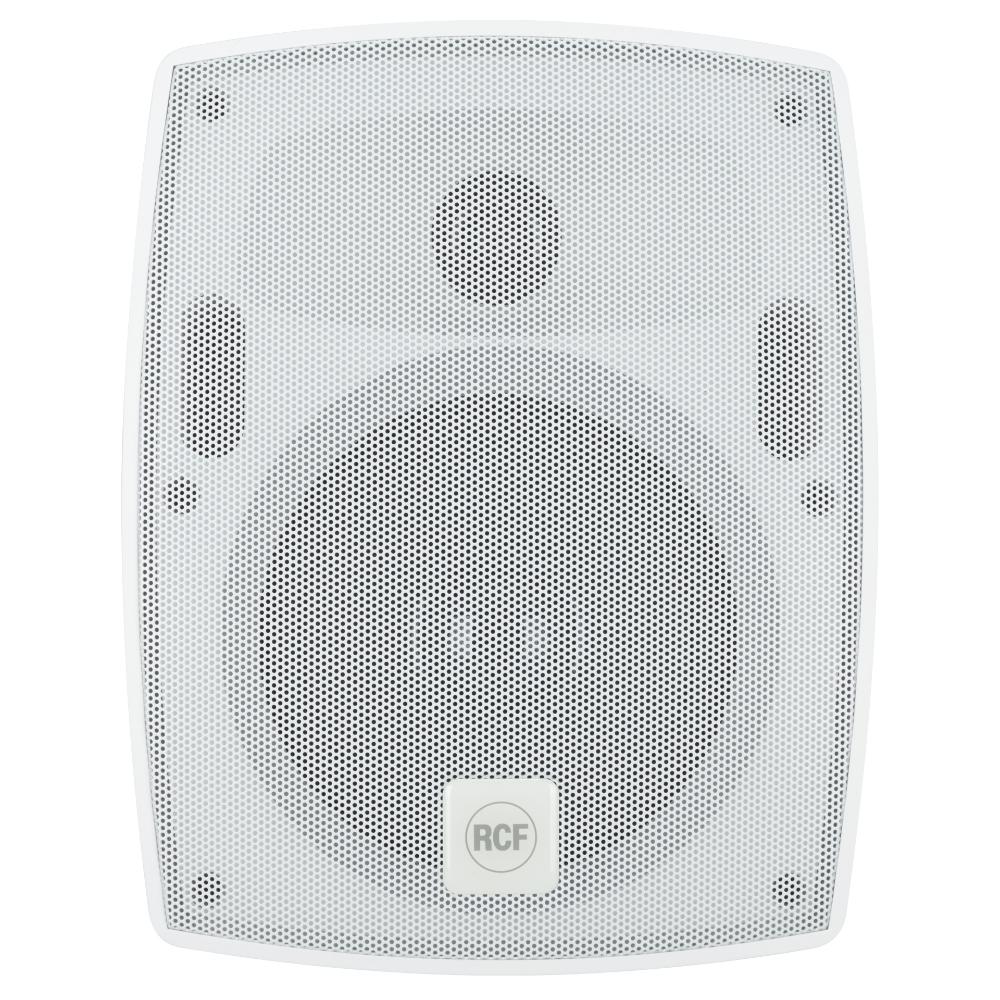

  • Flameproof ABS body, steel grille
  • In/out ceramic terminal block
  • Thermal fuse protection

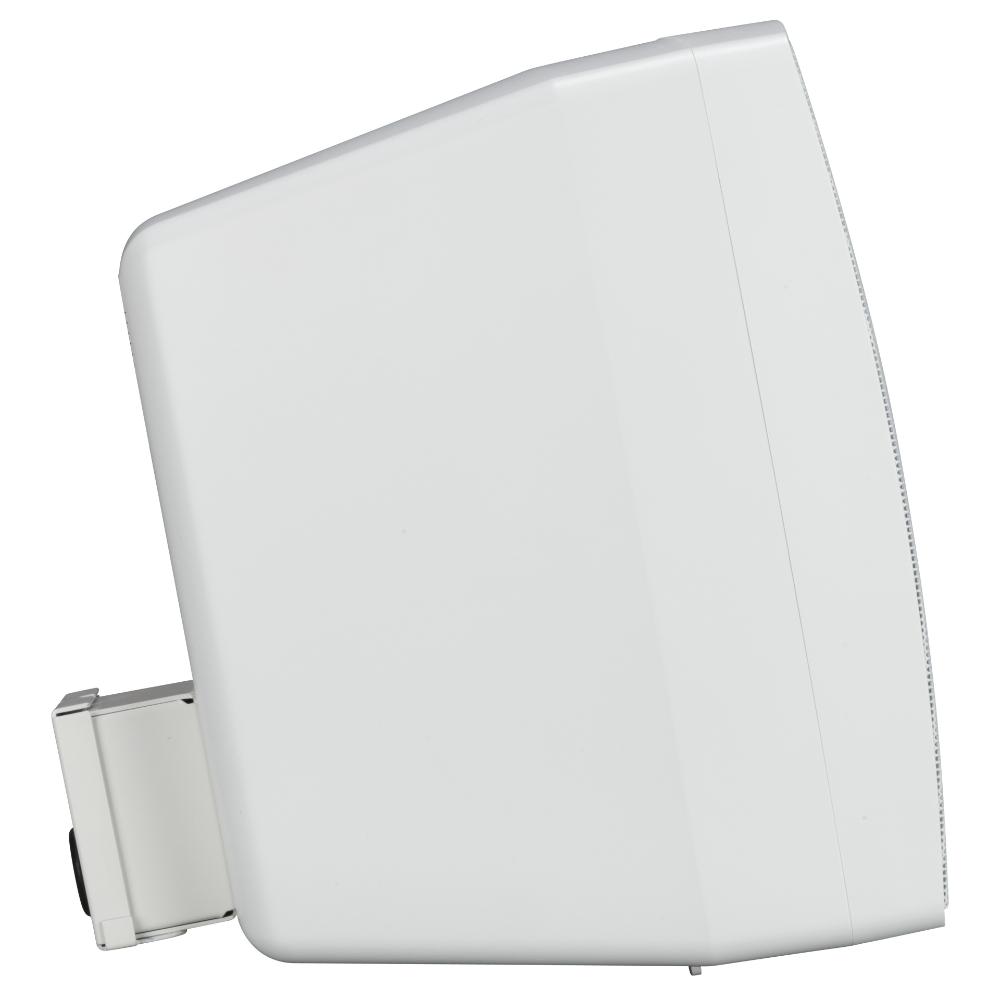

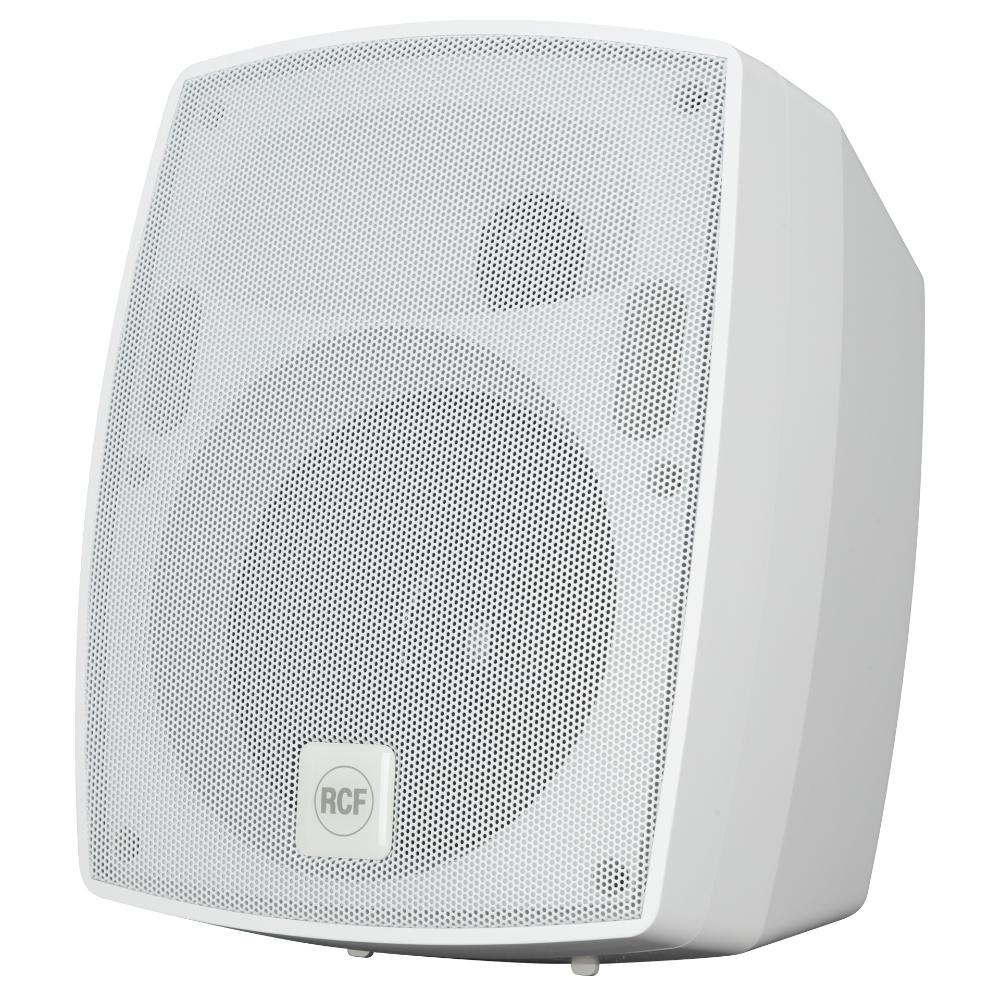

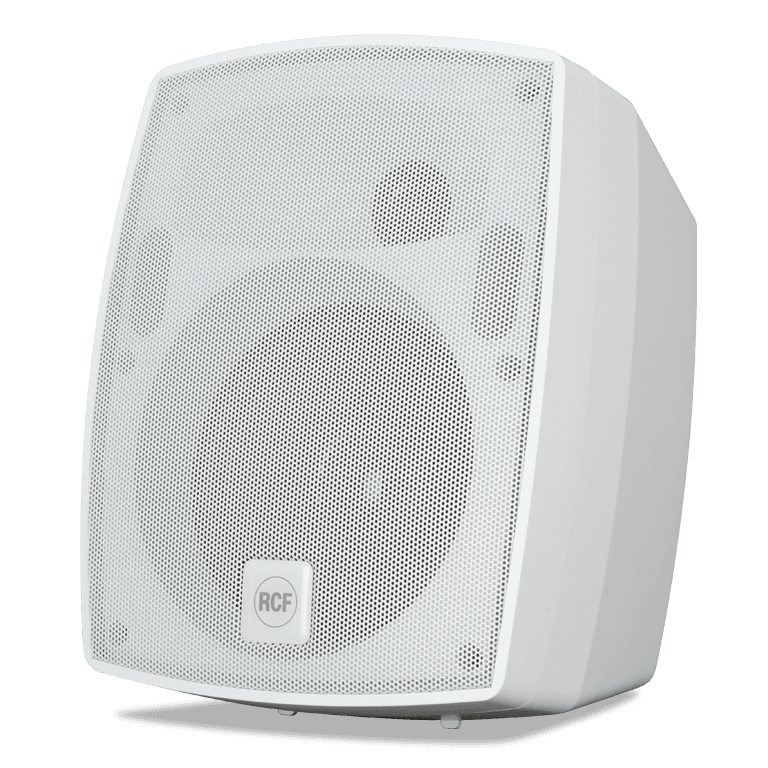

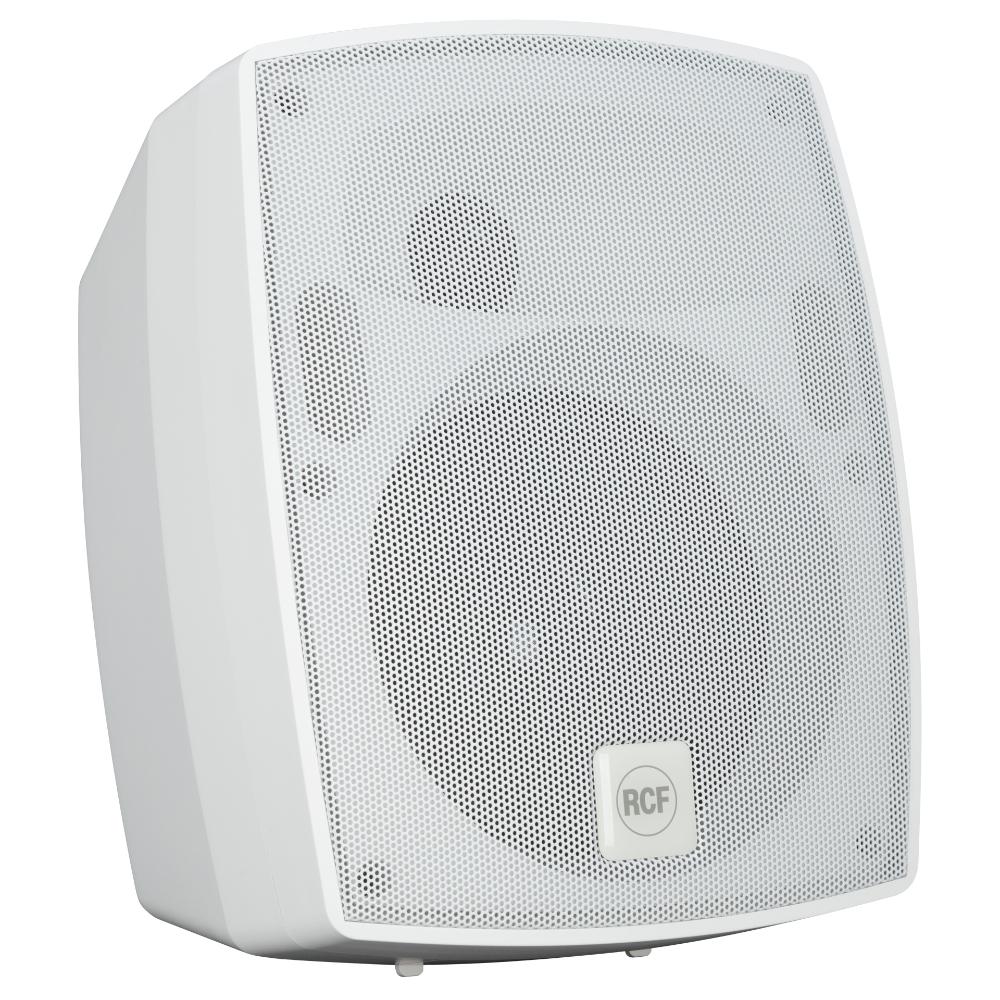

MR 52EN is a compact two-way speaker ideal for both alarm messages broadcasting and business music systems. The installation is fast and efficient using the adjustable mounting bracket (included). The enclosure is made of high-density ABS and includes a protective steel grille and connection cover. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Power selectable with dedicated switch.

Part number:

13100010
MR 52EN W
White - RAL 9016, EAN 8024530014438

Specifications
Acoustical specifications
Frequency Response (-10dB)
80 Hz ÷ 20000 Hz
Max SPL @ 1m
103 dB
Max SPL @ 4m
91 dB
Coverage angle
180°
System Sensitivity
89 dB
System Sensitivity 1W @ 4m
77 dB
Power section
Power Handling
30 W
Peak Power Handling
120 W PEAK
Protections
Thermal fuse
Recommended Amplifiers
DXT 3000, DXT 4000, DXT 7000
Transducers
Dome Tweeter
1 x 1.0''
Woofer
1 x 5.0''
Input/Output section
Input connectors
Ceramic screw terminals
Output connectors
Ceramic screw terminals
Constant Voltage Transformer
100 V

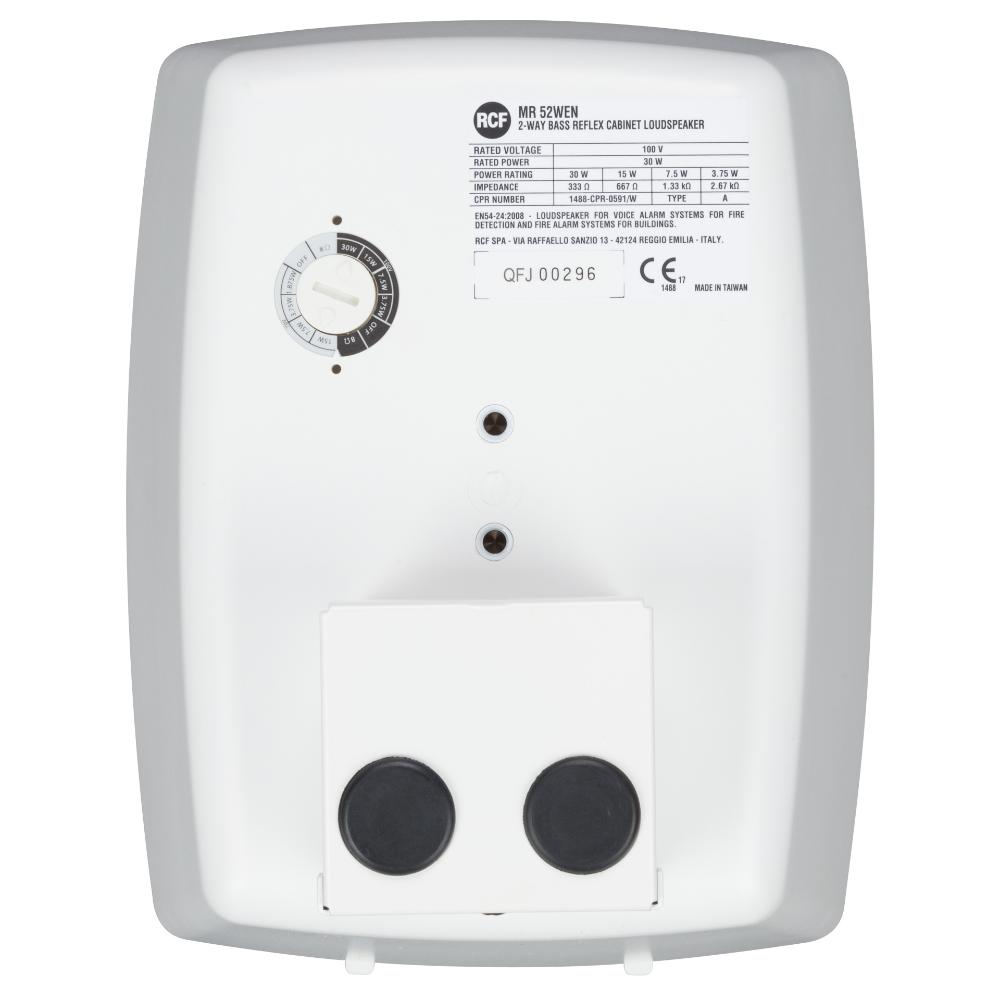

Power selection 1
30 W - 333 ohm
Power selection 2
15 W - 667 ohm
Power selection 3
7.5 W - 1333 ohm
Power selection 4
3.75 W - 2667 ohm
Standard compliance
Safety agency
CE compliant
EN54-24 certified
Yes
CPR number
1488-CPR-0591/W
Physical specifications
Cabinet/Case Material
ABS
Grille
Steel
Color
White - RAL 9016, Black - RAL 9005
Size
Height
242 mm / 9.53 inches
Width
192 mm / 7.56 inches
Depth
190 mm / 7.48 inches
Weight
3 kg / 6.61 lbs
Shipping information
Package Height
300 mm / 11.81 inches
Package Width
310 mm / 12.2 inches
Package Depth
200 mm / 7.87 inches
Package Weight
3.5 kg / 7.72 lbs
