PRECISION TRANSDUCERS

MR10N301

MIDRANGE
  • 3-inch, finside/outside copper voice coil
  • 600W continuous program power handling
  • 102 dB Sensitivity in horn loaded application
  • 150 Hz – 2 kHz Frequency range
Where to buy
Features Specifications Downloads
Where to buy
Features
  • 3-inch, finside/outside copper voice coil
  • 600W continuous program power handling
  • 102 dB Sensitivity in horn loaded application
  • 150 Hz – 2 kHz Frequency range
  • High BL neodymium design

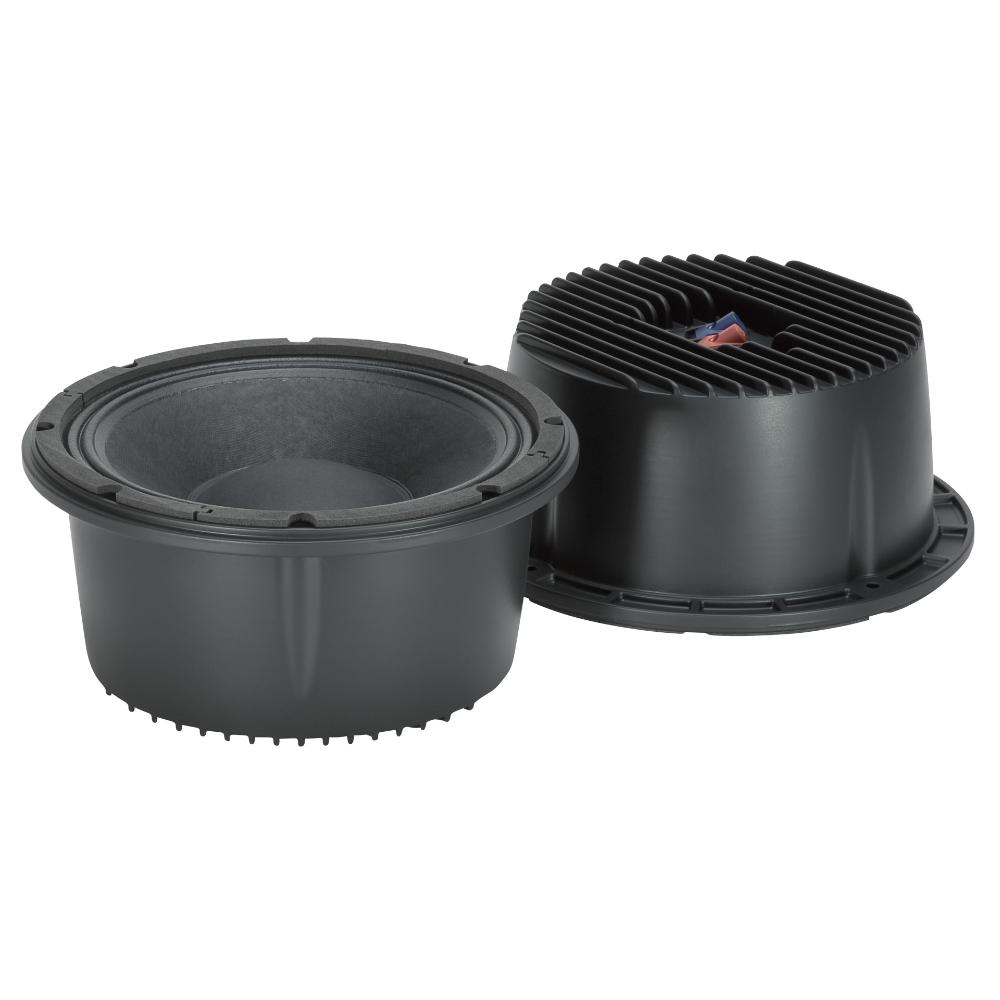

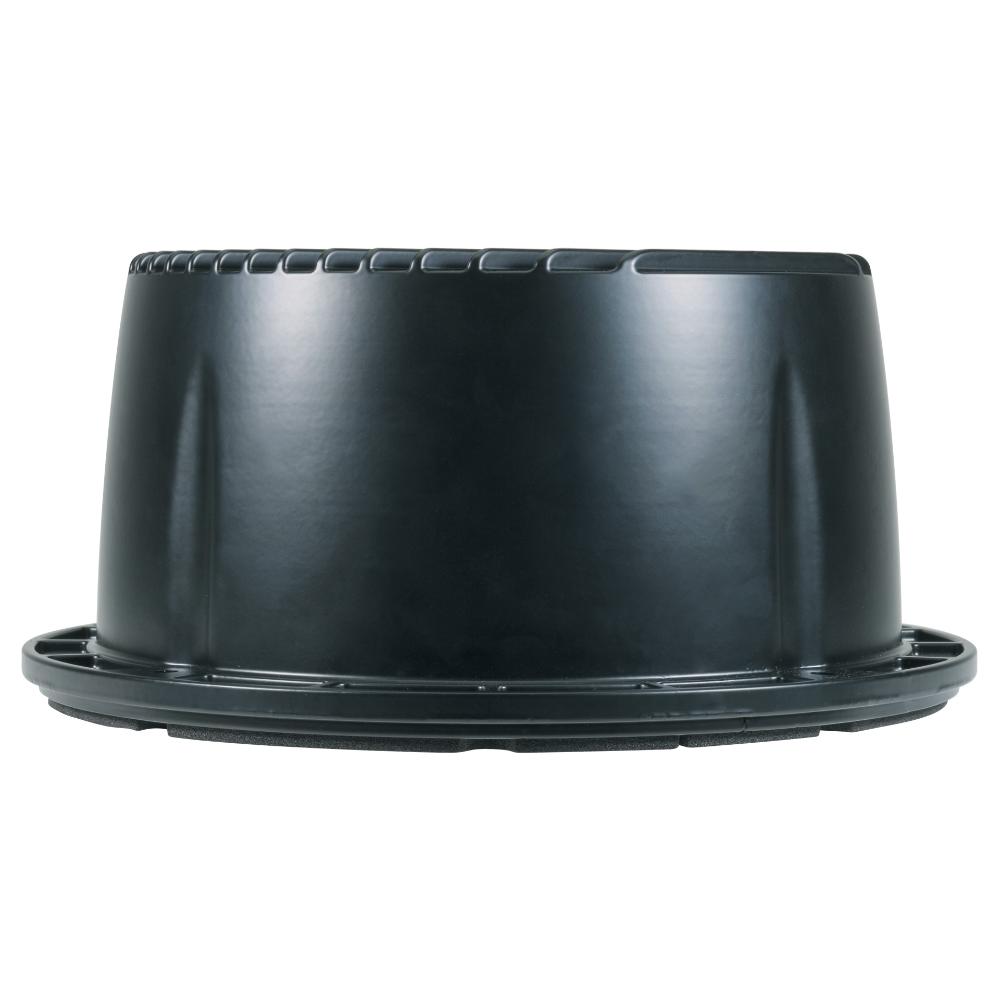

  • Unique aluminum sealed basket featuring vented fin heat dissipation design
  • Calibrated back volume for a perfect time domain transient reproduction

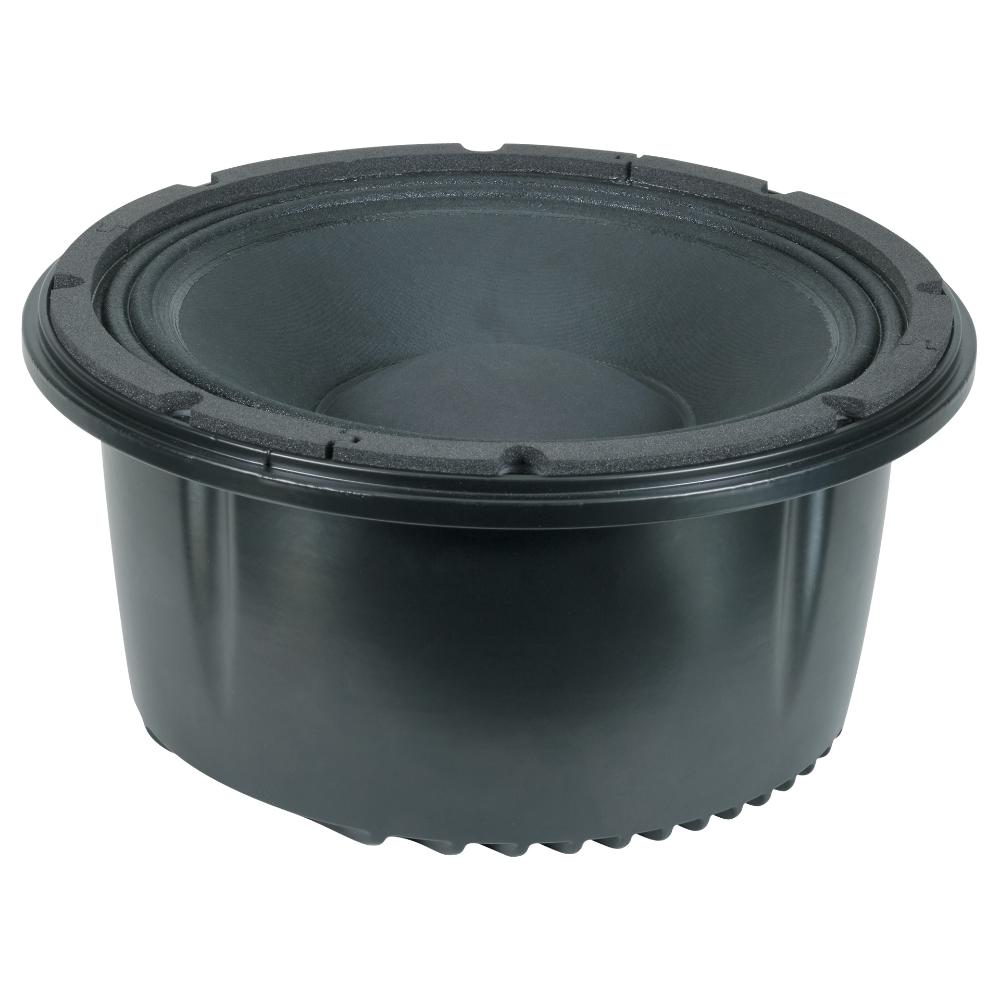

The MR10N301 is a high efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size. The total weight is reduced to less than half of a comparable ceramic midrange thanks to an incredibly powerful neodymium magnet assembly. The unique sealed basket design doesn't require a back sealing chember, simplifying the cabinet design and improving heat dissipation. Every detail of this speaker has been optimazed to offer the best response and perfect control to the midrange frequencies.

Part number:

11100005
MR10N301
8ohm

Specifications
General specifications
Nominal Diameter
10 inch / 254 mm
Rated Impedance
8 ohm
Program Power (watt)
600 W
Power handling capacity
300 W
Sensitivity
102.0 dB
Frequency range
150 - 2000 Hz
Effective piston diameter
210 mm / 8.27 inch
Max. Excursion Before Damage
20 mm / 0.79 inch
Minimum Impedance (ohm)
9.0 ohm
Voice Coil Diameter
3.0 inch / 76 mm
Voice Coil Length
11 mm / 0.43 inch
Number of layers
2
Kind of layers
inside/outside
Top Plate Thickness
10 mm / 0.39 inch
Cone Design
Curved
Surround Design
M-roll
Thiele - small parameters
Resonance frequency (Fs)
250 Hz
DC resistance (Re) (ohm)
6.20 ohm
Mechanical factor
6.48 Qms
Electrical factor
0.72 Qes
Total factor
0.65 Qts
Bl factor (Bl) (T x m)
20.70 T x m
Effective moving mass (Mms)
32.0 g
Equivalent Cas air loaded (Vas)
2.0 liters
Effective piston area (Sd)
0.040 m2
Max. linear excursion (Xmax)
1 mm
Voice coil inductance @ 1kHz (Le1k)
1.17 mH
Half-space efficency (Eff)
9.26%
Mounting information
Overall diameter
272 mm / 10.71 inches
Bolt circle diameter
244 mm / 9.61 inch
Bolt hole diameter
7 mm / 0.28 inch
Front mount baffle cut-out
235 mm / 9.25 inch
Rear mount baffle cut-out
232 mm / 9.13 inch
Volume occupied by the driver
5 liters / 0.2 ft3
Size
Height
142 mm / 5.59 inches
Diameter
272 mm / 10.71 inches
Weight
4.5 kg / 9.92 lbs
Shipping information
Package Height
170 mm / 6.69 inches
Package Width
285 mm / 11.22 inches
Package Depth
285 mm / 11.22 inches
Package Weight
5 kg / 11.02 lbs
