Features
  • Double sound source with two indipendent sections and outputs (Tuner - CD/MP3)
  • CD player insert to reproduce audio tracks and MP3 files from a compact disc (CD, CD-R, CD-R/W)
  • MP3 player from the USB drive or SD-Card drive ("Flash" memory-stick)
  • The USB port is available on both the front and back panels to provide maximum flexibility
  • LCD display gives information on the CD and MP3 files
  • I/R remote control included
  • FM radio tuner (87.5 - 108 MHz) with possibility to memorize your 30 favourite radio stations
  • LCD display shows the frequency and stations that are in the memory

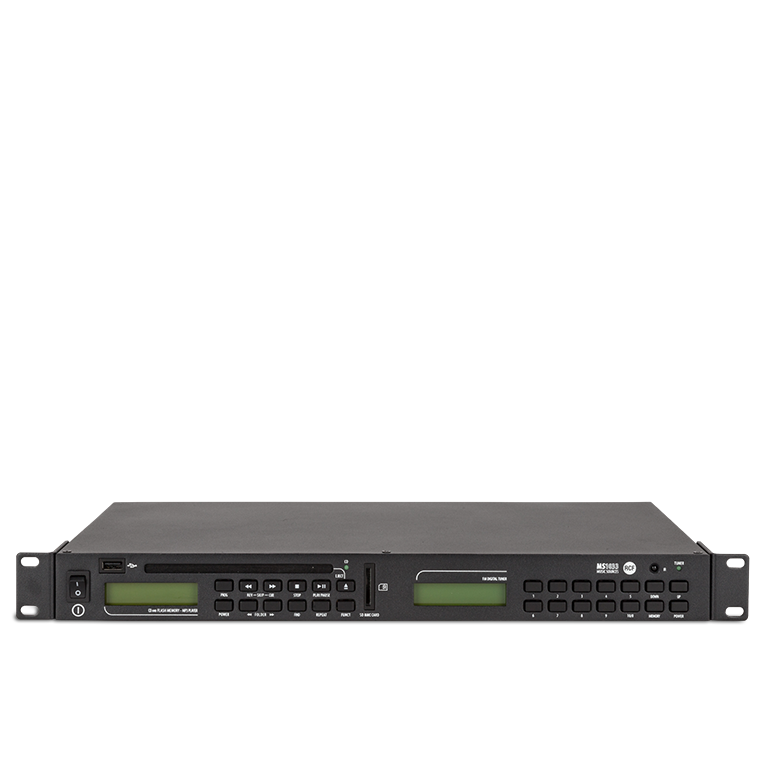

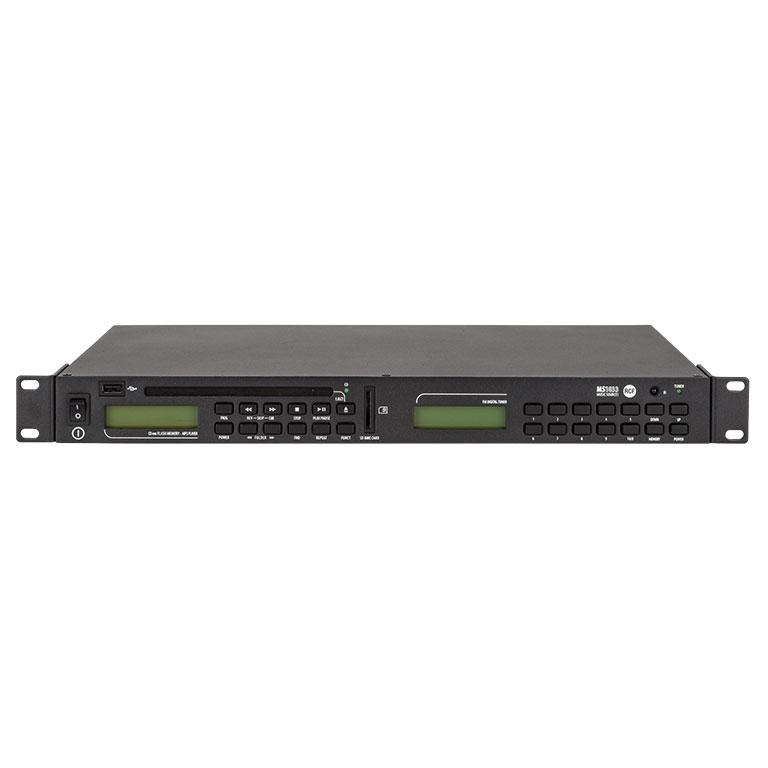

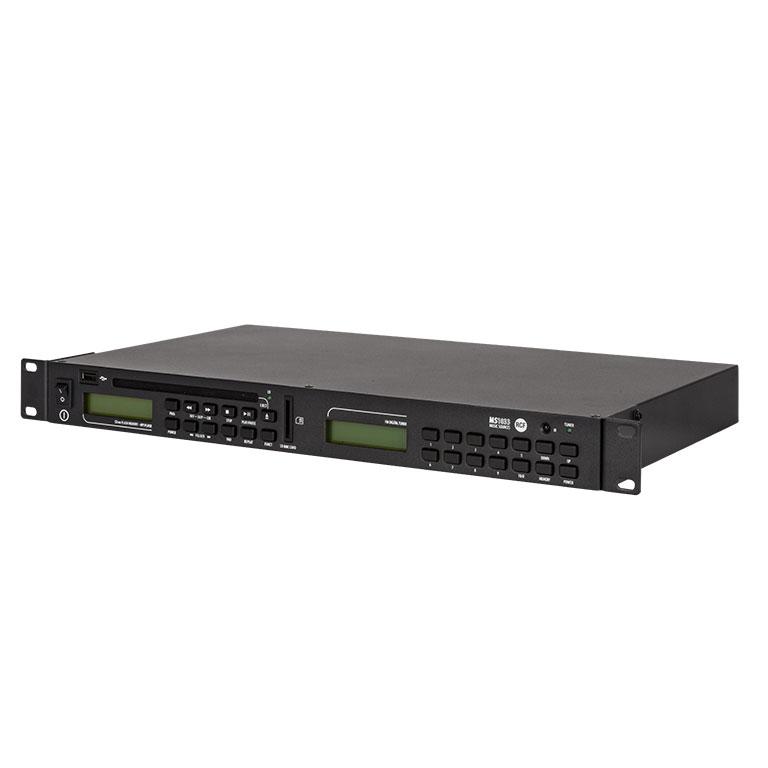

The MS 1033 is really a dual sound source, built on two independent sections that can be used at the simultaneously. - CD player with anti-shock mechanic and electronics. It plays both audio tracks and MP3 files on compact discs (CD, CD-R, CD-R/W). It plays MP3 files (only) on USB flash drives and ‘Secure Digital’ (SD) cards (this port is also compatible for ‘MultiMedia Cards’) . - Tuner (FM: 87.5 ÷ 108 MHz) with 60 memories (10 accessed directly and 50 through the remote control) to store and recall preferred stations quickly.


ARCHIVED

Part number:

17170108
MS 1033
90-240V, EAN 8024530005665

Specifications
Amplifier specifications
Frequency Response (-3dB)
20 Hz ÷ 20 Hz
Crosstalk
<60 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.15 %
Output section
Signal output number
3
Signal output connectors
RCA
Configuration and control
Configuration
Front panel
Priority
Yes
Protections
Cooling
Convection
Audio sources
CD
Yes
FM Tuner
Yes
USB pen drives
Yes
SD card
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Voltage selection
External
Power consumption (MAX)
50 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Color
Black
Rack mounting
19", 1U
Size
Height
44 mm / 1.73 inches
Width
482 mm / 18.98 inches
Depth
250 mm / 9.84 inches
Weight
3.7 kg / 8.16 lbs
Shipping information
Package Height
120 mm / 4.72 inches
Package Width
540 mm / 21.26 inches
Package Depth
380 mm / 14.96 inches
Package Weight
4.6 kg / 10.14 lbs
