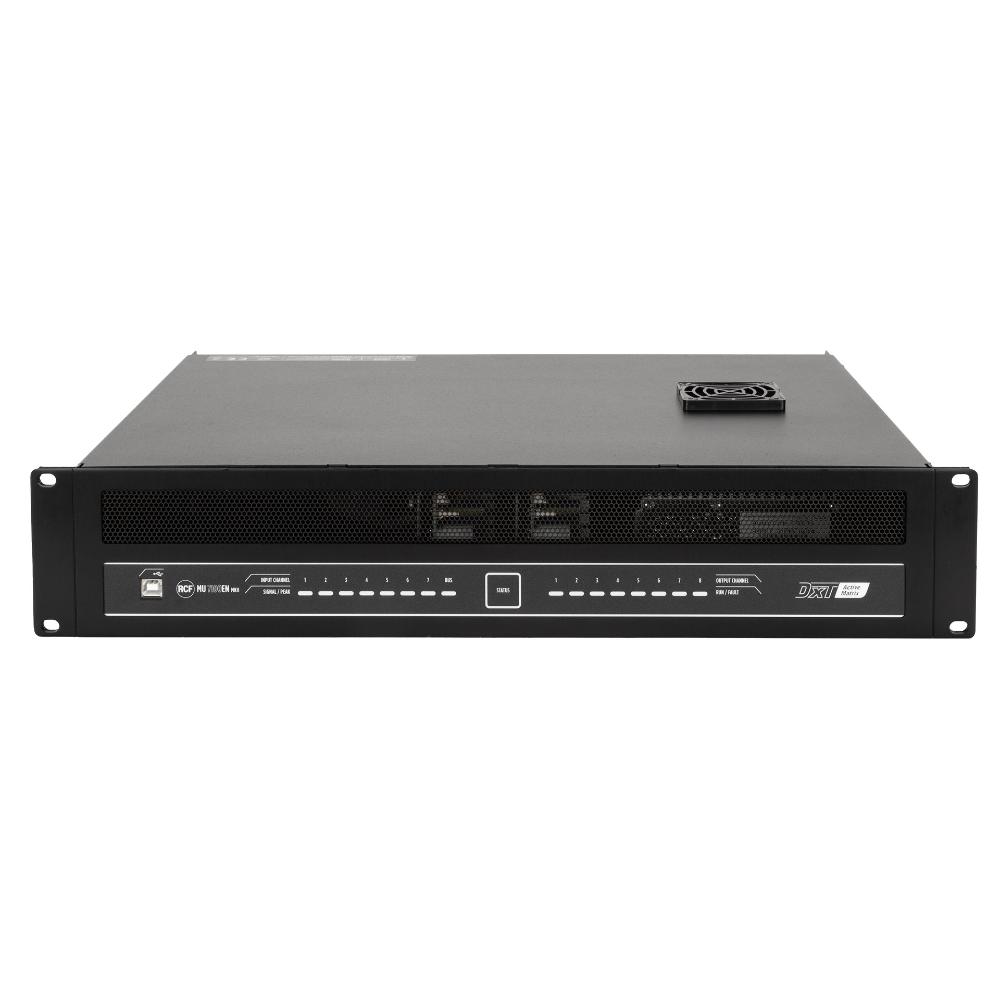

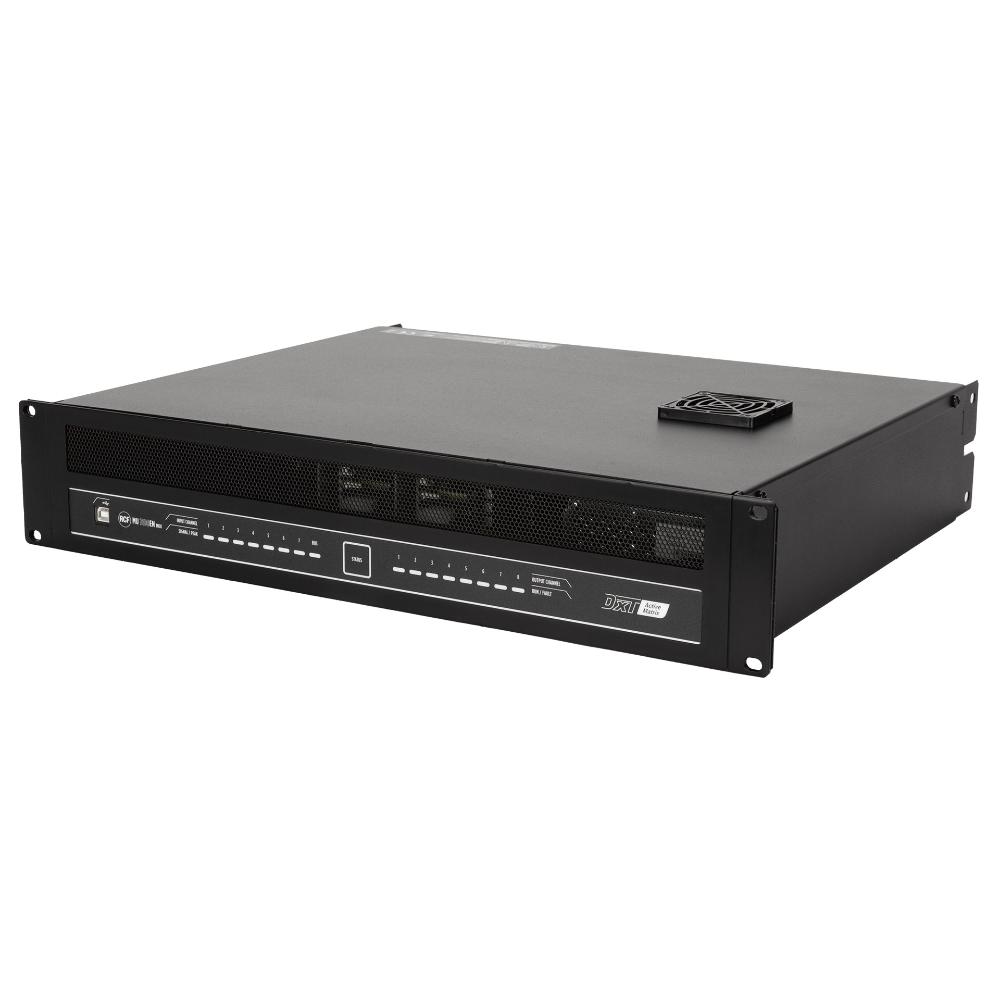

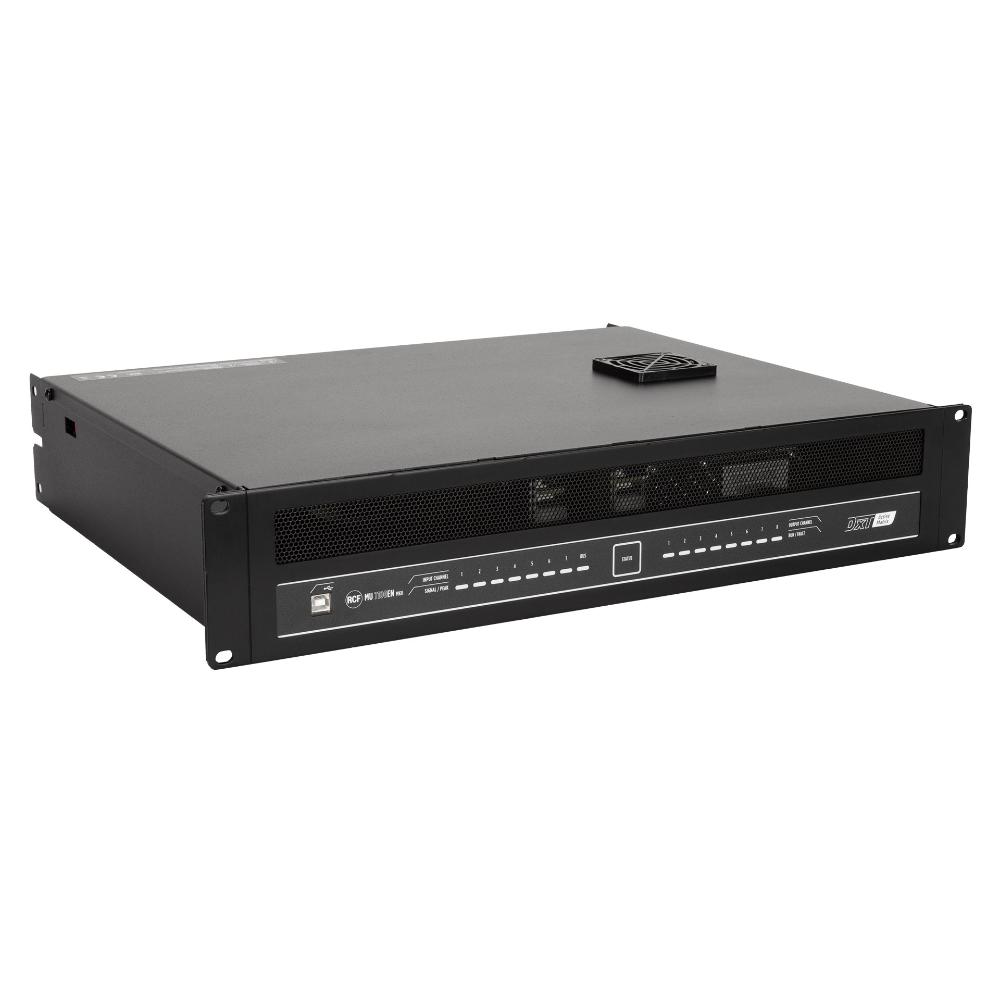

MU 7100EN MKII
AMPLIFIED MASTER UNIT
- 8 x 7 configurable digital matrix
- Powerful DSP platform on-board
- Dual AC and DC power supply
- 8 x 80 W power amplifier
EN 54
Features
- 8 x 7 configurable digital matrix
- Powerful DSP platform on-board
- Dual AC and DC power supply
- 8 x 80 W power amplifier
- PC software configuration
- Emergency messages on monitored memory
- Up to 32 units linked together
- Up to 256 loudspeaker lines
MU 7100EN MKII is the master unit of the DXT 7000 Voice Alarm system, designed to fulfill all requirements of EN 54-16 and EN 60849 standard. The whole signal path from microphone to loudspeaker lines is completely and automatically monitored against faults. All properties and functions of the system are specified with Windows based DXT 7000 configuration software and are downloaded to master unit through its USB port.
NEW
Part number:
12100063
MU 7100EN MKII
EAN 8024530019679
Specifications
System specifications
Number of zones managed
128
Built-in power amplifier
Yes
Spare amplifier automatic change-over
Yes
Max number of consoles
32
Number of console buses
2
Number of simultaneous emergency audio channels
2
Max number of units connectable
64
Communication bus
Serial
Connection Cables
FTP CAT 5, FTP CAT 6
Integrated pre-recorded emergency messages
Yes
Integrated pre-recorded routine messages
Yes
Message scheduler
Yes
Remote monitoring
Yes
Protocols for system integration
ASCII
Amplifier specifications
Amplifier Class
D
Number of channels
8
Output power @ 8 ohm (W)
80 W RMS
A/B speakers line
Yes
Frequency Response (-3dB)
20 Hz ÷ 20 kHz
Signal/noise rate (”A” weighted)
>96 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.05 %
Input section
Total number of inputs
9
Balanced
7
Mono
7
Mic+Line inputs
7
Mic+Line connectors
Euroblock
Paging inputs
2
Paging connectors
RJ45
General Purpose Inputs (GPI)
8
Programmable GPI
Yes
Monitored GPI
8
Output section
Power output lines
8
Power output connectors
Euroblock
General Purpose Outputs (GPO)
8
Programmable GPO
Yes
Processing
DSP
Yes
EQ Filters
Yes
Compressors
Yes
Delay
Yes
Tone controls
Yes
Controls
Configuration
DIP switch, PC Software
Number of programs/presets
128
Priority
Yes
Music on hold
Yes
Chime tone
Yes
Protections
Cooling
Convection/Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
Power requirement
Operating voltage
90-240 V~ 50/60Hz
DC power
Yes
DC power value
48 V
Power consumption (MAX)
980 W
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
1438-CPR-0241
Physical specifications
Cabinet/Case Material
Metal
Rack mounting
19", 2U
Size / Weight
Height
94 mm / 3.7 inches
Width
482 mm / 18.98 inches
Depth
378 mm / 14.88 inches
Weight
8.4 kg / 18.52 lbs
Shipping information
Package Height
190 mm / 7.48 inches
Package Width
540 mm / 21.26 inches
Package Depth
480 mm / 18.9 inches
Package Weight
9.5 kg / 20.94 lbs
