Features
  • 500 W total power
  • 2 zones controlled
  • DSP platform on-board
  • Certified EN 54-16 and EN 54-4
  • Emergency messages on monitored SD card
  • Spare power amplifier facility

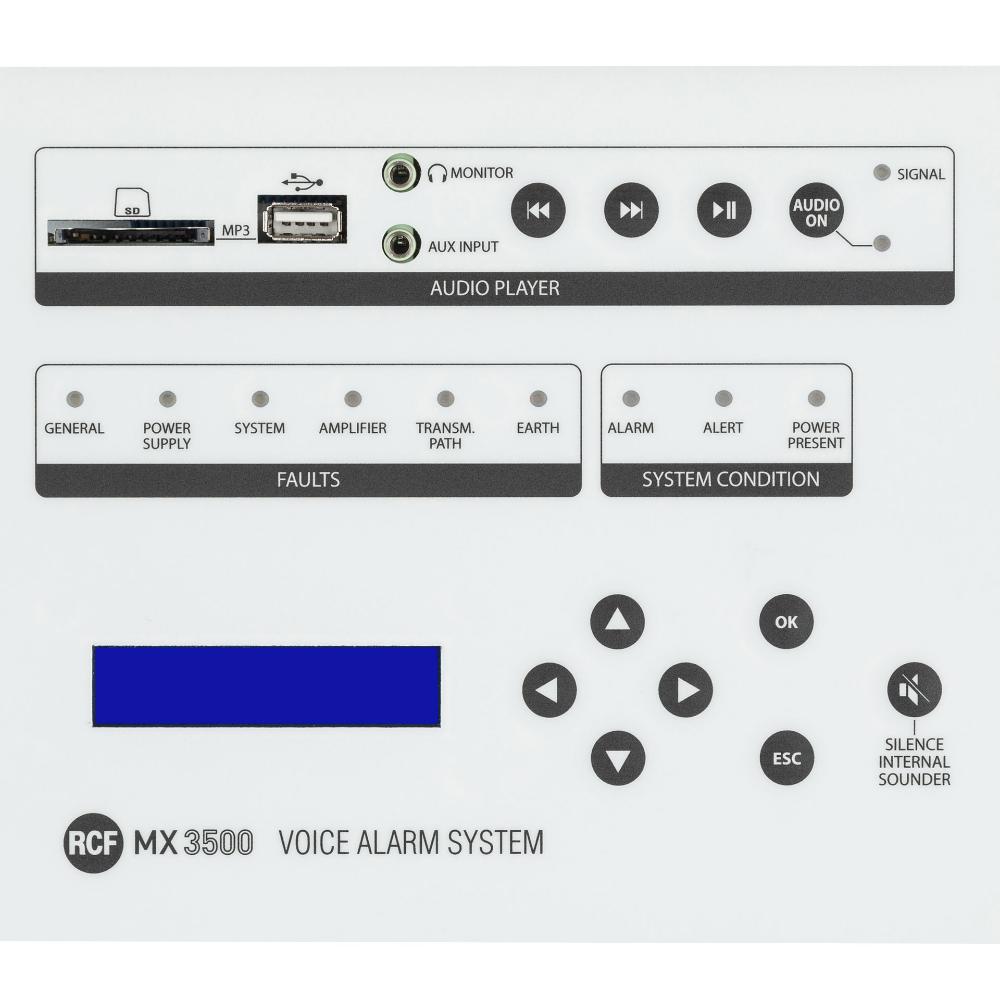

  • Integrated audio source on front panel
  • Wall mount or rack mount installation

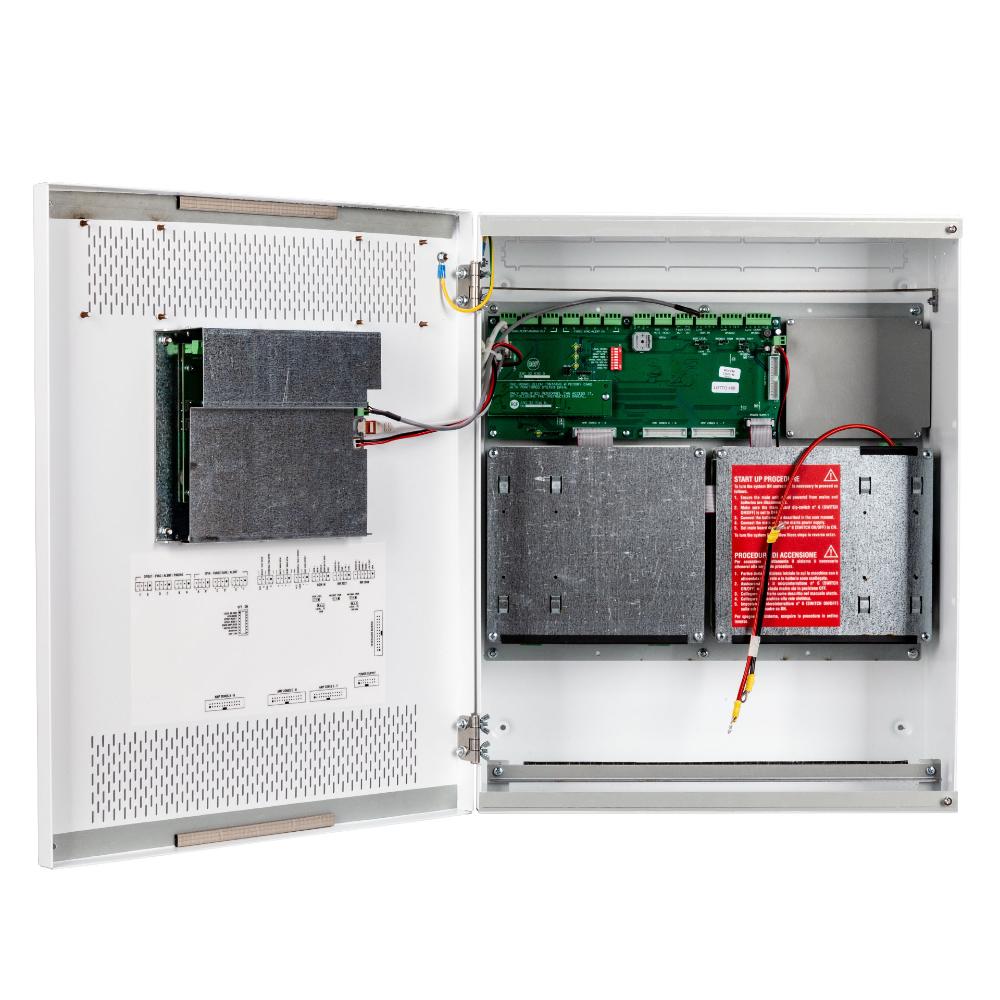

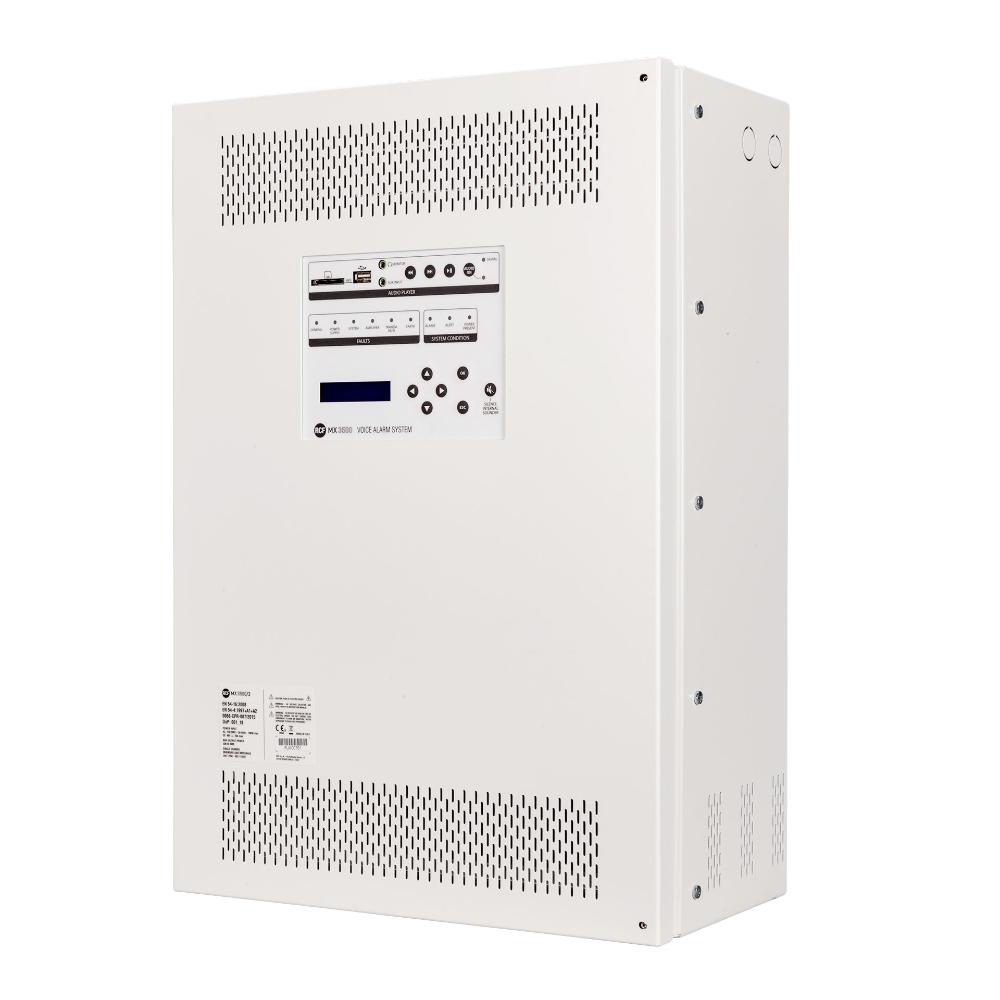

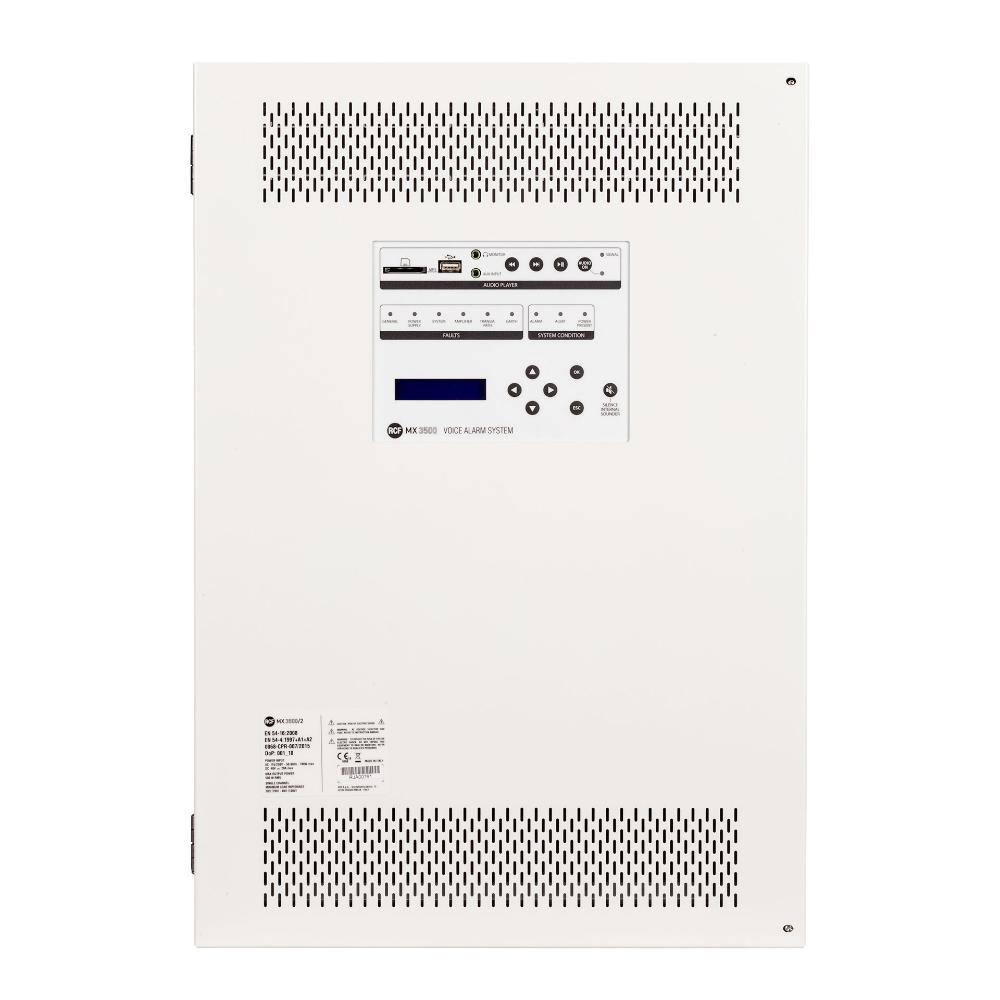

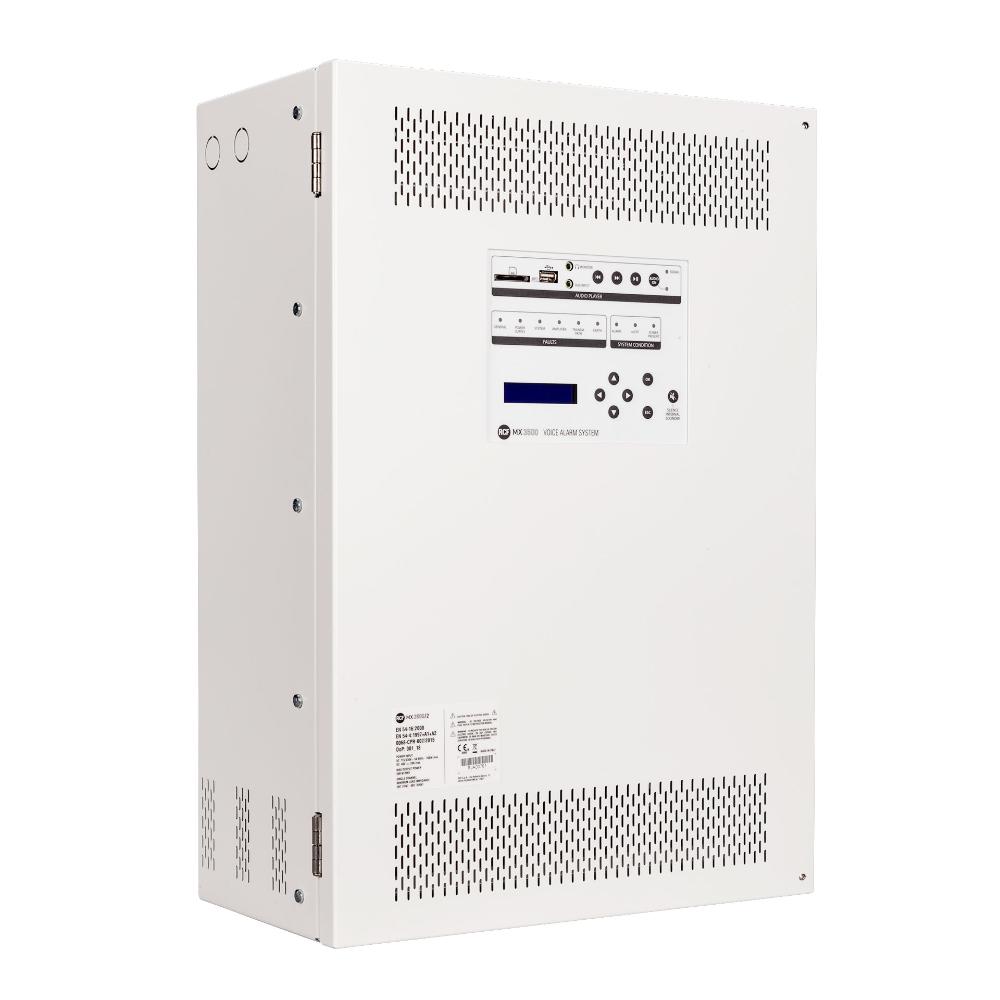

MX 3500 is the master unit of the Voice Alarm system DXT 3000, dedicated to small and medium size applications where an EN 54-16 certified system is required. It is equipped with powerful and exceptionally reliable Class D power amplifiers, able to provide up to 500 W of total power. Depending on the model, it is able to serve up to 6 independent zones. Moreover, the spare power amplifier facility is also available. The internal power supply is certified EN 54-4, and the back-up batteries can be host inside the cabinet, making the system a complete and extremely compact solution. Moreover, the on-board DSP platform allows optimizing environmental equalization, maximizing voice intelligibility and background music performance. The system can be completed with emergency microphone consoles BM 3804, BM 3804FM and ME 3801, and the buttons extensions BE 3806, allowing to add live announcements functionality.

Part number:

12100009
MX 3500/2
EAN 8024530014698

Specifications
System specifications
Number of zones managed
2
Built-in power amplifier
Yes
Spare amplifier automatic change-over
Yes
Max number of consoles
4
Number of console buses
1
Number of simultaneous emergency audio channels
1
Max number of units connectable
8
Communication bus
Serial
Connection Cables
J-Type fire-rated
Integrated pre-recorded emergency messages
Yes
Amplifier specifications
Amplifier Class
D+
Number of channels
2
Output power @ 100 V (W)
500 W RMS
A/B speakers line
Yes
Frequency Response (-3dB)
80 Hz ÷ 16 kHz
Signal/noise rate (”A” weighted)
>98 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.3 %
Input section
Total number of inputs
3
Balanced
3
Mono
3
Line inputs
2
Line connectors
Euroblock, JACK
VOX
Yes
Paging inputs
1
Paging connectors
Euroblock
Paging command
Serial
Paging emergency
Yes
General Purpose Inputs (GPI)
6
Monitored GPI
6
Photo-coupled GPI
6
Output section
Signal output number
1
Signal output connectors
JACK
Power output lines
2
Power output connectors
Euroblock
General Purpose Outputs (GPO)
6
Processing
DSP
Yes
Tone controls
Yes
High-pass filter
20 Hz ÷ 500 Hz
Controls
Configuration
DIP switch, Front panel
Chime tone
Yes
Protections
Cooling
Convection
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Audio sources
USB pen drives
Yes
SD card
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Voltage selection
Internal
DC power
Yes
DC power value
48 V
Power consumption (MAX)
700 W
Standard compliance
IP protection grade
IP 30
Safety agency
CE compliant
EN54-16 certified
Yes
EN54-4 certified
Yes
CPR number
0068-CPR-007/2015
Physical specifications
Color
White
Rack mounting
19", 14U
Size
Height
620 mm / 24.41 inches
Width
430 mm / 16.93 inches
Depth
230 mm / 9.06 inches
Weight
19.4 kg / 42.77 lbs
Shipping information
Package Height
500 mm / 19.69 inches
Package Width
680 mm / 26.77 inches
Package Depth
340 mm / 13.39 inches
Package Weight
23.2 kg / 51.15 lbs
