PRECISION TRANSDUCERS

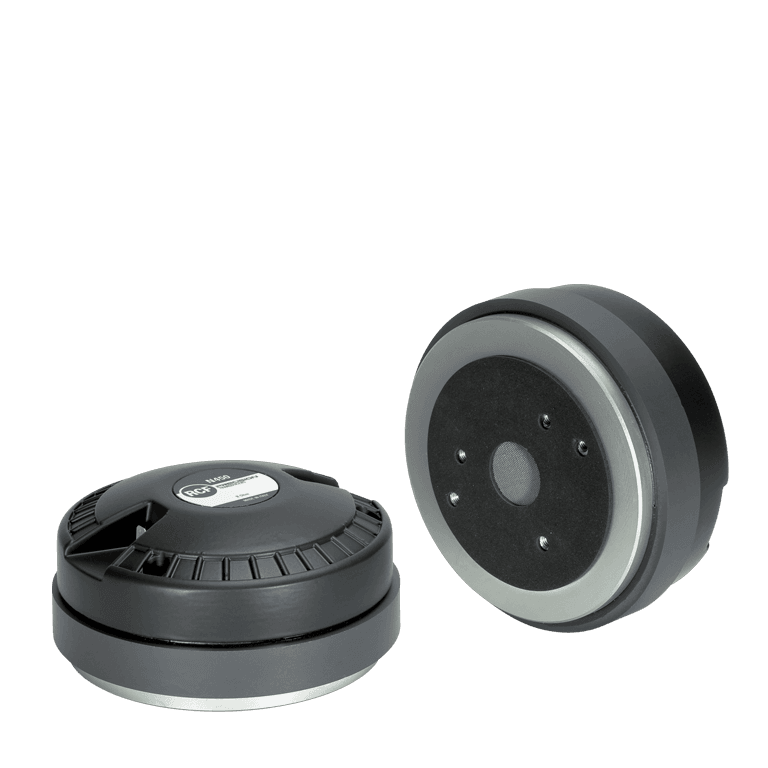

N450
DRIVER
- 1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
- 100W continuous program power handling
- Frequency range: 1000Hz - 20kHz
- 2-slot optimized geometry phase plug
Features
- 1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
- 100W continuous program power handling
- Frequency range: 1000Hz - 20kHz
- 2-slot optimized geometry phase plug
- Aluminium rear cover
- Copper inductance ring for extended response
- Vented suspension system
The N450 features 1.75-inch diaphragm with a 1-inch exit throat. The diaphragm is precision formed from 0.025 thick pure titanium. The suspension is based on a vented Mylar design. The N450 is a versatile driver for professional applications.
ARCHIVED
Part number:
15120057
N450
Specifications
General specifications
Exit Throat Diameter
1.0 inch / 25 mm
Related Impedance
8 ohm
Program Power (watt)
100 W
Power handling capacity
50 W
Sensitivity
107 dB
Frequency range
1000 - 20000 Hz
Diaphragm Material
Pure Titanium
Suspension Material
Mylar
Suspension Design
Radial
Minimum Impedance (ohm)
8.00 ohm
Voice Coil Diameter
1.75 inch / 44 mm
Voice Coil Winding Material
Edgewound Aluminum
Voice Coil Former Design
Straight - Kapton
Number of layers
1
Kind of layers
outside
Flux Density
1.6 T
Phase Plug Design
2 slot
Phase Plug Material
PP Composite
Magnetics
Ceramic
Voice Coil Demodulation Ring
Copper
Thiele - small parameters
Bl factor (Bl) (T x m)
6.70 T x m
Mounting information
Overall diameter
134 mm / 5.28 inches
Overall height
70 mm / 2.76 inches
Mounting
4 x 5 mm threaded holes at 90°
Standard compliance
Safety agency
CE compliant
Size / Weight
Weight
2.85 kg / 6.28 lbs
Shipping information
Package Height
85 mm / 3.35 inches
Package Width
195 mm / 7.68 inches
Package Depth
170 mm / 6.69 inches
Package Weight
3 kg / 6.61 lbs
