Features
  • 4-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
  • 280W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 4-slot optimized geometry phase plug
  • Titanium diaphragm, Polyimide surround
  • Copper inductance ring for extended response
  • The minimum size 4" driver available
  • Nedymium magnet assembly

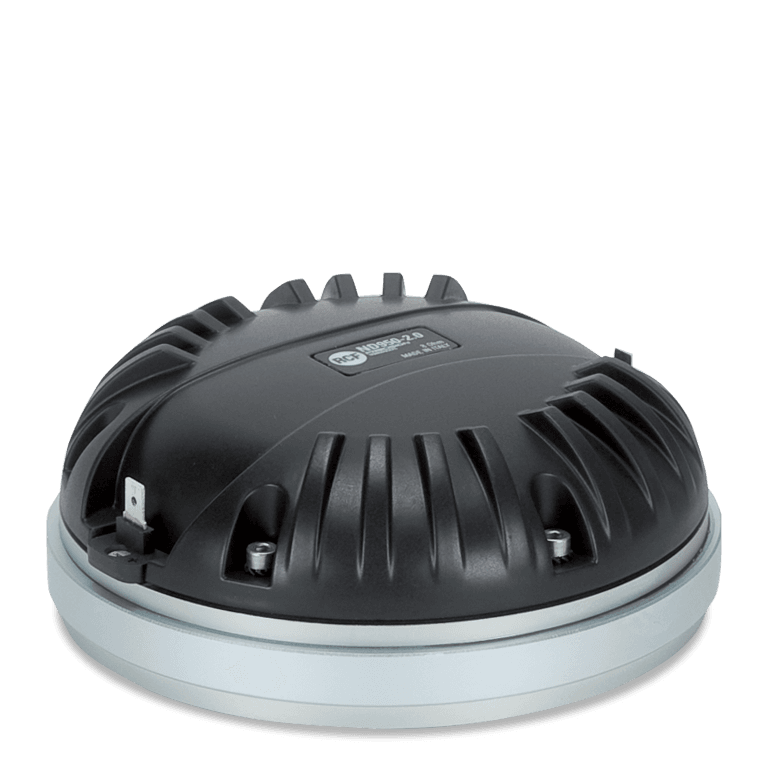

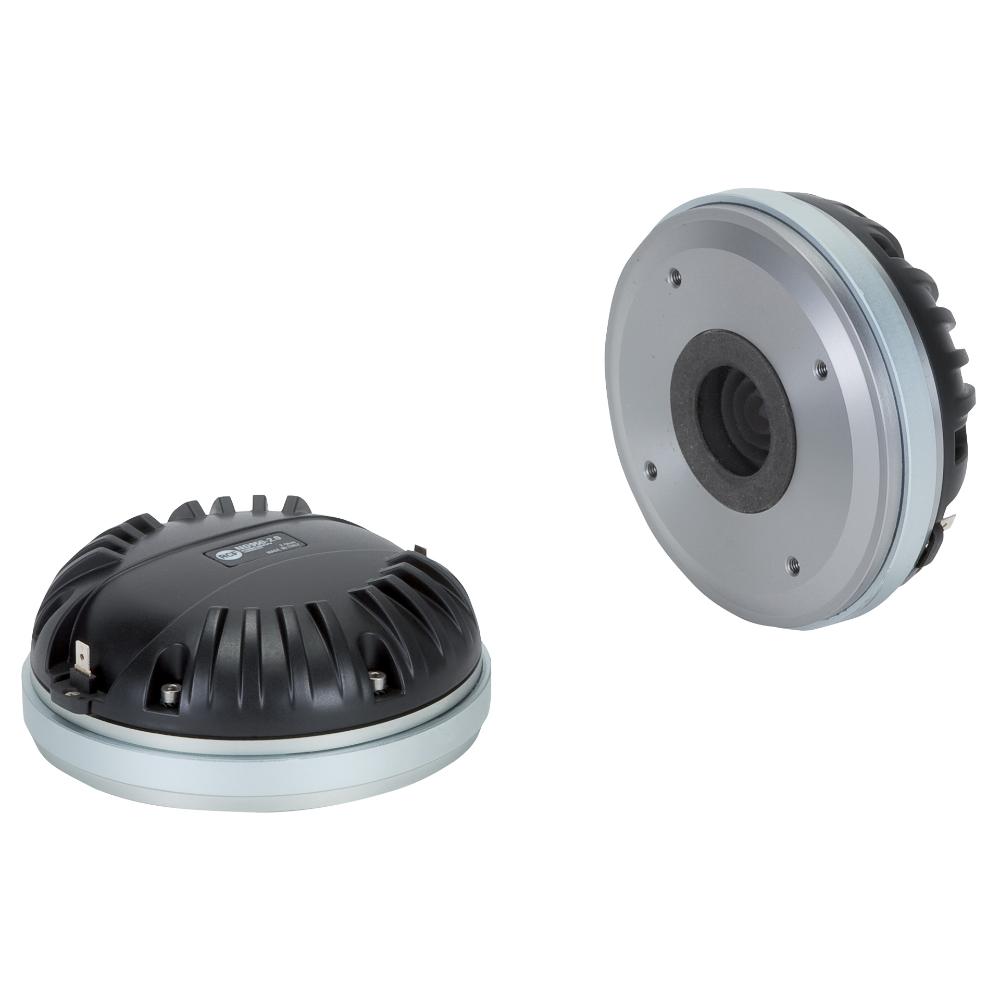

The ND950 1.4 is a ultra compact size, high performance, high power handling 4.0-inch diaphragm compression driver with a 1.4 inch exit throat. The high power neodymium magnet guarantee the perfect control of the dome assembly’s moving mass. This leads to higher efficiency, better transient response and diminishes high frequency distortion modes. A thin copper ring is precision pressed on to the pole piece in order to modify and lower the inductance characteristics of the magnetic circuit and voice coil providing a controlled extension of the acoustic frequency response. The ND950 1.4 features a 0.05 mm thick pure titanium dome in combination with a high strength Mylar suspension. The voice coil assembly is designed using a high strength, high temperature Kapton® voice coil former and edge wound copper clad aluminium wire. The ND950 1.4 features a 4-slot, optimised geometry, phase plug design. Extended computer assisted mathematical modelling and testing has resulted in a geometry that provides a balanced acoustic performance controlling and lowering air distortion and maximizing output.

Part number:

15129038
ND950 1.4
8ohm

Specifications
General specifications
Exit Throat Diameter
1.4 inch / 36 mm
Related Impedance
8 ohm
Program Power (watt)
280 W
Power handling capacity
140 W
Sensitivity
110 dB
Frequency range
500 - 20000 Hz
Diaphragm Material
Pure Titanium
Suspension Material
Polyimide
Suspension Design
Flat
Minimum Impedance (ohm)
8.50 ohm
Voice Coil Diameter
4.0 inch / 102 mm
Voice Coil Winding Material
Edgewound Aluminum
Voice Coil Former Design
Direct Drive Kapton
Number of layers
1
Kind of layers
inside/outside
Flux Density
2.0 T
Phase Plug Design
4 slot
Phase Plug Material
Aluminum
Magnetics
Neodymium
Voice Coil Demodulation Ring
Copper
Thiele - small parameters
Bl factor (Bl) (T x m)
17.60 T x m
Mounting information
Overall diameter
146 mm / 5.75 inches
Overall height
60 mm / 2.36 inches
Mounting
4 x 6 mm threaded holes at 90°
Standard compliance
Safety agency
CE compliant
Size
Weight
3.5 kg / 7.72 lbs
Shipping information
Package Height
79 mm / 3.11 inches
Package Width
169 mm / 6.65 inches
Package Depth
171 mm / 6.73 inches
Package Weight
3.7 kg / 8.16 lbs
