Features
  • 4.0 inch, Titanium dome, polyimide surround
  • 280W continuous program power handling @ 8O
  • Frequency range: 500Hz - 20kHz
  • Kapton former, inside/outside edge wound aluminum voice coil
  • 4-slot optimized geometry phase plug
  • Copper inductance ring for extended response
  • Low recommended crossover point

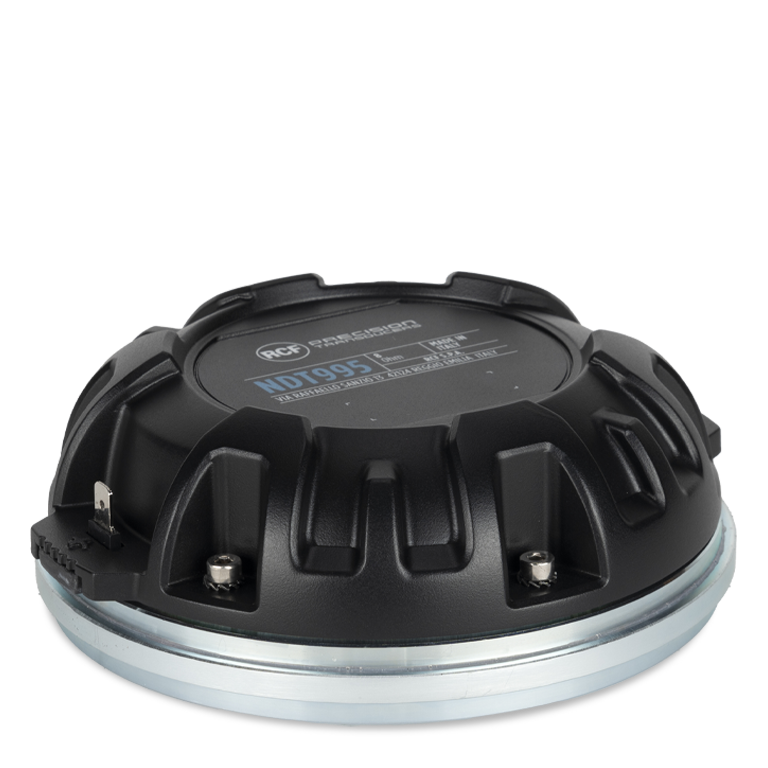

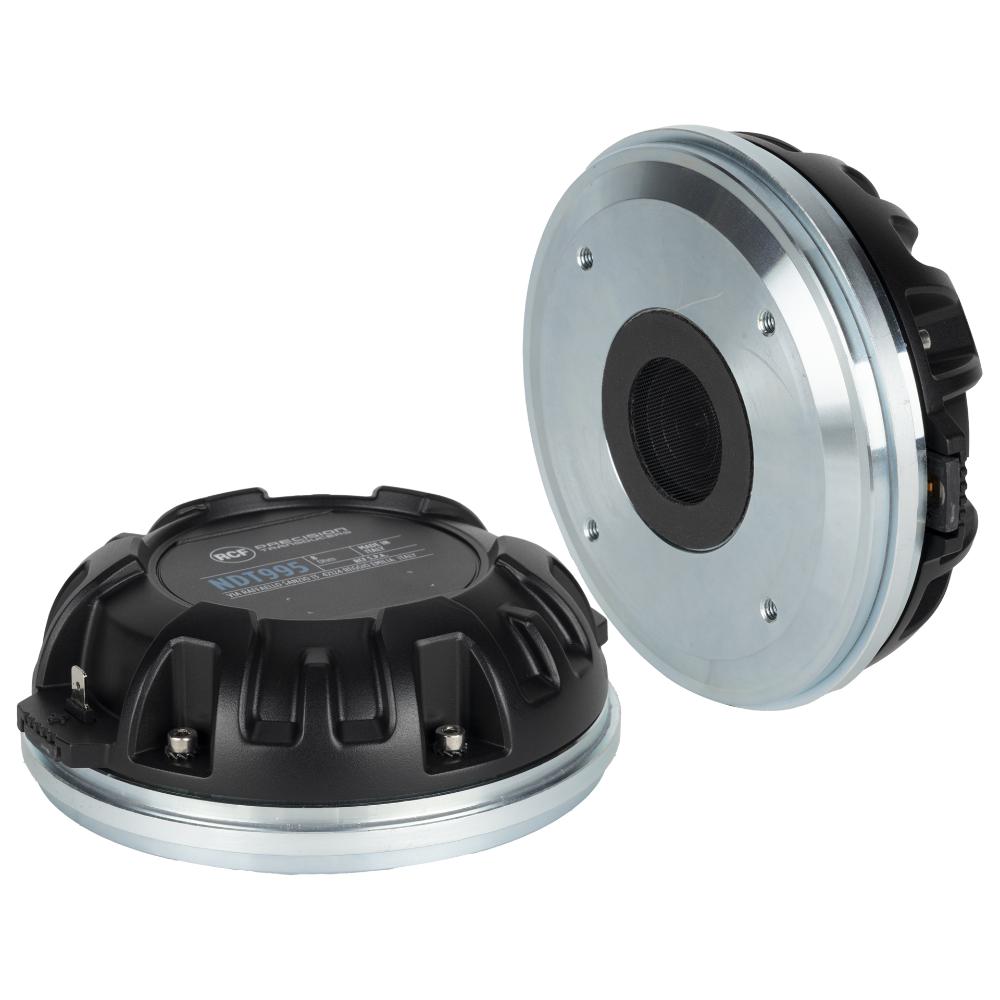

The 4-inch pure titanium dome NDT995 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly with a copper demodulation ring to reduce harmonic and intermodulation distortion. The 4" class-leading design utilizes a Kapton former, inside-outside ultralight edge wound aluminum wire and a 4-slot phase plug to deliver minimum distortion across its operating bandwidth. The high sensitivity at 110 dB, 280 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 650 Hz make it ideal for integration with waveguides in two-way high-powered systems.


NEW

Part number:

15100033
NDT995
8ohm

Specifications
General specifications
Exit Throat Diameter
1.4 inch / 36 mm
Related Impedance
8 ohm
Program Power (watt)
280 W
Power handling capacity
140 W
Sensitivity
110 dB
Frequency range
500 - 20000 Hz
Suspension Design
Flat
Minimum Impedance (ohm)
8.50 ohm
Voice Coil Diameter
4.0 inch / 102 mm
Voice Coil Former Design
Direct Drive Kapton
Number of layers
1
Kind of layers
inside/outside
Flux Density
2.0 T
Phase Plug Design
4 slot
Thiele - small parameters
Bl factor (Bl) (T x m)
17.60 T x m
Mounting information
Overall diameter
146 mm / 5.75 inches
Overall height
55 mm / 2.17 inches
Mounting
4 x 6 mm threaded holes at 90°
Standard compliance
Safety agency
CE compliant
Shipping information
Package Height
79 mm / 3.11 inches
Package Width
169 mm / 6.65 inches
Package Depth
171 mm / 6.73 inches
Package Weight
2.92 kg / 6.44 lbs
