VOICE ALARM EN54

PL 70EN

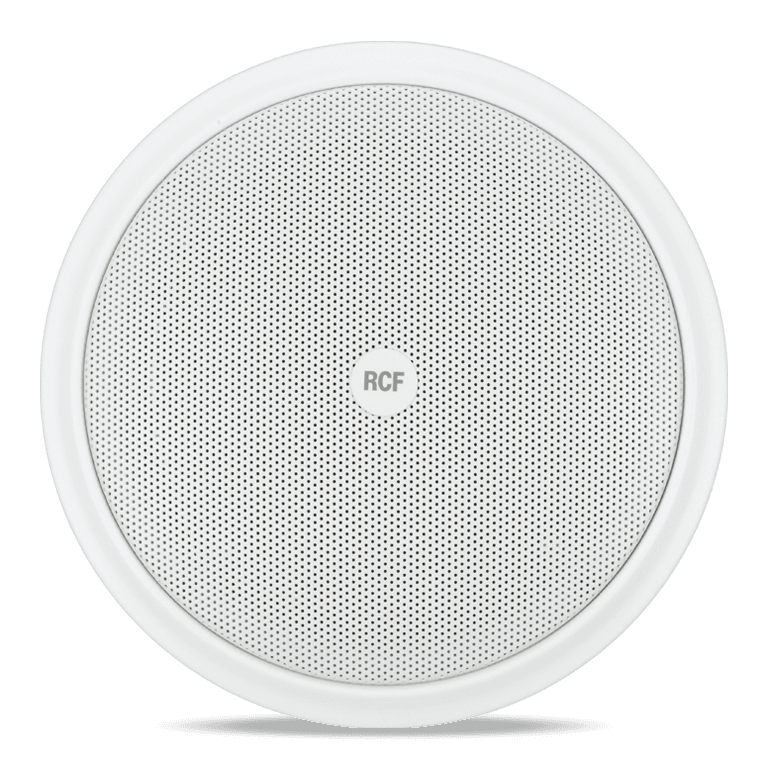

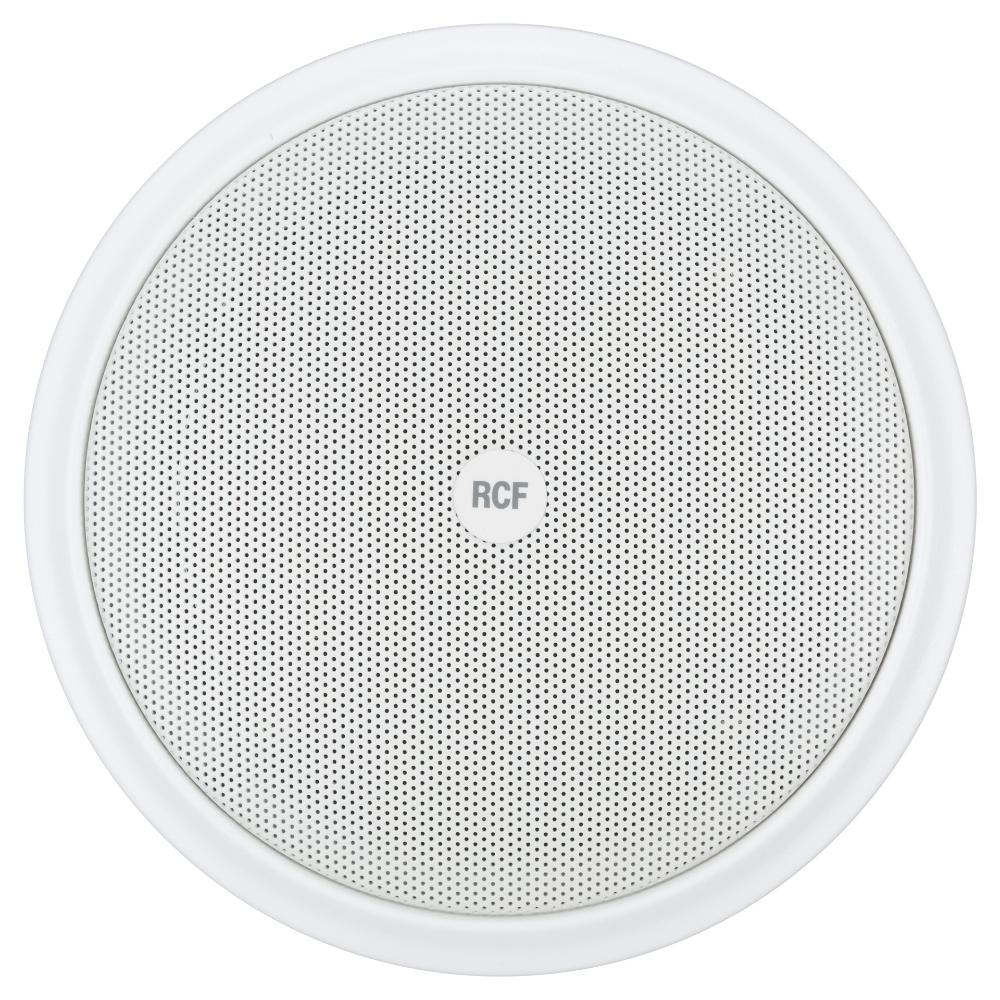

CEILING SPEAKER WITH FIRE DOME
  • 6" fullrange transducer.
  • Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
  • 93 dB sensitivity.
  • Colour white RAL 9003.
EN 54
Where to buy
Features Specifications videos Downloads
Where to buy
Features
  • 6" fullrange transducer.
  • Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
  • 93 dB sensitivity.
  • Colour white RAL 9003.
  • Steel frame, grille and back can.
  • In/out ceramic terminal block.
  • Thermal fuse protection.

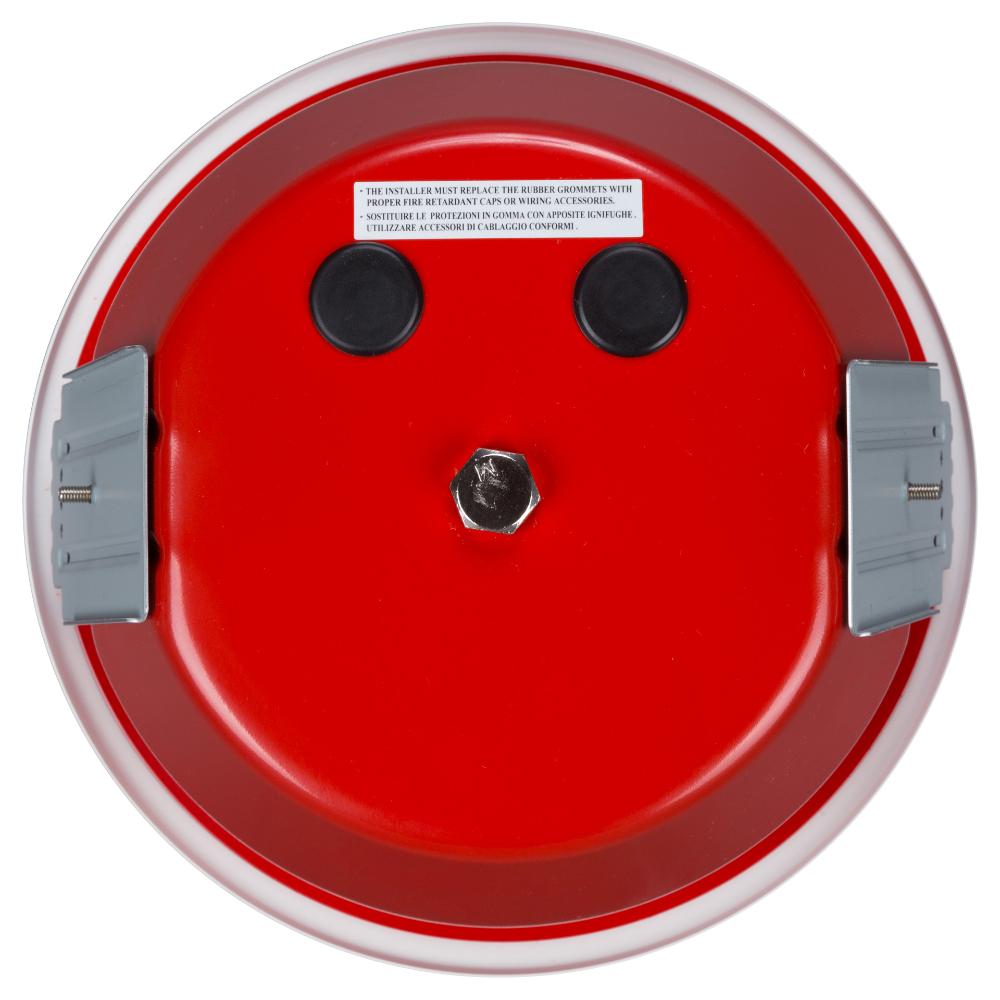

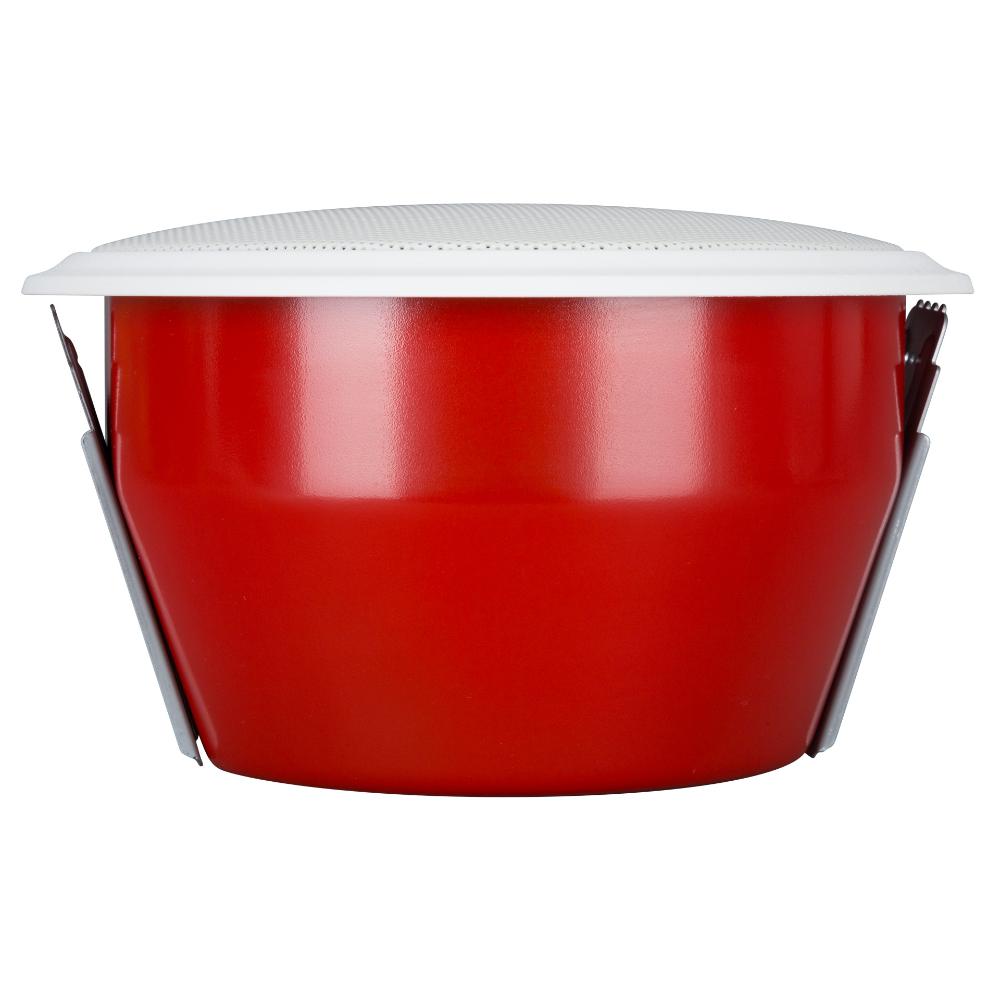

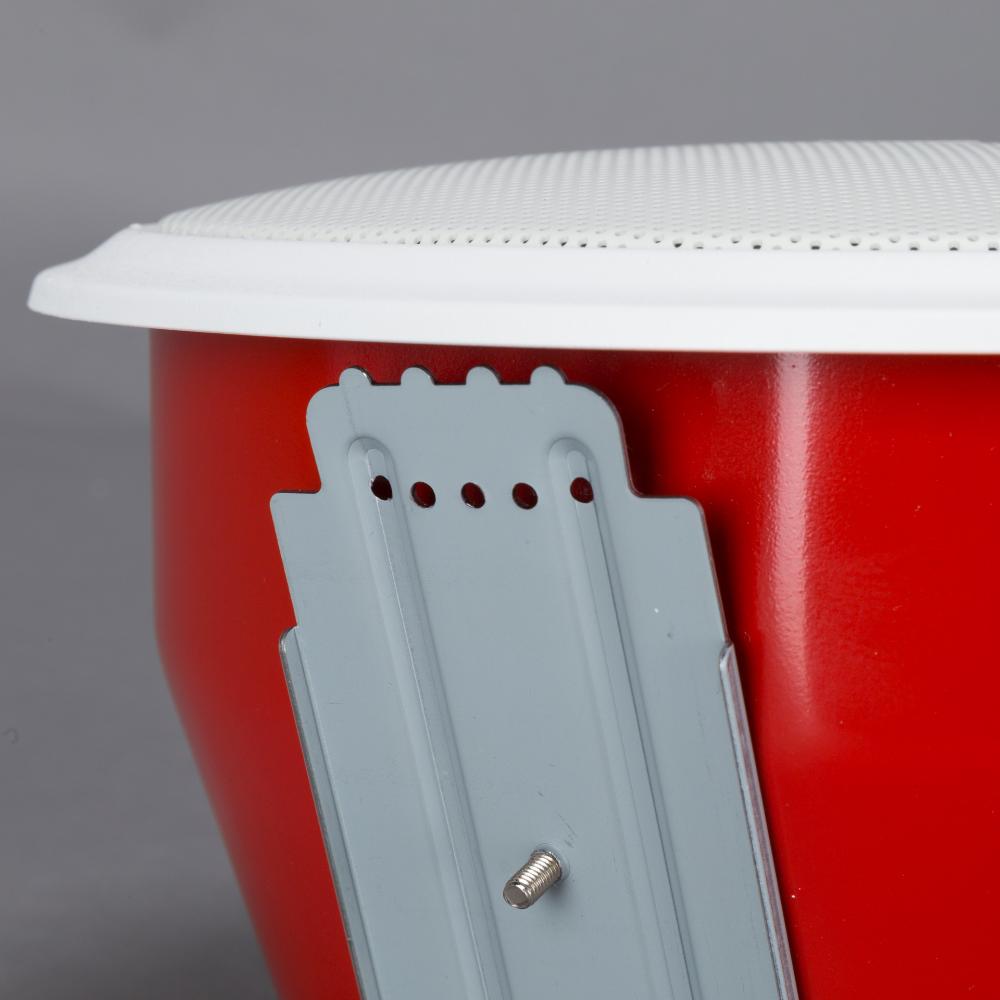

PL 70EN is a ceiling speaker featuring a flameproof steel back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.

Part number:

13133065
PL 70EN
EAN 8024530007591

Specifications
Acoustical specifications
Frequency Response (-10dB):
230 Hz ÷ 20000 Hz
Max SPL @ 1m:
99 dB
Max SPL @ 4m:
87 dB
Coverage angle:
131°
System Sensitivity:
93 dB
System Sensitivity 1W @ 4m:
81 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
6 W
Peak Power Handling:
24 W PEAK
Recommended Amplifier:
12 W
Protections:
Thermal fuse
Transducers
Fullrange:
6.0''
Input/Output section
Input connectors:
Ceramic screw terminals
Output connectors:
Ceramic screw terminals
Constant Voltage Transformer:
100 V
Power selection 1:
6 W - 1667 ohm
Power selection 2:
3 W - 3333 ohm
Power selection 3:
1.5 W - 6667 ohm
Power selection 4:
0.75 W - 13333 ohm
Standard compliance
Safety agency:
CE compliant
EN54-24 certified:
Yes
CPR number:
1488-CPR-0487/W
Physical specifications
Cabinet/Case Material:
Metal
Hardware:
Steel back cover
Grille:
Steel
Color:
White - RAL 9003
Size
Height:
137 mm / 5.39 inches
Recessed Depth:
124 mm / 4.88 inches
Diameter:
230 mm / 9.06 inches
Cut out diameter:
199 mm / 7.83 inches
Weight:
2.03 kg / 4.48 lbs
Shipping information
Package Height:
165 mm / 6.5 inches
Package Width:
260 mm / 10.24 inches
Package Depth:
265 mm / 10.43 inches
Package Weight:
2.03 kg / 4.48 lbs
