VOICE ALARM EN54

PLP 50EN

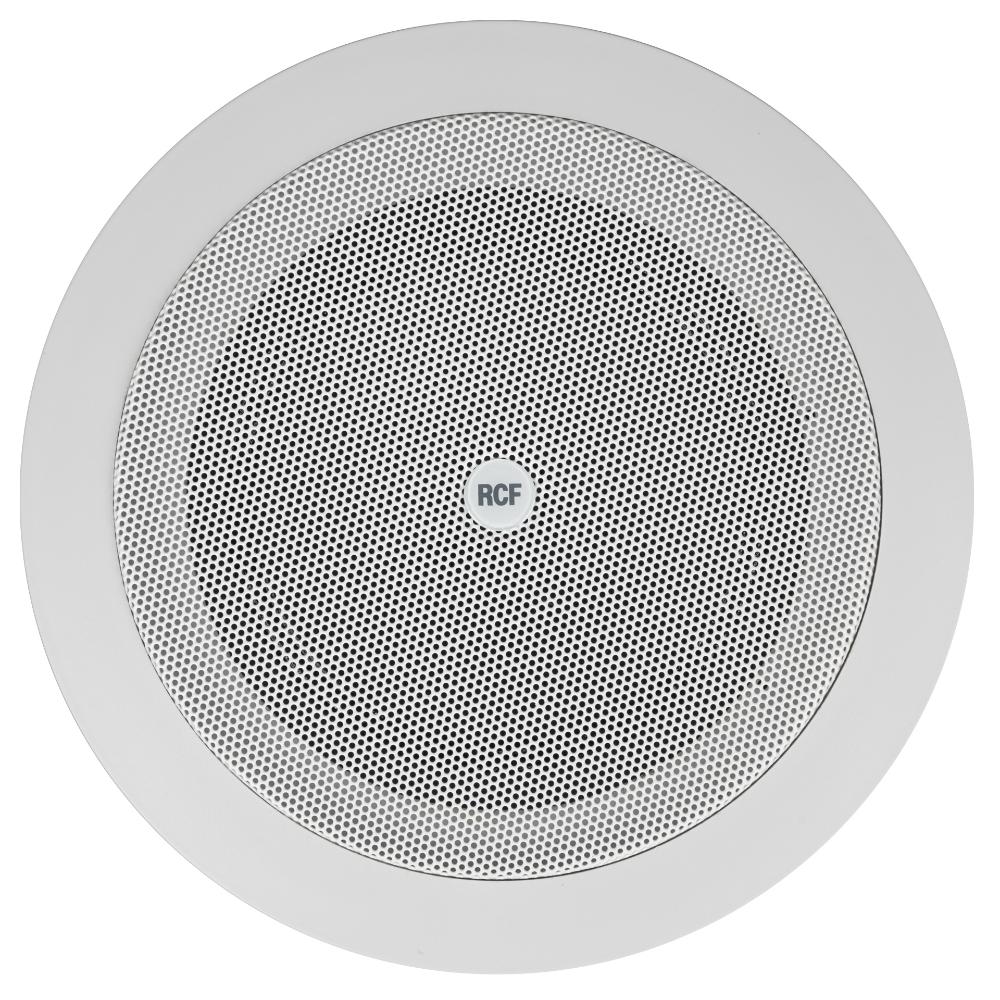

CEILING SPEAKER WITH PLASTIC FIRE DOME
  • 5" fullrange transducer.
  • Power selectable (100 V): 6 W – 3 W – 1.5 W.
  • 93 dB sensitivity.
  • Colour white RAL 9016.
EN 54
Where to buy
Features Specifications Downloads
Where to buy
Features
  • 5" fullrange transducer.
  • Power selectable (100 V): 6 W – 3 W – 1.5 W.
  • 93 dB sensitivity.
  • Colour white RAL 9016.
  • Plastic frame and back can, steel grille.
  • In/out ceramic terminal block.
  • Thermal fuse protection.

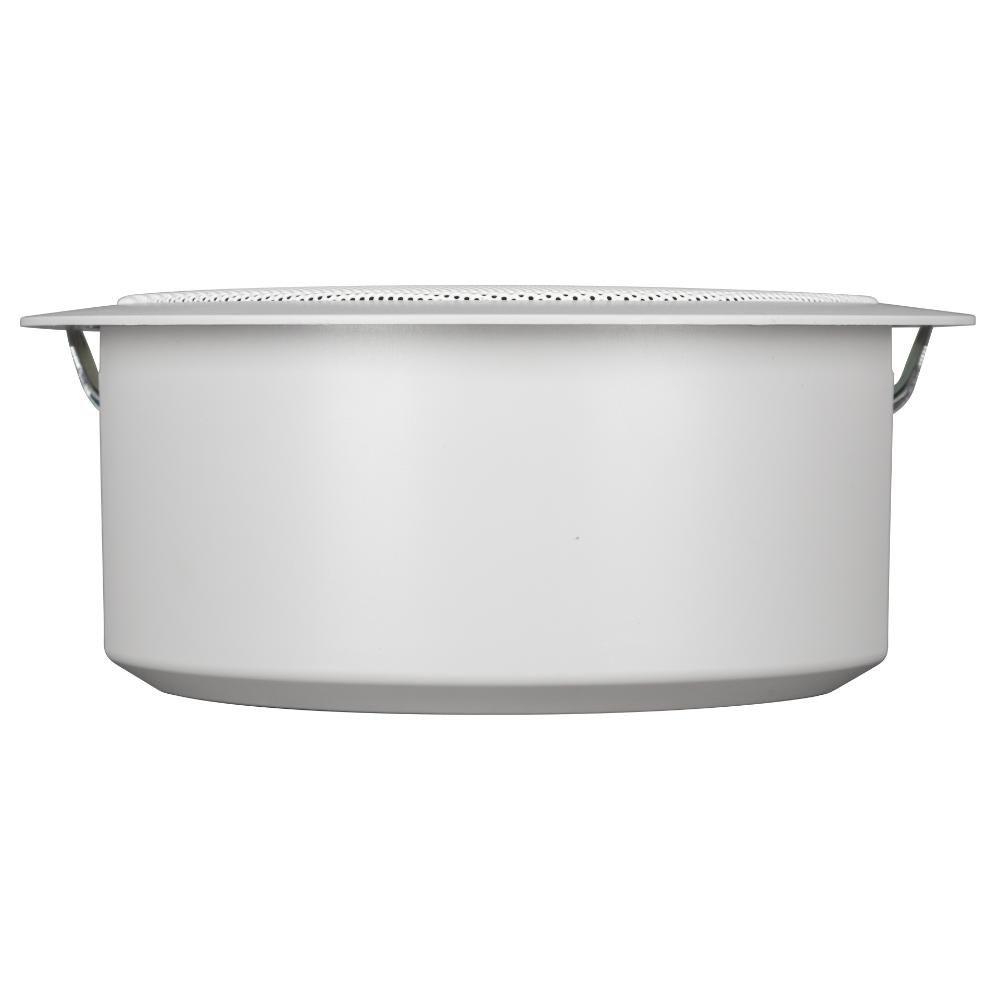

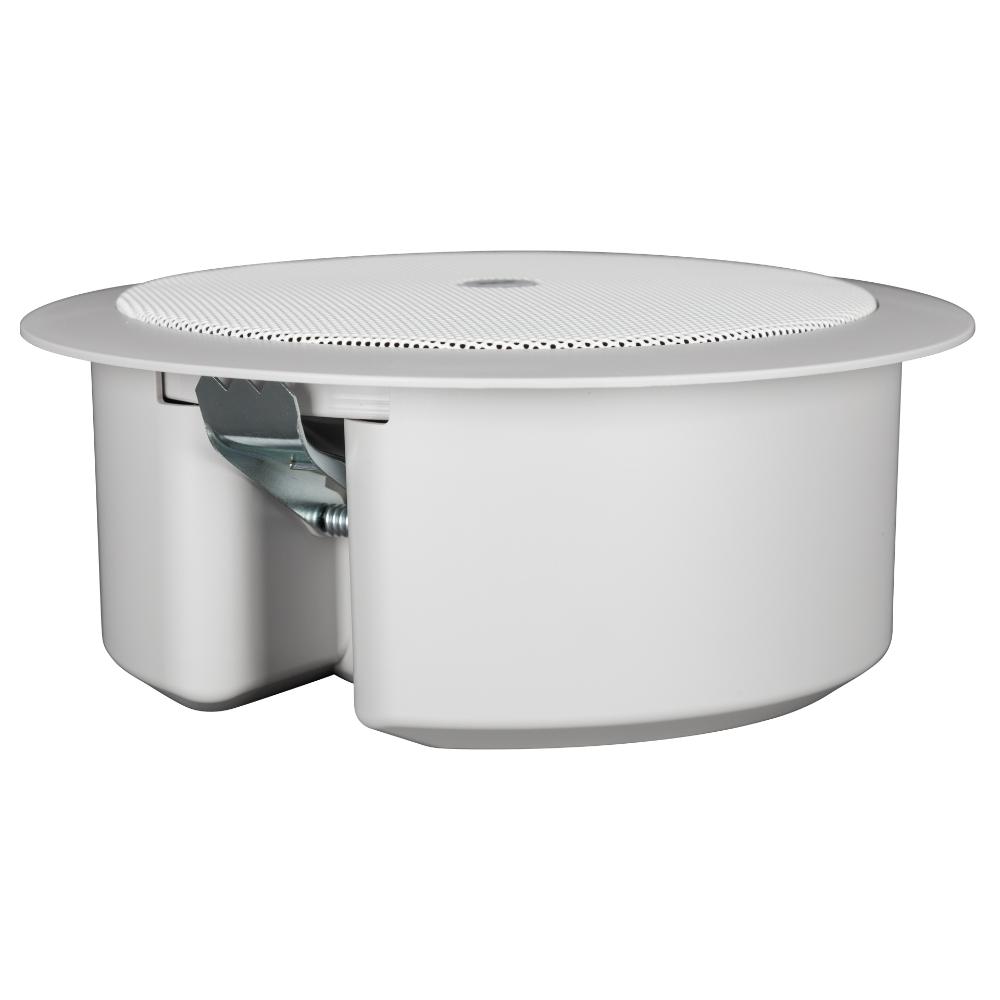

PLP 50EN is a ceiling speaker featuring a flameproof plastic back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.

Part number:

13100008
PLP 50EN
EAN 8024530014391

Specifications
Acoustical specifications
Frequency Response (-10dB):
130 Hz ÷ 15000 Hz
Max SPL @ 1m:
101 dB
Max SPL @ 4m:
89 dB
Coverage angle:
165°
System Sensitivity:
93 dB
System Sensitivity 1W @ 4m:
81 dB
Power section
Power Handling:
6 W
Peak Power Handling:
24 W PEAK
Recommended Amplifier:
12 W
Protections:
Thermal fuse
Transducers
Fullrange:
5.0''
Input/Output section
Input connectors:
Ceramic screw terminals
Output connectors:
Ceramic screw terminals
Constant Voltage Transformer:
100 V
Power selection 1:
6 W - 1667 ohm
Power selection 2:
3 W - 3333 ohm
Power selection 3:
1.5 W - 6667 ohm
Standard compliance
Safety agency:
CE compliant
EN54-24 certified:
Yes
CPR number:
0068-CPR-051/2017
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Plastic back cover
Grille:
Steel
Color:
White - RAL 9016
Size
Depth:
71 mm / 2.8 inches
Recessed Depth:
66 mm / 2.6 inches
Diameter:
175 mm / 6.89 inches
Cut out diameter:
149 mm / 5.87 inches
Weight:
0.66 kg / 1.46 lbs
Shipping information
Package Height:
110 mm / 4.33 inches
Package Width:
190 mm / 7.48 inches
Package Depth:
180 mm / 7.09 inches
Package Weight:
0.66 kg / 1.46 lbs
