ARCHIVED

VOICE ALARM EN54

RP 9600

DATA REPEATER

Up to 4 units for each system
44.1 kHz sampling frequency
Dual AC and DC power supply
PC software configuration

Support

Features

Up to 4 units for each system
44.1 kHz sampling frequency
Dual AC and DC power supply
PC software configuration

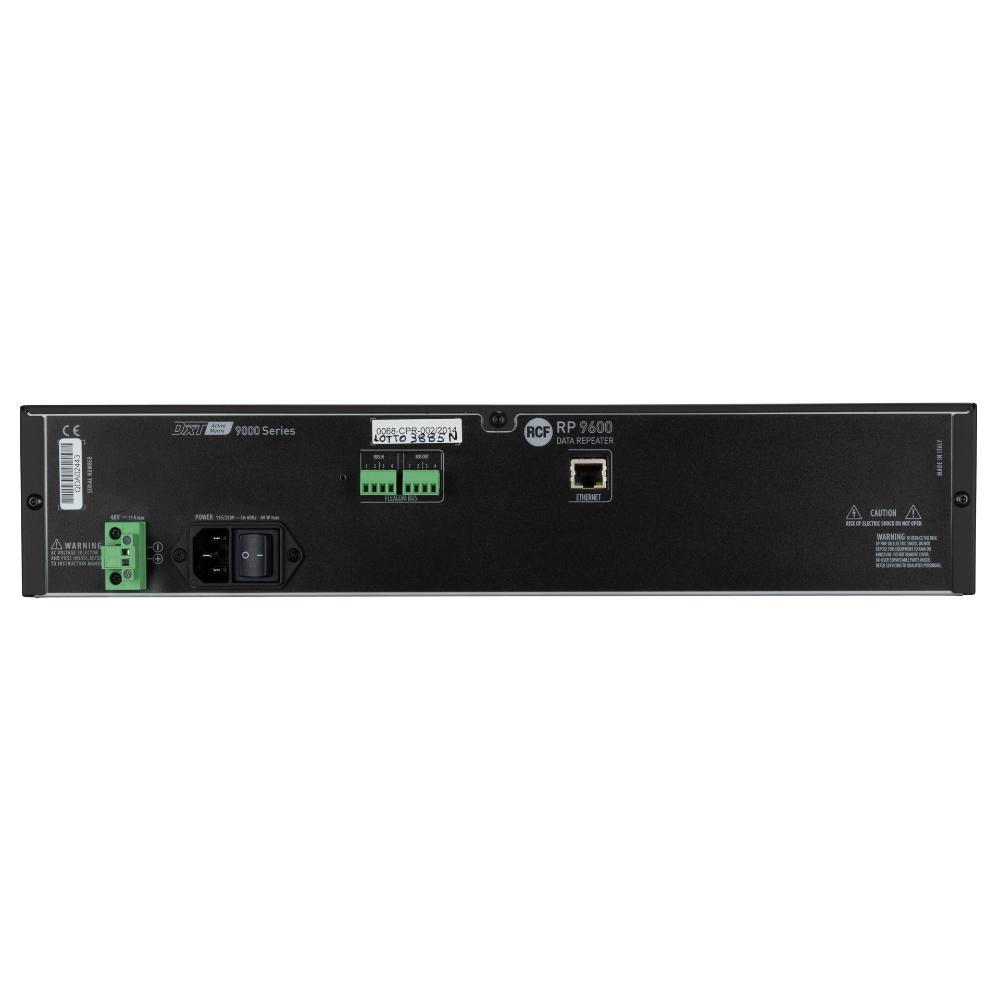

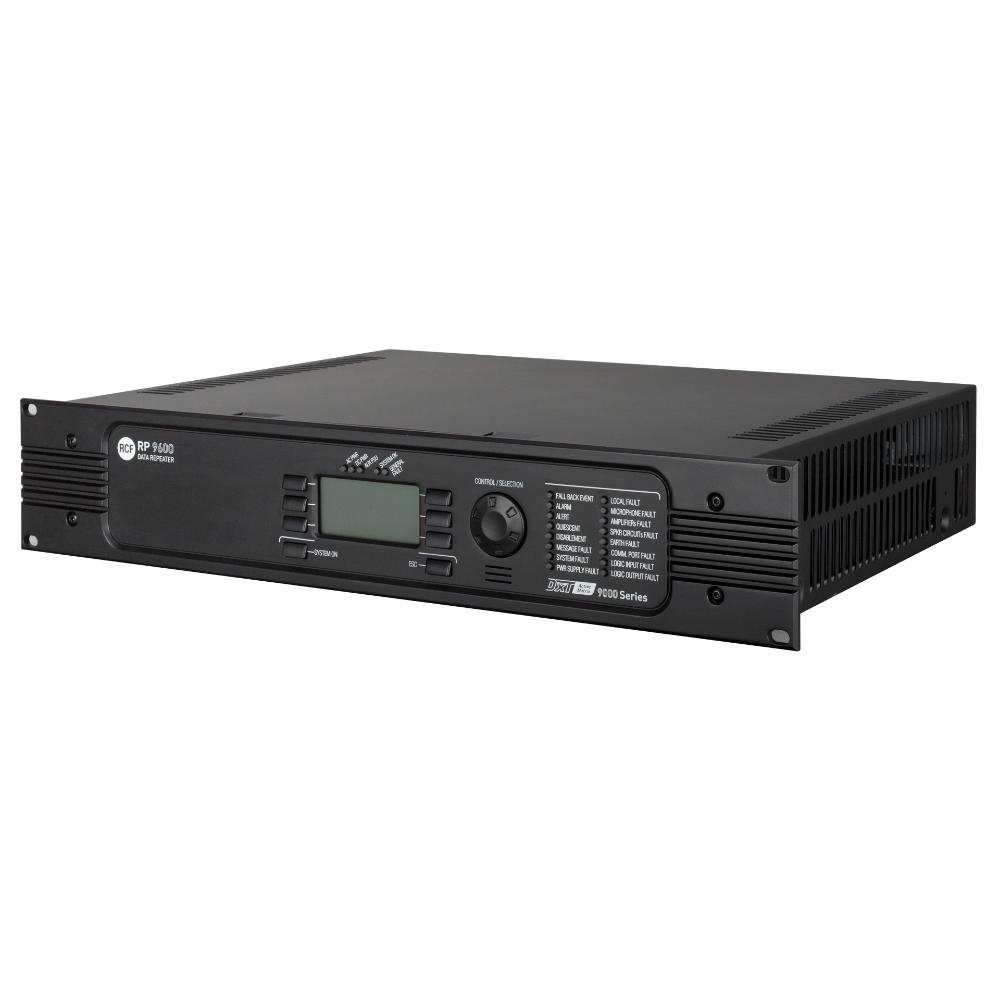

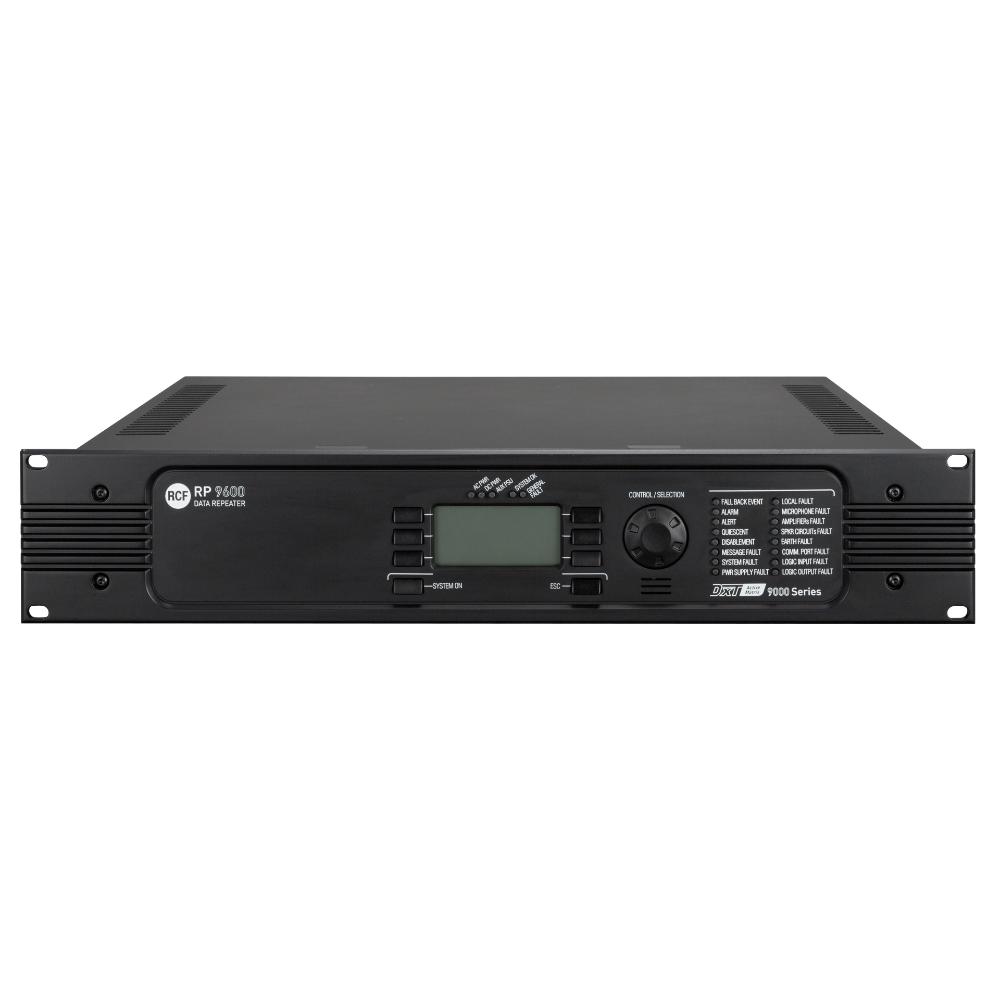

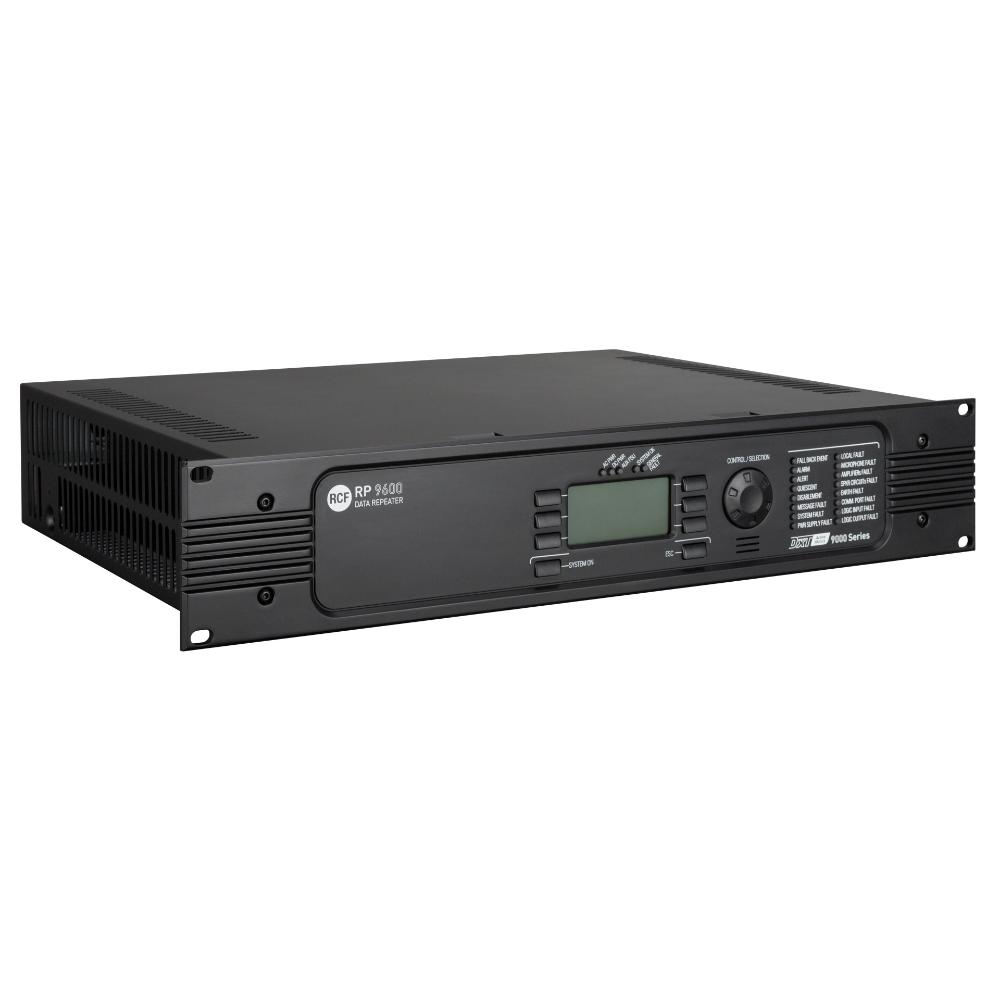

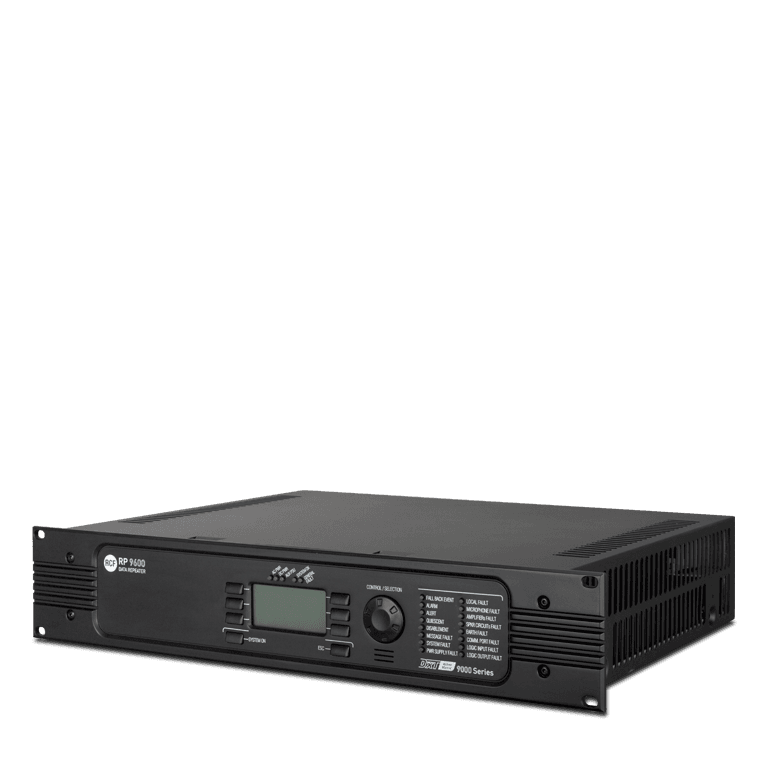

RP 9600 is the data repeater unit for DXT 9000 system that allows to extend the maximum distance between the master unit and the last power amplifier. It is needed when that distance is longer than 180 m or the system includes more than 15 power amplifiers.

ARCHIVED

Part number:

17170182
RP 9600
EAN 8024530012533

Specifications

System specifications

Communication bus

RCF bus

Connection Cables

FTP CAT 5, FTP CAT 6, J-Type fire-rated

Input section

General Purpose Inputs (GPI)

Monitored GPI

Output section

Signal output connectors

RCA

General Purpose Outputs (GPO)

Monitored GPO

Controls

Configuration

Front panel

Protections

Cooling

Convection/Forced

Short circuit

Yes

Thermal

Yes

Fuses

Yes

VHF (Very High Frequencies)

Yes

Power requirement

Operating voltage

220-240/115 V~ 50/60Hz

Voltage selection

Internal

DC power

Yes

DC power value

48 V

Max current AC

Max current DC

Power consumption (MAX)

60 W

Standard compliance

Safety agency

CE compliant

EN54-16 certified

Yes

CPR number

0068-CPR-002/2014

Physical specifications

Cabinet/Case Material

Metal

Rack mounting

19", 2U

Size / Weight

Height

88 mm / 3.46 inches

Width

482 mm / 18.98 inches

Depth

350 mm / 13.78 inches

Weight

6.98 kg / 15.39 lbs

Shipping information

Package Height

204 mm / 8.03 inches

Package Width

549 mm / 21.61 inches

Package Depth

474 mm / 18.66 inches

Package Weight

8.72 kg / 19.22 lbs
