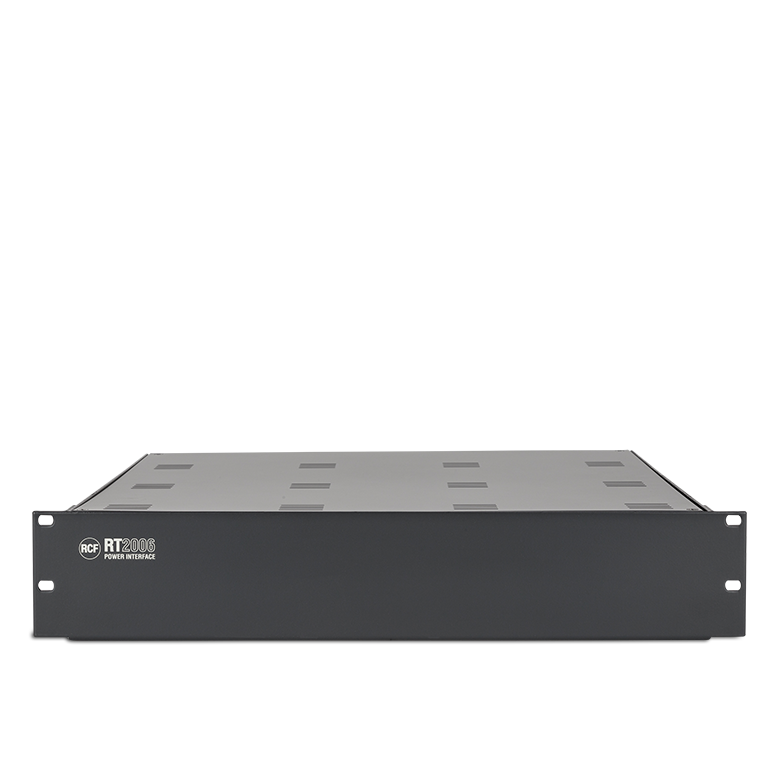

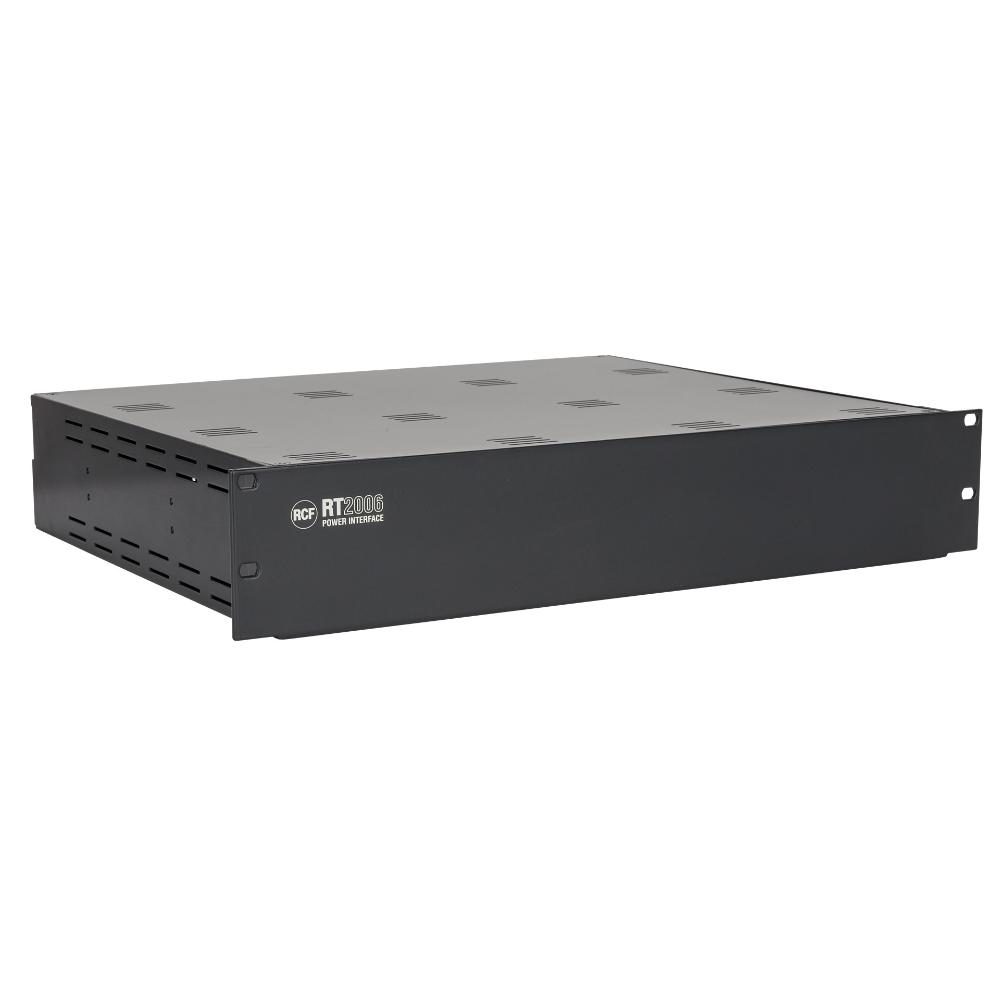

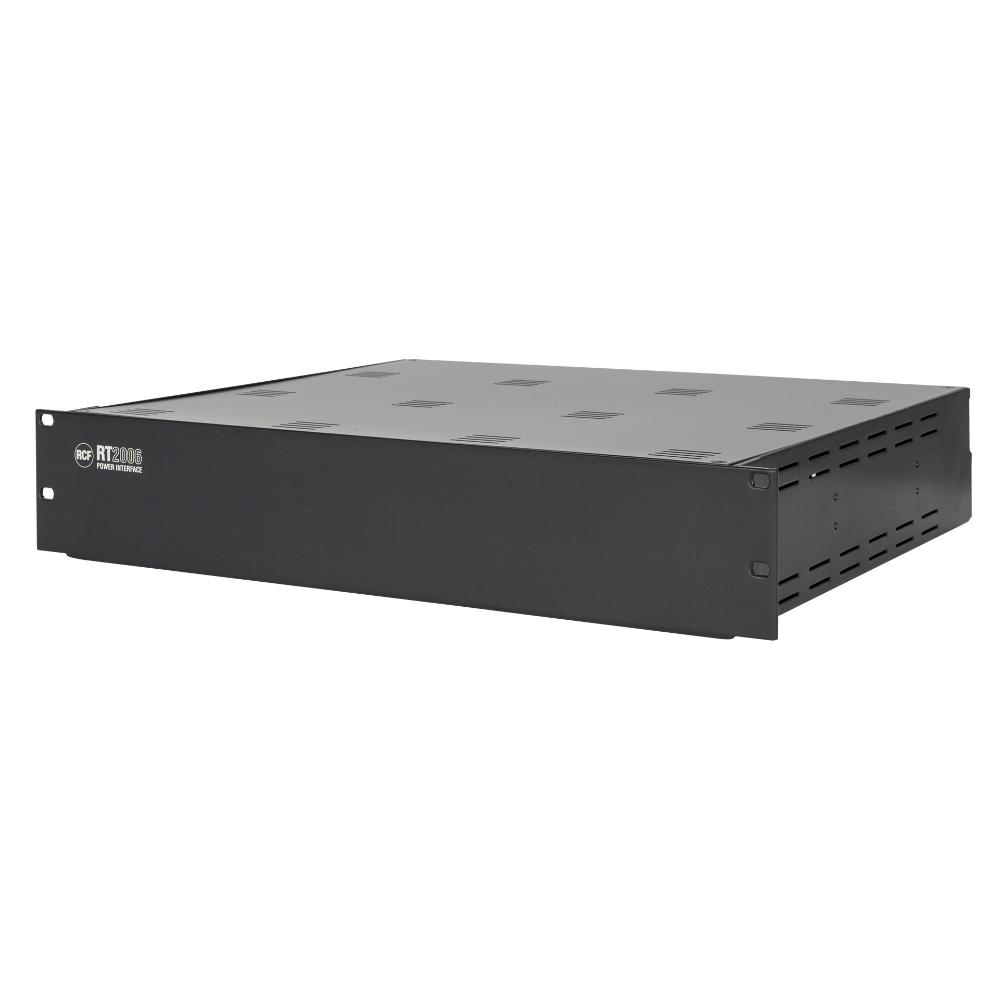

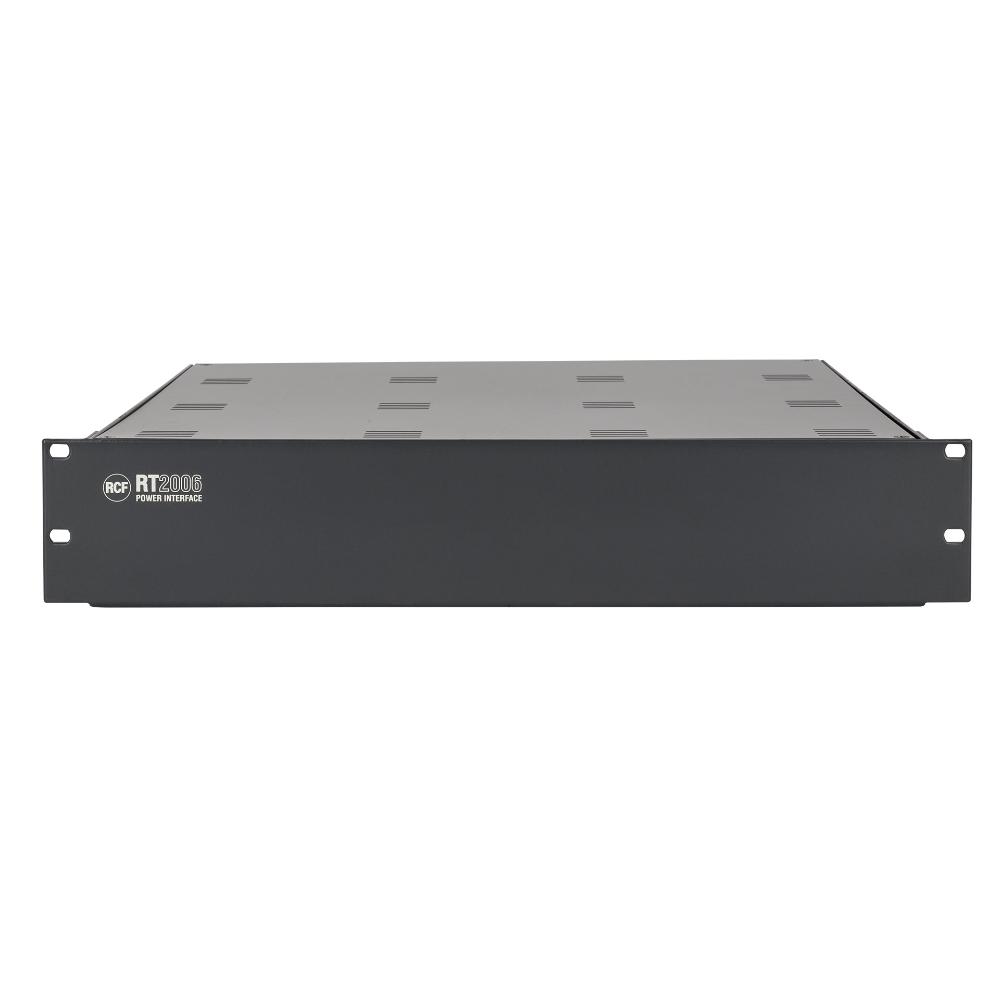

RT 2006

Features

• 2 standard unit 19" high rack container for toroidal trasformers
• Up to 6 TD 300 transformers or 4 model TD 500 transformers or 2 TD 1000 transformers
• Different transformers can also be combined within the transformer panel
• Interface circuit with connection terminals between amplifiers, transformers and speaker lines
• The connections are all removable and sized for maximum applicable power
• Thanks to material over-sizing and alternate layer windings, frequency response of the transformers is particularly extended. These transformers can be used also with professional high performance loudspeakers.

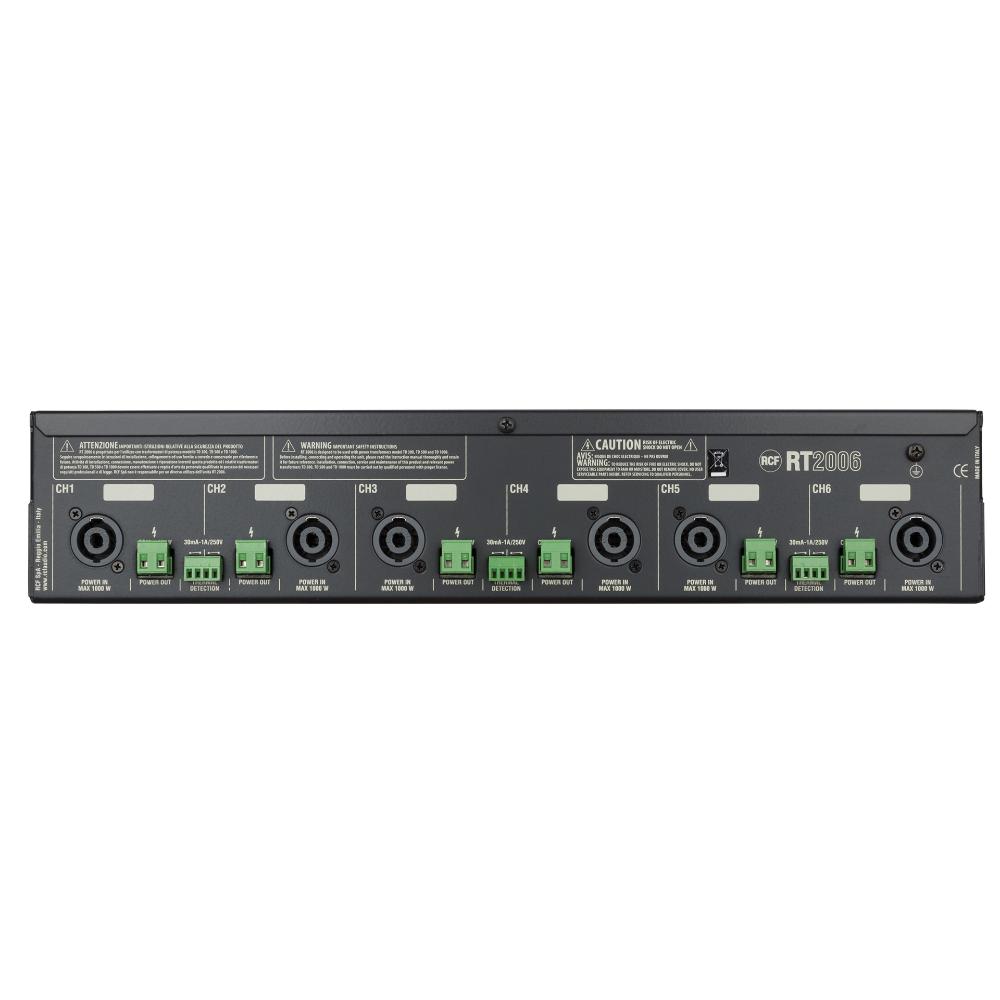

RT 2006 rack drawer allows to house and connect up to 6 transformers if TD 300, up to 4 transformers if TD 500, up to 2 transformers if TD 1000. It is also possible to combine transformers having different power. RT 2006 has a printed circuit board having terminals to connect transformers to amplifiers and loudspeaker lines. All connectors (on the rear panel) are removable and dimensioned for the maximum power. Amplifier connections are made through SPEAKON connectors. Loudspeaker line connection is made through EUROBLOCK screw terminals. Transformer thermal detection circuits have n.c. dry contacts available on screw terminals.
