ARCHIVED
INSTALLED SOUND

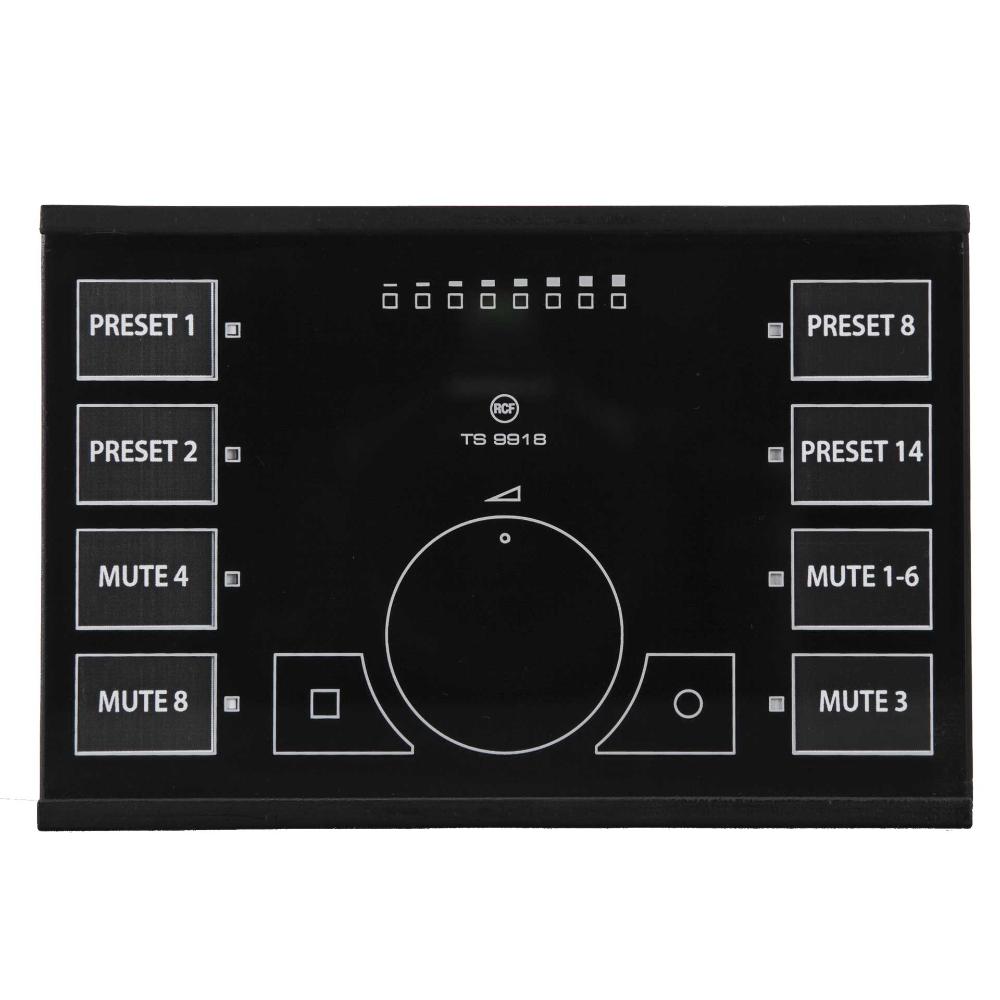

TS 9918

TOUCH-SENSITIVE REMOTE CONTROL
  • Slim design with glass surface
  • Compatible with most of the standard electrical boxes
  • Touch sensitive activation
  • 8 configurable buttons
Support
Features
  • Slim design with glass surface
  • Compatible with most of the standard electrical boxes
  • Touch sensitive activation
  • 8 configurable buttons
  • Addressable volume
  • Level Meter
  • Indicators

TS 9918 is a touch sensitive remote control mainly dedicated to MZ 8060 digital matrix units. Its 8 buttons and scroll-wheel are fully configurable using the PC Control Software and the slim-line structure allows installation in any environment. Three back-light operation modes are available according to application: night, eco, daylight. Two kinds of configurations are possible for each remote control: Static or Dynamic. Static is when each button can work as VOLUME control and MUTE command for a single IN or a single OUT or for a GROUP of them; as GPO trigger, PRESET-RECALL or as input ENABLING command according to the pre-set priority levels. Dynamic is when the 2 groups of 4 buttons each allow you to act on input(s) and output(s) in terms of MUTE and VOLUME controls, but also to work as patch&link of any input(s) to any output(s).

ARCHIVED

Part number:

13360235
TS 9918
Black, EAN 8024530010386

13360243
TS 9918 W
White, EAN 8024530010768

Specifications
General specifications
Configurable buttons:
8
Touch screen:
Yes
Communication:
Serial RS 485
Functions:
Volume adjustment
Mute channel and groups
Preset recall
Matrix node assignment
Configuration:
RDNetups
Preset recall
Matrix node assignment
Power supply:
24 V DC
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Plastic
Color:
Black, White
Size
Weight:
0.22 kg / 0.49 lbs
Shipping information
Package Height:
88 mm / 3.46 inches
Package Width:
219 mm / 8.62 inches
Package Depth:
156 mm / 6.14 inches
Package Weight:
0.22 kg / 0.49 lbs
