UP 1121

Features

• 120 W power amplifier
• Suitable for the distribution of music and announcements

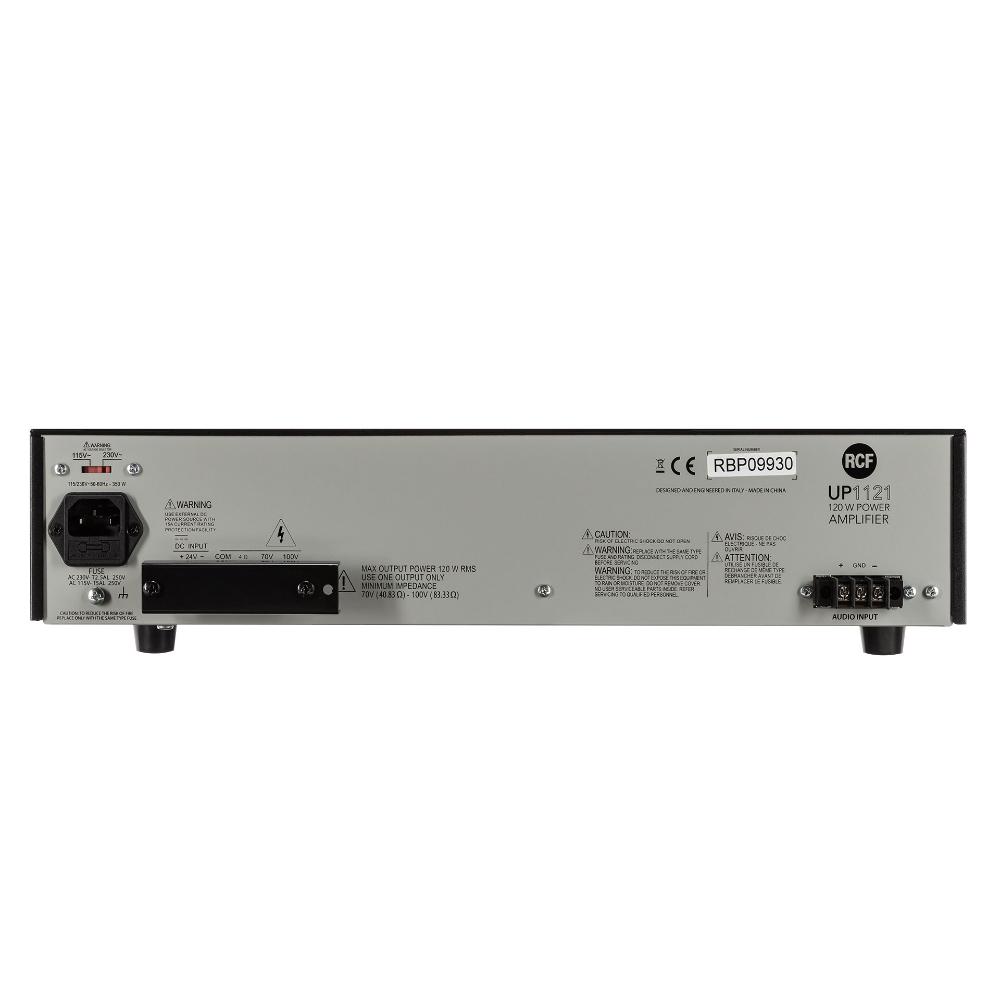

• Main balanced input on removable connector
• Amplifier output available both for 100 / 70 V constant voltage lines and low impedance loudspeakers (min. 4 O)
• Input for the secondary 24 V DC power supply

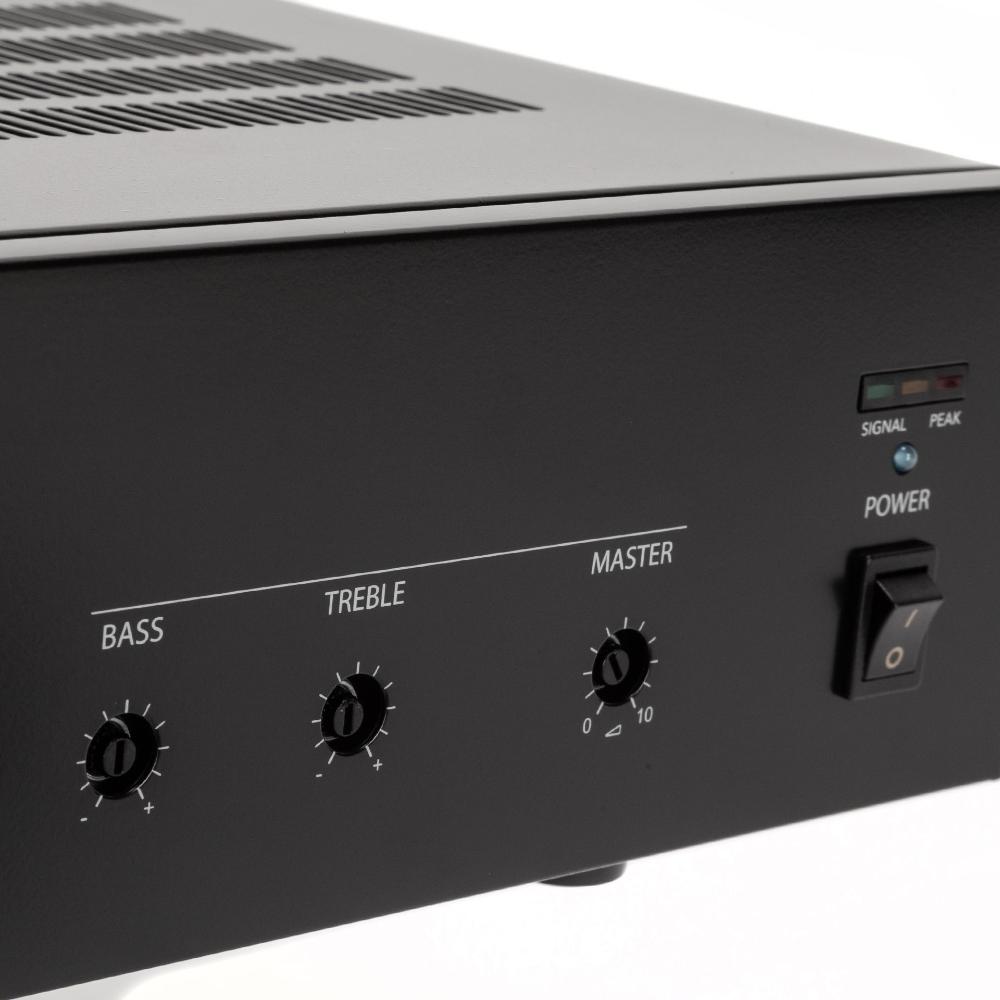

• MASTER volume and tones BASS and TREBLE control on front panel
• Main power plug with fuse
• Main power voltage selector 230V / 115V
• LEDs indicating audio signal level on front panel

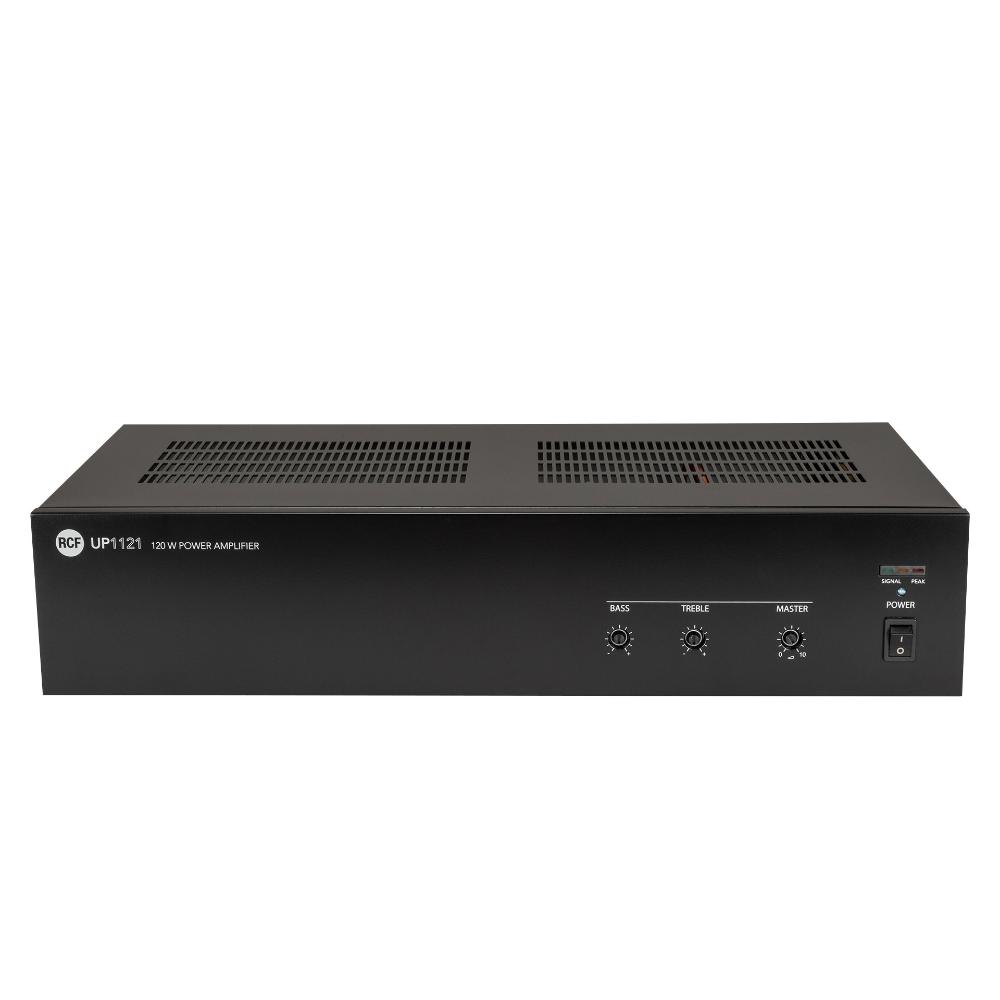

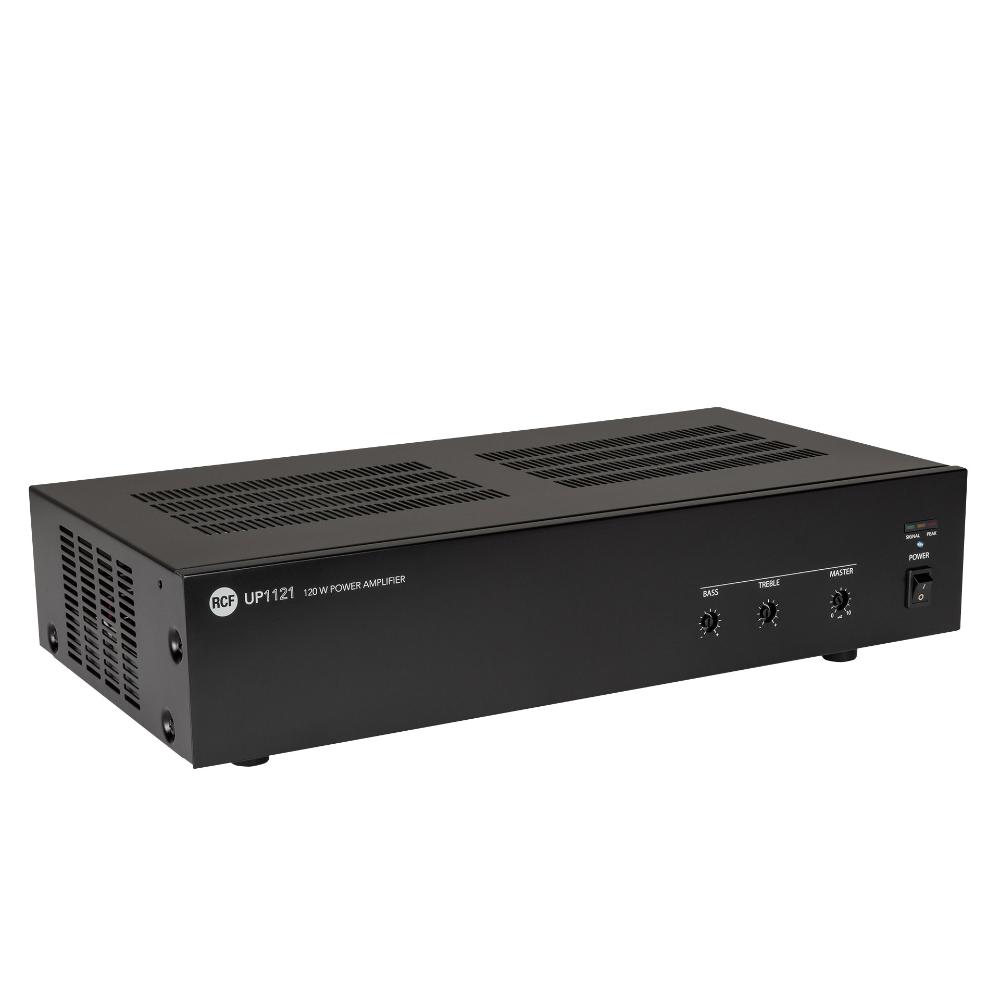

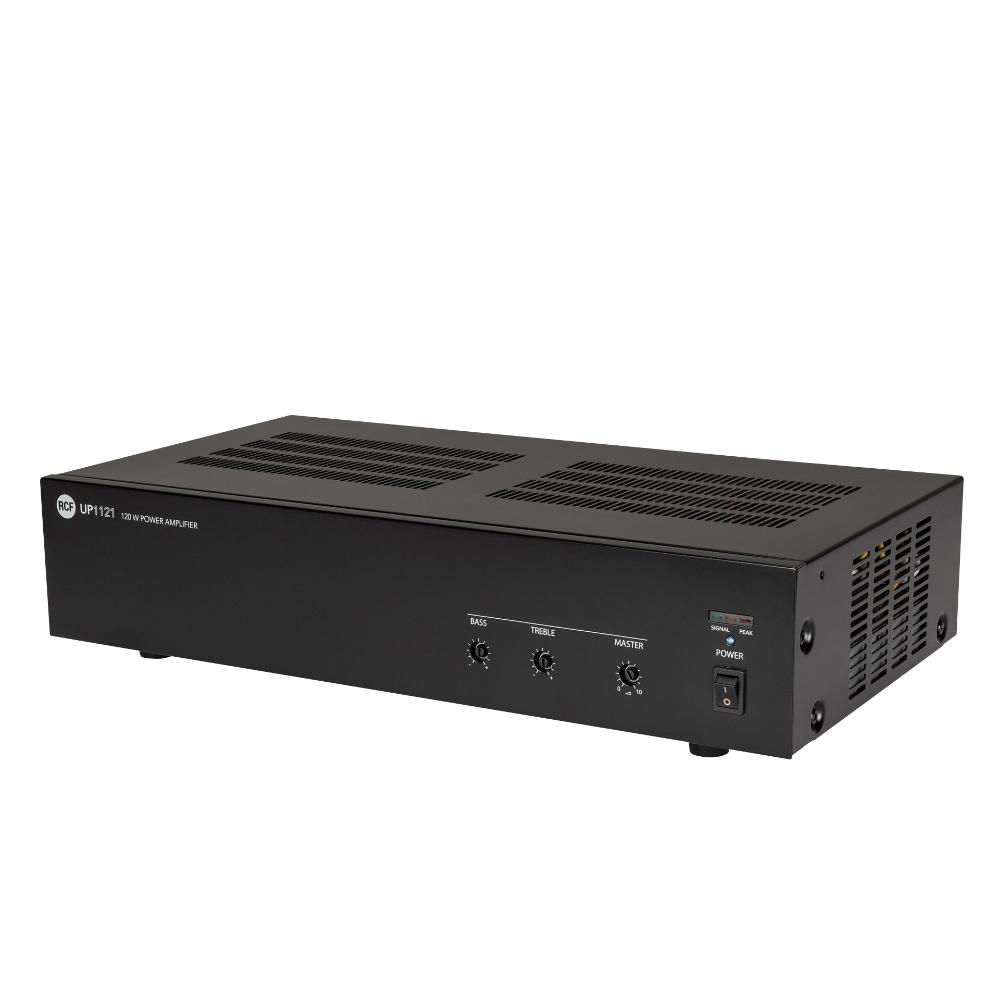

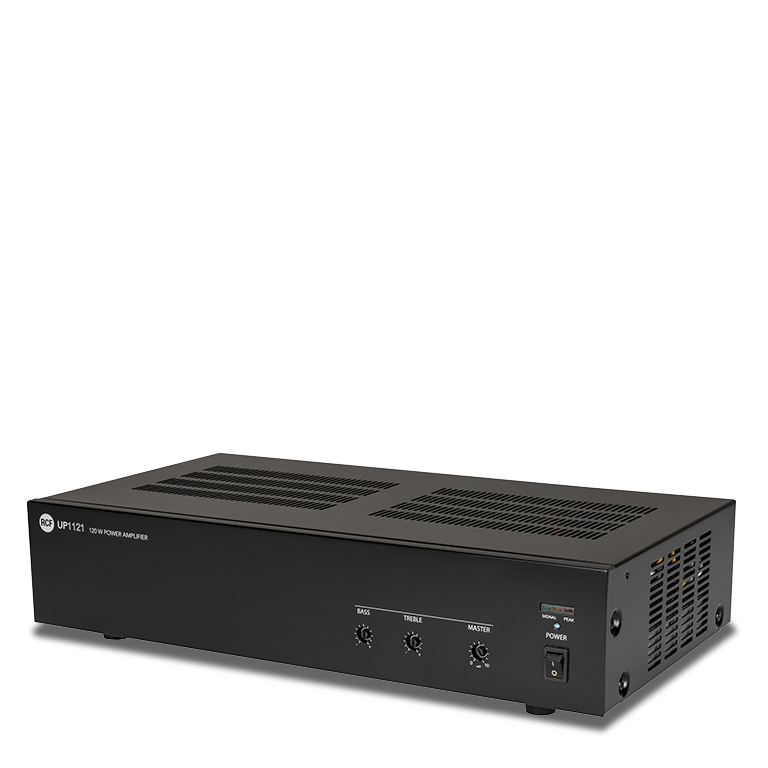

UP 1121 is a 120 W power amplifier having a single balanced ‘line’ level audio input. The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). In addition to the connection to the mains, it can also be powered by batteries (voltage: 24 V dc), in order to ensure its proper operation even when the mains supply is unavailable.
