ARCHIVED
COMMERCIAL AUDIO

UP 2161

POWER AMPLIFIER
  • Full digital technology Power Amplifier 160 W RMS

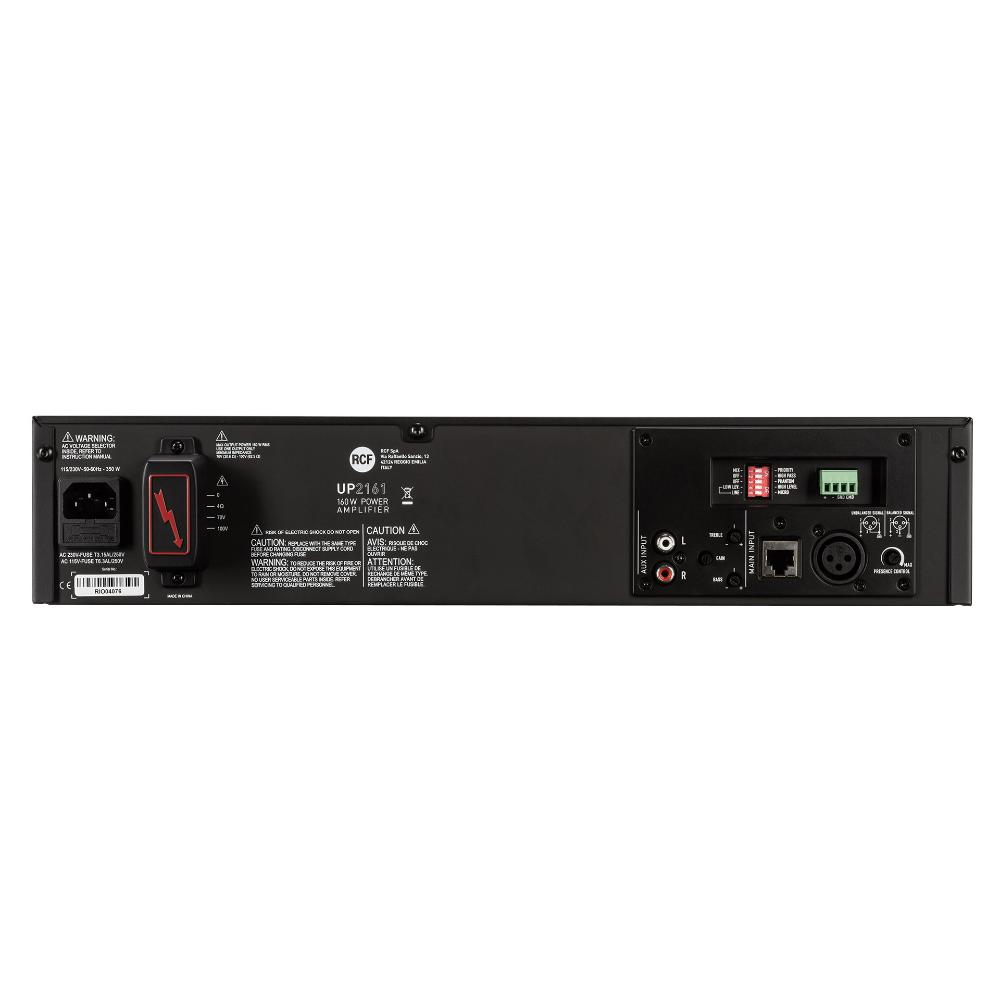

  • Main input on either removable connector or XLR or RJ 45
  • Main Input can have priority over the Aux Input
  • Main Input has a presence control command
Support
Features Specifications Downloads
Support
Features
  • Full digital technology Power Amplifier 160 W RMS
  • Main input on either removable connector or XLR or RJ 45
  • Main Input can have priority over the Aux Input
  • Main Input has a presence control command
  • Main Input has a high-pass filter useful for improving speech intelligibility
  • Aux Input for music sources on RCA type connector
  • Aux input with volume and tone controls
  • 100 V - 70 V and 4 Ohm outputs

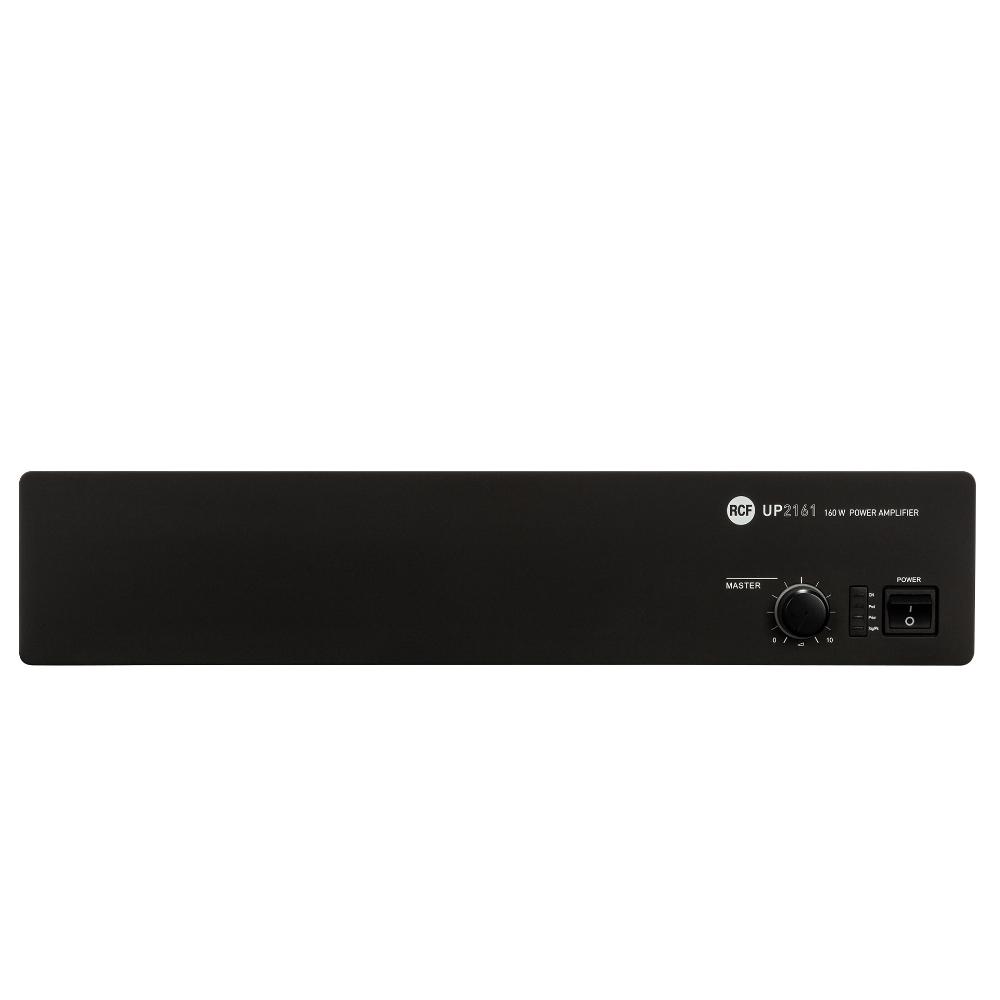

  • Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

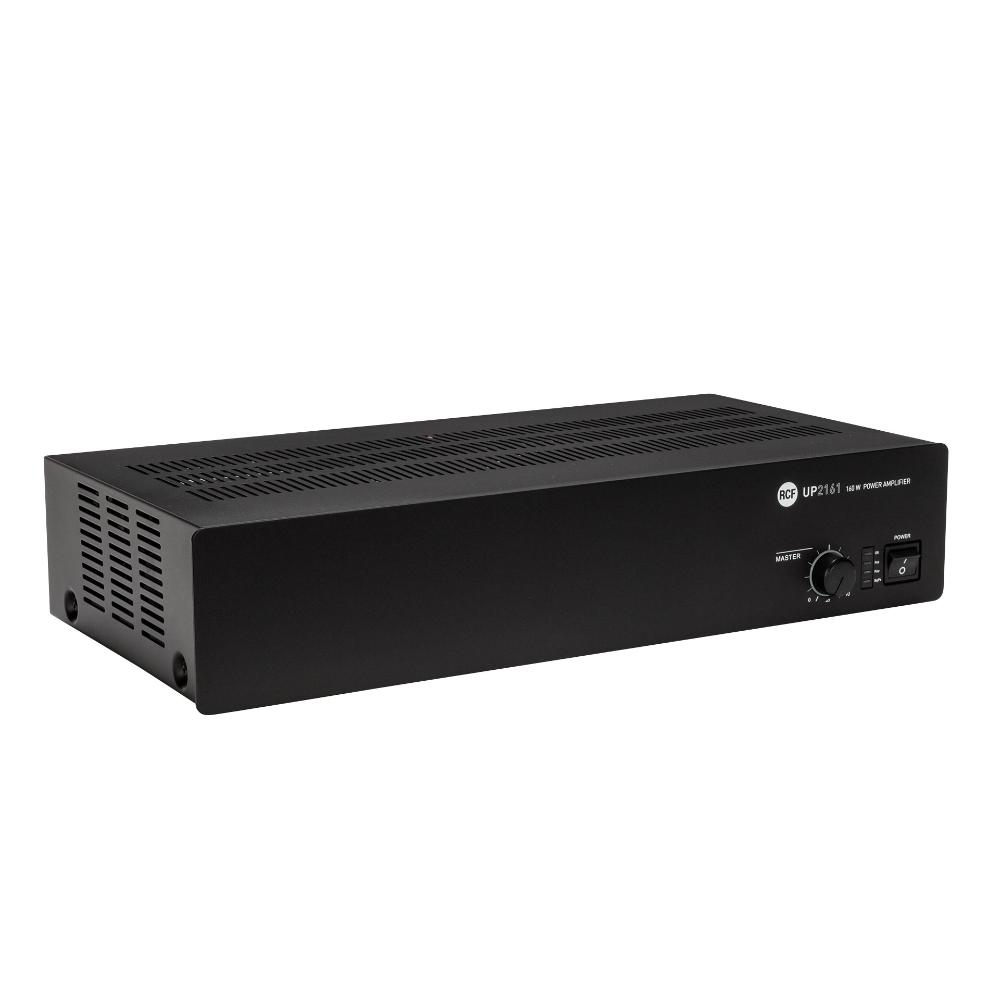

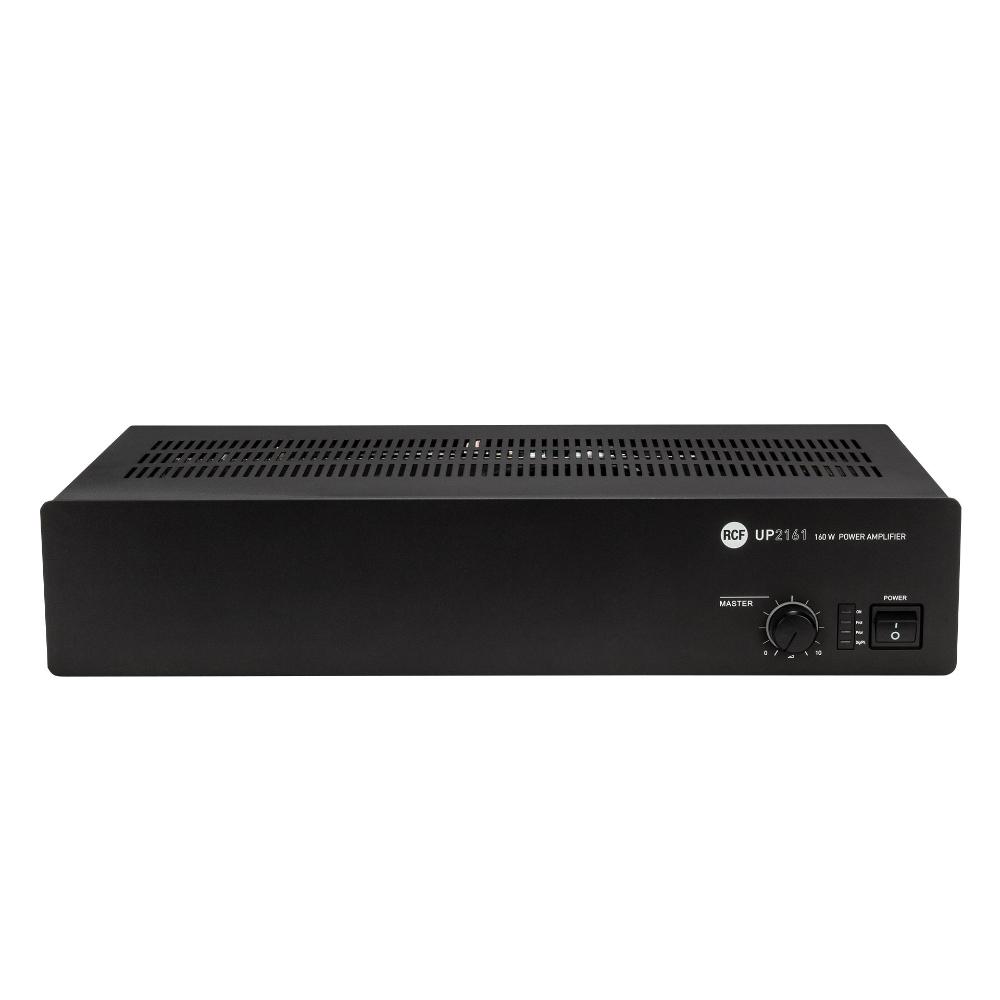

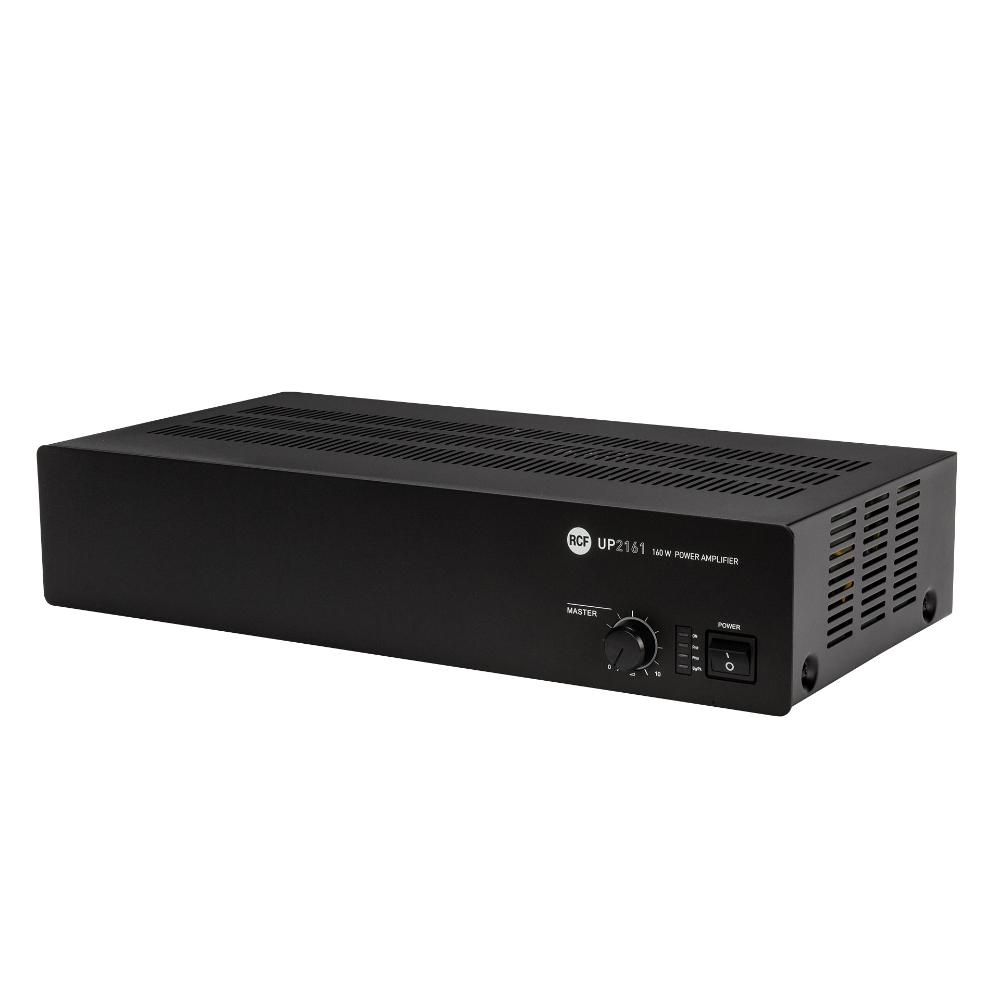

UP 2161 is a 160 W power amplifier designed for the transmission of announcements and musical programmes. The amplifier is equipped with a (mic / line) Main Input on either removable connector or XLR or RJ 45 and an Auxiliary Input for music sources (e.g. CD players, tuners, etc.). The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line. The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.

ARCHIVED

Part number:

12135060
UP 2161
EAN 8024530006440

Specifications
Amplifier specifications
Frequency Response (-3dB):
50 Hz ÷ 14 Hz
Distortion (THD+N) @ 1 kHz nominal power:
<0.3 %
Input section
Total number of inputs:
3
Balanced:
3
Unbalanced:
2
Mono:
3
Line inputs:
1
Line connectors:
RCA
Mic+Line inputs:
1
Mic+Line connectors:
Euroblock, XLR
Mic+Line Phantom:
32 V DC
VOX:
Yes
Paging inputs:
1
Paging connectors:
RJ45
Paging command:
Contact
General Purpose Inputs (GPI):
1
Output section
Power output connectors:
Euroblock
Processing
Tone controls:
Yes
High-pass filter:
150 Hz
Configuration and control
Configuration:
DIP switch, Front panel
Priority:
Yes
Protections
Cooling:
Convection
Short circuit:
Yes
Thermal:
Yes
DC:
Yes
Fuses:
Yes
Power requirement
Operating voltage:
220-240/115 V~ 50/60Hz
Voltage selection:
Internal
Power consumption (MAX):
350 W
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
19", 2U
Size
Height:
88 mm / 3.46 inches
Width:
442 mm / 17.4 inches
Depth:
230 mm / 9.06 inches
Weight:
5.3 kg / 11.68 lbs
Shipping information
Package Height:
200 mm / 7.87 inches
Package Width:
330 mm / 12.99 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
6.38 kg / 14.07 lbs
