UP 2162
POWER AMPLIFIER
- Power Amplifier designed for the transmission of announcements and / or musical programmes
- Main input on removable connector
- AUX Input for music sources removable connector
- Controls for treble, bass and Gain on the AUX Input














Features
- Power Amplifier designed for the transmission of announcements and / or musical programmes
- Main input on removable connector
- AUX Input for music sources removable connector
- Controls for treble, bass and Gain on the AUX Input
- Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
- Output speaker available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line

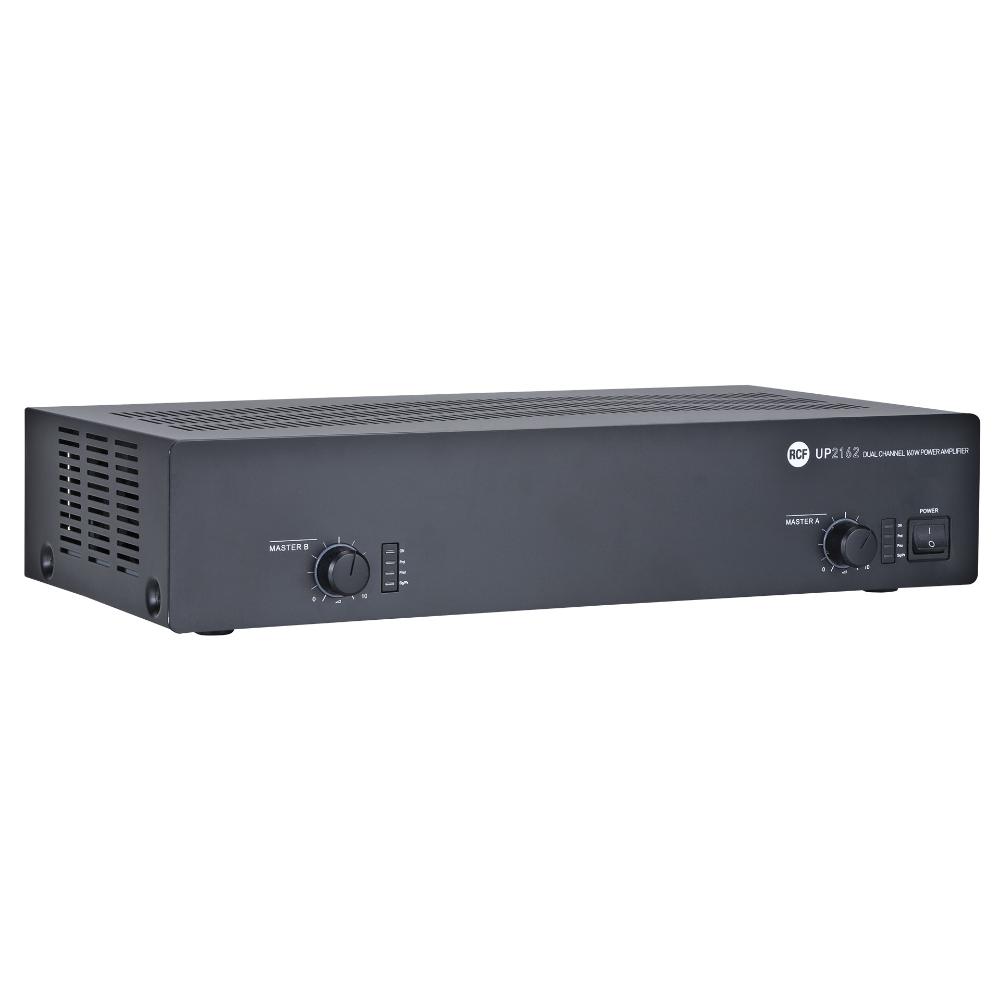

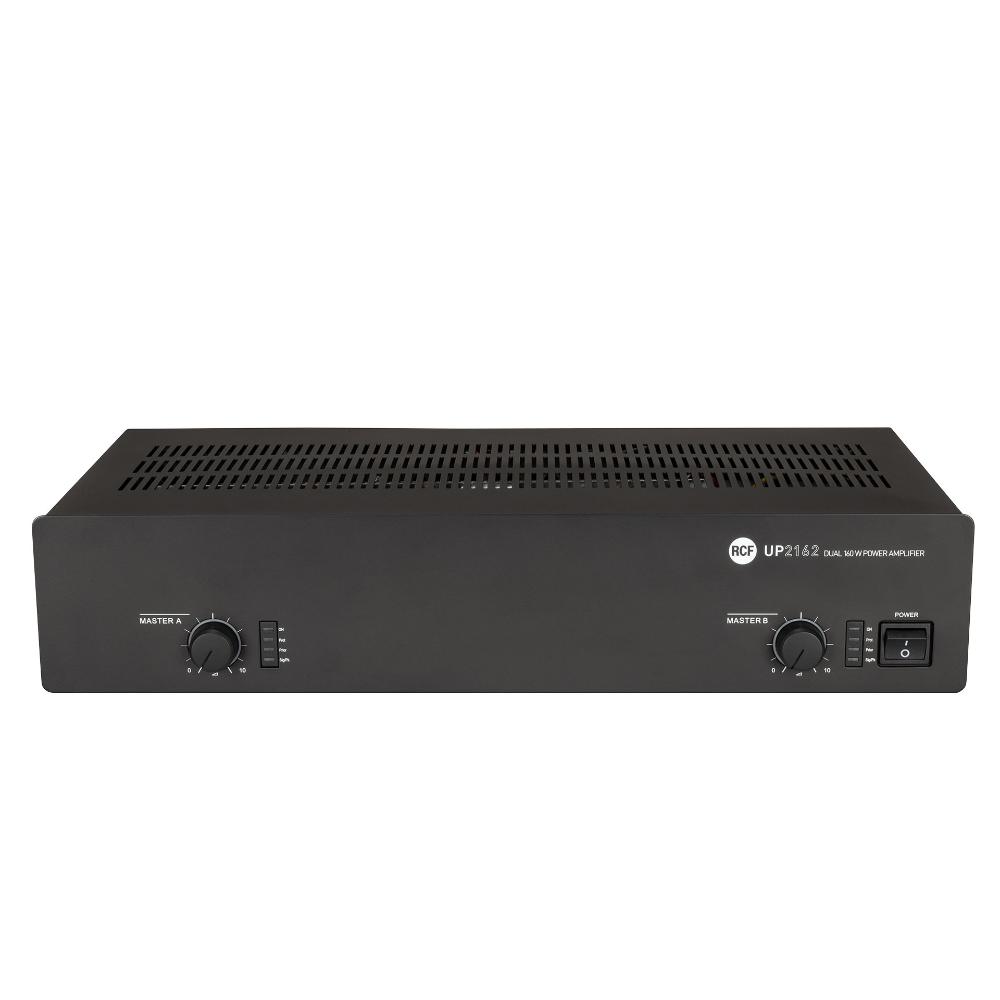

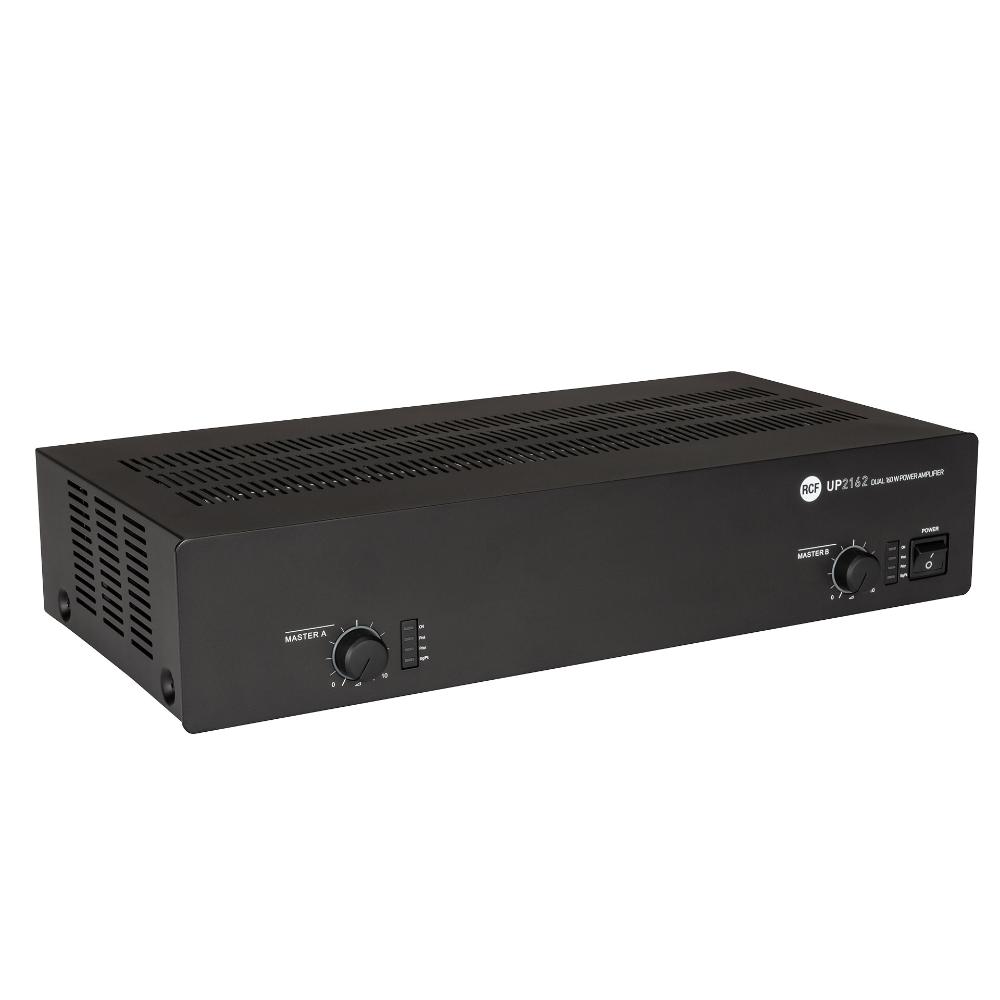

- Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

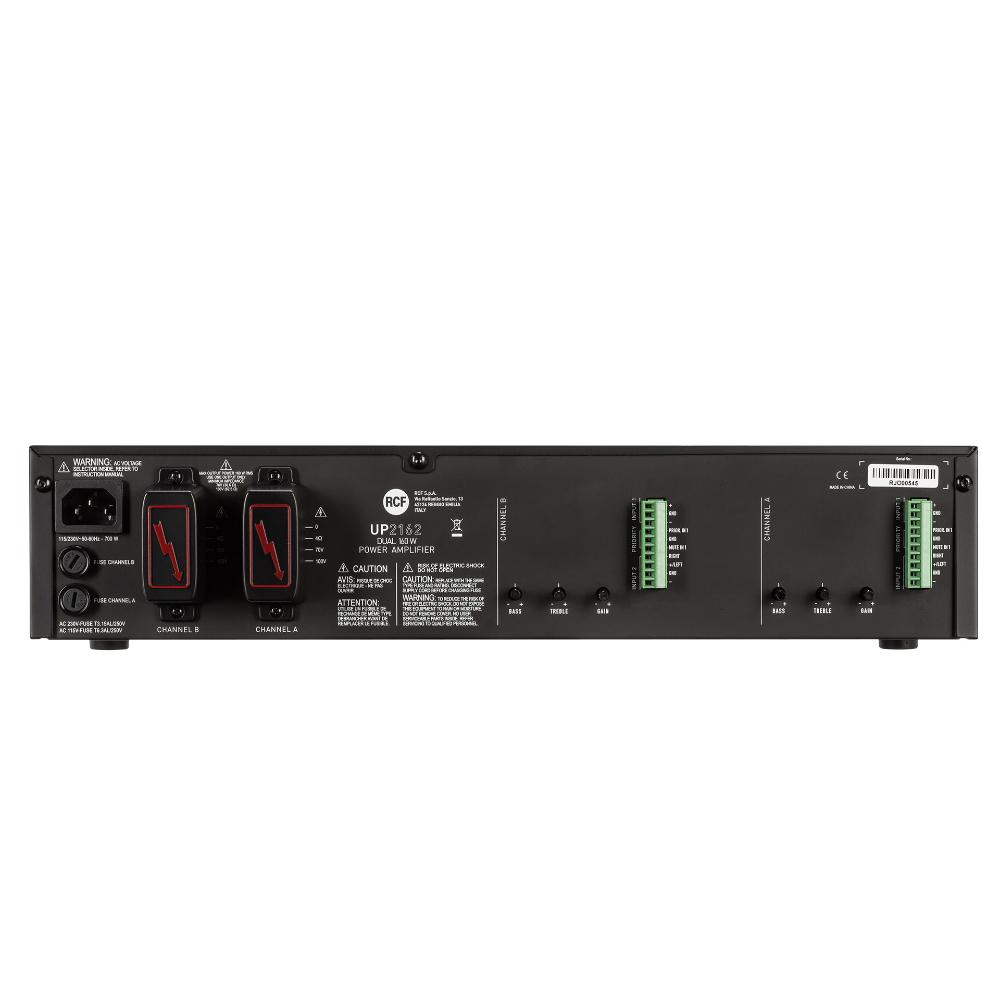

UP 2162 is a device with 2 separated and independent 160 W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact. Both the audio inputs are at ‘line’ level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.
Part number:
12135065
UP 2162
EAN 8024530006587
Specifications
Amplifier specifications
Frequency Response (-3dB):
50 Hz ÷ 16 Hz
Distortion (THD+N) @ 1 kHz nominal power:
<0.3 %
Input section
Total number of inputs:
4
Balanced:
4
Mono:
2
Stereo:
2
Line inputs:
4
Line connectors:
Euroblock
General Purpose Inputs (GPI):
4
Output section
Power output connectors:
Euroblock
Processing
Tone controls:
Yes
Configuration and control
Configuration:
Front panel
Priority:
Yes
Protections
Cooling:
Convection
Short circuit:
Yes
Thermal:
Yes
DC:
Yes
Fuses:
Yes
Power requirement
Operating voltage:
220-240/115 V~ 50/60Hz
Voltage selection:
Internal
Power consumption (MAX):
700 W
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
19", 2U
Size
Height:
88 mm / 3.46 inches
Width:
442 mm / 17.4 inches
Depth:
230 mm / 9.06 inches
Weight:
7.22 kg / 15.92 lbs
Shipping information
Package Height:
200 mm / 7.87 inches
Package Width:
330 mm / 12.99 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
8.7 kg / 19.18 lbs
