ARCHIVED
INSTALLED SOUND

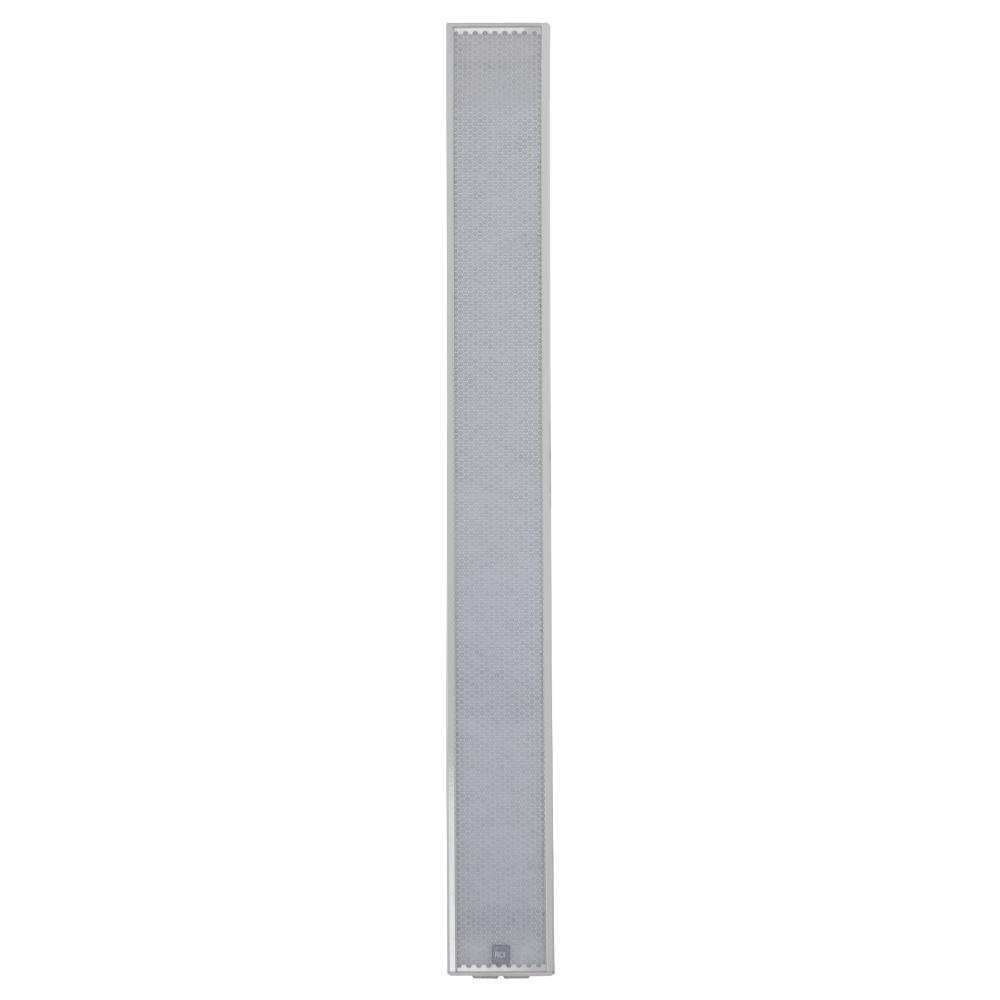

VSA 850

DIGITALLY STEERABLE SOUND COLUMN SPEAKER
  • 8 x Class D, 50 W amplifiiers
  • Power supply 115/230 Vac (600VA); 24 V dc
  • 8 x 3.5" full range speakers
  • 93 dB Max SPL
RDNet
Support
Features Specifications Accessories Downloads
Support
Features
  • 8 x Class D, 50 W amplifiiers
  • 93 dB Max SPL

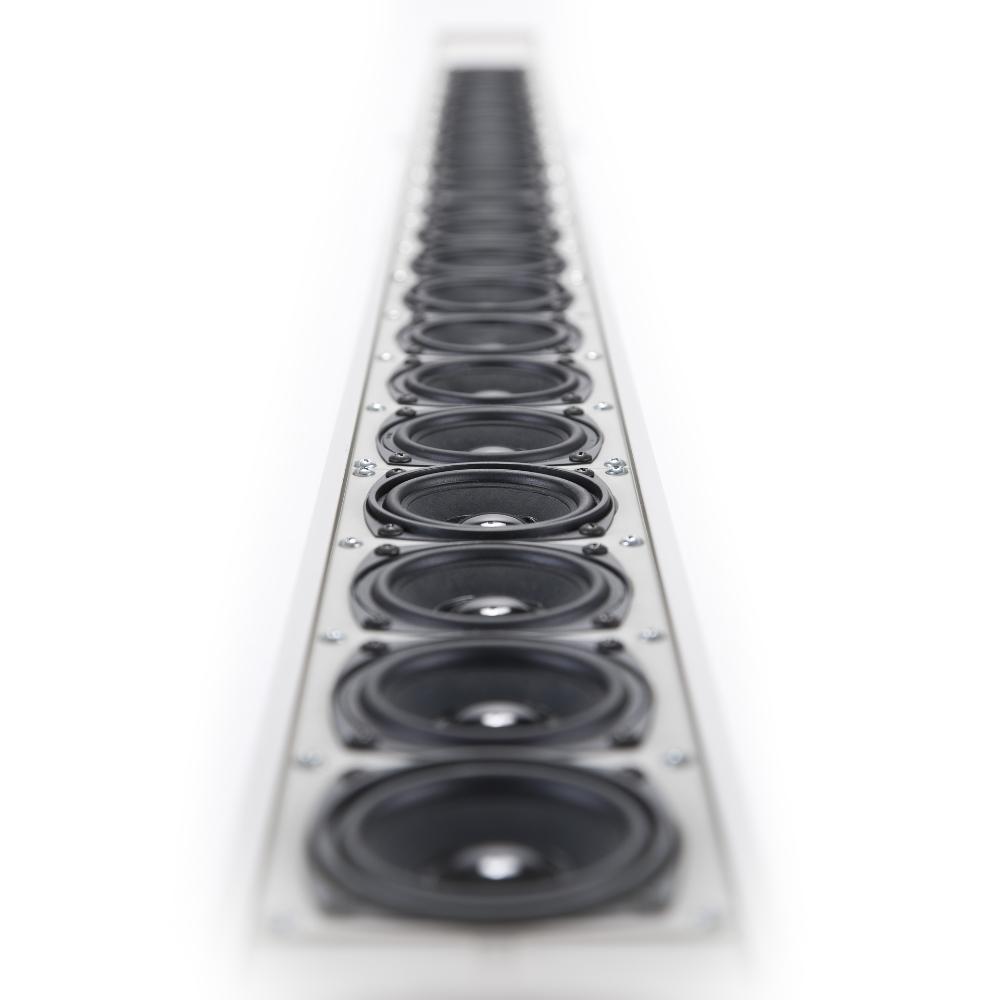

  • 8 x 3.5" full range speakers
  • 48 kHz 32 bit processing
  • Vertical dispersion controlled up to 10° till 30°
  • Power supply 115/230 Vac (600VA); 24 V dc
  • Extruded aluminium body
  • Ceramic block terminals and thermal fuse on 0 dB balanced priority input
  • Standard installation accessories included
  • Indicators and control for EN 60849 monitoring facility

The VSA 850 is a multi-amplified vertical steerable array that represents one of the latest RCF applications in terms of digital audio technology. Thanks to powerful DSPs it processes the audio signal sent to each speaker for controlling its vertical acoustic dispersion to address the audio signal exactly to the listening area, avoiding to send the acoustic energy to ceilings and empty floors, thus not introducing bad reflections that would affect speech intelligibility, mainly in critical environments with high reverberation time.

ARCHIVED

Part number:

13000277
VSA 850
220-240V, White - RAL 9002, EAN 8024530009106

13000278
VSA 850
115V, White - RAL 9002, EAN 8024530009113

Specifications
Acoustical specifications
Frequency Response
130 Hz ÷ 18000 Hz
Max SPL @ 30m
93 dB
Horizontal coverage angle
130°
Vertical coverage angle
30°
Transducers
Fullrange
8 x 3.5'', 1.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Ceramic screw terminals
Input sensitivity
0 dBu
Processor section
Protections
Thermal, short circuit
Limiter
Soft Limiter
RDNet
Yes
Power section
Total Power
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
VDE
Physical specifications
Hardware
2 x wall mounting flange
Color
White - RAL 9002
Size
Height
980 mm / 38.58 inches
Width
125 mm / 4.92 inches
Depth
97 mm / 3.82 inches
Weight
11.2 kg / 24.69 lbs
Shipping information
Package Height
169 mm / 6.65 inches
Package Width
1184 mm / 46.61 inches
Package Depth
189 mm / 7.44 inches
Package Weight
13.2 kg / 29.1 lbs
