Caratteristiche
  • 130 dB Max SPL
  • 800 WATT program power handling
  • 60 – 20000 Hz Frequency Range
  • Hi Resolution Custom RCF Precision Transducer
  • Perfectly Tuned Crossover

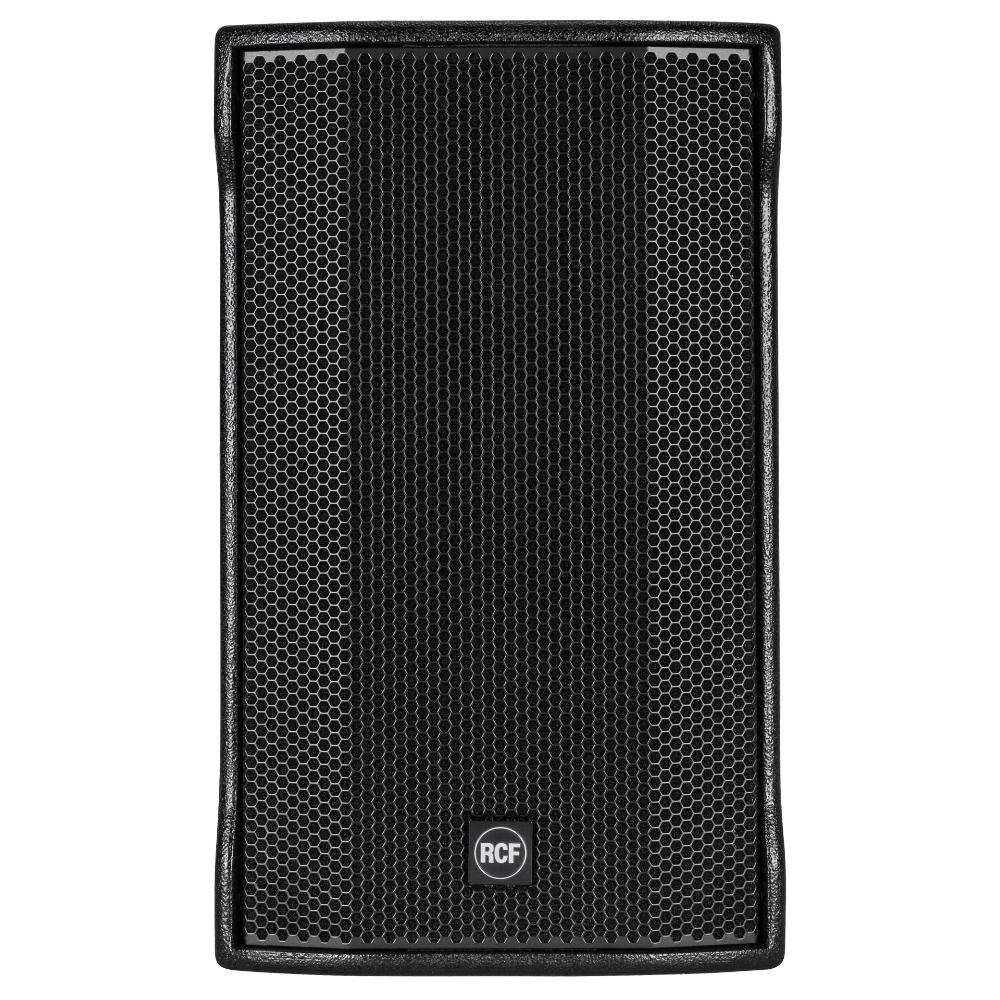

The full-range passive two-way speaker RCF C MAX 4112 has been specifically designed as club systems for entertainment, to reach the best near field quality, vocal coherence, and a stable sound pressure level even at high volumes. It features a 12” woofer and a 1” compression driver. The passive C MAX Series speakers represent a further step of the famous COMPACT Series. Thanks to the bass reflex port, perfectly tuned on the back of the cabinet, the system gives its best when installed near walls, without the need of a subwoofer. It’s perfect for KTV, Karaoke rooms, conference halls, AV installations, public areas and clubs.

Part number:

13000535
C-MAX 4112
EAN 8024530014681

Specifiche tecniche
Specifiche acustiche
Risposta in Frequenza (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Angolo di copertura orizzontale:
90°
Angolo di copertura verticale:
70°
Indice di Direttività Q:
11
Sensibilità del sistema:
98 dB
Sezione di potenza
Amplification:
Full Range
Impedenza Nominale:
8 ohm
Potenza:
400 W
Potenza di Picco:
1600 W PEAK
Amplificatore Raccomandato:
800 W
Protezioni:
Bulb lamp
Frequenze Crossover:
1800 Hz
Trasduttori
Driver a Compressione:
1 x 1.0'' neo, 1.75'' v.c
Woofer:
12'', 3.0'' v.c
Sezione Input/Output
Connettori in ingresso:
Speakon® NL4
Connessioni di uscita:
Speakon® NL4
Conformità agli standard
Safety agency:
CE compliant
Specifiche fisiche
Materiale Cabinet/Case:
Baltic birch plywood
Hardware:
16 x M10
Maniglie:
1 Top
Pole mount/Cap:
Yes
Griglia:
Steel
Colore:
Black
Dimensioni
Altezza:
600 mm / 23.62 inches
Larghezza:
363 mm / 14.29 inches
Profondità:
407 mm / 16.02 inches
Peso:
24.5 kg / 54.01 lbs
Informazioni di spedizione
Altezza imballaggio:
675 mm / 26.57 inches
Larghezza imballaggio:
465 mm / 18.31 inches
Profondità imballaggio:
425 mm / 16.73 inches
Peso imballaggio:
28 kg / 61.73 lbs
