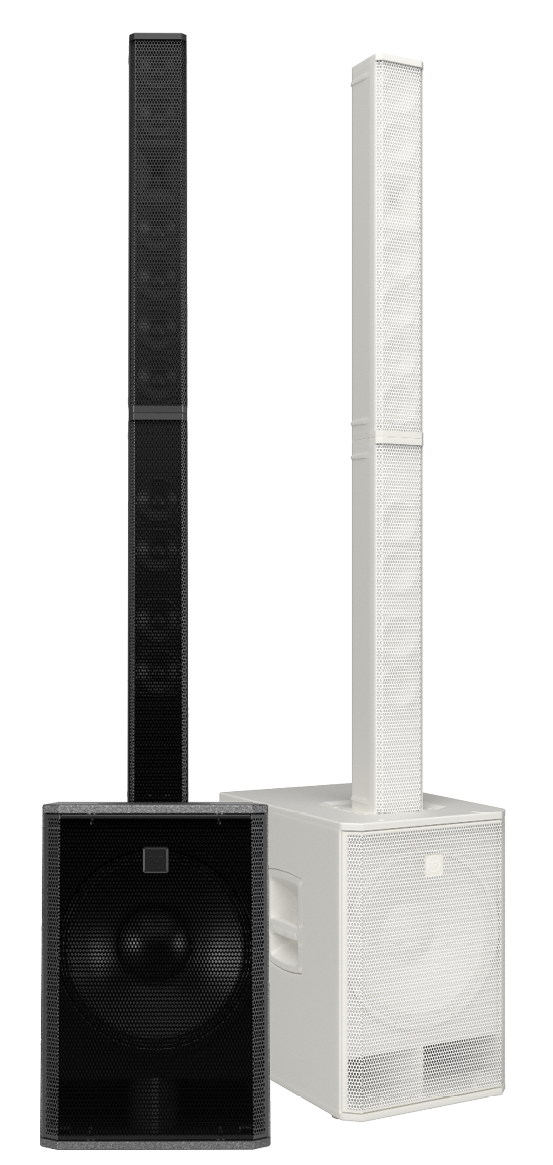

EVOX

THREE-WAY COLUMN ARRAY

ELEVATE YOUR SOUND

Since their debut, EVOX systems have garnered acclaim for their sound quality, elegant design, and tour-proven reliability. The latest true-3-way architecture combines powerful, professional sound with a centered acoustic image that feels natural and balanced, with the focused precision of a point-source system. Inside, purpose-built RCF transducers and amplifiers deliver impressive SPLs and pristine audio. Outside, an unobtrusive, minimal enclosure—available in black or white finishes—disappears into any décor. Whether you’re spinning tracks, playing in a band, performing on stage, or hosting a corporate event, there’s an EVOX ready to deliver. Select EVOX J systems for streamlined, plug-and-play operation, or step up to EVOX V for high-power, high-performance applications. For artists demanding total sonic management on the go, the EVOX JMIX9 provides an integrated digital mixer for complete mix control wherever the music takes you.

EVOX J9

130 dB Max SPL
2100 W Class-D Amplifier
Built-In DSP
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
6 X 3” Full-Range Neo Transducers
12” Rcf Precision Low-Frequency Woofer

EVOX JMIX9

Built-In 8-Channel Stereo Digital Mixer
Bluetooth® Streaming And Control
JMixRemote App
130 dB Max SPL
2100 W Class-D Amplifier
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
6 X 3” Full-Range Neo Transducers
12” RCF Precision Low-Frequency Woofer

EVOX J11

132 dB Max SPL
3500 W Class-D Amplifier, Built-In DSP
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
12 X 3” Full-Range Neo Transducers
12” RCF Precision Low-Frequency Woofer
PowerCON TRUE1-TOP Mains Connector

EVOX J9

130 dB Max SPL
2100 W Class-D Amplifier
Built-In DSP
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
6 X 3” Full-Range Neo Transducers
12” Rcf Precision Low-Frequency Woofer

EVOX JMIX9

EVOX J11

EVOX V15

133 dB Max SPL
3500 W Class-D Amplifier, Built-In DSP
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
10 X 4” Mid-Range Neo Transducers
15” RCF Precision Low-Frequency Woofer
PowerCON TRUE1-TOP Mains Connector

EVOX

True 3-Way
Electroacustic Design

Consistent Coverage
for Seated and Standing Audiences

Acoustically Aligned Center
for Coherent Response

Selectable Presets
Live/Linear, Club, Voice

Variable Height Configuration
(J9 / JMIX9)

Column Array
Carrying Bag Included

True 3-Way Design

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

The array radiation of full-range cone neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

RCF woofer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

EVOX J Composite Woofer Enclosure

EVOX V Plywood Woofer Enclosure

Up to 2.5X More Power

The new generation of 2100 W and 3500 W Class-D amplifiers delivers up to 2.5X more power than the previous architecture, delivering extremely high sound pressure levels with ultra-fast attack, realistic transient response, and minimal thermal buildup.

EVOX

Find the product that’s right for you!

DISCOVER THE PRODUCTS

8-Channel Stereo

Digital Mixer

The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4” color touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.

Wireless Control

JMIXRemote APP

The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).

Variable Height Configuration

Variable height lets you position the column array at the right elevation for the audience and the room. You can run it at zero offset (array attached to the bass enclosure) for the lowest profile (e.g., on stage), or raised to place the HF section above heads, clear the first rows, cover tiered seating, and improve coverage uniformity and clarity across the listening area. An optional half-size pole extension is available as an accessory and includes a transport bag.

EVOX J9 and JMIX9

The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.

EVOX J11

EVOX J11 comprises two speaker arrays and must always be used with both arrays connected. For increased height, J11 supports only the single-half-pole configuration.

EVOX V

Power for Demanding Performances

Built for users who need higher output, greater projection, and professional reliability, EVOX V brings a new level of performance to the EVOX family. The 3500 W Class-D amplifier delivers high SPL with fast transient response and generous headroom, while the ten-transducer vertical array ensures clear vocal definition and wide, consistent coverage. The dedicated RCF low-frequency woofer, loaded in a rigid precision-tuned plywood enclosure, provides deep, controlled bass and the durability required for live, event, and rental applications.

Quick Setup. Ready to Play.

All required connections for fast setup.

SUB AX ACE Presets for EVOX

When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF’s Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.

learn more

Ready for the Road

Height Extensions, Protection and Transport Accessories

Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility. All RCF transport and protection accessories are crafted from premium 600D polyester, feature 10 mm foam padding and a 190T taffeta inner fabric, and are secured with a durable zip-and-Velcro closure for long-lasting reliability.

Digital Signal Proficiency

The EVOX DSP platform is a real-time DSP engine that delivers unparalleled processing density and scalability, propelling RCF speakers to a new level of performance, and incorporates all RCF proprietary algorithms for protection and tuning.

Bass Motion Control®

EVOX speakers equipped with Bass Motion Control (BMC) deliver the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity. The BMC method creates a complete map of the woofer's dynamic behavior to generate a custom algorithm that limits overexcursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer while enabling full freedom in signal reproduction.

New perspective on linearity

EVOX systems are engineered with proprietary FiRPHASE processing to deliver transparent sound, exceptional clarity, and precise imaging. FiRPHASE optimizes phase response across the listening area, helping provide consistent coverage and a natural transient response while maintaining low system latency. The algorithm refines the transducer transfer function and, where needed, corrects amplitude, reducing the effects of cabinet-related resonances and acoustic cancellations.
