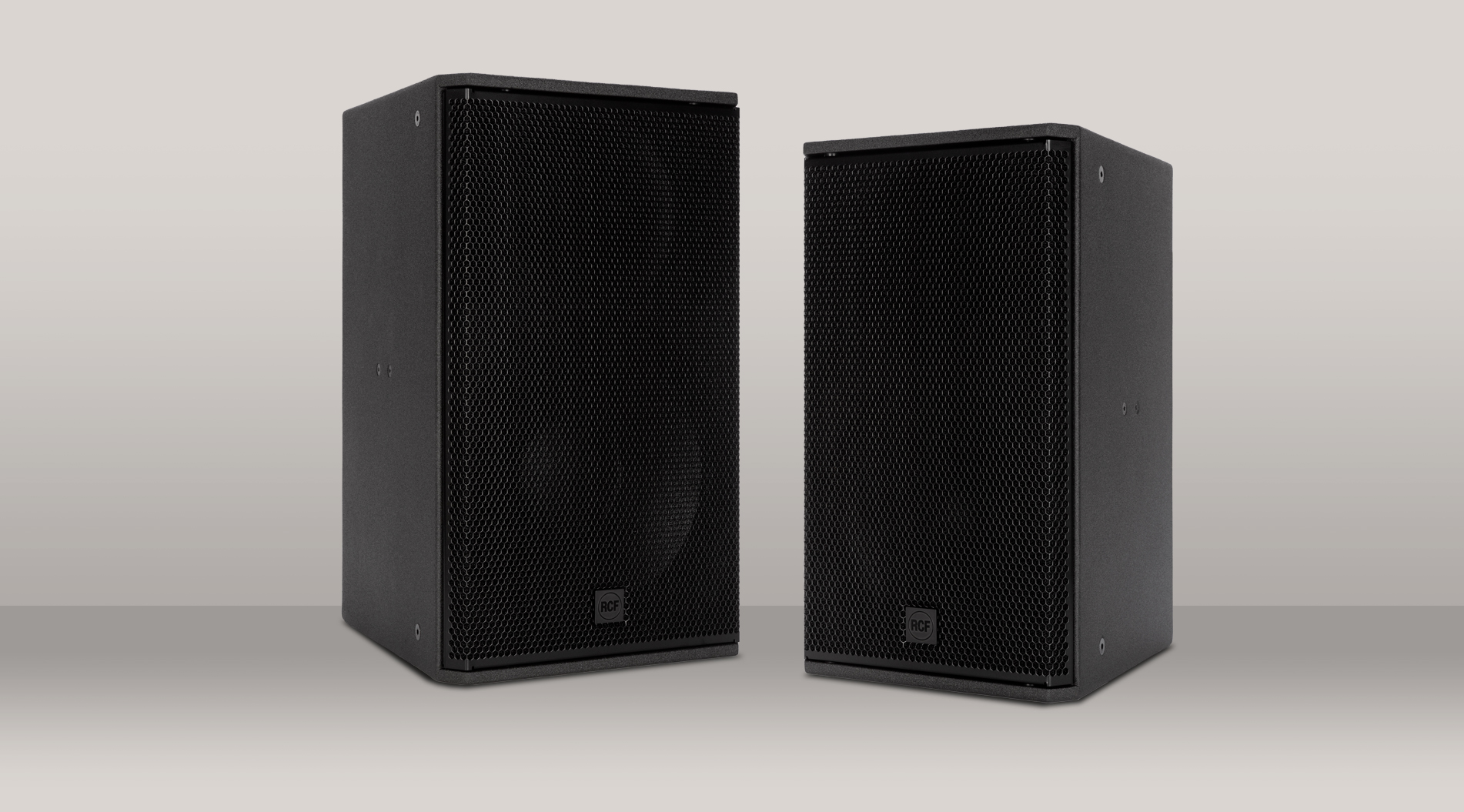

Big Sound, Compact Size

Elegant design aesthetics, RCF reliability and signature sound, delivers a pleasing audio experience in any application, from sports halls to nightclubs, corporate spaces, and performance venues. Available in two sizes, with 12-inch and 15-inch woofers, provide excellent acoustic performance for both background and foreground music.
Responsive Image
Clubs
Responsive Image
Hospitality Venues
Responsive Image
High-Power Install Audio
Responsive Image

Superior Transducers

Lightweight and powerful, RCF transducers feature advanced materials such as neodymium magnets and pure titanium diaphragms. Both drivers and woofers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.
High Frequencies
The compression driver voice-coil design with titanium dome provides very natural sound with high power handling and the best durability over time. This allows lowering the usual crossover point for a perfect vocal performance at mid frequencies, also improving coupling with the low-frequency transducer.
Low Frequencies
Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.
Responsive Image
Responsive Image

Constant Directivity Waveguide

The special waveguide design allows the deployment of COMPACT C speakers with accurate control of the directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.The speaker also features a 100° x 50° rotatable constant directivity waveguide. Using the optional  HN-KIT COMPACT C 32 C 45 accessory, it is possible to replace the speaker horn with two different horns and change directivity to 100° x 25° or 60° x 25°.

Advanced Electroacoustics

The advanced design of COMPACT C speakers is the result of several refinements in transducers, crossovers, and vented ports design. The internal crossover frequency is set at a lower frequency than usual, resulting in a clear and accurate vocal reproduction, carefully protected by our Dynamic Active Mosfet circuitry. With the advanced design and sound shaping of the waveguide, the speaker provides constant directivity and perfect coverage to the entire listening area.
Responsive Image
Responsive Image

Long-lasting Durability

The solid, balanced birch plywood cabinet achieves minimal distortion, ideal for highly demanding installed applications. The cabinet uses a special textured polyurea coating for its scratch-resistant properties, also lasting longer than traditional coatings. The grille cover is heavy-duty steel protecting both transducers and vented ports.

The Solution for Impressively Powerful Sound

COMPACT C flexibility makes it a smart choice for a wide range of applications. Combining high-quality birch plywood cabinets with a 100° x 50° rotatable constant directivity waveguide, the speaker can be installed either horizontally or vertically. The sleek cabinet features a robust polyurea coating and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two  ‘Neutrik Speakon NL4’ (4-pole) plugs.
Responsive Image
Responsive Image

Perfectly Tuned Power Amps

Pairing RCF passive speakers with RCF High Power XPS DSP Amplifiers and recalling the relative speakers preset, the finely tuned FiRPHASE and Bass Motion Control processing will be enabled, accurately customized for your speaker model. When connected to XPS, RCF speakers deliver their best performance, acting as an ideal source for a detailed sound image, impressive power, and extended bass response.
