EVOX J
THREE-WAY COLUMN ARRAY

ELEVATE YOUR SOUND

Since their debut, EVOX systems have garnered acclaim for their sound quality, elegant design, and tour-proven reliability. The latest true-3-way architecture combines powerful, professional sound with a centered acoustic image that feels natural and balanced, with the focused precision of a point-source system. Inside, purpose-built RCF transducers and amplifiers deliver impressive SPLs and pristine audio. Outside, an unobtrusive, minimal enclosure—available in black or white finishes—disappears into any décor. Whether you’re spinning tracks, playing in a band, performing on stage, or hosting a corporate event, there’s an EVOX ready to deliver with standard models for plug-and-play simplicity. Or choose the EVOX JMIX9, featuring an integrated digital mixer for full mix control wherever the music takes you.
Responsive Image

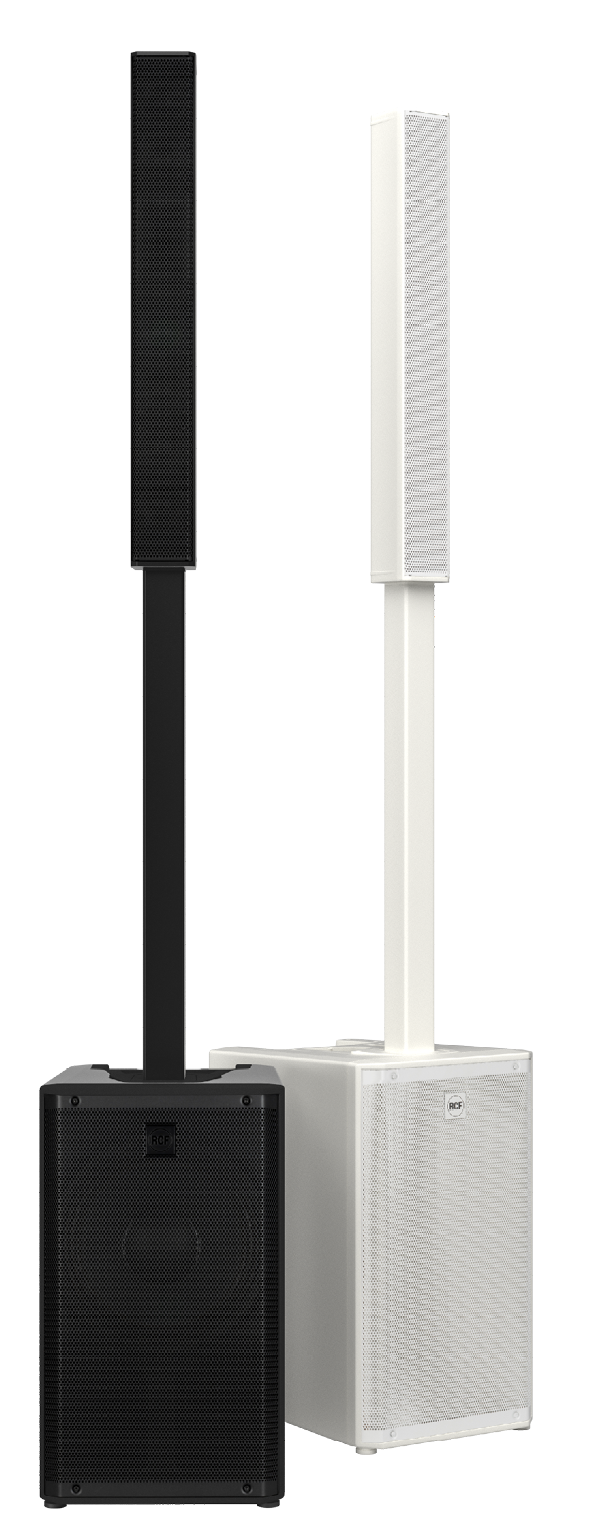

EVOX J9
130 dB Max SPL
2100 W Class-D Amplifier
Built-In DSP
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
6 X 3” Full-Range Neo Transducers
12” Rcf Precision Low-Frequency Woofer
Responsive Image
EVOX JMIX9
Built-In 8-Channel Stereo Digital Mixer
Bluetooth® Streaming And Control
JMixRemote App
130 dB Max SPL
2100 W Class-D Amplifier
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
6 X 3” Full-Range Neo Transducers
12” RCF Precision Low-Frequency Woofer
Responsive Image

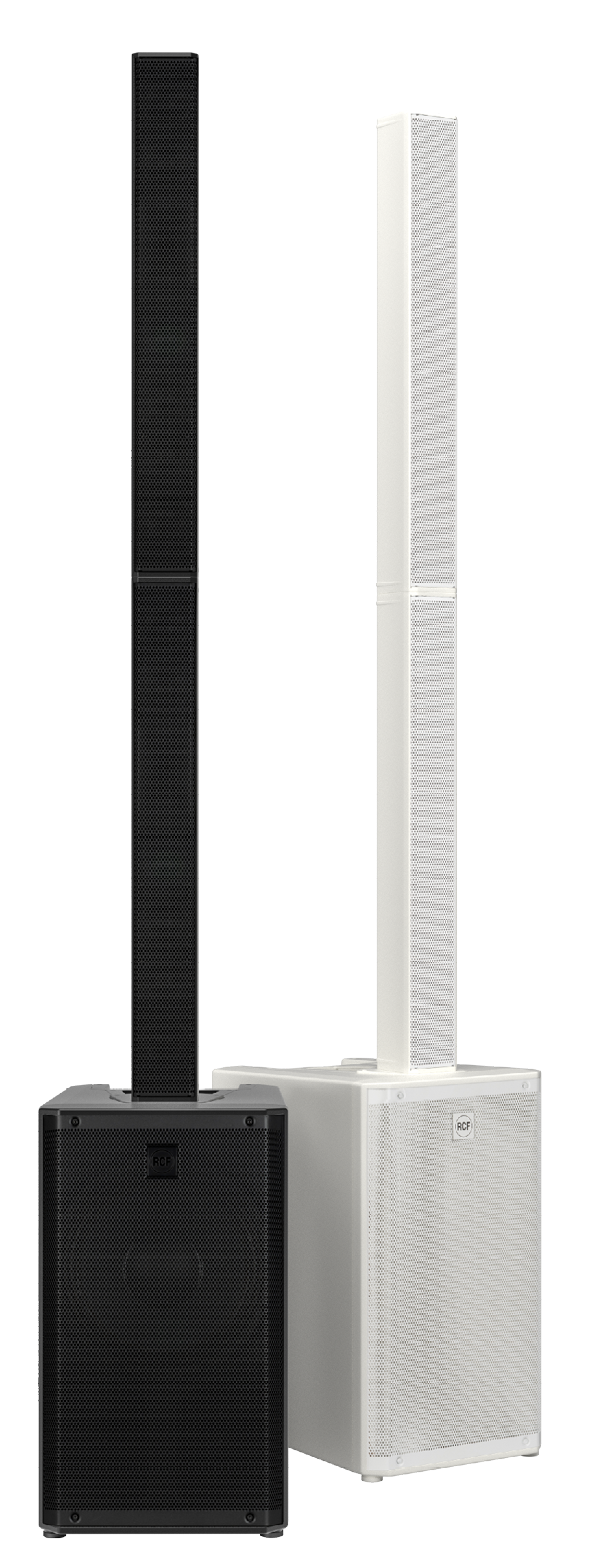

EVOX J11
132 dB Max SPL
3500 W Class-D Amplifier, Built-In DSP
1.75” Neo Compression Driver
120° X 40° True Resistive Waveguide
12 X 3” Full-Range Neo Transducers
12” RCF Precision Low-Frequency Woofer
PowerCON TRUE1-TOP Mains Connector

EVOX J

True 3-Way
Electroacustic Design
Consistent Coverage
for Seated and Standing Audiences
Acoustically Aligned Center
for Coherent Response
Selectable Presets
Live/Linear, Club, Voice
Variable Height Configuration
(J9 / JMIX9)
Top Speaker
Carrying Bag Included

True 3-Way Design

Responsive Image Responsive Image

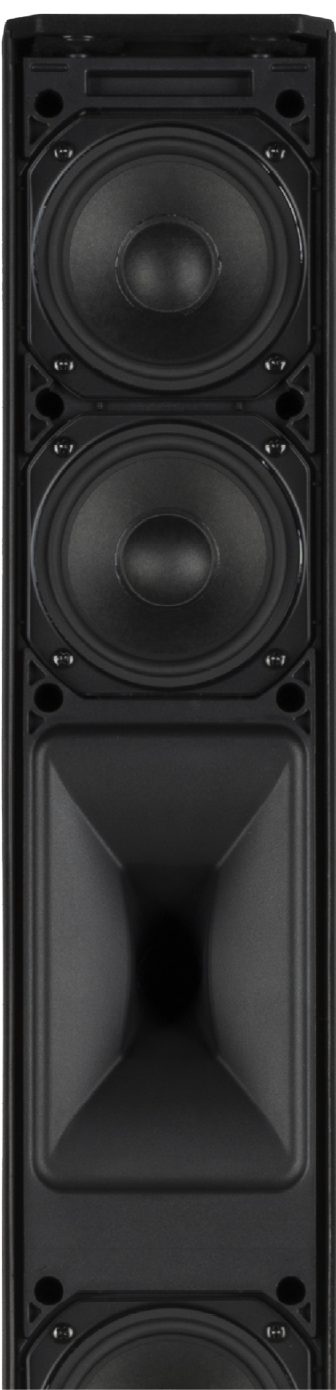

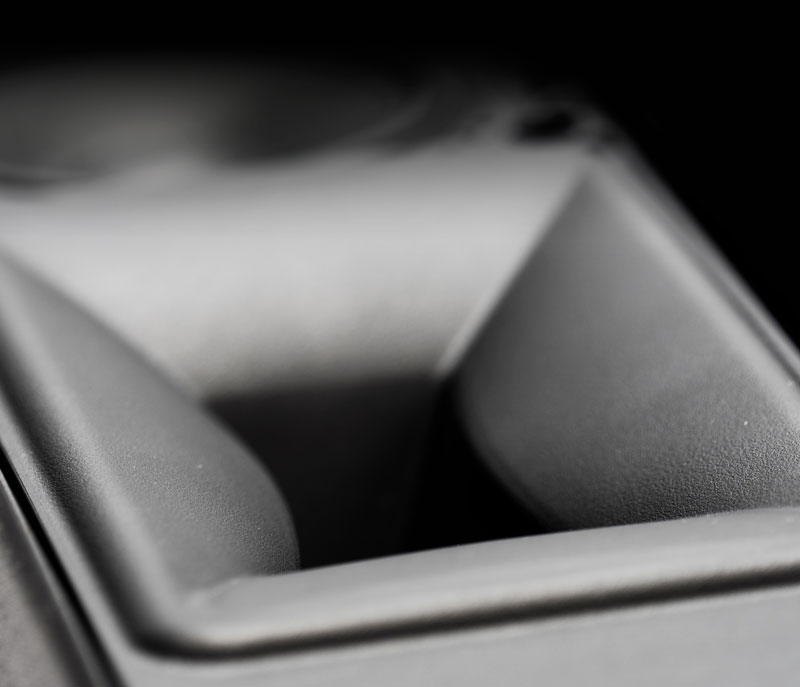

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

The forward radiation of the array of 3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

Placeholder
Placeholder

Placeholder
Placeholder

12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

Up to 2.5X More Power

The new generation of 2100 W and 3500 W Class-D amplifiers delivers up to 2.5X more power than the previous architecture, delivering extremely high sound pressure levels with ultra-fast attack, realistic transient response, and minimal thermal buildup.

EVOX J

Find the product that’s right for you!

8-Channel Stereo
Digital Mixer
The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4” color touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.

Wireless Control

JMIXRemote APP
Placeholder
Placeholder

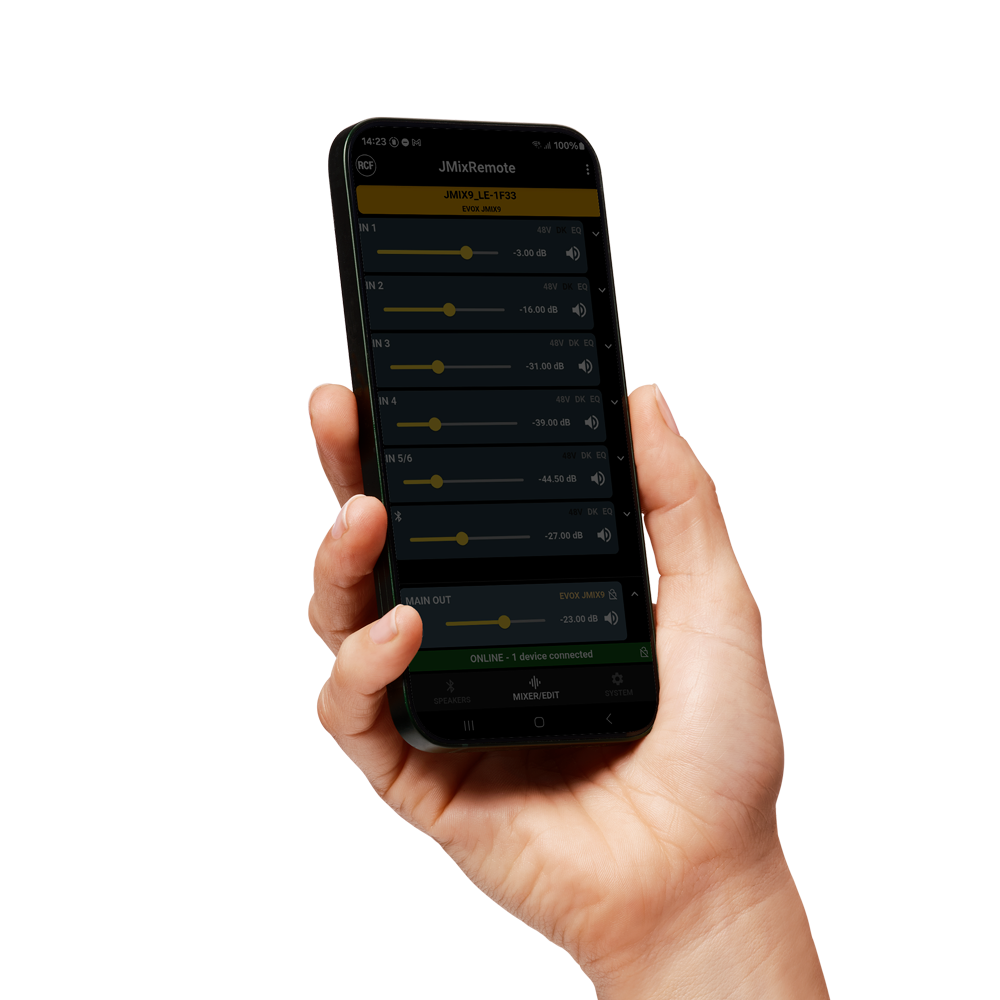

The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).
Responsive Image Responsive Image

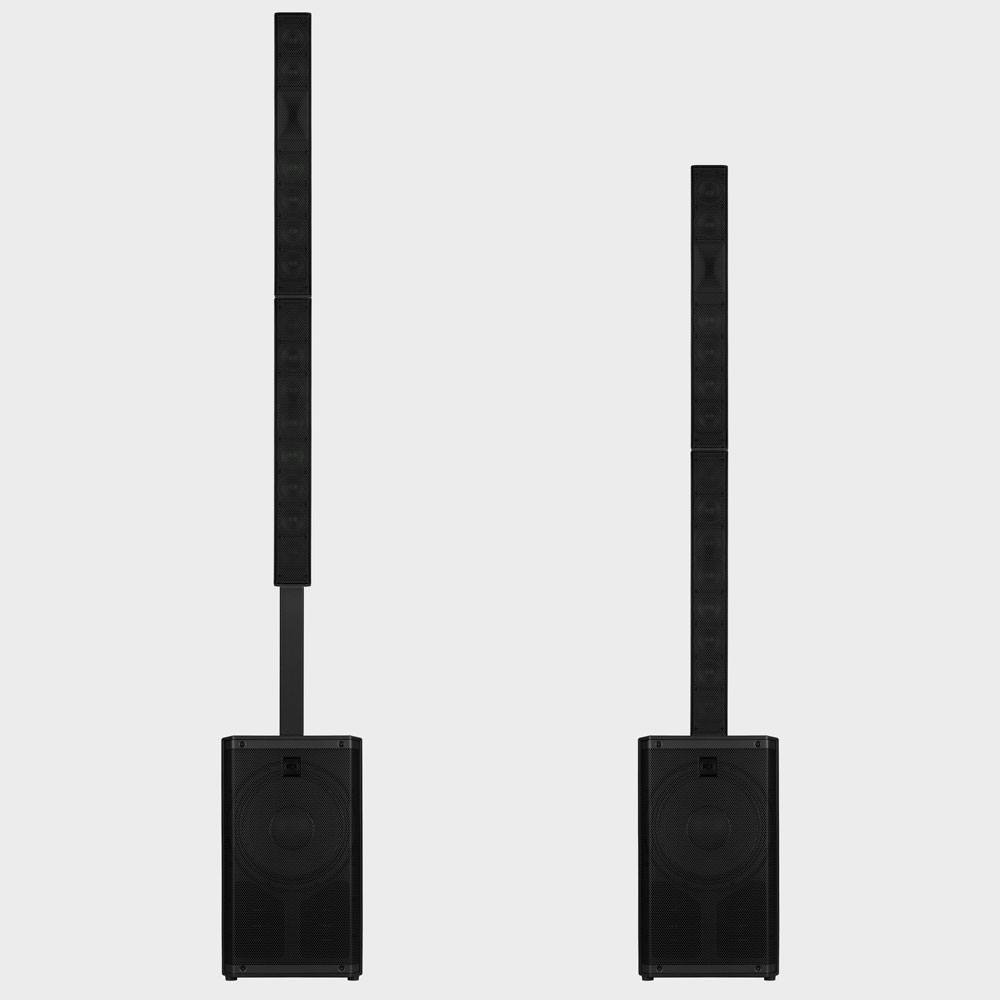

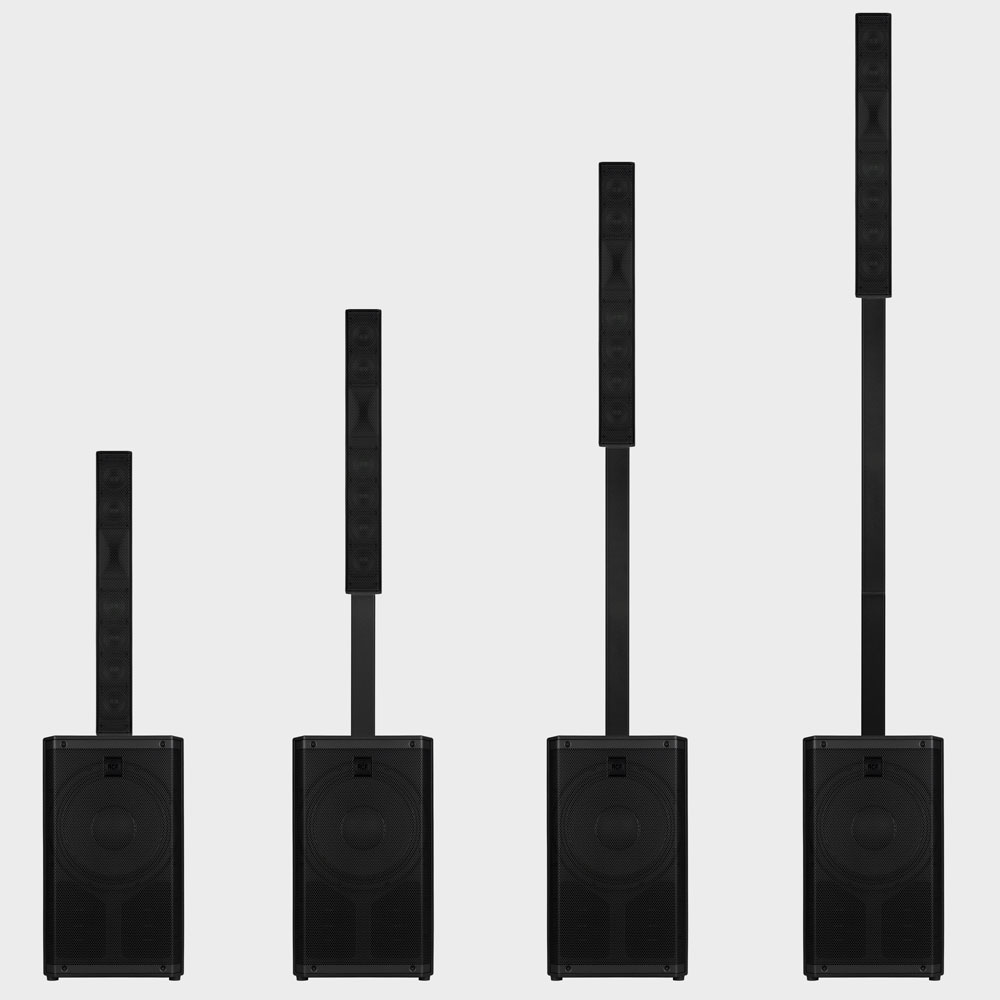

Variable Height Configuration

Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.

+

Zero Offset

+

Half-Length Pole (accessory)

+

Full-Length Pole (included)

+

Half-Length + Full-Length Poles

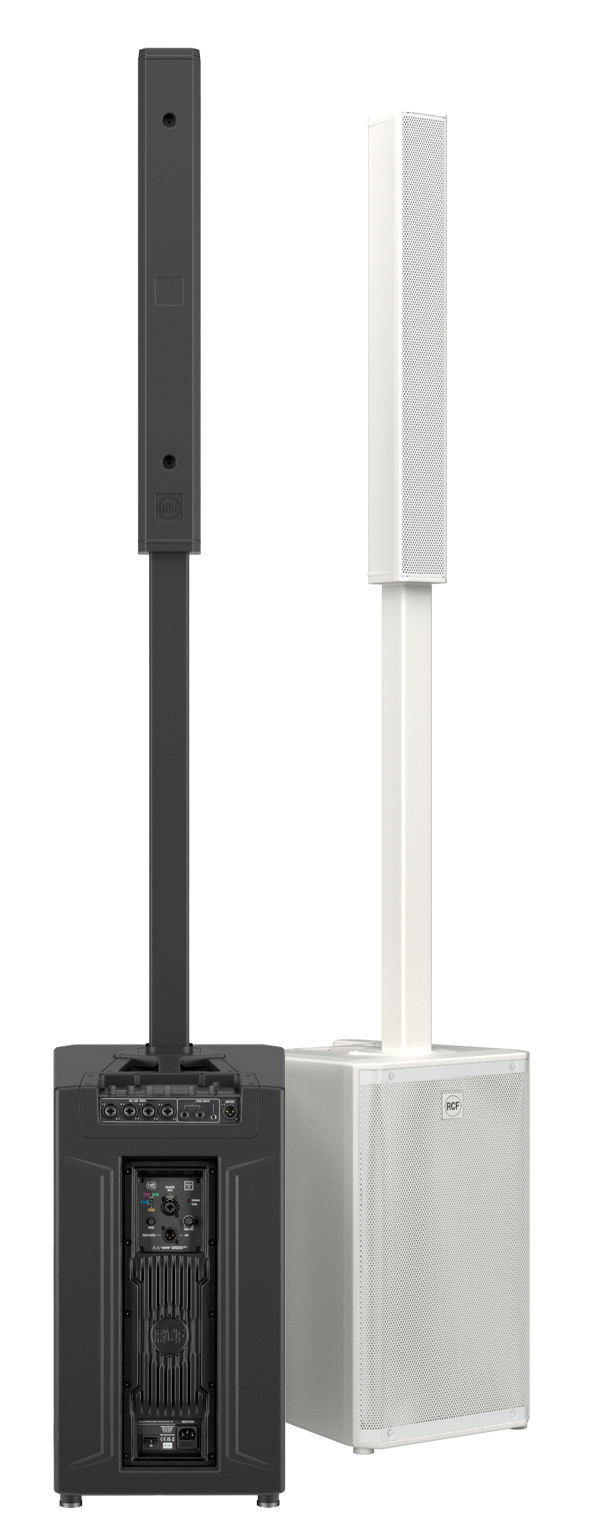

Quick Setup. Ready to Play.
All required connections for fast setup.
Responsive Image Responsive Image

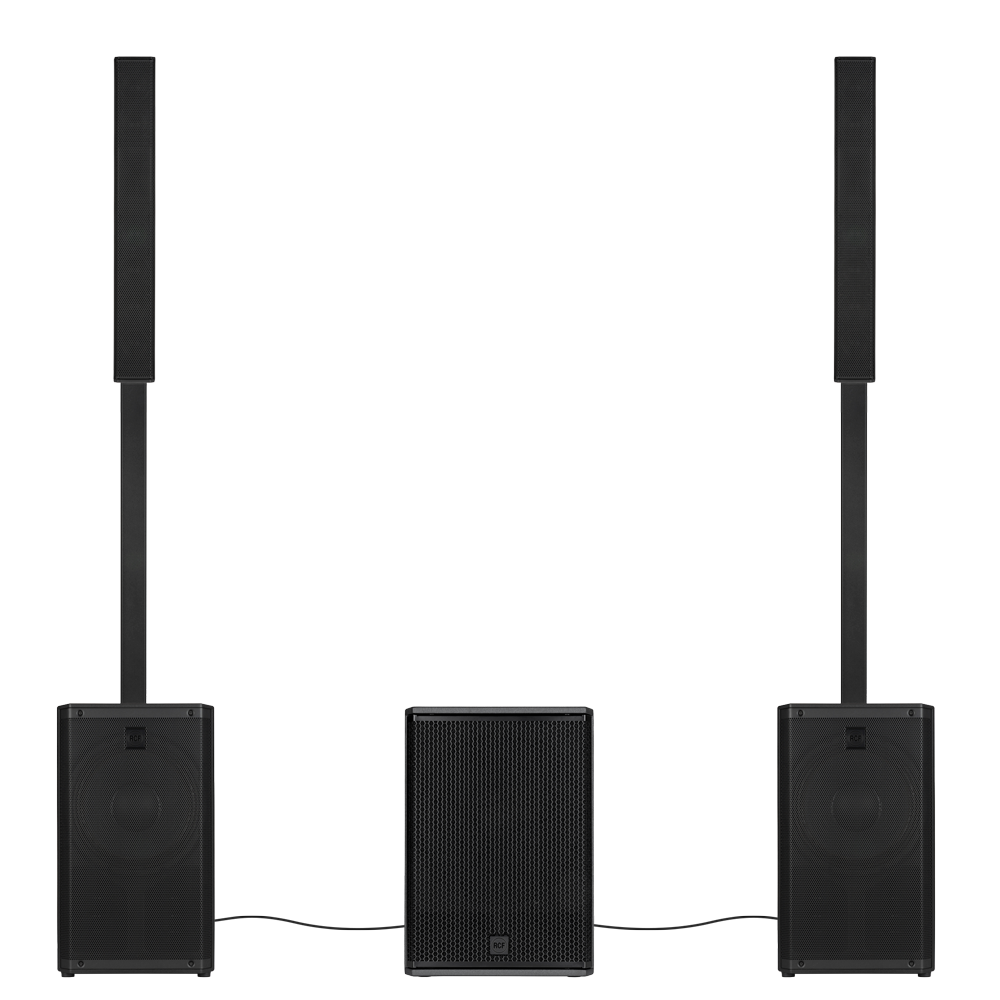

SUB AX ACE Presets for EVOX J

When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF’s Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.
Responsive Image
Ready for the Road
Height Extensions, Protection and Transport Accessories
Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility. All RCF transport and protection accessories are crafted from premium 600D polyester, feature 10 mm foam padding and a 190T taffeta inner fabric, and are secured with a durable zip-and-Velcro closure for long-lasting reliability.

Digital Signal Proficiency

The EVOX J DSP platform is a real-time DSP engine that delivers unparalleled processing density and scalability, propelling RCF speakers to a new level of performance, and incorporates all RCF proprietary algorithms for protection and tuning.
Bass Motion Control®
EVOX J speakers equipped with Bass Motion Control (BMC) deliver the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity. The BMC method creates a complete map of the woofer's dynamic behavior to generate a custom algorithm that limits overexcursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer while enabling full freedom in signal reproduction.
New perspective on linearity
EVOX J loudspeakers are engineered with proprietary FiRPHASE processing to deliver transparent sound, exceptional clarity, and precise imaging. FiRPHASE optimizes phase response across the listening area, helping provide consistent coverage and a natural transient response while maintaining low system latency. The algorithm refines the transducer transfer function and, where needed, corrects amplitude, reducing the effects of cabinet-related resonances and acoustic cancellations.
Wherever the Music Takes You
