ARCHIVED
INSTALLED SOUND LIVE SOUND

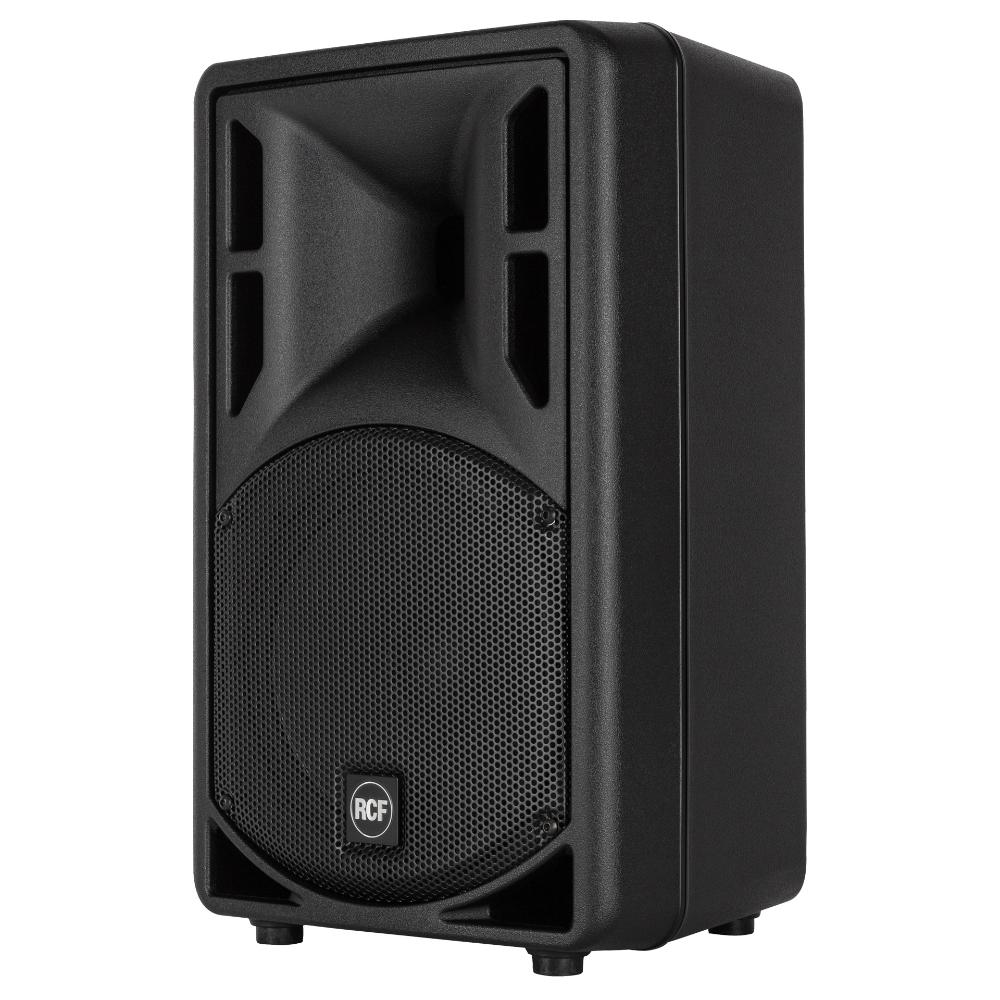

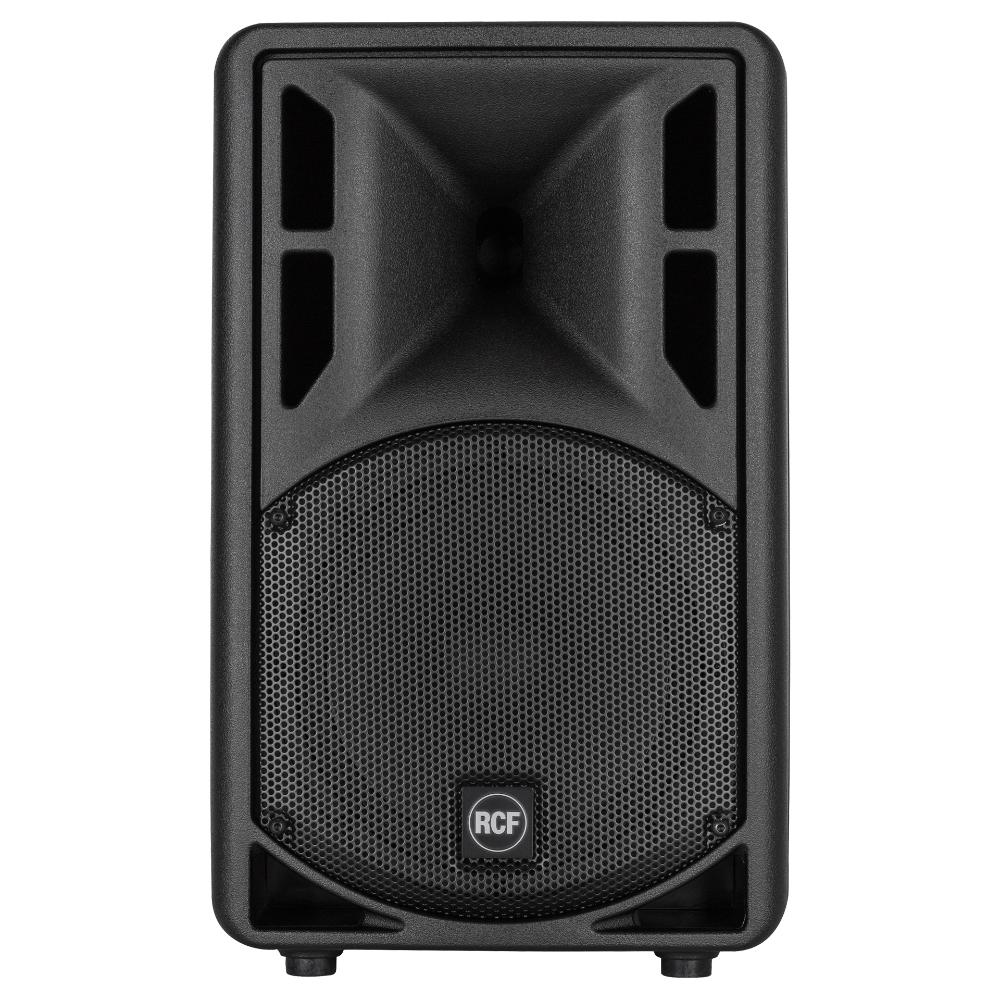

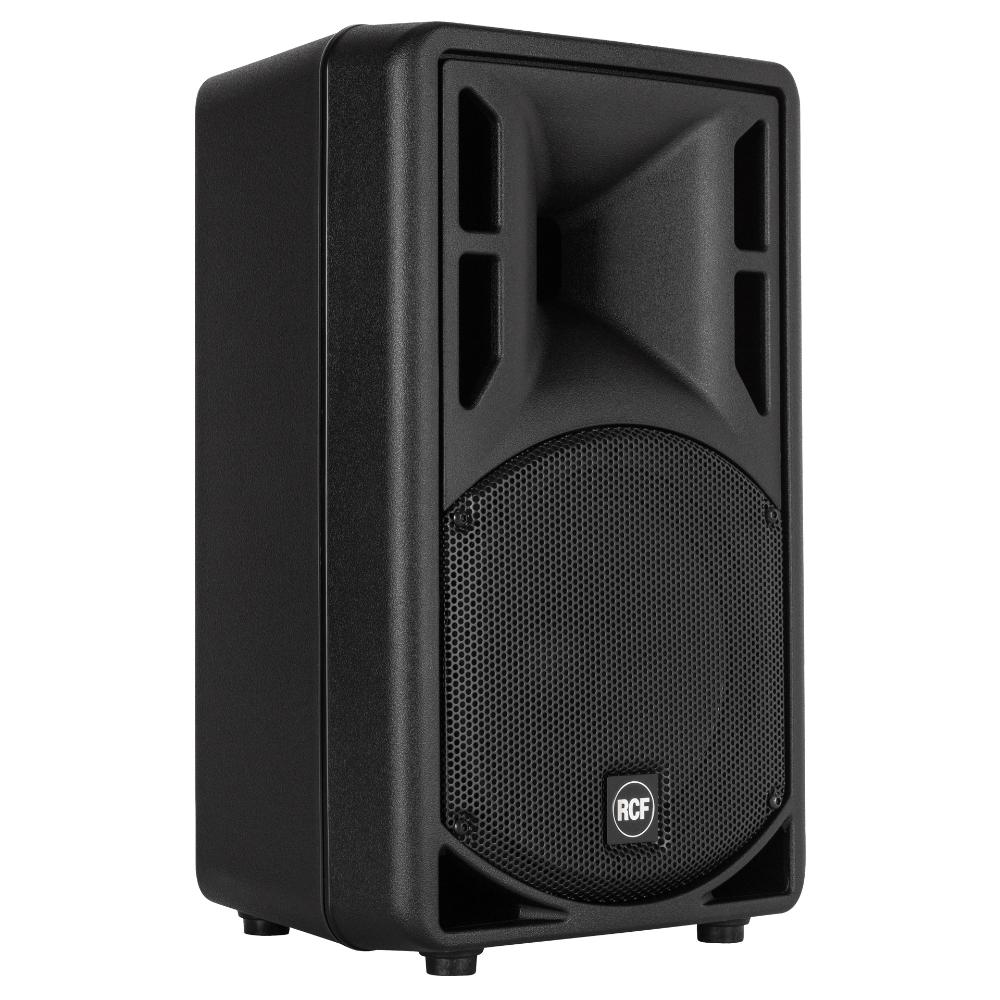

ART 310 MK4

PASSIVE TWO-WAY SPEAKER
  • 127 dB Max SPL
  • 300 W AES power handling
  • Dual Speakon IN/OUT
  • 1" HF driver, mylar dome, 1.5" voice coil
Support
Features Specifications Accessories Downloads
Support
Features
  • 127 dB Max SPL
  • 300 W AES power handling
  • Dual Speakon IN/OUT
  • 1" HF driver, mylar dome, 1.5" voice coil
  • 10" High Powered Woofer
  • 537x337x315 mm 21.14x13.27x14.4 mm (HxWxD)
  • Finely tuned crossover
  • high power handling low impedance crossover design

Active speakers for live sound reinforcement and stage monitoring as well as distributed sound systems for clubs, music venues and corporate events. ART 312-A MK4 is the optimum choice for live sound situations where an exceptional full range, outstanding bass reproduction and accurate high frequency delivery are required

ARCHIVED

Part number:

13000585
ART 310 MK4
EAN 8024530016975

Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 20000 Hz
Max SPL @ 1m
127 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Power section
Nominal Impedance
8 ohm
Power Handling
300 W
Peak Power Handling
1200 W PEAK
Protections
Electronic
Crossover Frequencies
1800 Hz
Transducers
Compression Driver
1 x 1.0'', 1.5'' v.c
Woofer
1 x 10'', 2.0'' v.c
Input/Output section
Input connectors
Speakon
Output connectors
Speakon
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10 Flying p.
Handles
1 Top
Pole mount/Cap
35 mm insert
Color
Black
Size / Weight
Height
537 mm / 21.14 inches
Width
337 mm / 13.27 inches
Depth
314 mm / 12.36 inches
Weight
13 kg / 28.66 lbs
Shipping information
Package Height
600 mm / 23.62 inches
Package Width
391 mm / 15.39 inches
Package Depth
369 mm / 14.53 inches
Package Weight
15 kg / 33.07 lbs
Accessories
Downloads
MANUALS
USER MANUAL - ENG
PDF
6.2 MB
29-05-2024
SPECIFICATIONS
SPECSHEET - DEU
PDF
1.5 MB
25-10-2024
SPECSHEET - ENG
PDF
1.5 MB
25-10-2024
SPECSHEET - FRA
PDF
1.5 MB
25-10-2024
SPECSHEET - ITA
PDF
1.5 MB
25-10-2024
SPECSHEET - SPA
PDF
1.5 MB
25-10-2024
ACOUSTIC MEASUREMENTS
PDF
261 KB
11-07-2024
DRAWINGS
LINE ART 2D
DXF
4.1 MB
22-01-2024
LINE ART 2D
PDF
870 KB
22-01-2024
SOFTWARE
GLL
ZIP
874 KB
21-06-2019
