Features
  • Built-in 6-channel Digital Mixer
  • Advanced User Interface w/ touch panel and remote control
  • 1.75" Compression Driver and 10" Woofer
  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • Dual combo preamp with 48V Power and Mini-jack stereo line input
  • Bluetooth® stereo audio input, with dual speaker pairing option
  • True Resistive Waveguide, FiRPHASE, and Bass Motion Control

ART 910-AX is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control (BMC) DSP processing, perfectly tuned for each model, audiences will experience absolute clarity and deep, powerful bass response. The ART 910-AX combines a powerful and high-performance amplified speaker, with a digital audio processor for maximum flexibility. Several operating modes are possible, with the speaker alone or in combination with other speakers. Audio can be streamed to the speaker, along with remote control, via Bluetooth®. All the available functions and parameters are accessible from the onboard color display via a capacitive touch screen and an encoder, as well as from a dedicated app for iOS and Android smartphones.

Read More

NEW

Part number:

13000706
ART 910-AX
220-240V, EAN 8024530020095

13000707
ART 910-AX
100-120V, EAN 8024530020217

Enjoy the Powerful Internal Digital Mixer and Advanced Bluetooth® Pairing

ART 9-AX is a top-notch solution for any portable audio application

Connect your instruments and microphones to the 48V powered preamps or the line inputs; an internal 6-channel digital mixer with Compressors, EQs, Reverb, and Ducker will help you get the job done. And if you run out of time, use the quick setup modes with step-by-step configuration options.
Responsive Image

ART 9-AX Overview

Learn all the key features of ART 9-AX with our videos
Responsive Image

2100 W: the most powerful wireless Bluetooth® speaker

ART 9-AX is the most powerful speaker on the market, also when connected wireless.

The Class 1 Bluetooth® connection can receive 2-channel audio streaming and provides a stereo or dual mono output for pairing with AX-featured RCF speakers. We tested over 100 meters (328 feet) free-field operability. Enjoy the convenience of Bluetooth® connection when you have architectural constraints, pedestrian areas, or inaccessible signal connections.

Power that moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

A Live Experience in your Pocket

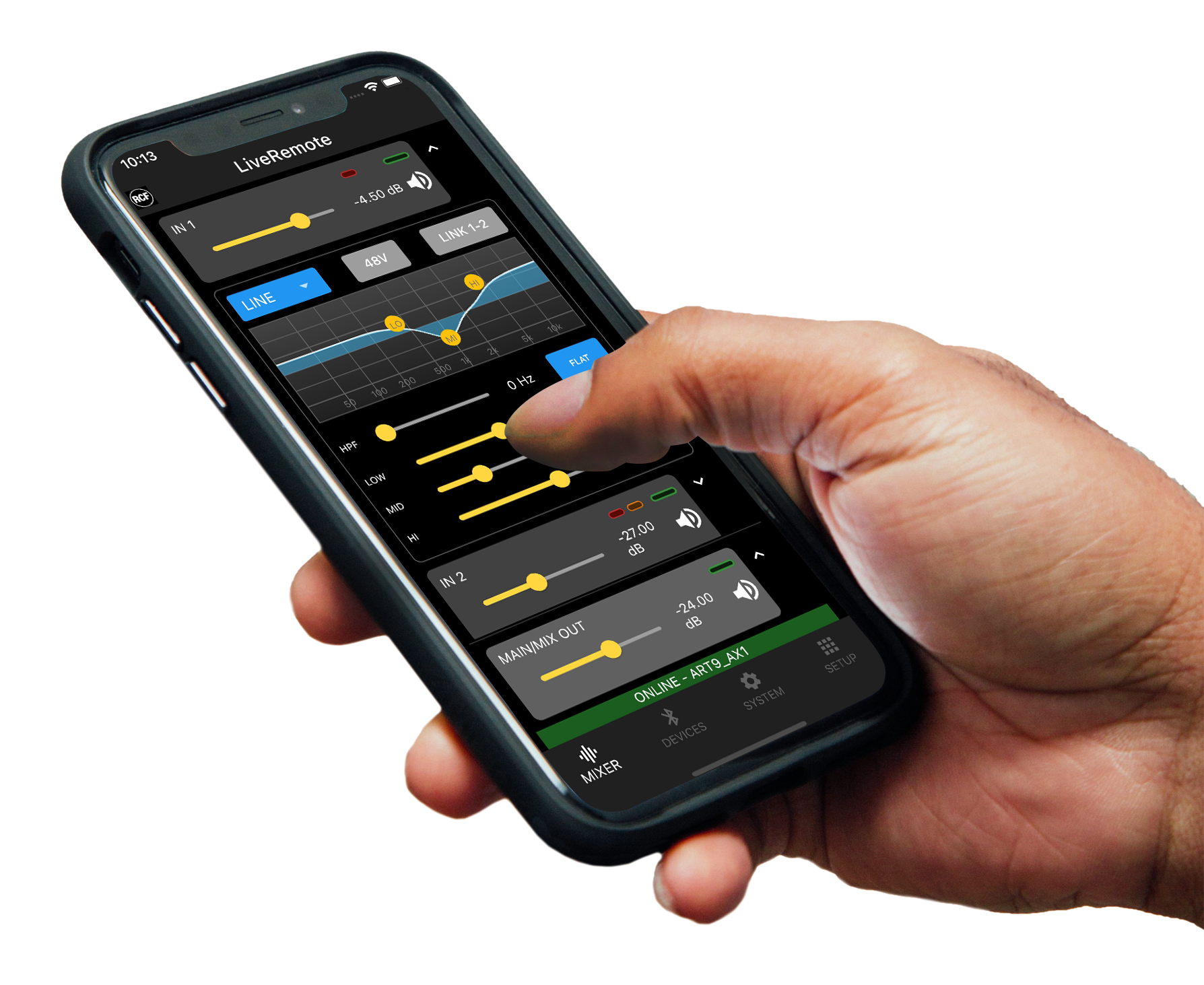

Manage ART 9-AX from your Smartphone or Tablet with LiveRemote App

RCF LiveRemote App makes it easy to adjust ART 9-AX mixer, DSP, FX, routing, and Bluetooth® settings. LiveRemote also allows full control of the internal ART 9-AX engine: recall and save presets, set your desired volume levels, adjust EQ, compressors, and FX, customize and tune your sound system and much more. Available for Android and iOS phones and tablets.

Responsive Image
Responsive Image

Advanced Features for Professional Users

The internal mixer disentangles all your routing needs and an internal crossover helps you use the speaker with any subwoofer. An internal 5-band parametric EQ lets you manage boomy spaces or modal resonances, while the output delay keeps your sound always in time. Wireless pairing to another ART 9-AX is a handy tool when you have physical constraints and can't run signal cables.

Specifications
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
10'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
Combo XLR/Jack
Output connectors:
XLR
Processor section
Crossover Frequencies:
1600Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.
Power section
Total Power:
2100 W Peak, 1050 W RMS
High frequencies:
700 W Peak, 350 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE
Electronic specifications
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out
0.005% A-Weighted
Processing
Processing Channels:
6
Signal Processing:
24 Bit
A/D-D/A conversion:
32 Bit @ 48.0 kHz
Dynamic range:
110
Inputs
Mic:
2
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 42 dB
Input Noise Level:
-114 dBu A-Weighted
Mic Inputs Impedance:
6 kohm
Low Cut:
20 Hz ÷ 400 Hz
Phantom Power +48V:
Yes
Mono Line:
2
Gain Selection:
0 dB ÷ 22 dB
Line Input Impedance:
21 kohm
A/D Dynamic range:
114 dB
Stereo Line:
1
Gain Selection:
0 dB ÷ 10 dB
Stereo Line Input Impedance (kOhm)
13 kohm
Outputs
Main MIX:
1
Outputs specifications
Main Out Impedance:
150 ohm
Main Out Level:
22 dBu
D/A Dynamic Range:
114 dB
Compressors
RCF Compressors:
Compressors on MIC/LINE CH1 & CH2 Inputs
EQ
Input Channels EQ:
2 Shelving 1
Description:
3 Band EQ: High and Low band shelving, MID band peak on IN
5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output.
Internal Effects
Send Effects:
1
Mastering processors
Main OUT type:
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 Top and Bottom
Handles:
1 Top
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
572 mm / 22.52 inches
Width:
330 mm / 12.99 inches
Depth:
310 mm / 12.2 inches
Weight:
15.8 kg / 34.83 lbs
Shipping information
Package Weight:
17.5 kg / 38.58 lbs
Accessories
