• 1400 Watt Class-D Amplifier
  • 12” Woofer, bass reflex housing
  • Stereo Crossover
  • Switchable Crossover Frequencies
  • Polarity-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
  • Bass Motion Control excursion management

The SUB 702-AS mk3 is a portable 12" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications.


Part number:

SUB 702-AS MK3
220-240V, EAN 8024530020477

SUB 702-AS MK3
100-120V, EAN 8024530021382

Legendary subwoofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.
Responsive Image
Responsive Image

Power That Moves

RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

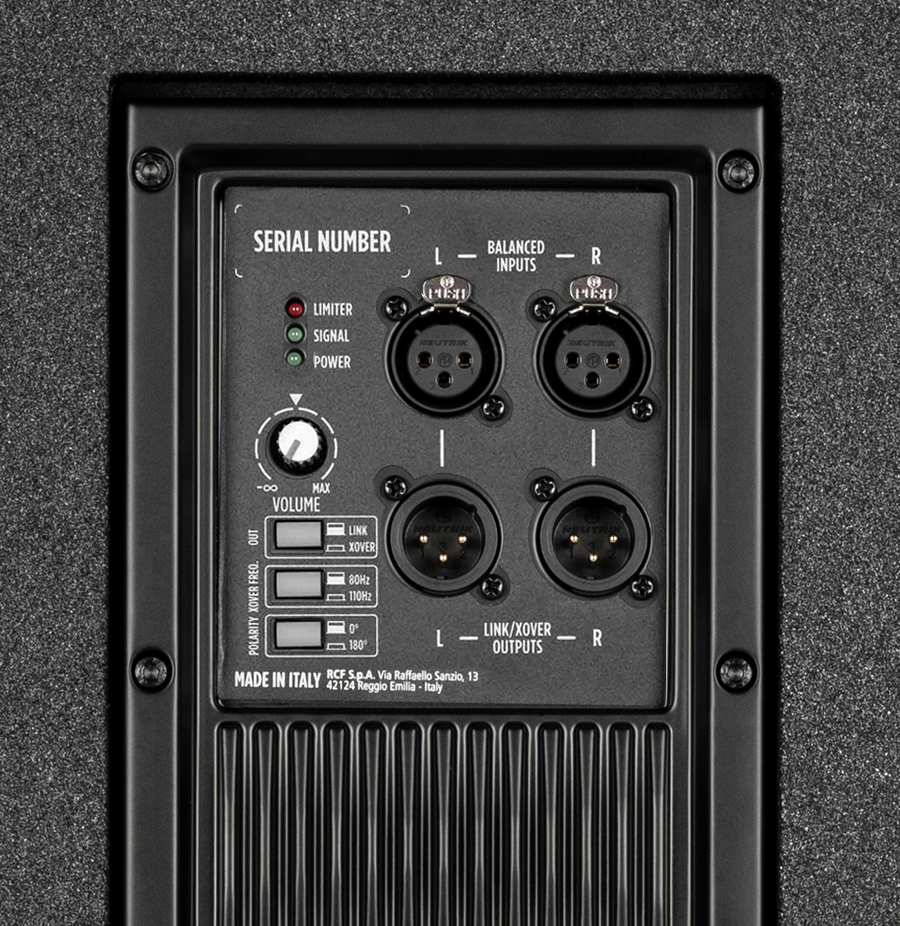

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:
- X-OVER PRESET 80Hz/120Hz
Responsive Image

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Tour-Ready Workhorse

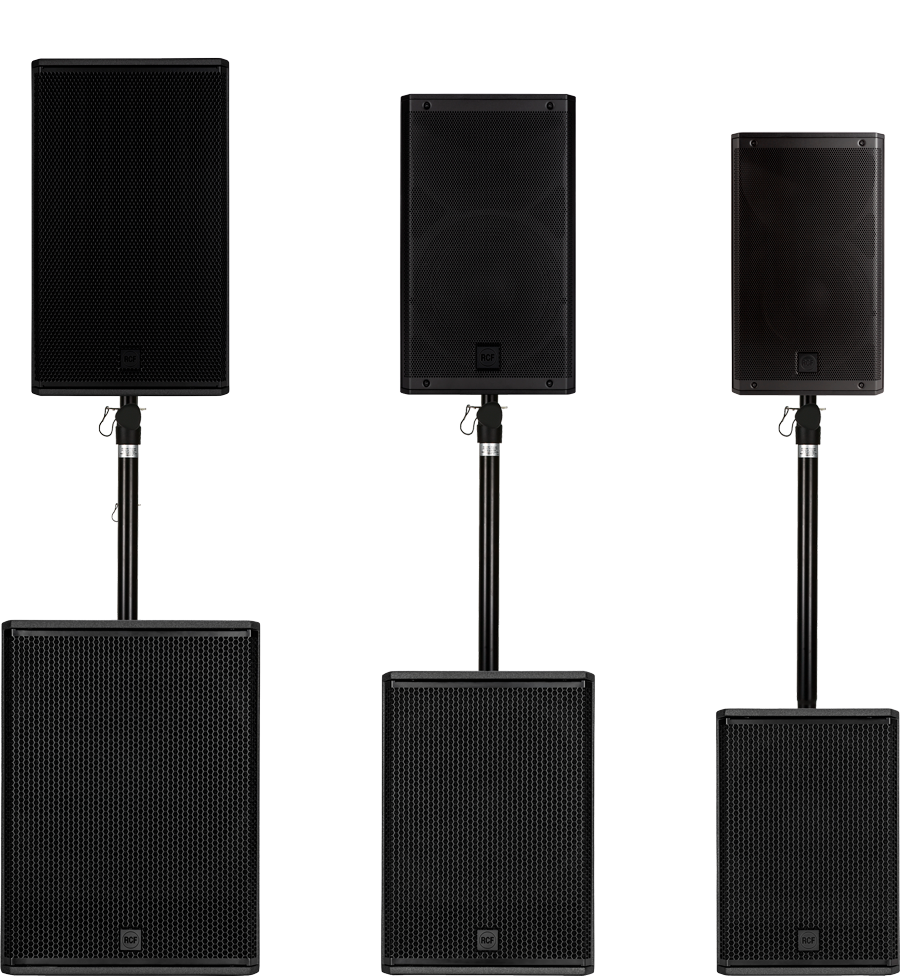

The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.
Responsive Image

Subwoofer alignment tutorials

Acoustical specifications
Frequency Response:
40 Hz ÷ 120 Hz
Max SPL @ 1m:
129 dB
12'', 2.5'' v.c
Input/Output section
Input signal:
Input connectors:
Output connectors:
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies:
110 Hz
Low-Pass Frequencies:
80 Hz
Thermal, RMS
Soft Limiter
Volume, EQ, Phase, Xover
Power section
Total Power:
1400 W Peak, 700 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
One each side
Pole mount/Cap:
Steel with clothing
523 mm / 20.59 inches
360 mm / 14.17 inches
515 mm / 20.28 inches
21 kg / 46.3 lbs
Shipping information
Package Height:
565 mm / 22.24 inches
Package Width:
575 mm / 22.64 inches
Package Depth:
420 mm / 16.54 inches
Package Weight:
25 kg / 55.12 lbs
