INSTALLED SOUND

C 5215-96

TWO-WAY PASSIVE SPEAKER
  • 1.4" compression driver with 2,5" diaphragm assembly
  • 15" woofer with 3" voice coil
  • 90° x 60° CMD (Coverage Matching Design) constant directivity horn
  • HF driver AMCDP (Active Mosfet Compression Driver Protection)
Where to buy
Features
  • 90° x 60° CMD (Coverage Matching Design) constant directivity horn
  • 1.4" compression driver with 2,5" diaphragm assembly
  • 15" woofer with 3" voice coil
  • Dual-function design: built in passive crossover or external bi-amp
  • Rotatable Horn System for horizontal cabinet mounting applications
  • HF driver AMCDP (Active Mosfet Compression Driver Protection)
  • LICC (Low Impedance Compensated Crossover) network
  • 14 Suspension points (M10)

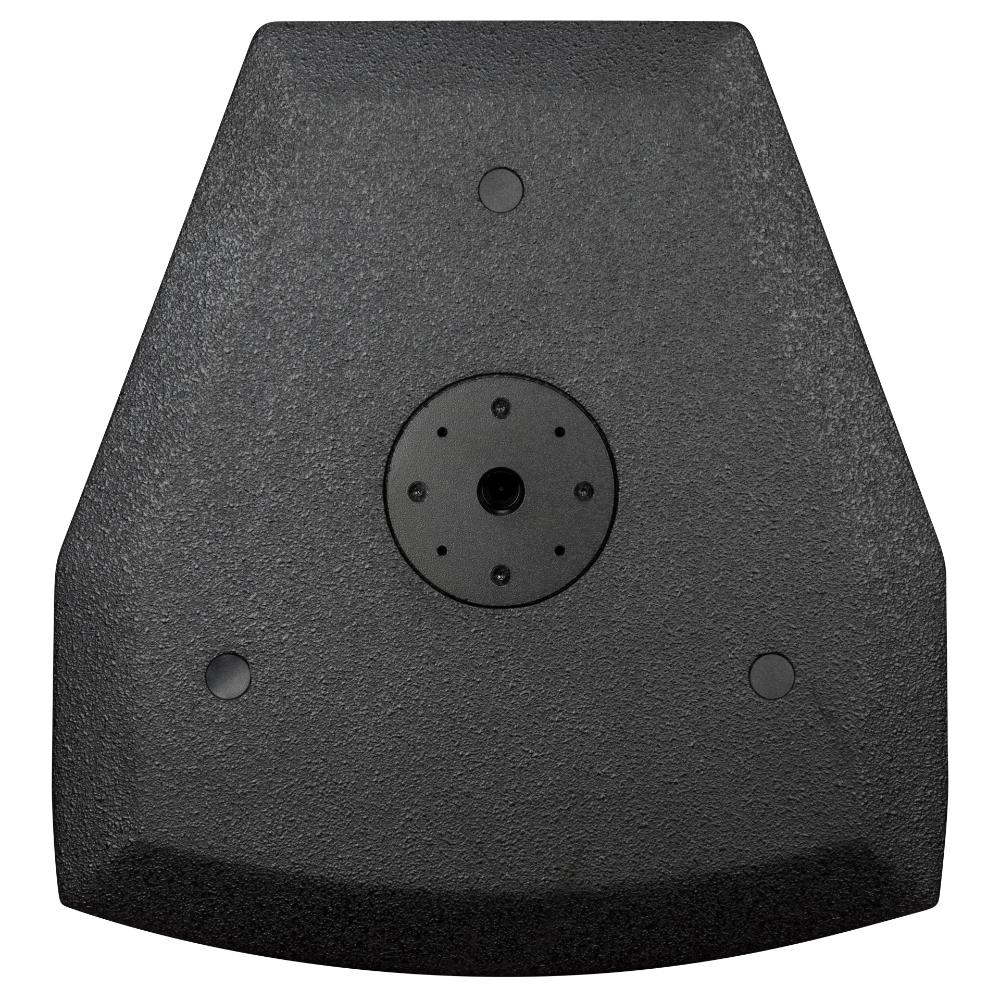

  • 35 mm standard internal pole mount

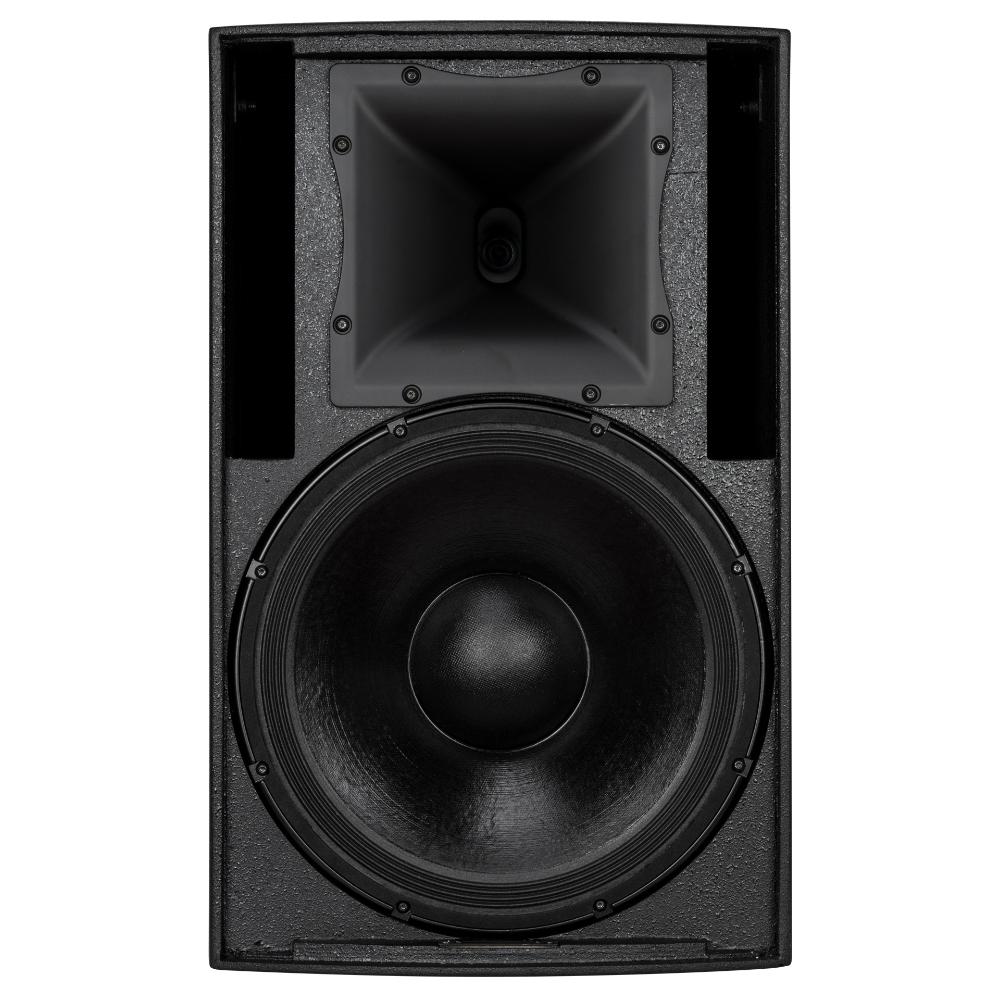

The C5215-96 is a full range extremely versatile controlled narrow dispersion two-way loudspeaker system for medium throw applications. The high-frequency section is a constant directivity horn loaded to a 2” compression driver with a 2.5” diaphragm assembly for smooth, controlled dispersion. The 90° x 60° horn design offers higher sensitivity for longer distance applications. The low-frequency transducer is a 15” woofer with a 3” voice coil. The crossover is easily bypassed for bi-amp via a recessed changeover switch.

AVAILABLE ON ORDER

Part number:

13000311
C 5215-96
EAN 8024530009298

Specifications
Acoustical specifications
Frequency Response (-10dB):
48 Hz ÷ 20000 Hz
Max SPL @ 1m:
133 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Directivity index Q:
12
System Sensitivity:
100 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
500 W
Peak Power Handling:
2000 W PEAK
Recommended Amplifier:
1000 W
Protections:
Dynamic active mosfet
Crossover Frequencies:
1200 Hz
Transducers
Compression Driver:
1.4'', 2.5'' v.c
Woofer:
15'', 3.0'' v.c

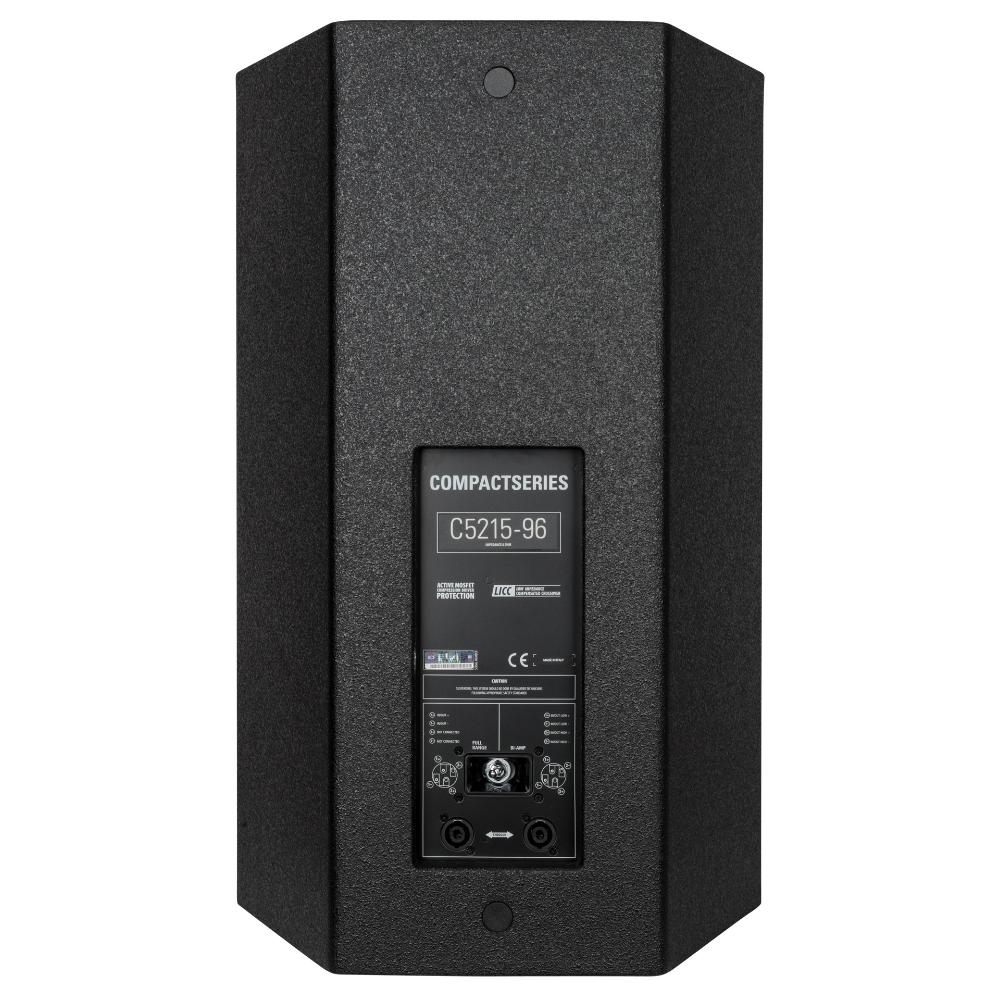

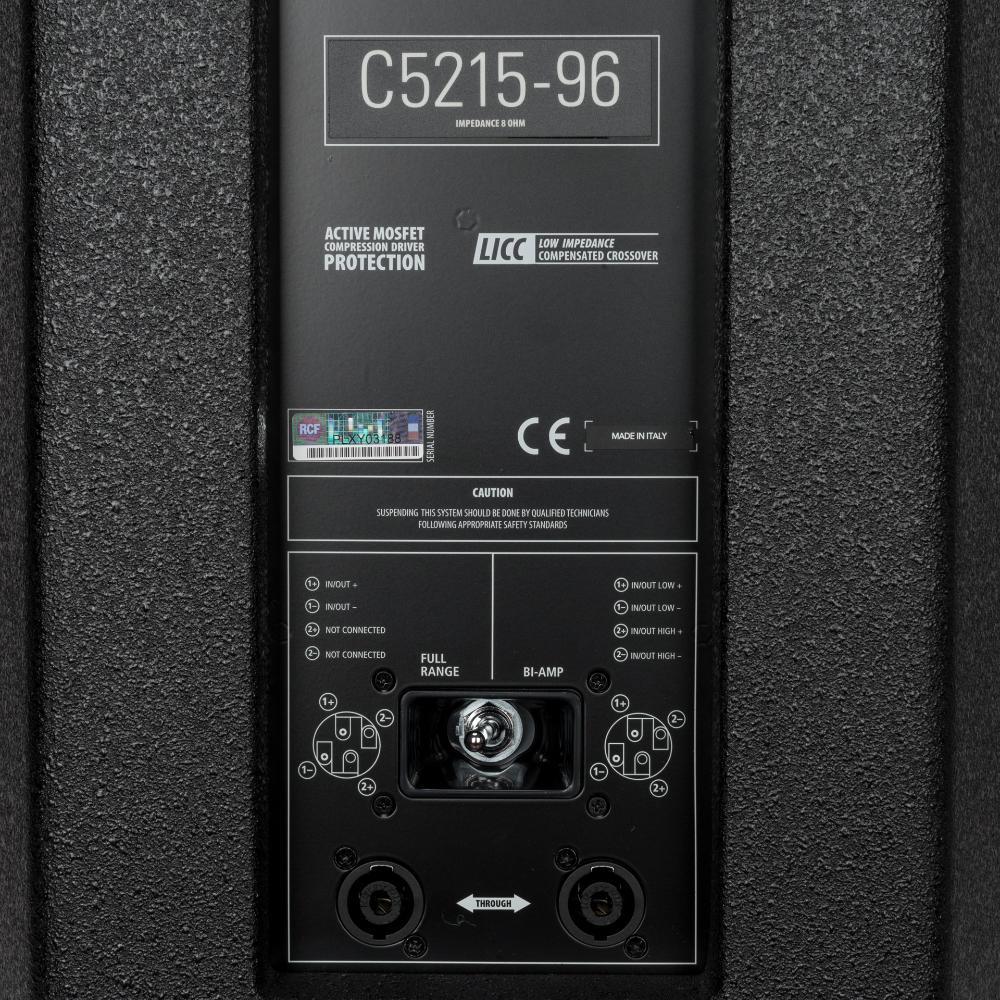

Input/Output section
Input connectors:
Speakon® NL4
Output connectors:
Speakon® NL4
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
14 x M10, multiplates (top and bottom)
Pole mount/Cap:
Yes
Grille:
Steel with robust double mesh polyester clothing
Color:
Black
Size
Height:
695 mm / 27.36 inches
Width:
430 mm / 16.93 inches
Depth:
460 mm / 18.11 inches
Weight:
35 kg / 77.16 lbs
Shipping information
Package Height:
779 mm / 30.67 inches
Package Width:
584 mm / 22.99 inches
Package Depth:
534 mm / 21.02 inches
Package Weight:
38.5 kg / 84.88 lbs
