COMMERCIAL AUDIO

CR 2642

42 UNITS RACK CABINET
  • IEC 297-2 dimensional standard compliant
  • Steel made structure grey RAL 7035
  • Protection grade IP 30
  • Three thermostat driven fans
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • IEC 297-2 dimensional standard compliant
  • Steel made structure grey RAL 7035
  • Protection grade IP 30
  • Three thermostat driven fans
  • Optional ventilated door: AK 2642V

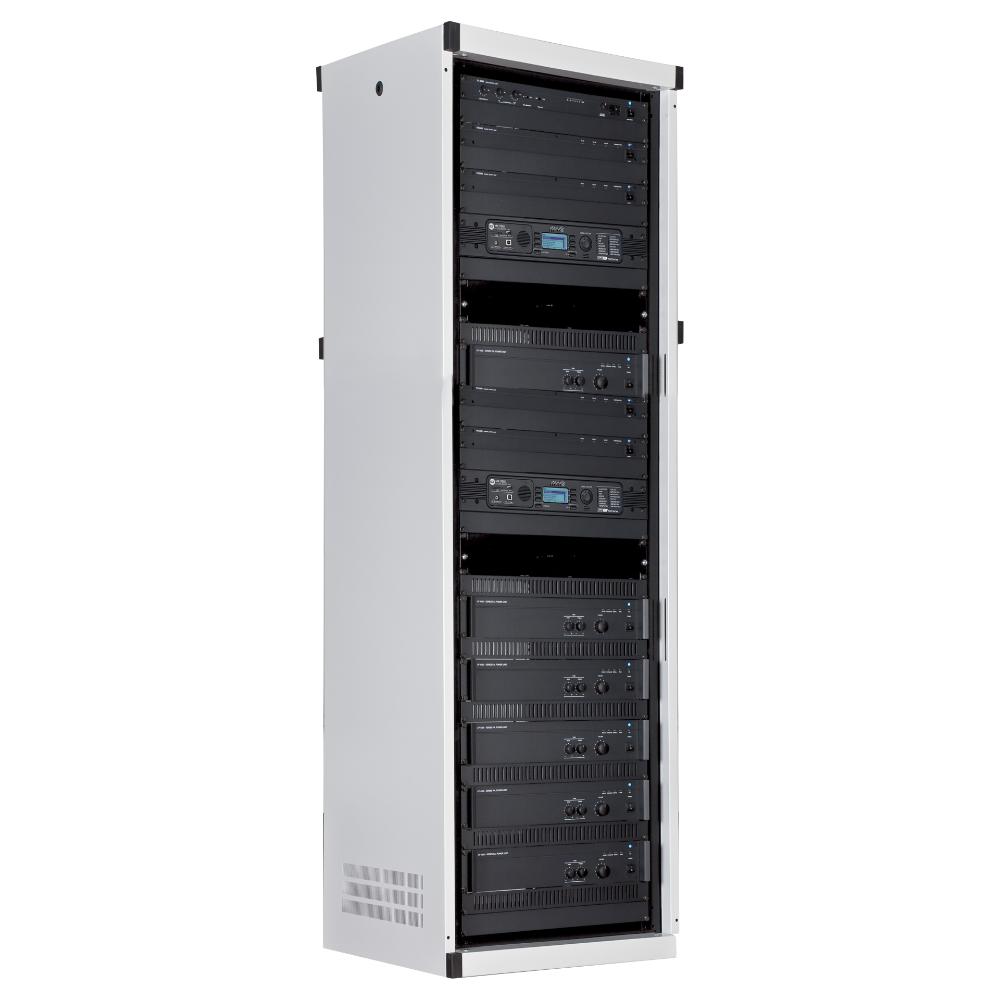

CR 2600 series rack cabinets are designed to hold all RCF 19" rack standard components. The rack enclosures are bake-painted at high temperature using epoxy powders to make the structure unalterable over time and resistant to scratching, abrasion, and atmospheric agents. The CR 2600 series cabinets are composed of a basic structure that is assembled simply and quickly by fitting and securing four steel uprights to the upper and lower panels. Additional front doors with glass can complete the cabinet.

Part number:

17170082
CR 2642
EAN 8024530005313

Specifications
General specifications
Type:
42U
Max load (kg):
350.00 Kg
Ventilation:
Yes
Thermal dissipation 25° C (W):
3320
Thermal dissipation 35° C:
2180 W
Standard compliance
IP protection grade:
IP 30
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Metal
Color:
Grey - RAL 7035
Rack mounting:
42U , Optional rack mounting accessory required
Size
Height:
2090 mm / 82.28 inches
Width:
600 mm / 23.62 inches
Depth:
600 mm / 23.62 inches
Weight:
86 kg / 189.6 lbs
Shipping information
Package Height:
420 mm / 16.54 inches
Package Width:
2040 mm / 80.32 inches
Package Depth:
620 mm / 24.41 inches
Package Weight:
96 kg / 211.64 lbs
