Features
  • 134 dB Max SPL
  • 2200W Class-D Amplifier
  • 40-140 Hz frequency response
  • RDNet Networked Management
  • 1x15” Neodymium Woofer, 4.0” voice coil

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0” voice coil, 15” Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 35-AS is part of the professional HDL System.

Part number:

13000575
HDL 35-AS
EAN 8024530016883

13000664
HDL 35-AS W
EAN 8024530018238

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Precision transducers

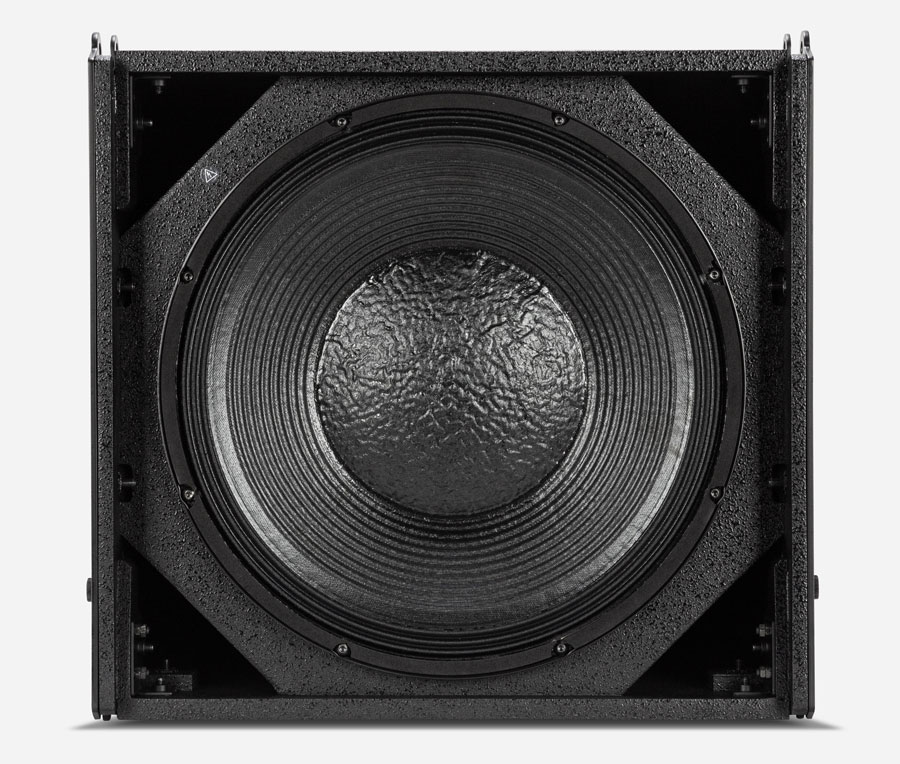

Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.
Responsive Image
Responsive Image

Powerful class D amplifiers

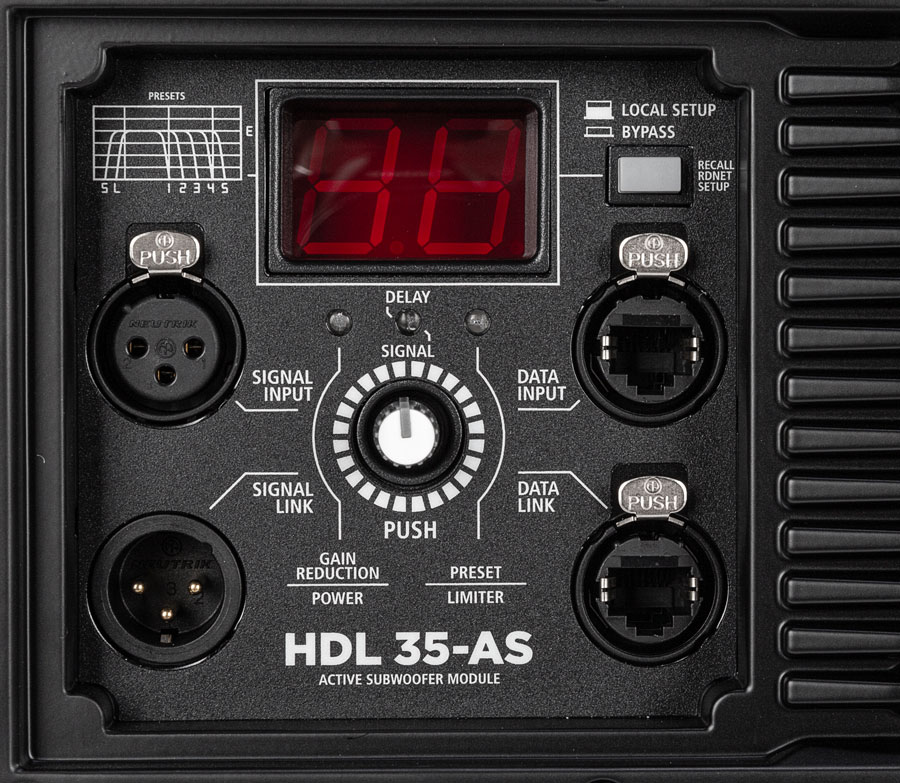

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and mechanics

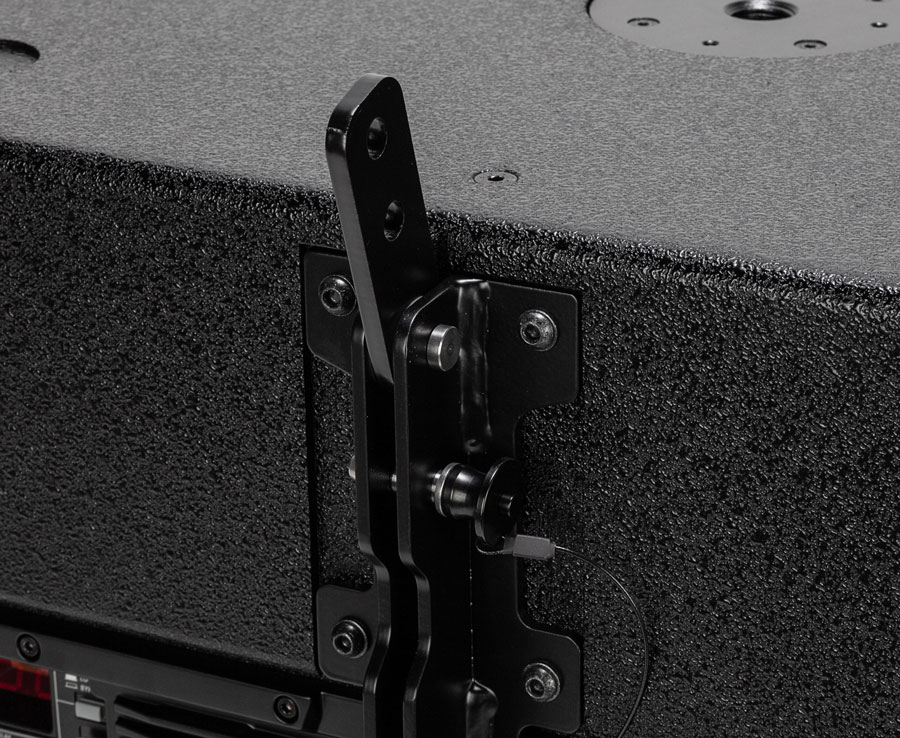

The hardware is designed for an easy and fast setup, completely compatible with the HDL 26-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Responsive Image

Subwoofer alignment tutorials

Specifications
Acoustical specifications
Frequency Response:
40 Hz ÷ 140 Hz
Max SPL @ 1m:
134 dB
Transducers
Woofer:
15'' neo, 4.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection, RDnet on board
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White
Size
Height:
444 mm / 17.48 inches
Width:
456 mm / 17.95 inches
Depth:
508 mm / 20 inches
Weight:
30 kg / 66.14 lbs
Shipping information
Package Height:
530 mm / 20.87 inches
Package Width:
560 mm / 22.05 inches
Package Depth:
525 mm / 20.67 inches
Package Weight:
35 kg / 77.16 lbs
