Features
  • Very compact size
  • Maximum output per size available on the market
  • Wide, constant directivity, horizontal coverage angle
  • Minimum weight
  • Watertight multi-pole connector IP67
  • Baltic birch cabinet

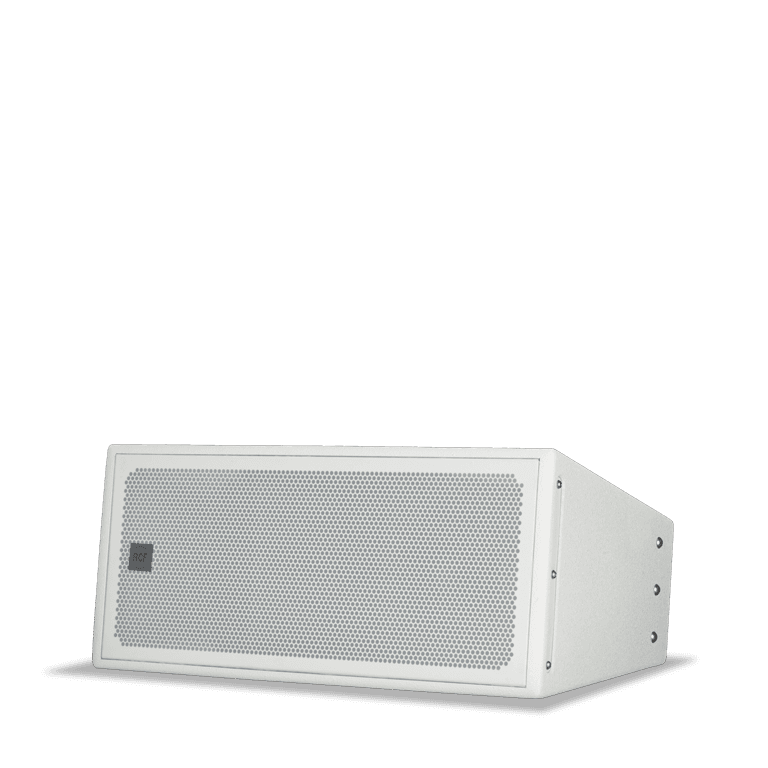

HL 20-WP is a two-way, bi-amp line array module that offers a very wide dispersion and high performance for such compact size. The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the HL 20-WP the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums. Connections to the amplifier are made through a watertight multi-pole connector. The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing. The cabinet is constructed of multiply baltic birch plywood and finished in a fire resistant, textured coating.


AVAILABLE ON ORDER

Part number:

13000473
HL 20-WP
White, EAN 8024530013004

13000643
HL 20-WP B
Black, EAN 8024530018375

Specifications
Acoustical specifications
Frequency Response (-10dB)
55 Hz ÷ 20000 Hz
Max SPL @ 1m
135 dB
Horizontal coverage angle
100°
Vertical coverage angle
15°
Directivity index Q
16
Power section
Amplification
Bi-Amp
Crossover Frequencies
Recommended 800 Hz
Nominal Impedance LF
16 ohm
Power Handling LF
600 W
Peak Power Handling LF
2400 W
Sensitivity LF
98 dB
Nominal Impedance HF
16 ohm
Power Handling HF
110 W
Peak Power Handling HF
440 W
Sensitivity HF
109 dB
Recommended Amplifiers
QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K
Transducers
Compression Driver
1 x 1.5'', 3.0'' v.c
Woofer
2 x 10'', 2.5'' v.c
Input/Output section
Input connectors
Cable
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
6 x M10 inserts
Grille
Steel with waterproof clothing
Color
White, Black
Size / Weight
Height
334 mm / 13.15 inches
Width
735 mm / 28.94 inches
Depth
450 mm / 17.72 inches
Weight
30.2 kg / 66.58 lbs
Shipping information
Package Height
539 mm / 21.22 inches
Package Width
787 mm / 30.98 inches
Package Depth
382 mm / 15.04 inches
Package Weight
33.2 kg / 73.19 lbs
