Features
  • 5" woofer with 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 91 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Self-extinguishing plastic frame and back can, steel grille

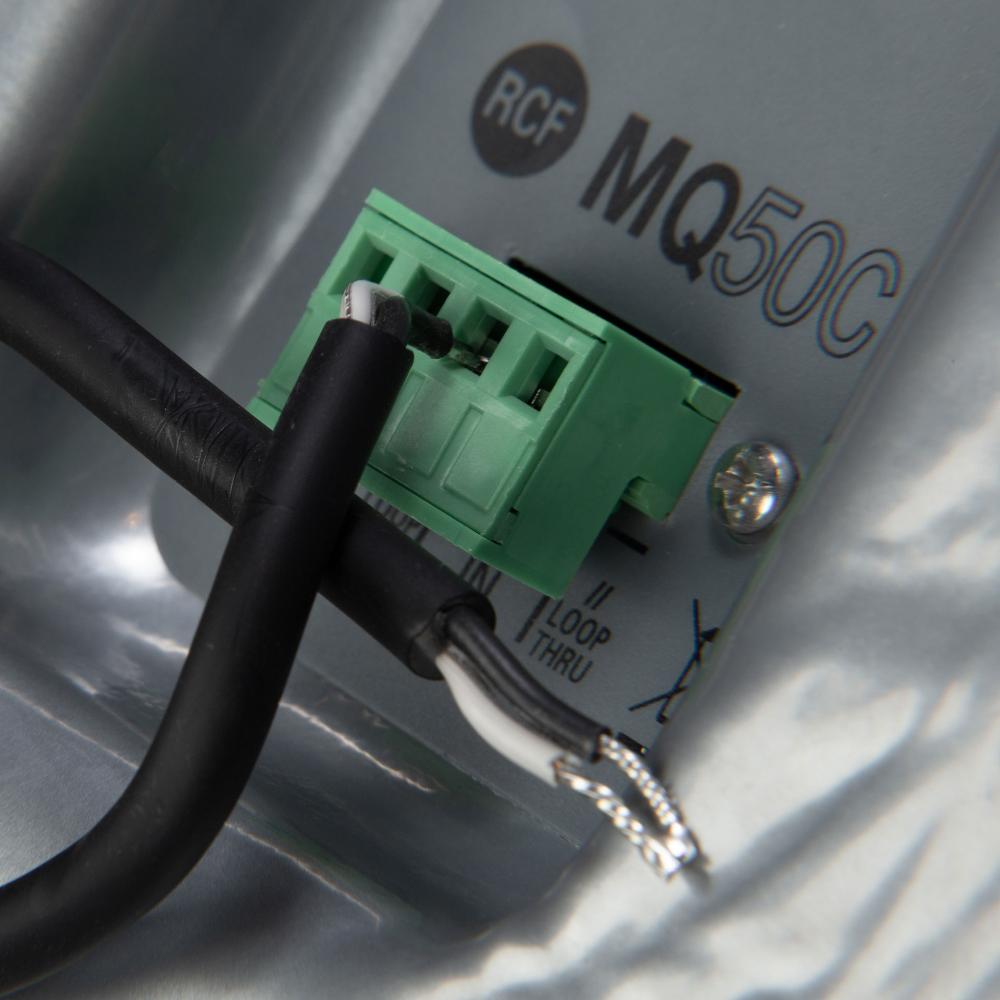

  • In/out euroblock connectors

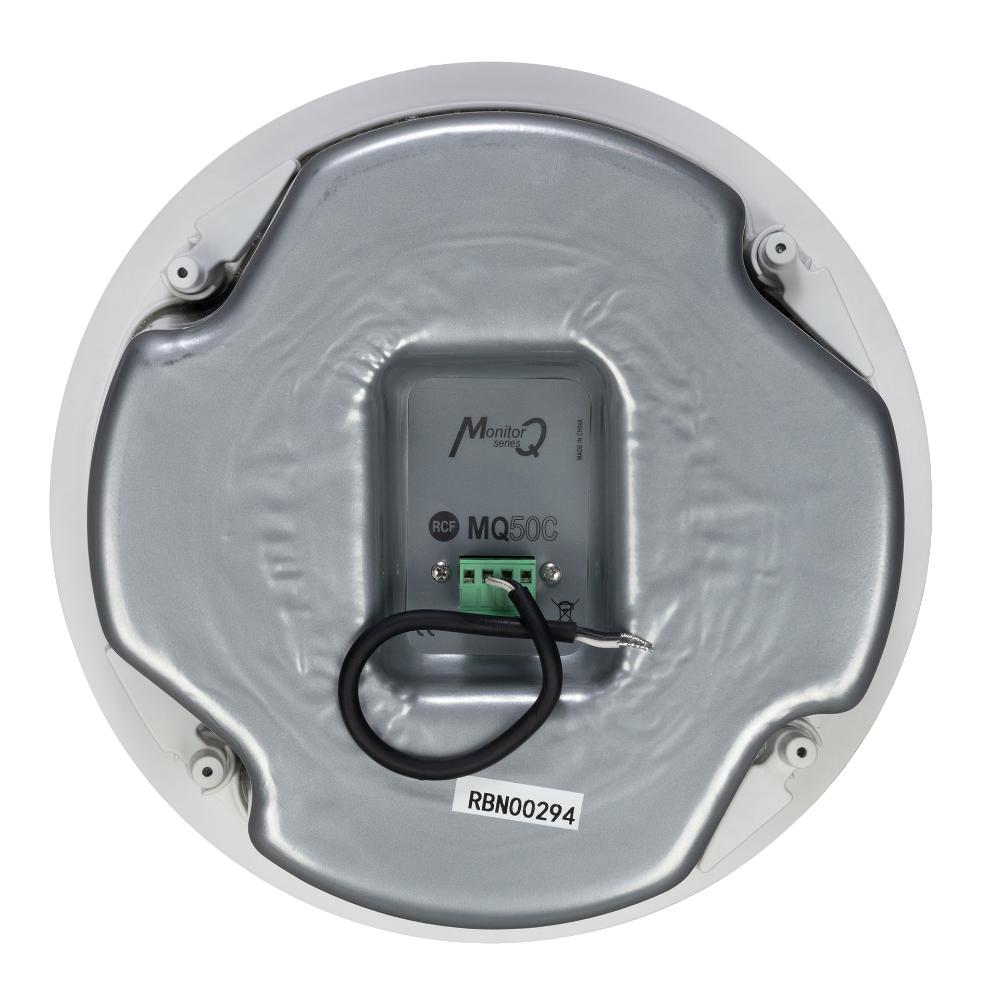

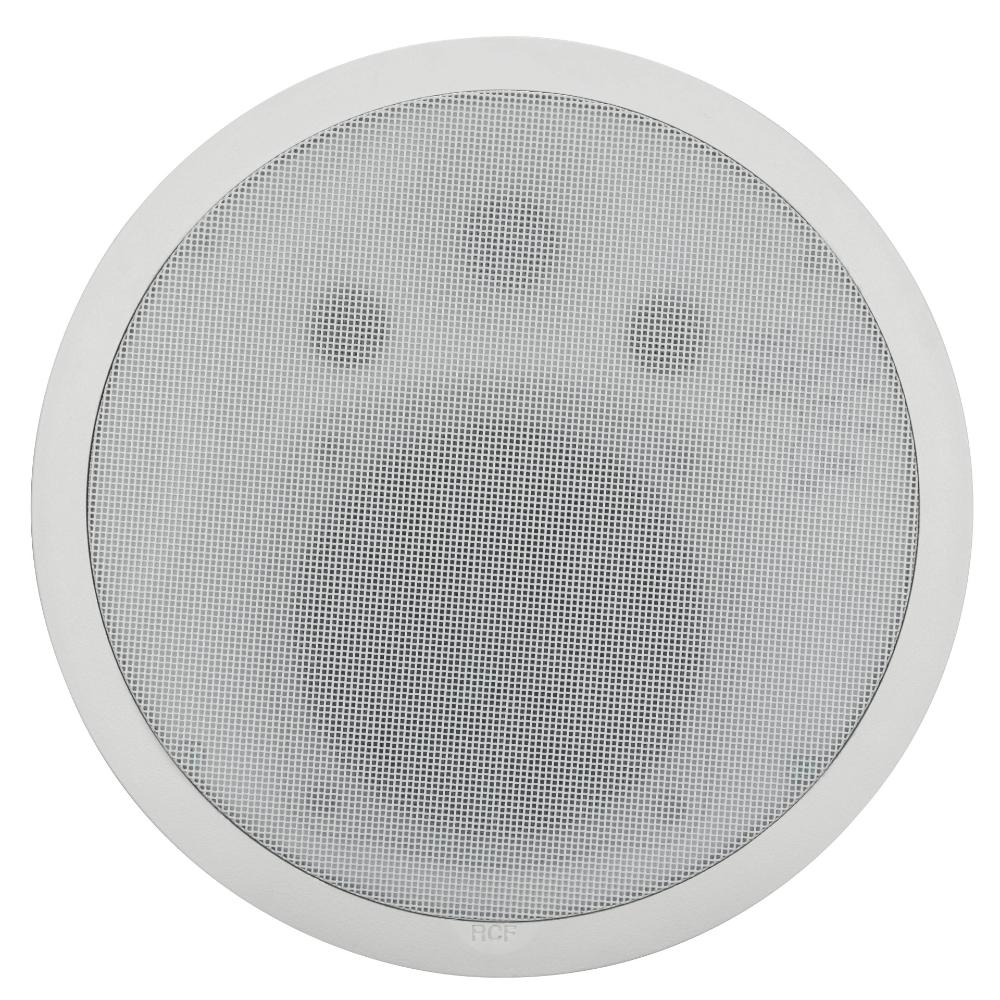

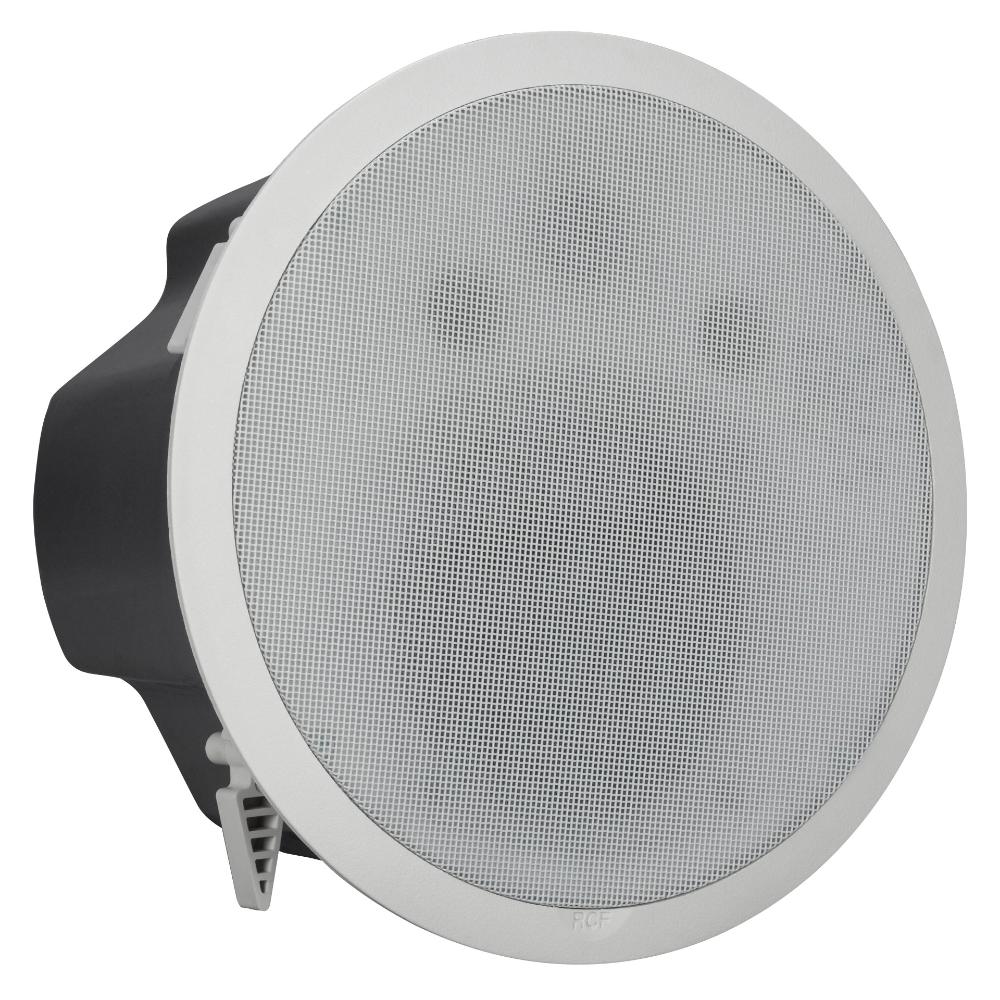

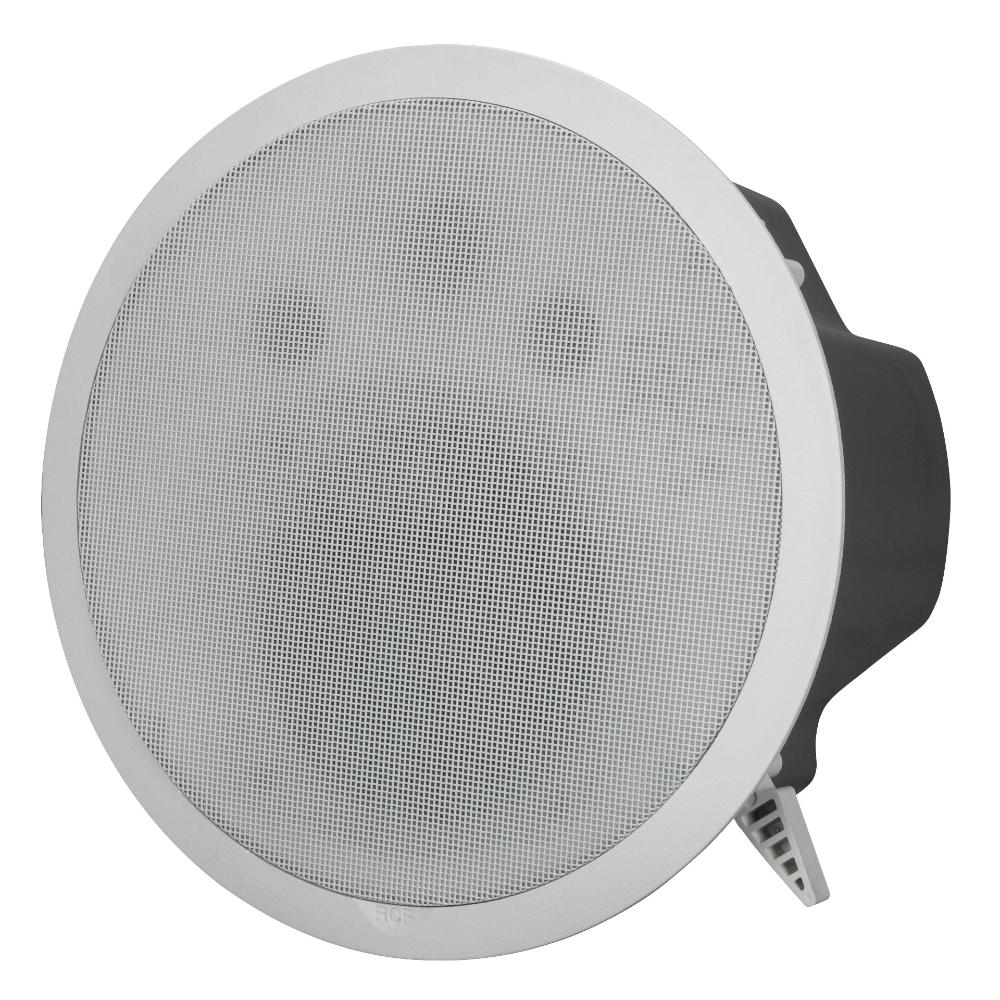

Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.

Part number:

13000081
MQ 50C W
White - RAL 9016, EAN 8024530005368

13100089
MQ 50C B
Black - RAL 9005, EAN 8024530018481

Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
112 dB
Coverage angle:
120°
System Sensitivity:
91 dB
Power section
Amplification:
Full Range
Nominal Impedance:
16 ohm
Power Handling:
60 W
Peak Power Handling:
240 W PEAK
Crossover Frequencies:
3000 Hz
Recommended Amplifiers:
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
Transducers
Dome Tweeter:
1.0'' neo
Woofer:
5.0'' neo
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Constant Voltage Transformer:
100 V
Power selection 1:
30 W - 333 ohm
Power selection 2:
20 W - 500 ohm
Power selection 3:
10 W - 1000 ohm
Power selection 4:
5 W - 2000 ohm
Standard compliance
Safety agency:
CE compliant
Physical specifications
Color:
White - RAL 9016, Black - RAL 9005
Size
Depth:
156 mm / 6.14 inches
Diameter:
266 mm / 10.47 inches
Cut out diameter:
245 mm / 9.65 inches
Weight:
2.1 kg / 4.63 lbs
Shipping information
Package Height:
235 mm / 9.25 inches
Package Width:
310 mm / 12.2 inches
Package Depth:
310 mm / 12.2 inches
Package Weight:
2.99 kg / 6.59 lbs
