Features
  • 4 x 500 W Class-D power amplifier
  • 20 ÷ 20000 Hz frequency range
  • Full on-board processing
  • RCF speakers’ presets
  • Proprietary bass enhancer algorithm
  • FiRPHASE linear phase filters
  • Flexible and scalable multi-room architecture
  • RDNet for networked management
  • Remote controls and paging console accessories

DMA 504 is a four-channel Class-D matrix amplifier providing 4 power outputs of 500 Watts each. Equipped with a powerful DSP platform, inputs and outputs can be managed in terms of routing and equalization. The complete set of processing functions includes PEQ, FIR filters, bass enhancement, limiters, compressors, and environmental equalization. Presets for RCF speakers are available on each channel for optimal acoustic performance and reliability. It can distribute 4 audio channels to other units through an analog audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation. Configuration is simple and user-friendly and can be carried out through either the front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, DMA 504 is ideal for a wide range of business music and installed sound applications.


NEW

Part number:

12100035
DMA 504
EU, EAN 8024530018764

12100048
DMA 504 US
US, EAN 8024530020361

12100049
DMA 504 UK
UK, EAN 8024530020378

Responsive Image

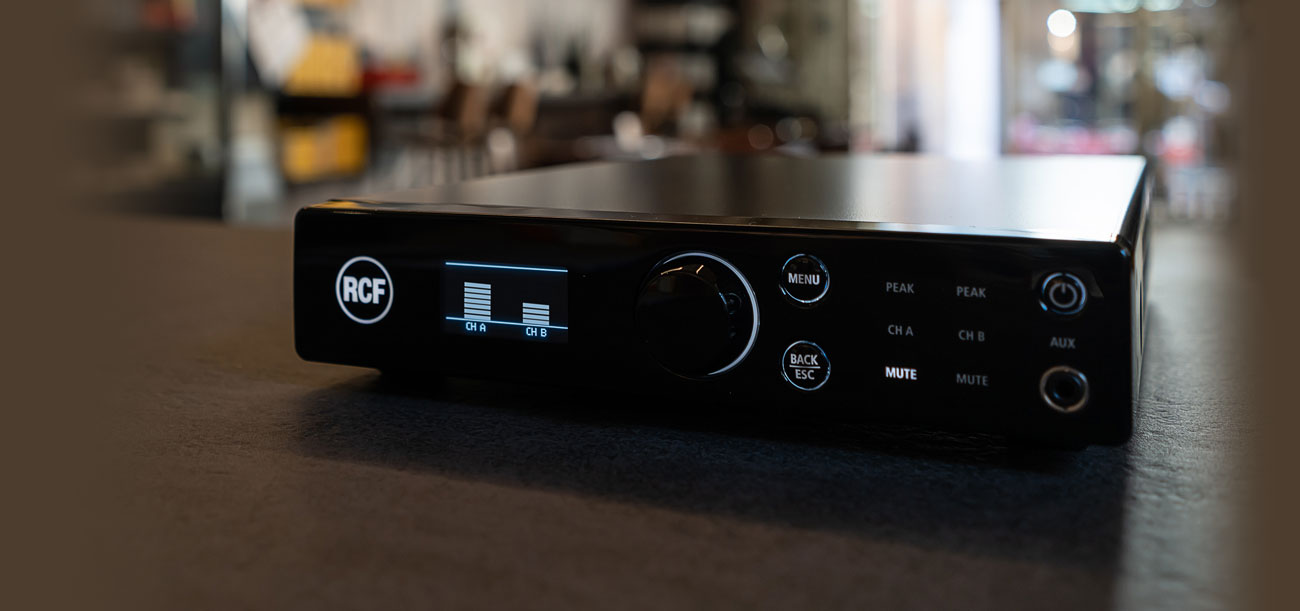

DMA Series

Class-D amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including speaker presets, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of applications.

Scalable architecture

To fit with any installation need, DMA amplifiers have been designed with a highly scalable architecture and each device can distribute 4 audio channels to satellite units. This allows for increasing installed power and creating a multi-room architecture. The connection can be done with just 1 CAT5e cable.

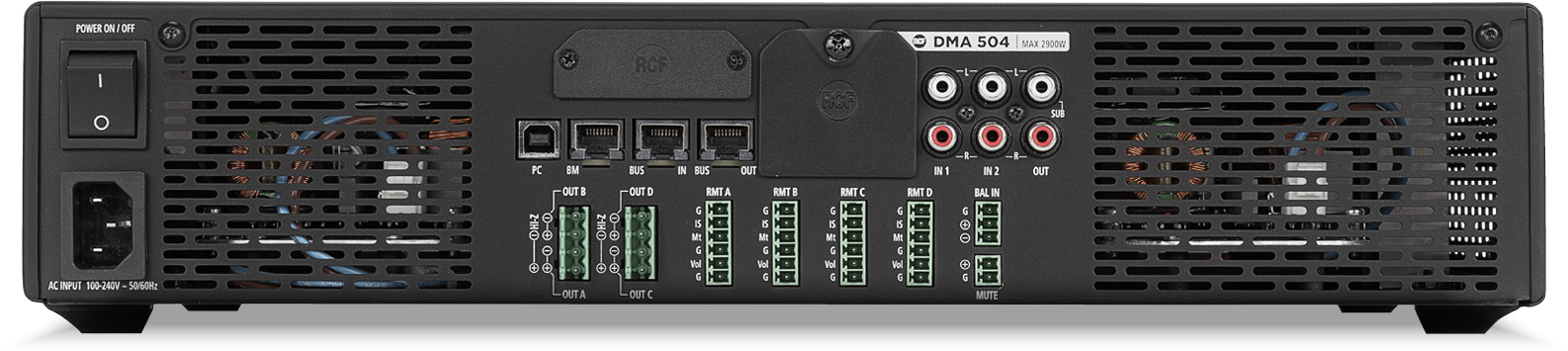

Technical specifications

4 X 500 W ​@ 4 OHM OR 2 x 1000 W hi-Z

Inputs

  • 2 x LINE STEREO( RCA)
    (1 alternative to AUX IN on the front panel)
  • 1 x MIC/LINE balanced (removable terminal)
  • 1 x PAGING (RJ 45)

Outputs (signal)

  • 1 x STEREO LINE/SUB (RCA)
  • 1 x 4 CHANNELS AUDIO BUS (RJ 45)

Controls

  • 1 x REMOTE MUTE CONTACT
  • 4 x WALL MOUNT REMOTE CONTROLS
  • 1 x CTRL + FIRMWARE UPDATE USB PORT
Responsive Image

Full on-board processing

Equipped with a powerful DSP platform, DMA units integrate RCF proprietary technologies such as FiRPHASE, a FiR filtering technology, and BASS ENHANCER, a sophisticated algorithm that increases low frequencies perception without affecting the output power.



Speakers presets

Pre-loaded presets, to optimize the performance and equalization of any RCF speaker and to have the right RCF signature sound.

Easy and flexible configuration

RCF Business Music products are ready to use in few steps, even faster when connected to the RDNet networked management.

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Application examples

Discover our collection of installation examples for the most common public spaces with configurations, schematics, and product lists.
Small shop
Responsive Image
Large retail shop
Responsive Image
Meeting rooms
Responsive Image
Bars and pubs
Responsive Image
Restaurants
Responsive Image
Multi-room clubs
Responsive Image
Supermarkets
Responsive Image
Fitness centers
Responsive Image
Shopping Center
Responsive Image
Dance Floor
Responsive Image
Live Stage
Responsive Image

Responsive Image

DMA CONNECT APP

The DMA Connect app provides wireless control of RCF DMA Series Business Music amplifiers. With its functionality and user-friendly interface, it allows access to DMA settings such as: input and output levels, equalizers, routing, speaker preset selection, device information, and real-time VU-meters. Advanced settings for expert users are also available, including customizable names for input, outputs, and devices.
Specifications
Amplifier specifications
Amplifier Class
D
Output power:
4 x 700 W @ 2.7 ohm
4 x 500 W @ 4 ohm
4 x 300 W @ 8 ohm
2 x 1100 W @ 4 ohm (bridge)
2 x 1000 W @ 8 ohm (bridge)
Output power @ 70 V
2 x 1000 W @ 70 V
Frequency Response (-3dB)
20 Hz ÷ 20000 Hz
Distortion (THD+N) @ 1 kHz nominal power
<0.05 %
Input section
Total number of inputs
5
Balanced
2
Unbalanced
3
Mono
2
Stereo
3
Line inputs
3
Mic+Line inputs
1
VOX
Yes
Paging inputs
1
Paging command
Contact
General Purpose Inputs (GPI)
1
Output section
Signal output number
1
Processing
DSP
Yes
EQ Filters
Yes
FIR
Yes
Compressors
Yes
Tone controls
Yes
High-pass filter
80 Hz ÷ 200 Hz
Configuration and control
RCF speakers presets
Yes
Protections
Cooling
Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Power requirement
Operating voltage
90-240 V~ 50/60Hz
Power consumption (MAX)
800 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Color
Black
Rack mounting
19", 2U
Size
Height
96 mm / 3.78 inches
Width
430 mm / 16.93 inches
Depth
360 mm / 14.17 inches
Weight
6.2 kg / 13.67 lbs
Shipping information
Package Height
210 mm / 8.27 inches
Package Width
550 mm / 21.65 inches
Package Depth
470 mm / 18.5 inches
Package Weight
7.6 kg / 16.76 lbs
