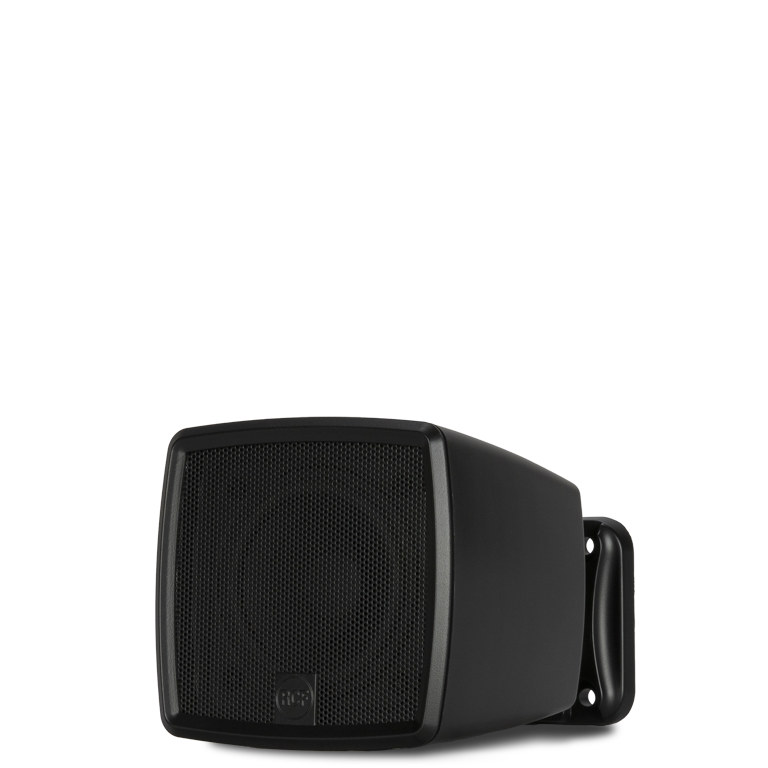

MMR 30T

MICRO MONITOR SPEAKER

200 Hz - 20 kHz frequency range
10W power handling
101 dB max SPL

Where to buy

Features

10W power handling
101 dB max SPL
200 Hz - 20 kHz frequency range
130° conical coverage
3" full range transducer
ABS enclosure with aluminum grille
Wall mount bracket included
IP55 protection rating
2-pole EUROBLOCK connector

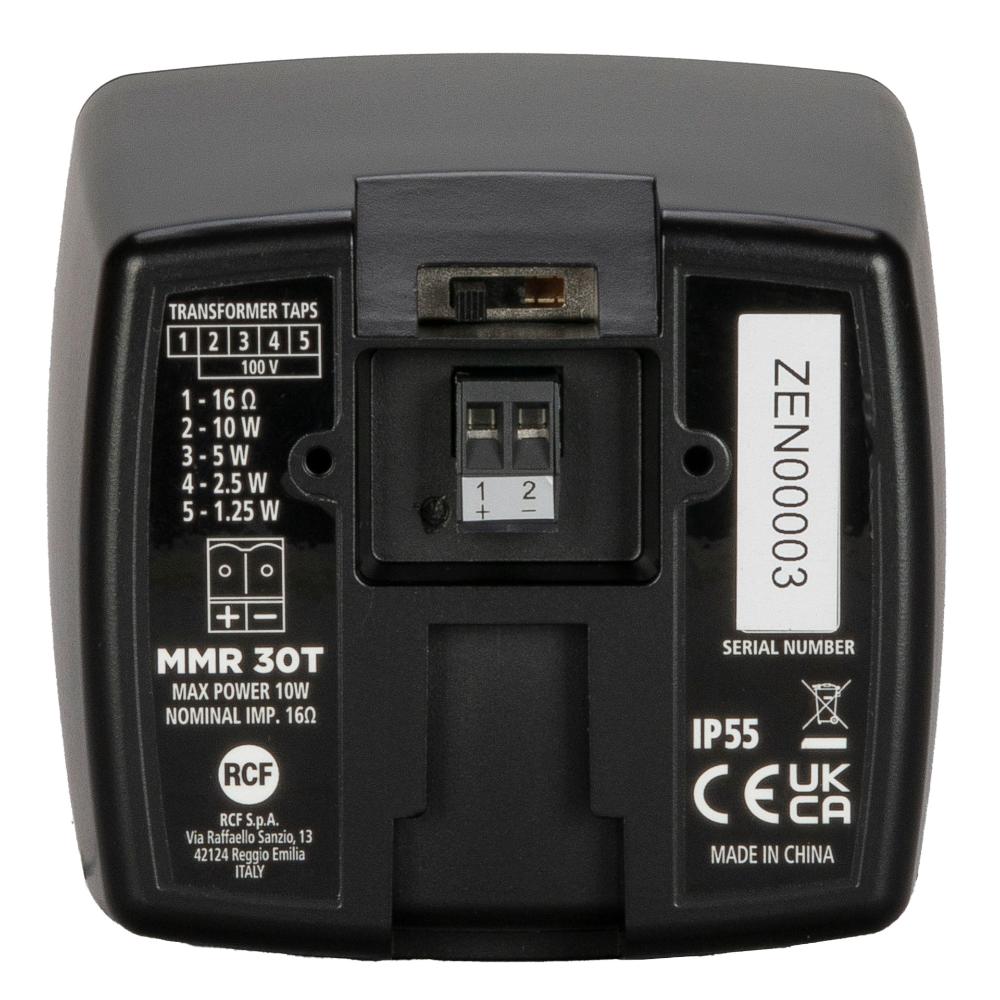

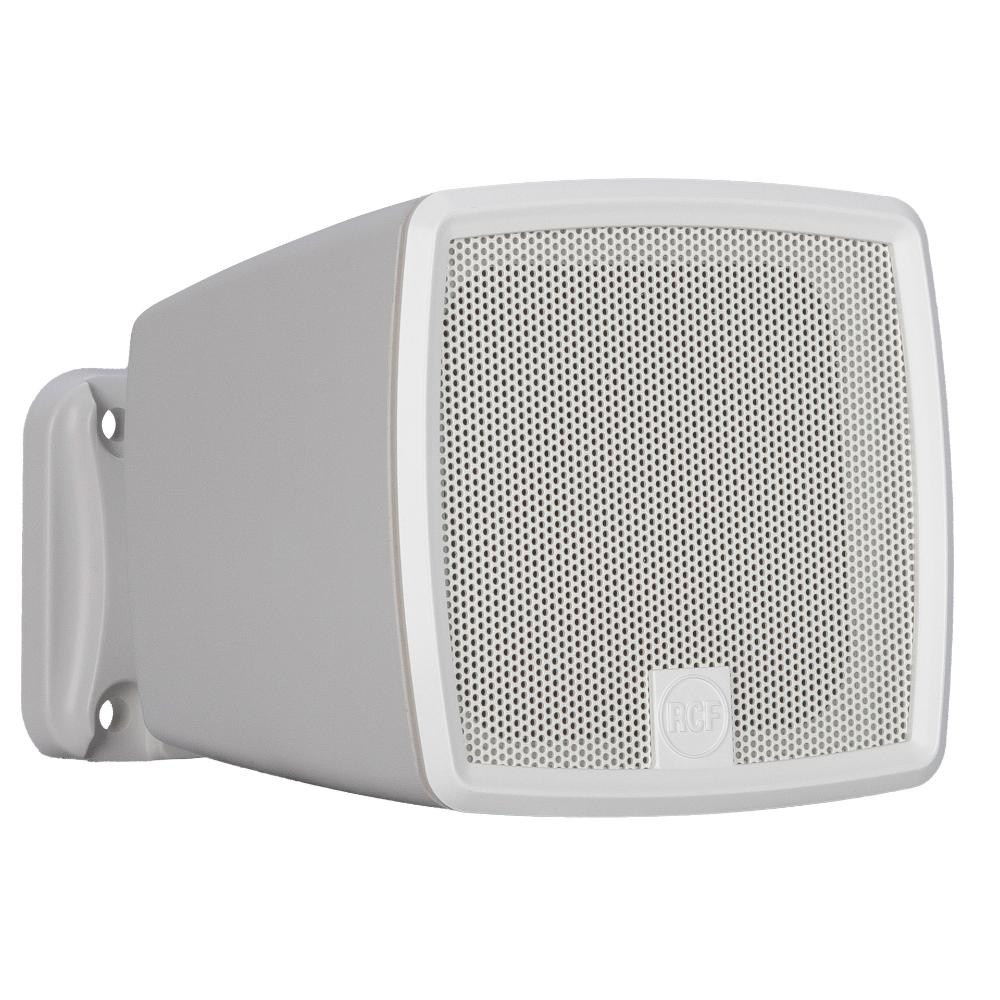

MMR 30T is a full-range wall-mount speaker designed for a wide range of indoor and outdoor applications. Thanks to its refined finishes and discreet design, it blends seamlessly into any architectural context. Featuring a 3” full-range transducer and 10 W RMS power handling, this compact speaker also comes with an integrated transformer for connection to 70/100 V constant-voltage lines. Its high-quality components guarantee clear, balanced reproduction for background music and speech, reaching remarkable sound pressure levels for such a small device. The connection is simple and secure through removable two-pole screw terminals. The included wall-mount bracket provides swivel and tilt adjustment for precise orientation.

NEW

Part number:

13100113
MMR 30T W

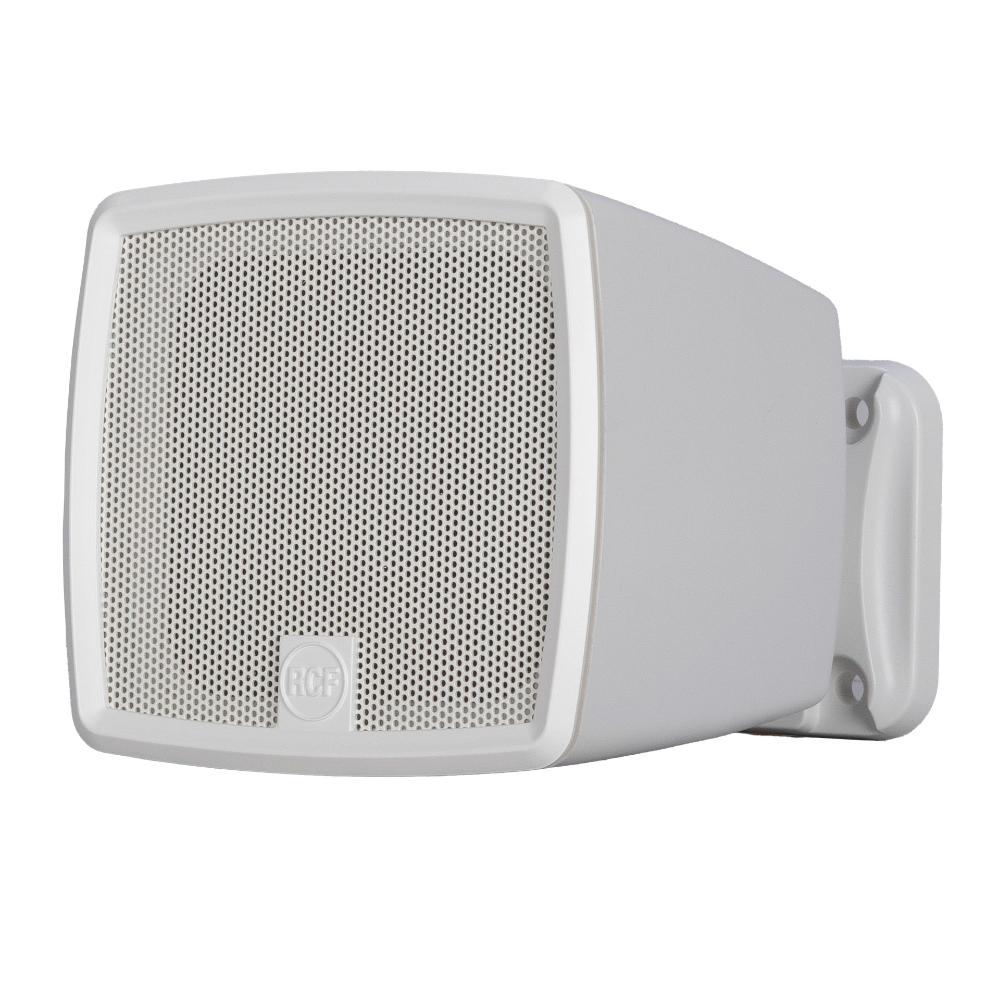

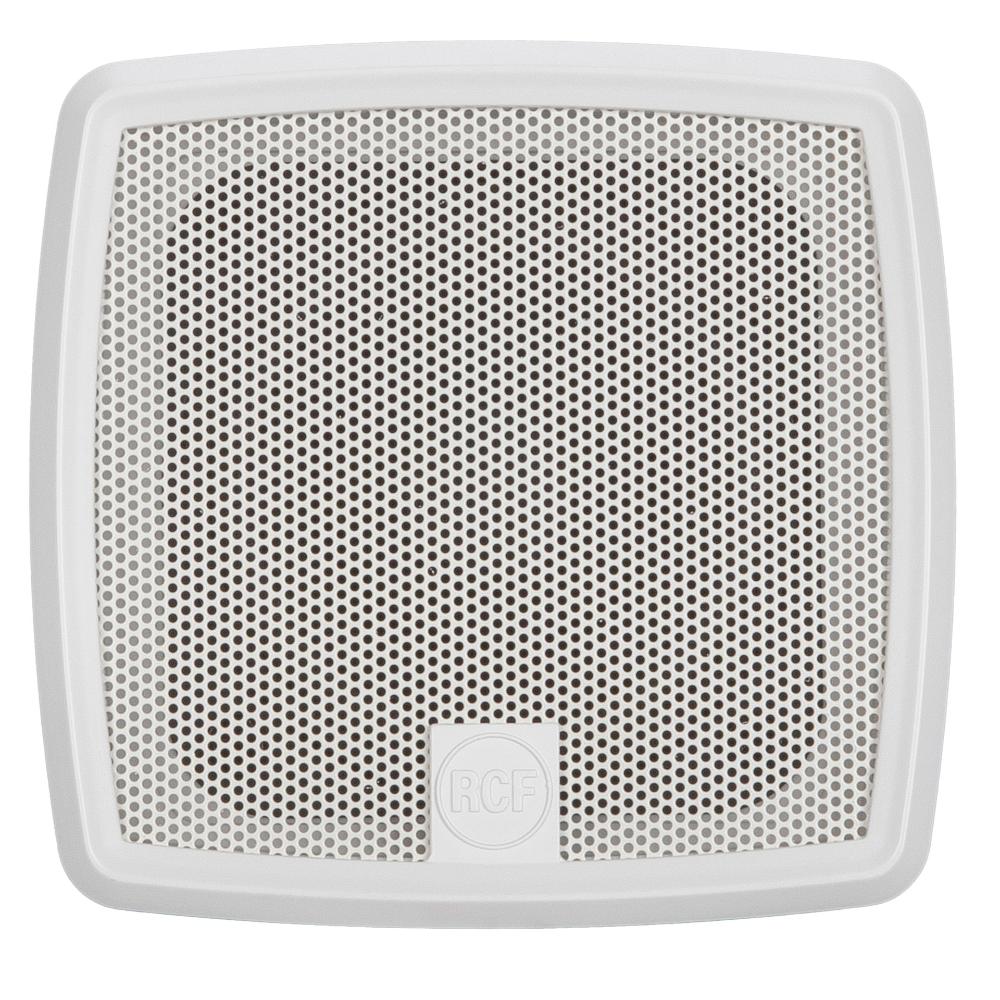

White - RAL 9003, EAN 8024530022440

13100114
MMR 30T B

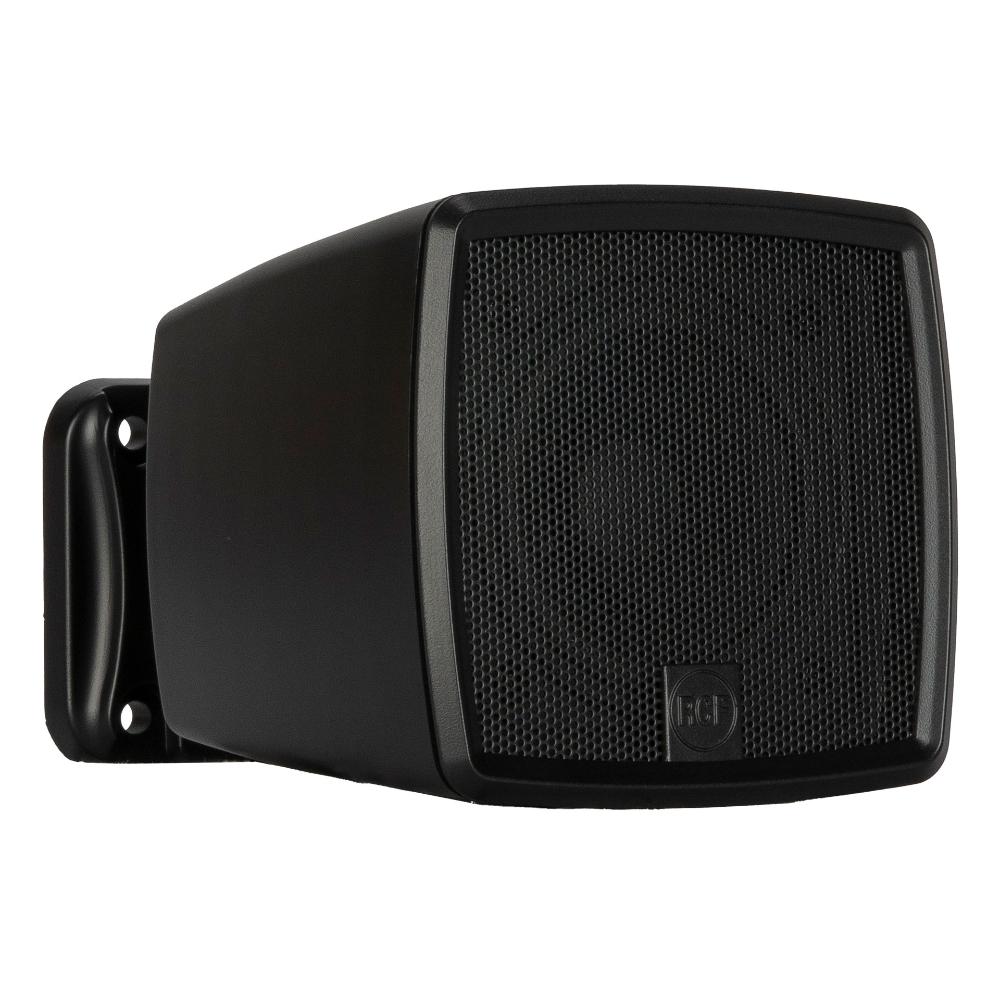

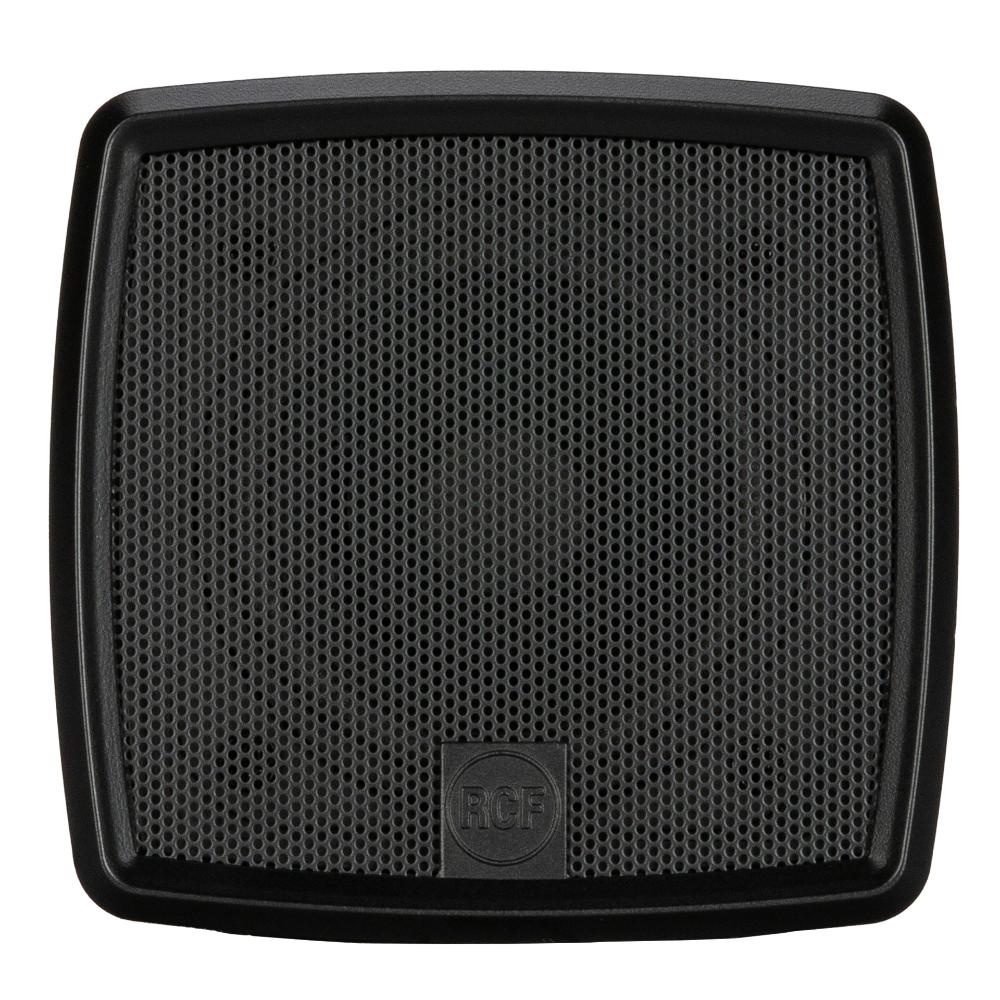

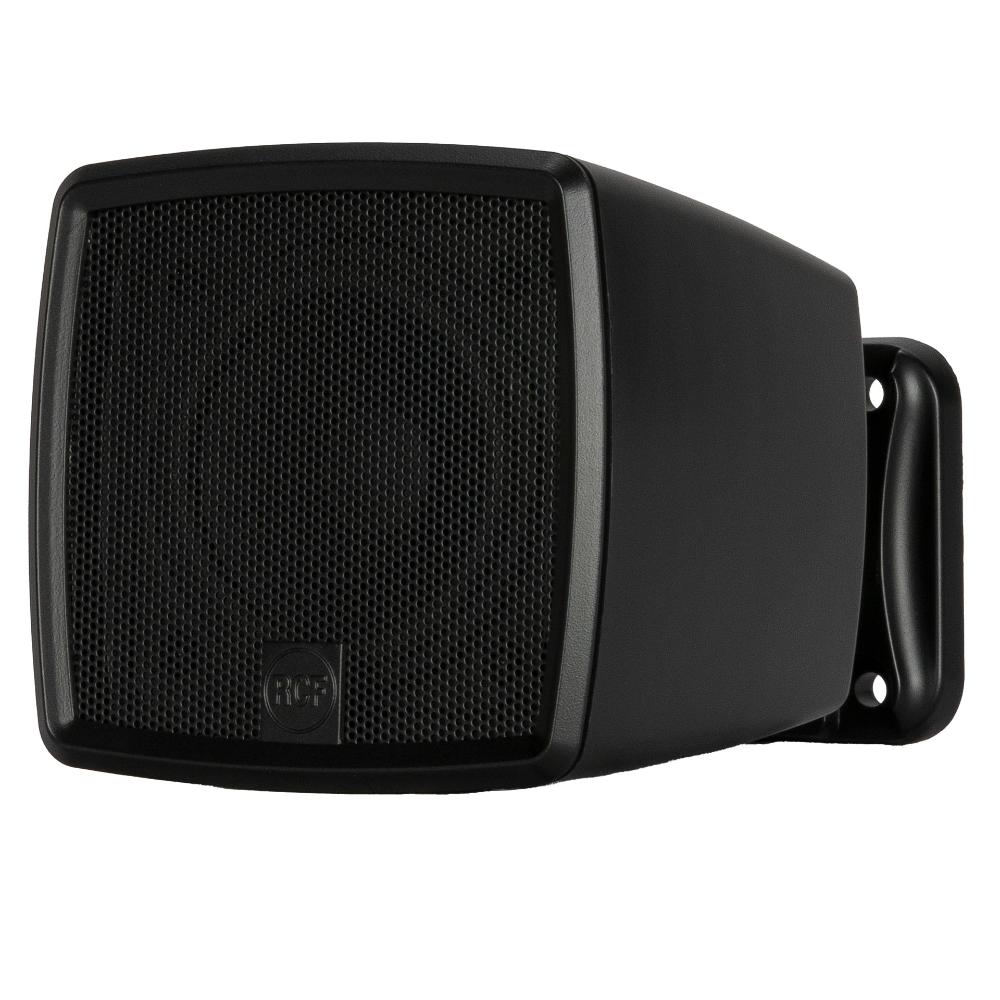

Black - RAL 9005, EAN 8024530022457

Multipurpose Sound

With a frequency response from 200 Hz to 20 kHz and a maximum SPL of 101 dB, MMR 30T ensures clear audio for both background music and speech applications.

MMR 30T seamlessly integrates with RCF amplifiers using onboard presets, providing broad compatibility for flexible system configurations.

Flexible Wall-Mount Installation

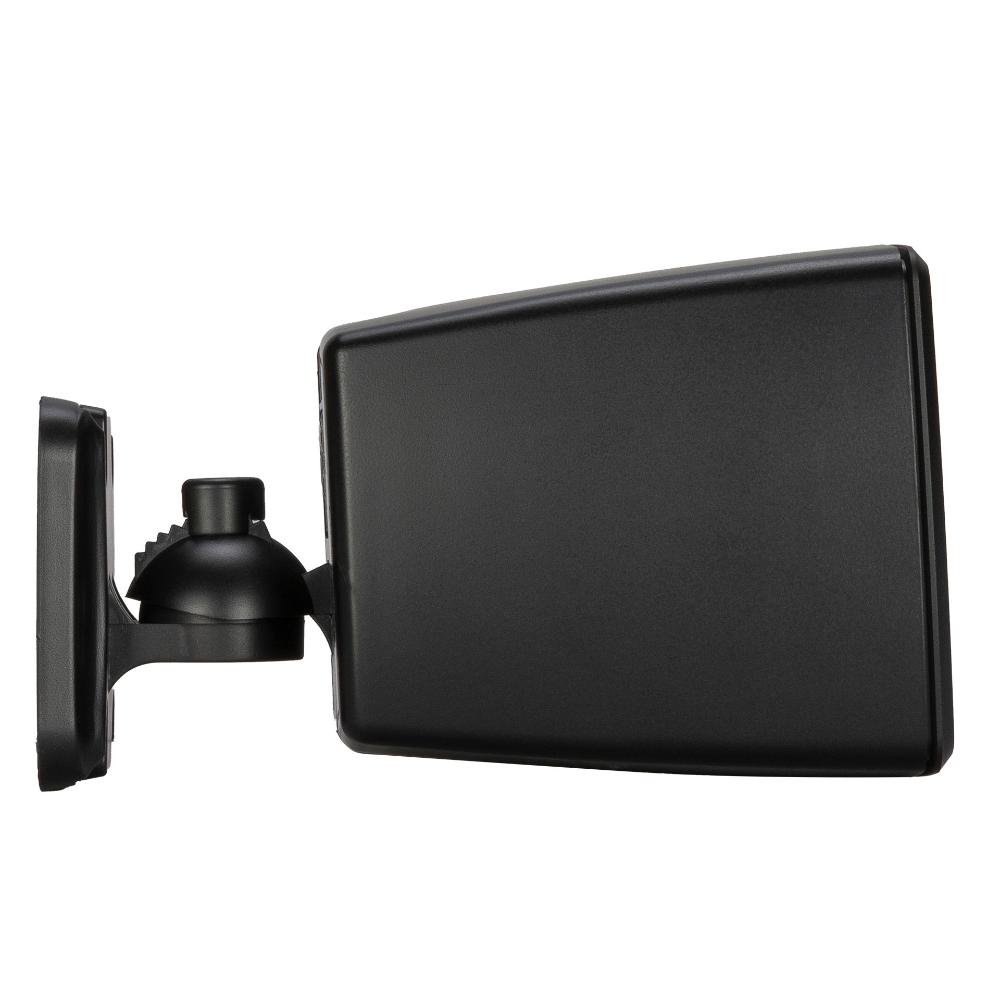

Built with a robust yet lightweight ABS enclosure, MMR 30T is engineered for easy and reliable mounting. Its minimal footprint allows installation in tight spaces without compromising audio quality, while the included wall-mount bracket provides swivel and tilt adjustment for precise orientation.

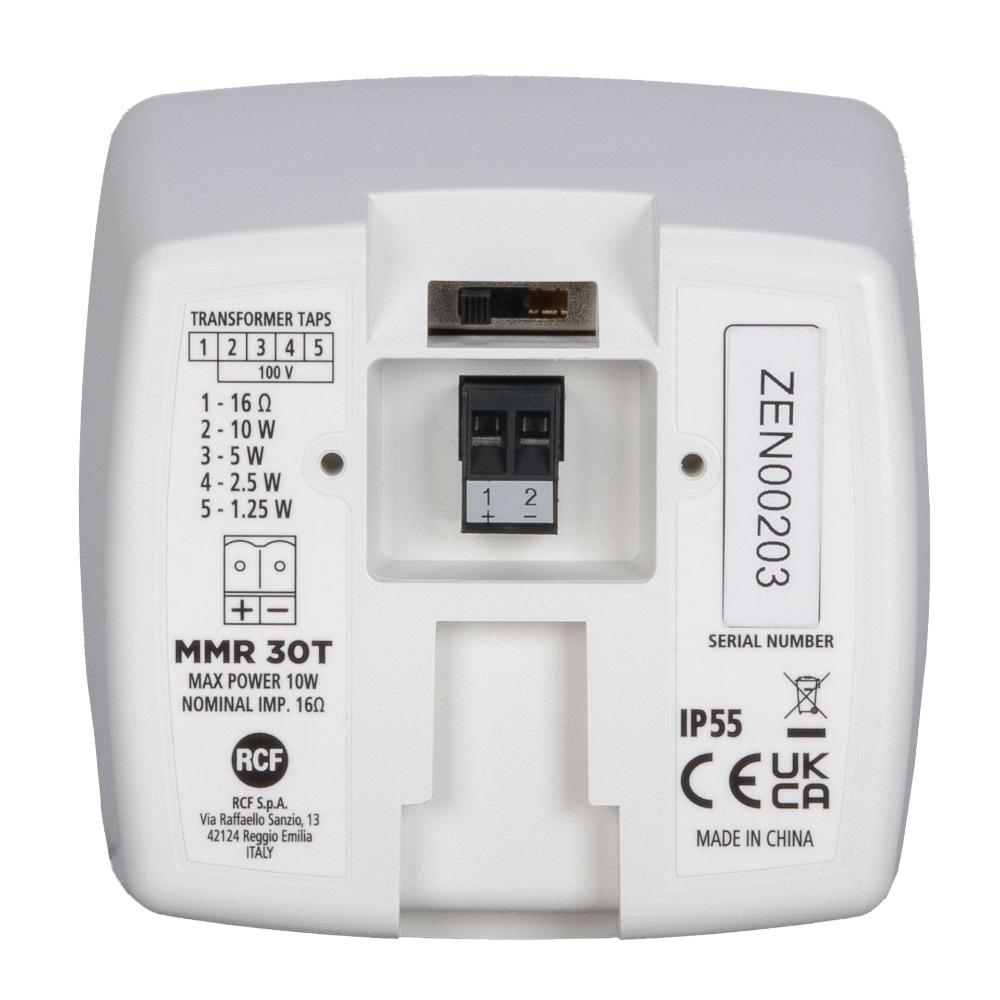

The Euroblock connector offers straightforward wiring. Available in black RAL 9005 and white RAL 9003, the speaker blends naturally into a wide range of interior and exterior designs.

Flexible Wall-Mount Installation

Built with a robust yet lightweight ABS enclosure, MMR 30T is engineered for easy and reliable mounting. Its minimal footprint allows installation in tight spaces without compromising audio quality, while the included wall-mount bracket provides swivel and tilt adjustment for precise orientation. The Euroblock connector offers straightforward wiring. Available in black RAL 9005 and white RAL 9003, the speaker blends naturally into a wide range of interior and exterior designs.

Uncompromised Performance

Quality components and careful acoustic design ensure high fidelity and impressive dynamics in a variety of installation environments. MMR 30T is built to deliver dependable, long-lasting performance—ideal for hospitality venues, shopping malls, offices, and leisure facilities.

Its sturdy construction, elegant design, and versatility make it an excellent choice wherever premium, reliable sound reinforcement is required.

Constant Voltage Speakers

Constant-voltage speaker systems, also called high impedance or 70V/100V audio distribution systems, refer to networks of loudspeakers equipped with line transformers connected to an audio amplifier with high-impedance output. This approach offers several advantages such as:

High voltage (70V or 100V) enables long cable runs between amp and speakers with reduced power loss: low-level current allows smaller cable diameters
Speakers can be wired in parallel in large numbers, limited only by available amplifier power
Different speaker types with different power requirements can share the same speaker line simultaneously, making the system wiring easier
Adding or removing a speaker is very quick and simple, it does not require to re-wire the overall circuit
