HL 35-S
FLYABLE PASSIVE SUBWOOFER
- 3600W Peak Power Handling
- 134 dB Max SPL
- 40 ÷ 140 Hz Frequency Range
- 1 x 15" High-Power Woofer
Features
- 3600W Peak Power Handling
- 134 dB Max SPL
- 40 ÷ 140 Hz Frequency Range
- 1 x 15" High-Power Woofer
- Baltic birch Plywood Cabinet

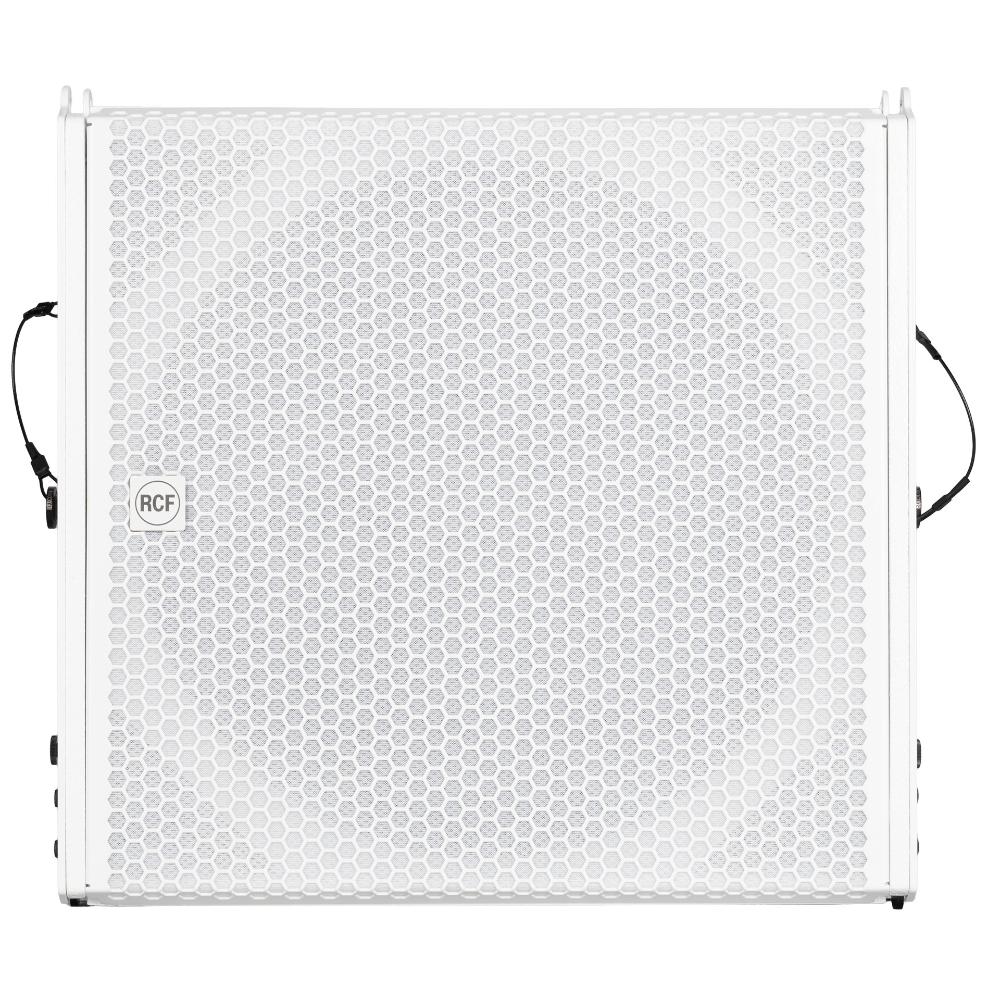

- Steel Front Grille with Cloth
- M20 Standard Pole Mount (top of cabinet)

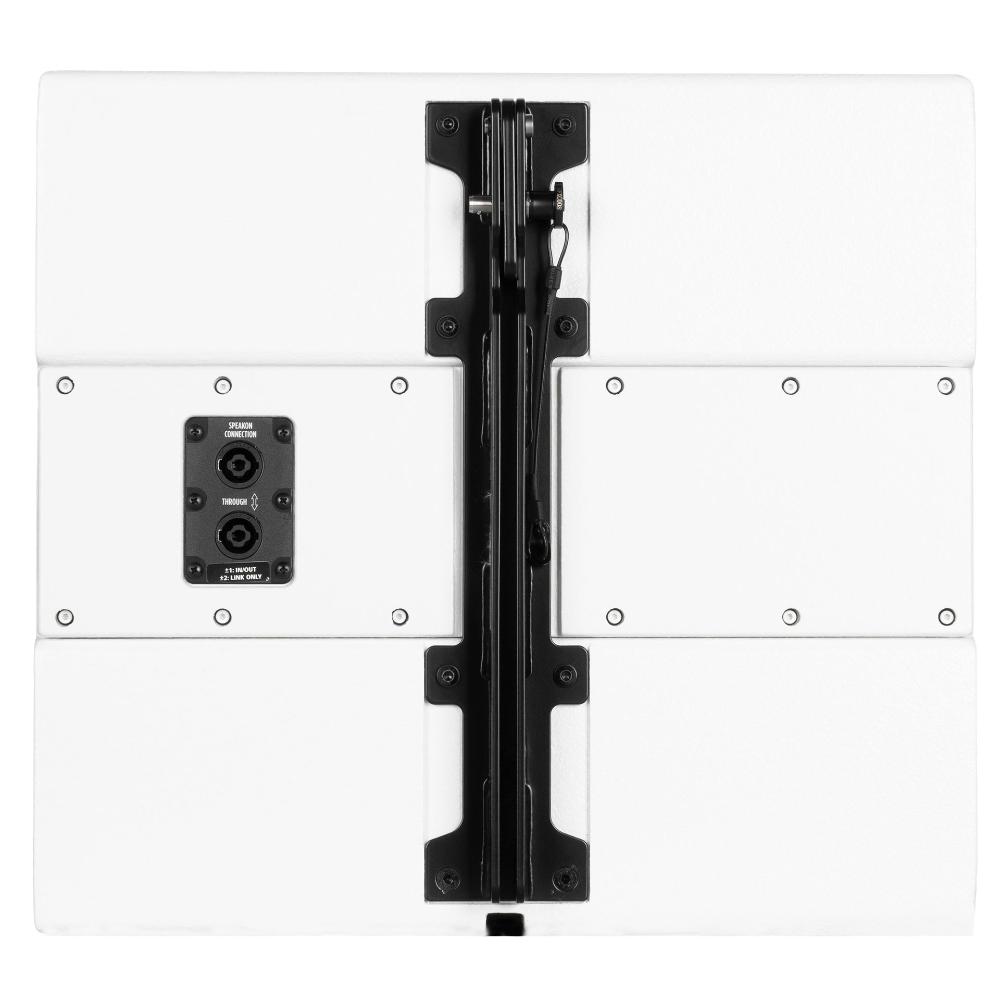

- 2 x SpeakON Connectors

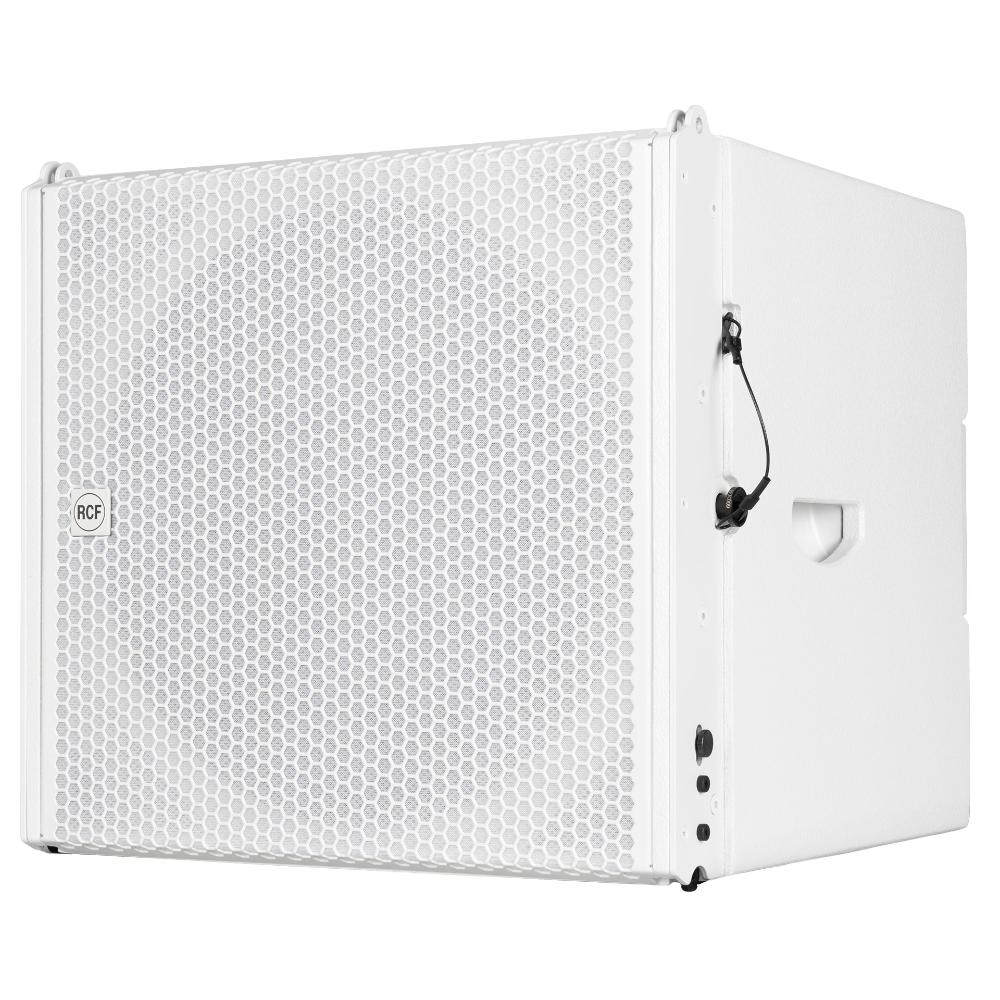

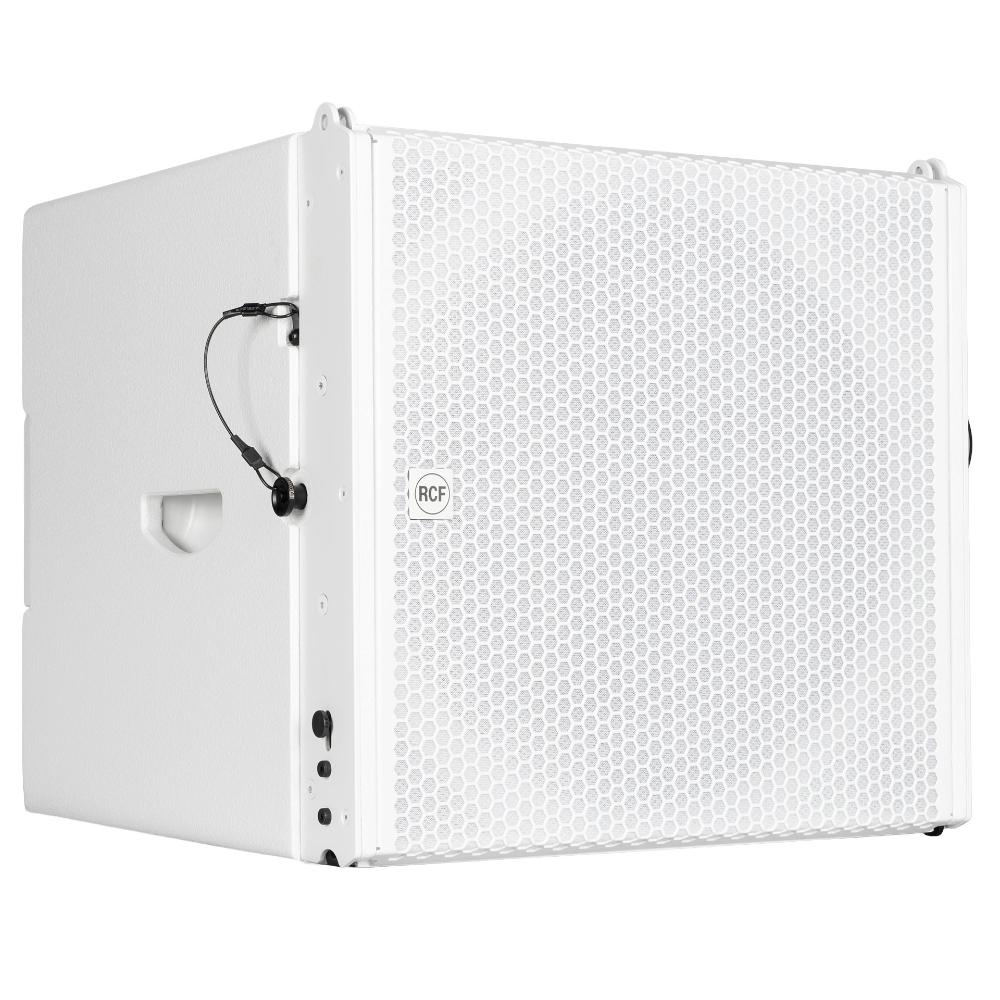

The HL 35-S is the ideal flyable bass complement for the HL 6 line array system. It features a Baltic birch plywood cabinet housing one 4.0” voice coil and a 15” neodymium woofer that handles frequencies from 40 Hz to 140 Hz, with maximum linearity and low distortion up to 134 dB. The hardware is designed for fast deployment and is completely compatible with HL 6 rigging. The heavy-duty front grille is powder-coated with a special transparent-to-sound foam backing inside that helps to further protect the transducers from dust and debris.
Part number:
13000732
HL 35-S
EAN 8024530019075
Recommended Power Amp
XPS SERIES
4 x 4000 W
Class D continuous power
at 2.7 Ohms
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
Configurations and presets
for RCF speakers
2U Rack Space
for both touring and installed sound systems
Flexible 32-bit Routing
with analog, digital
and Dante I/O
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
for each amplifier channel and power supply
Full Range Two-Way Line Array with Subs
12 x Double 6" Line Array (HL 6) and
6 x Single 15" Sub (HL 35-S)

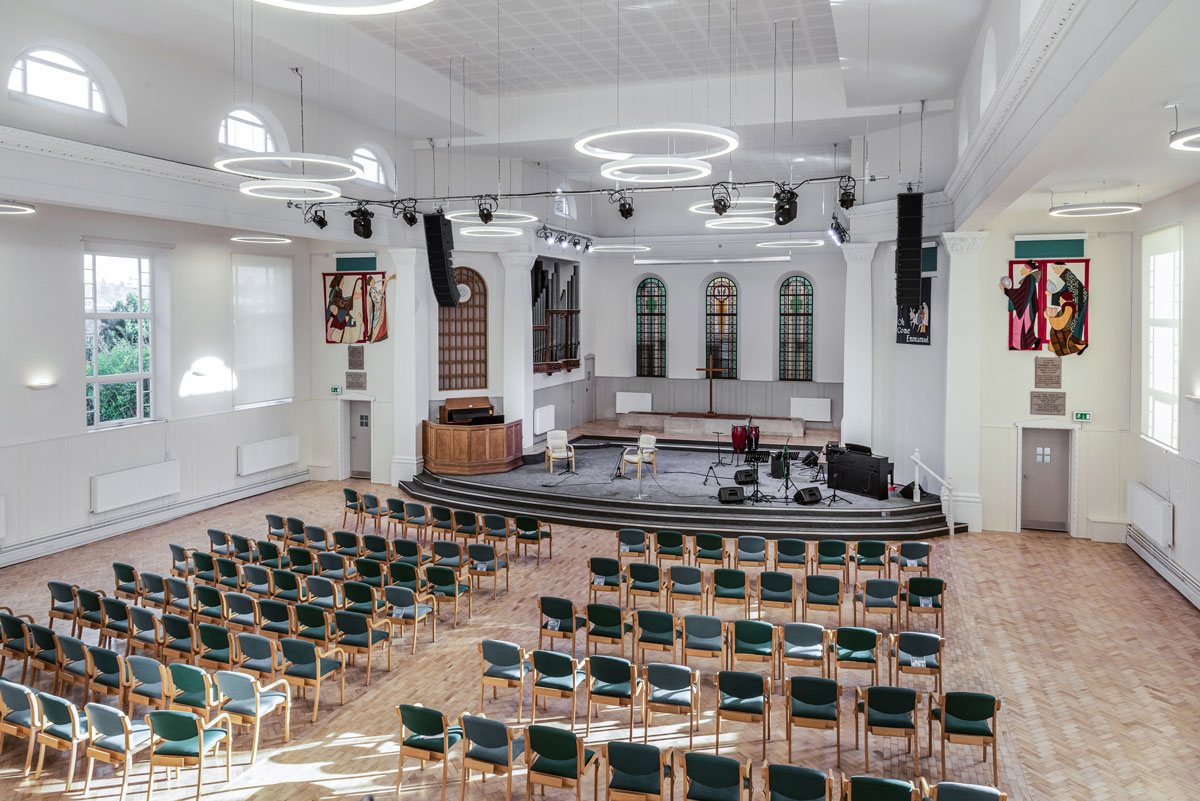

Small to Medium Size Venues
Worship Spaces, Sports Facilities, and Concert Halls
Worship Spaces, Sports Facilities, and Concert Halls
Designed for installation
The passive architecture makes the HL 35-S one of the lightest 15" flyable bass modules on the market. Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array. Combining it with robust rigging and a wide range of accessories, it's the perfect solution for installation in both sports arenas, corporate environments, and music venues. The HL 35-AS provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.

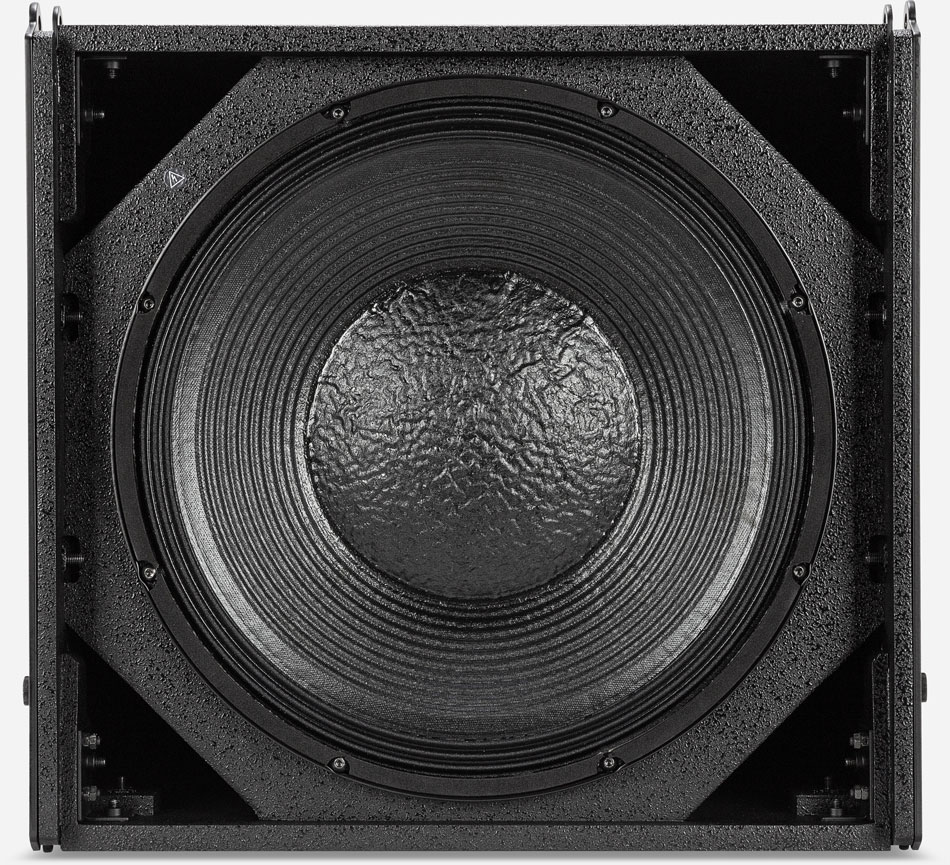

Precision transducers
Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.

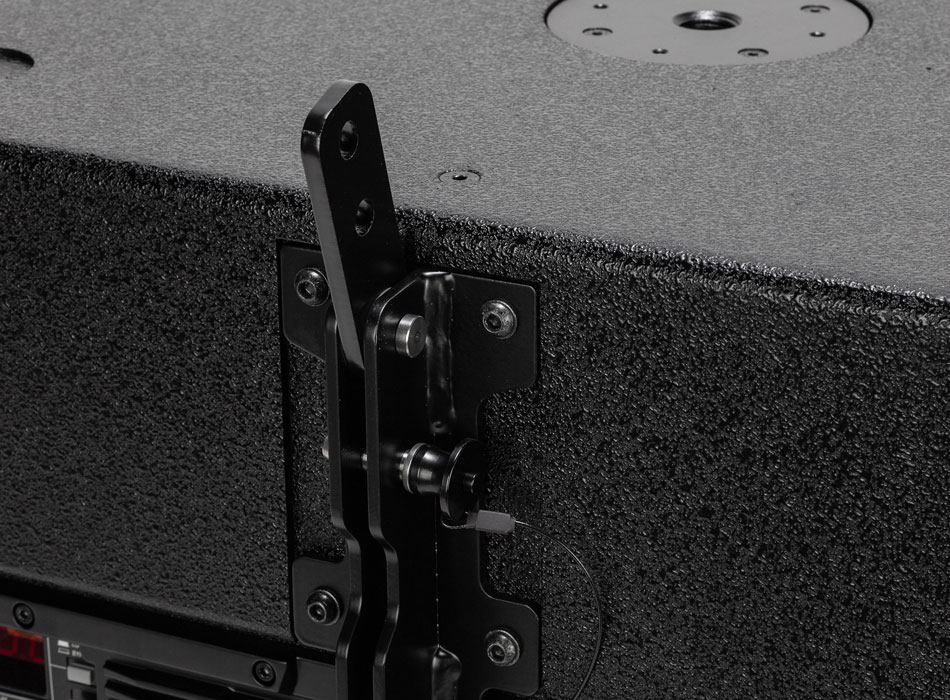

Cabinet & mechanics
The hardware is designed for an easy and fast setup, completely compatibile with the HL 6 rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

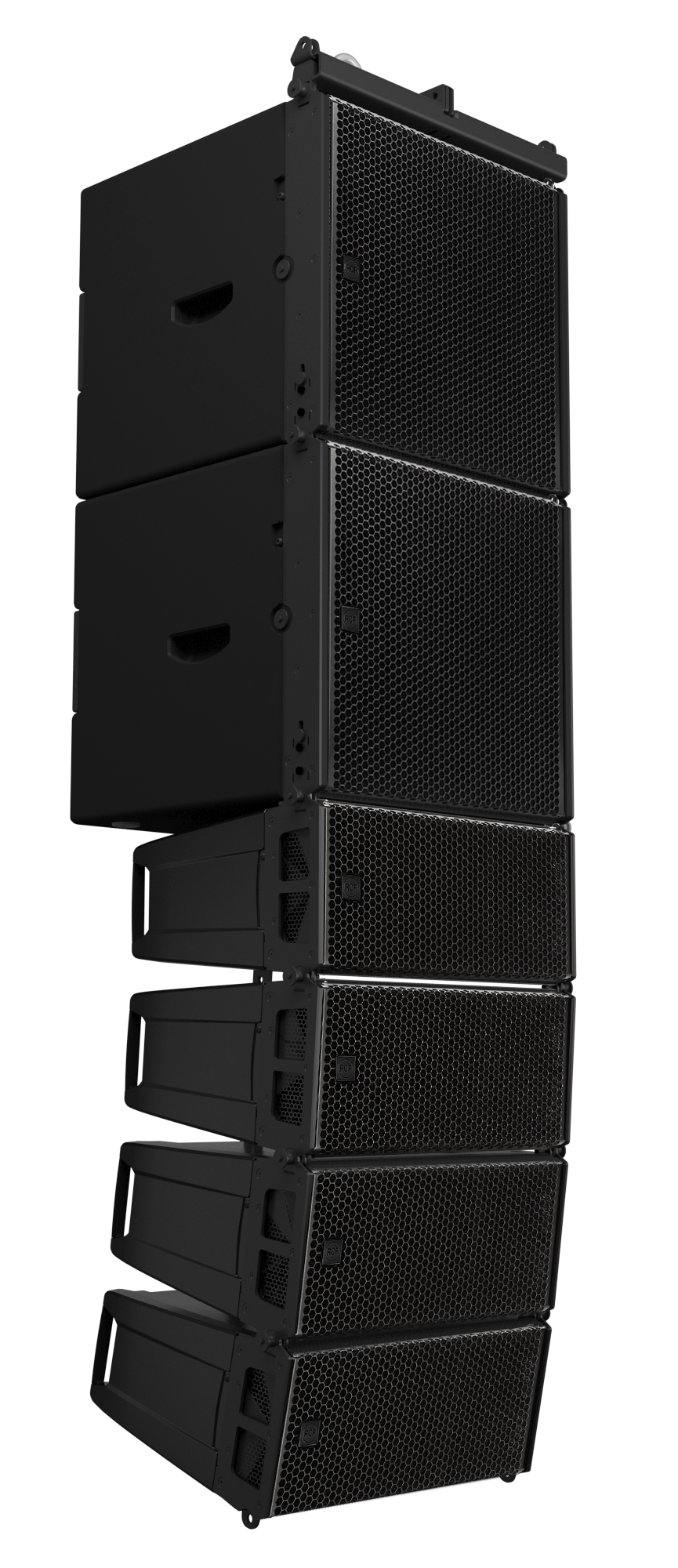

The HL 6’s perfect low-frequency companion
The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6-A lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. The hardware is designed for easy and fast setup. The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
Specifications
Acoustical specifications
Frequency Response (-10dB)
40 Hz ÷ 140 Hz
Max SPL @ 1m
134 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
900 W
Peak Power Handling
3600 W PEAK
Recommended Amplifiers
XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K
Transducers
Woofer
1 x 15'' neo, 4.0'' v.c
Input/Output section
Input connectors
Speakon
Output connectors
Speakon
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Integrated array mechanics
Handles
On side panels
Pole mount/Cap
Yes
Grille
Steel
Color
Black - RAL 9005
Size
Height
444.5 mm / 17.5 inches
Width
480 mm / 18.9 inches
Depth
508 mm / 20 inches
Weight
28 kg / 61.73 lbs
Shipping information
Package Height
530 mm / 20.87 inches
Package Width
560 mm / 22.05 inches
Package Depth
525 mm / 20.67 inches
Package Weight
33 kg / 72.75 lbs
