Features
  • 16000 W Total Continuous Power
  • 40-bit Floating-point DSP and 32-bit routing up to 96 kHz
  • Dante Audio Network
  • FiRPHASE, Bass Motion Control, Bass Shaper
  • RDNet Networked Management
  • Touch 4.3" Color TFT Interface
  • Full On-board Processing with Delay, EQ, Comp/Limiter
  • On-board Speaker Presets Library
  • Class-D Modules with SMPS and Advanced PFC

XPS 16KD is a four-channel power amplifier with advanced processing and advanced routing with Dante, digital and analog I/O for both touring and install use. With 4x4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.

Read More

Part number:

12100064
XPS 16KD
EU, EAN 8024530020125

12100075
XPS 16KD
US, EAN 8024530020392

12100077
XPS 16KD
UK, EAN 8024530020859

Outstanding. Power. Processing.

4 x 4000 W

Class D continuous power at 2.7 Ohms

40-bit Floating-point Processing at 96 kHz
Ready-to-Use
Configurations
and presets for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image

Installed Audio

Quality Power for Fixed Sound Systems

XPS Series is the best choice for high-power installation systems such as auditoriums, theme parks, and performance venues. Whether perfectly integrating with RCF passive speakers with ready-to-use presets, XPS provides installation-specific features, including enhanced system status monitoring, GPIOs for extended capabilities, flexible routing, and perfect integration with our proprietary RDNet management platform.

Responsive Image

Tour Sound

Thinking Out of the Box, and Into The Rack

XPS shines when used in touring applications and live events from medium to very large capacity. Paired with RCF high-powered passive speakers, XPS gives a new perspective in sound system management. The system designer now has complete flexibility in choosing powered, or externally amplified speakers, balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management, via RDNet.

Responsive Image

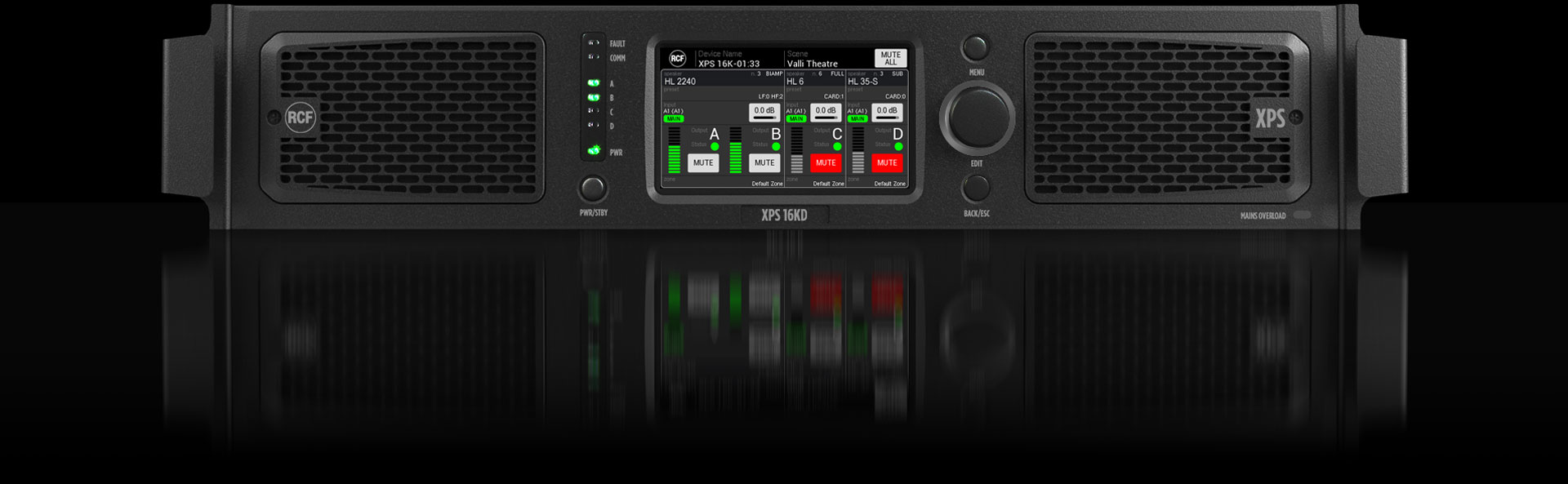

Power to Change Everything

Four-Channel Modular Amplifier

XPS 16K provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network ready design, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of RCF speaker presets is available, with powerful signal processing for complete system tuning.

4 x 4000 W

CONTINUOUS POWER OUTPUTS

New Attitude in Sound Management

XPS 16K supports the RCF philosophy with a power-agnostic approach, where the sound system engineer has complete freedom in choosing powered, or externally amplified, modules for their system. XPS 16K offers a new solution for balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management of each connected device, via RDNet.

Power You Can Trust

RCF’s effort in assisting both installers and sound providers with the best audio technology and clear, powerful sound is at the core of the company’s beliefs. Since 1949, providing both power amplifiers and transducers to the professional market, the RCF experience marks a new milestone with XPS 16K.

Responsive Image

Flexible Signal Routing

The comprehensive digital architecture of the amplifier features multiple inputs and outputs that can be routed easily to suit any project. Analog inputs 3 and 4 can be switched to 4 AES/EBU digital input ports. Each input can be routed to any of the four digital and power outputs. Dante networking delivers completely lossless audio and near infinite signal routing flexibility on a standard IP network.

Responsive Image
1.    Universal Mains PowerCon Plug
      100V - 240V / 50 to 60 Hz

      GPIOs
2.   Fault GPO
3.   2 Programmable GPIO

      LAN PORTS
4.   LAN1 / LAN2 RJ45 Network Connections

      INPUTS
5.   4 Analog XLR Inputs (A1/A4)
6.   4 Digital AES/EBU Inputs (A3/A4)
      DANTE
7.   LAN3 / LAN4 Audio Network + Control
      DANTE Primary and Secondary ports
      Up to 32 x 32 channels @ 96 kHz

      AES/EBU LINK
8.   4 Digital AES/EBU Outputs (O1/O4)

      OUTPUTS
9.   2 + 2 SpeakOn Power Outputs

Dante® Onboard

XPS 16KD LAN 3 and LAN 4 ports are equipped with Ethercon Dante-enabled connectors. Each amplifier becomes a node in Dante digital audio distribution networks.
Responsive Image
Specifications
Amplifier specifications
Amplifier Class
D
Output Power (EIAJ 8:32 all channels driven)
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB)
20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted)
>111 dB
SNR Digital inputs (unweighted)
>115 dB
Crosstalk
<70 dB
Distortion (THD+N) (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm)
<0.2 %
Gain (linear mode @ 0 dB)
32 dB
Damping factor (@ 8 ohm, 20 Hz ÷ 1500 Hz)
>95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N)
200 ms
Input section
Total number of inputs
16
Line inputs
4
Line connectors
XLR
Digital inputs
12
Digital connectors
Ethercon, XLR
Digital type
AES/EBU, DANTE
General Purpose Inputs (GPI)
2
Programmable GPI
Yes
Photo-coupled GPI
2
Output section
Signal output number
4
Signal output connectors
XLR
Power output connectors
Speakon
General Purpose Outputs (GPO)
3
Programmable GPO
Yes
Processing
DSP
Yes
EQ Filters
Yes
Advanced algorithms
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compressors
Yes
Delay
Yes
Tone controls
Yes
High-pass filter
10 Hz ÷ 1000 Hz
Crossover
2500 ÷ 3500 Hz
Automatic gain control
Yes
Configuration and control
Configuration
Front panel touch screen, PC Software
Network
Gigabit ethernet
RCF speakers presets
Yes
Priority
Yes
RDNet
Yes
Protections
Cooling
Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Operating conditions
Temperature range - Continuous operation
-5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range - Reduced output power
-5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA)
<35 dBA
Fan noise max < (dBA)
<64 dBA
Power requirement
Operating voltage
90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V
30 A
Nominal current AC @ 220-240 V
16 A
Stand by power consumption
20 W
Idle power consumption
90 W
Power consumption (MAX)
5800 W
Main fuse
Internal
Fuses Model
F 315 mA H 100 V
Standard compliance
Safety agency
CE compliant, UL 62368-1, 3rd Ed.
CSA C22.2 No. 62368-1:19, 3rd Ed.
Physical specifications
Cabinet/Case Material
Metal
Handles
2 metal handles for rack mount
Color
Black - RAL 9005
Rack mounting
19", 2U
Size
Height
88.7 mm / 3.49 inches
Width
482 mm / 18.98 inches
Depth
482.4 mm / 18.99 inches
Weight
15 kg / 33.07 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
580 mm / 22.83 inches
Package Depth
600 mm / 23.62 inches
Package Weight
18 kg / 39.68 lbs
