X 28L

TWO-WAY LINE ARRAY MODULE

140 dB max SPL
1 x 3.0" v.c. neo compression driver
2 x 8" neo woofer, 2.5'' v.c.
110° x 20° constant directivity coverage angle

WEATHERPROOF

IP55

Where to buy

Features

800 W RMS power handling
140 dB max SPL
50 ÷ 20000 Hz frequency range
110° x 20° constant directivity coverage angle
2 x 8" neo woofer, 2.5'' v.c.
1 x 3.0" v.c. neo compression driver
High quality structural polyurethane cabinet

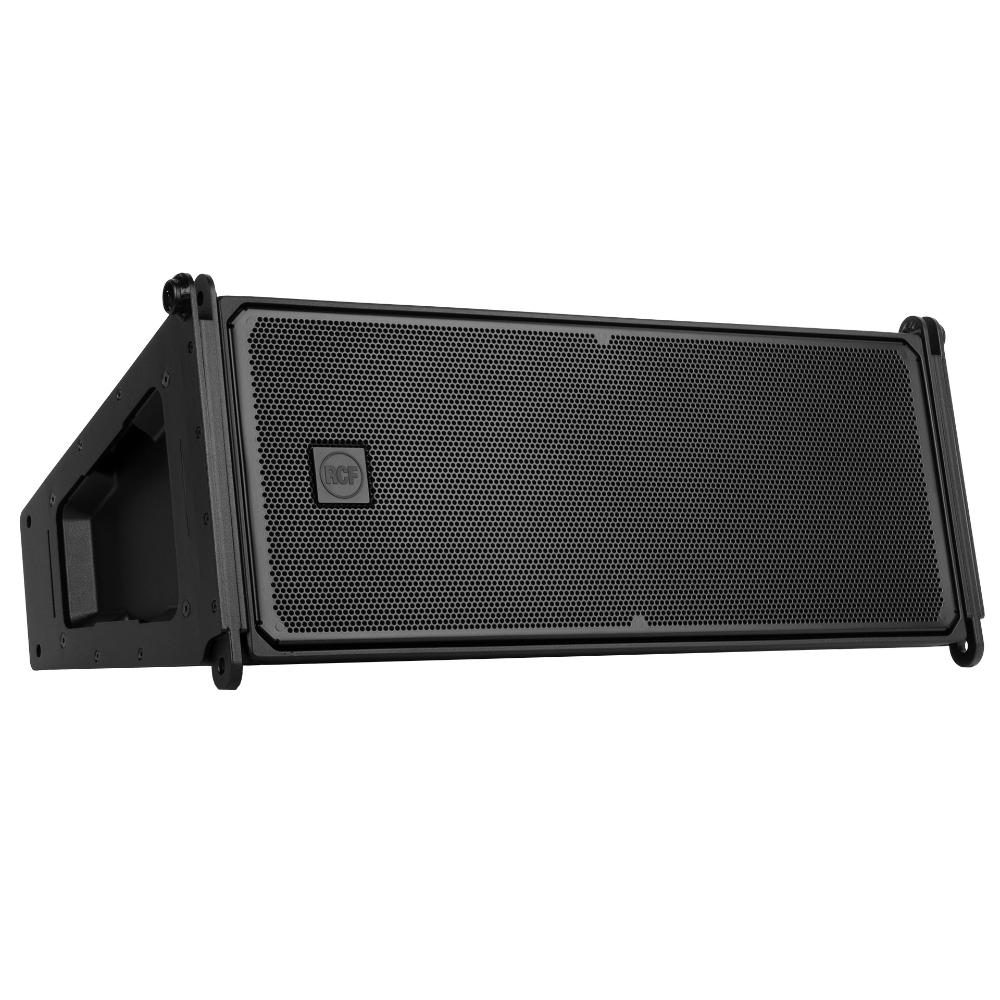

Aluminum grille with water-repellent protection
IP55 protection grade

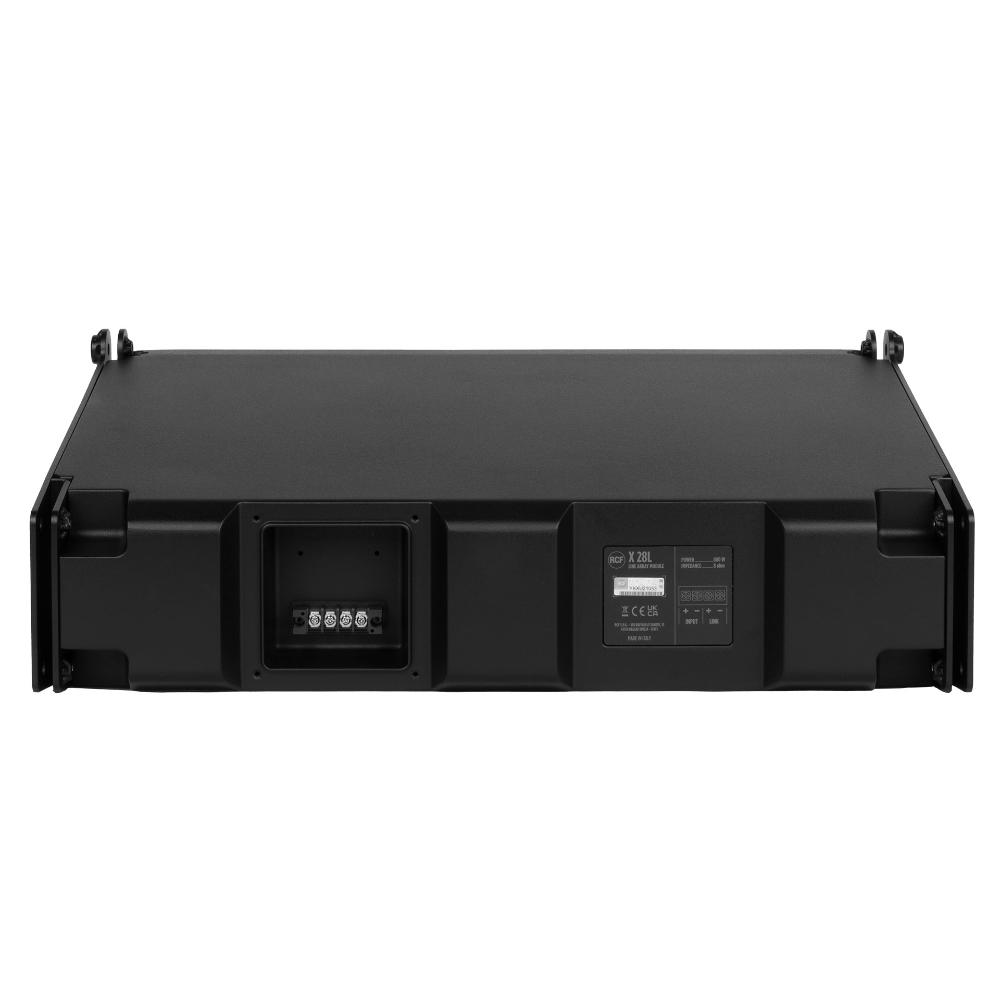

4 pole barrier strip terminals

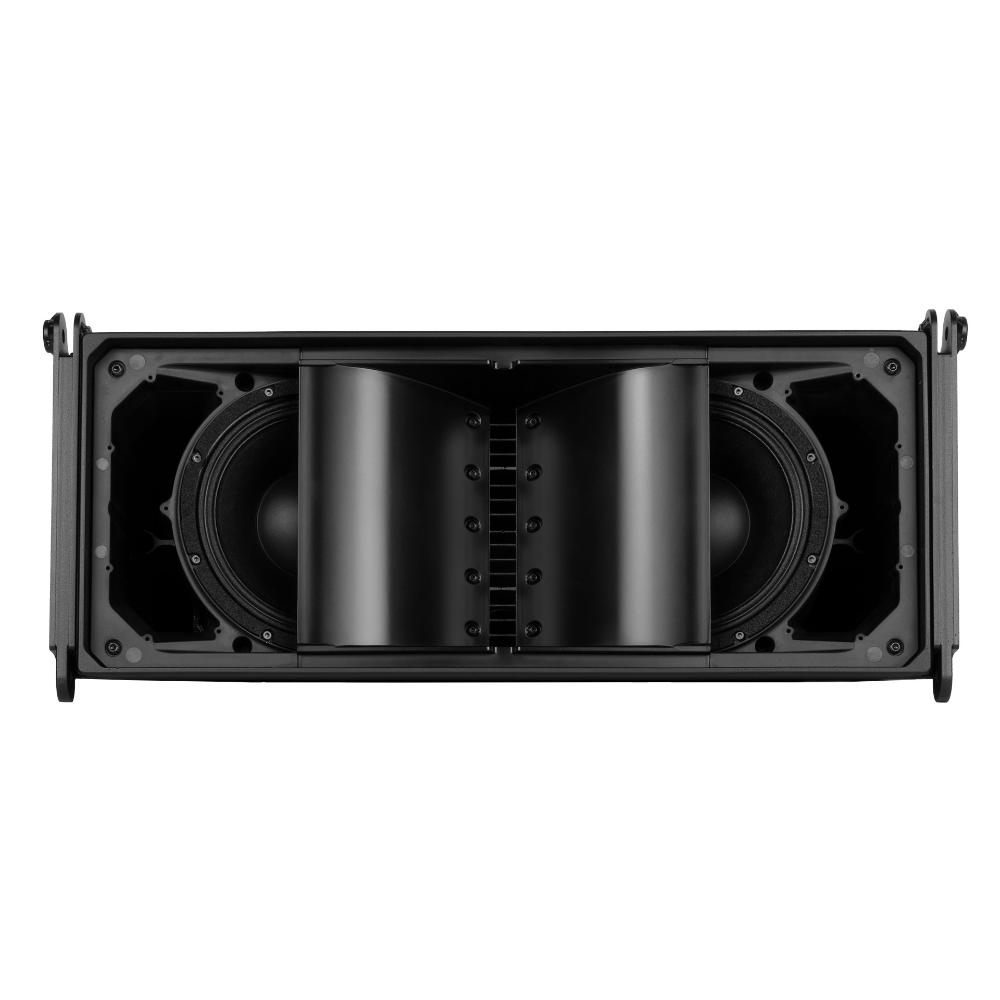

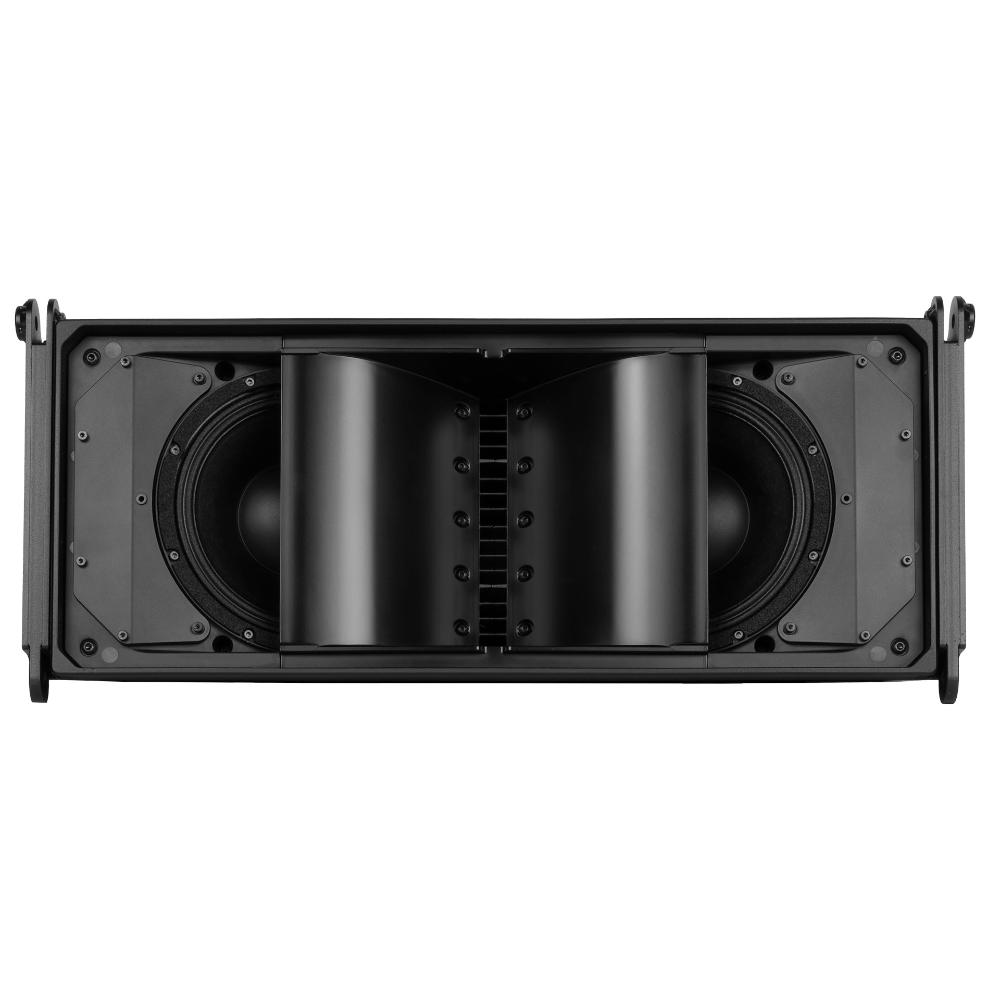

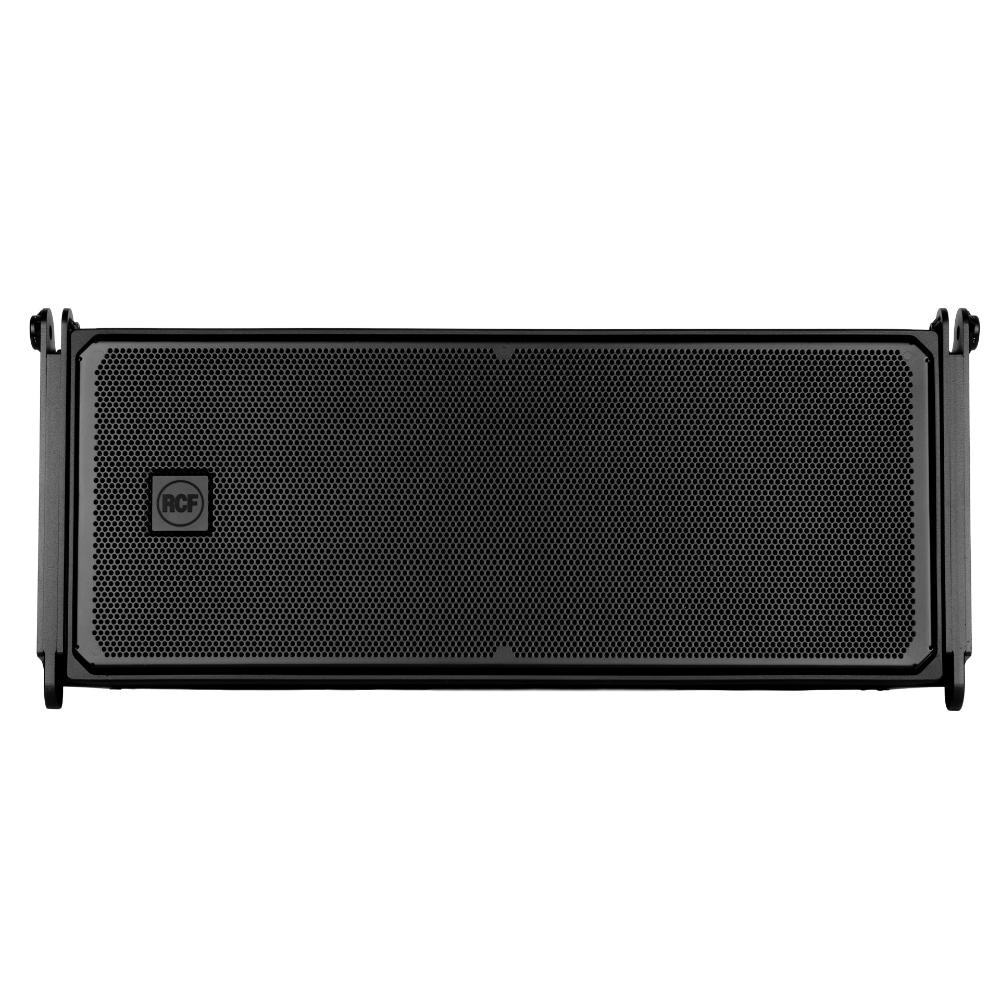

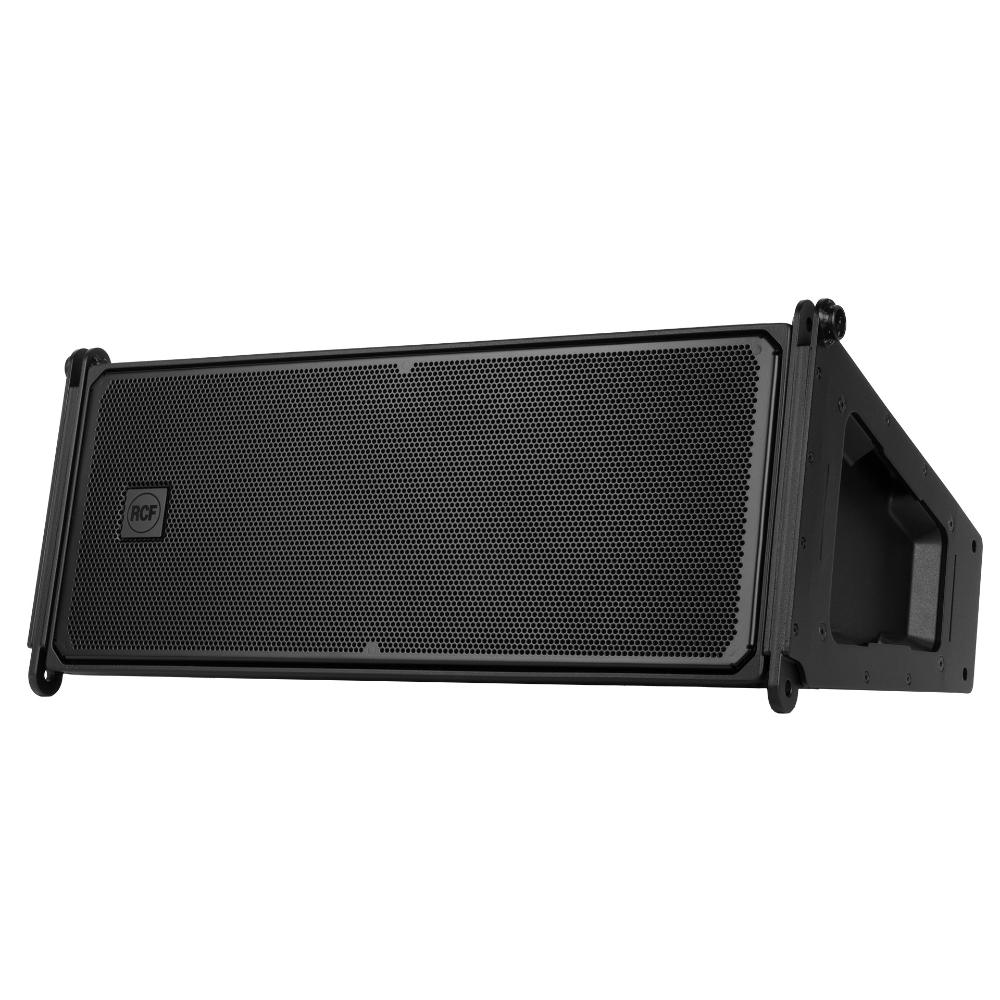

X 28L is a line array module designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 8'' woofers and the 3'' voice coil compression driver it offers a powerful and clear sound with constant 110° x 20° directivity. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. X 28L is equipped with array mechanics that allow angle adjustment between modules from 0° to 20° with 2° steps.

NEW

All-weather Performance

Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.

Superior Transducers

Low Frequencies

RCF low-frequency transducers use high-flux neodymium magnets to deliver maximum current stability, reduced distortion, and excellent thermal efficiency. Each woofer undergoes a rigorous endurance signal tests to guarantee reliability under the most demanding conditions.

High Frequencies

The compression driver voice coil features high-performance materials—including neodymium magnets and titanium domes—for outstanding power handling, superior durability, and exceptionally natural sound reproduction across the spectrum.

TRW Waveguide

The new True Resistive Waveguide (TRW) is the result of extensive refinements in the design of the transducers, enclosure, and vented ports—developed together as part of a fully integrated system. Combined with FiRPHASE processing, the TRW enables the speaker to act as a single coherent source, delivering a precise and stable sound image. Acoustically, the waveguide behaves as a pure resistive load—free from resonances—significantly reducing high-frequency distortion typically associated with conventional horns.

LICC - Low Impedance Compensated Crossover

X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.

Recommended Power Amp

XPS SERIES

4 x 4000 W

Class D continuous power
at 2.7 Ohms

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations and presets
for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

DISCOVER xps sERIES

Versatility for Any Application

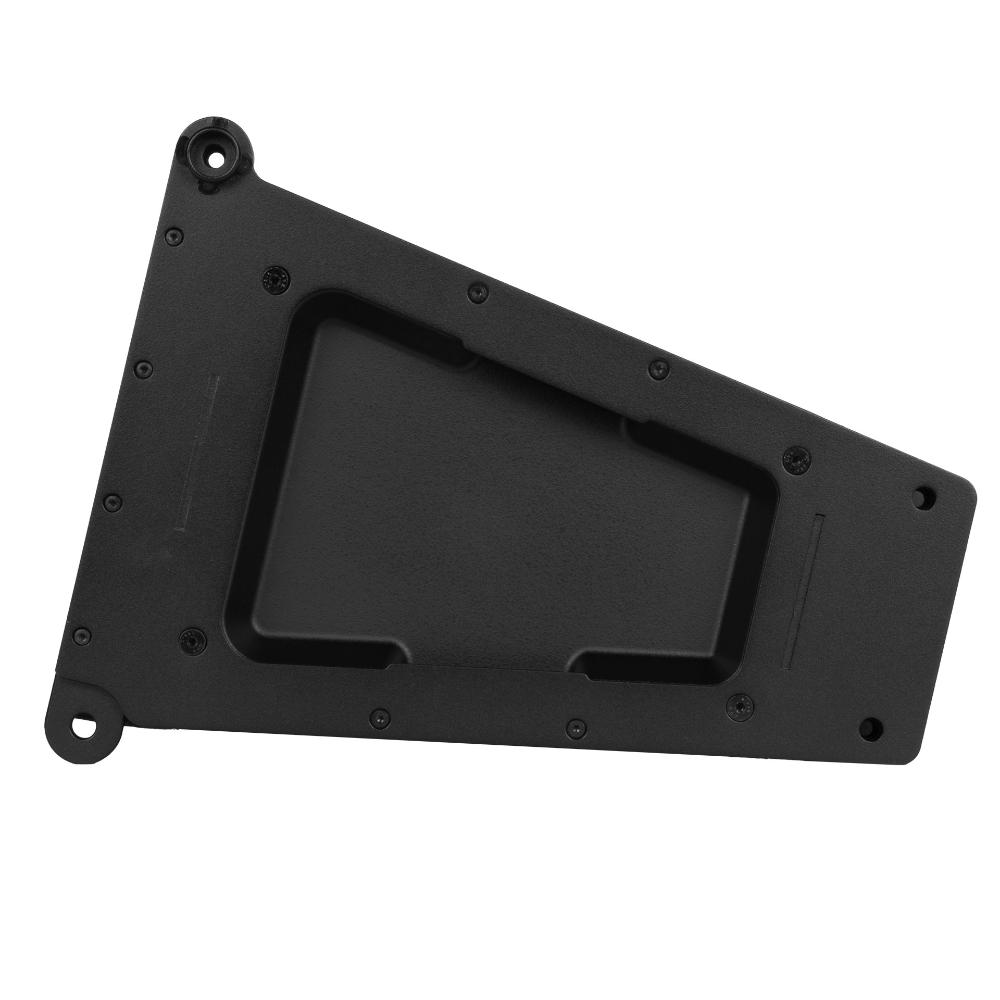

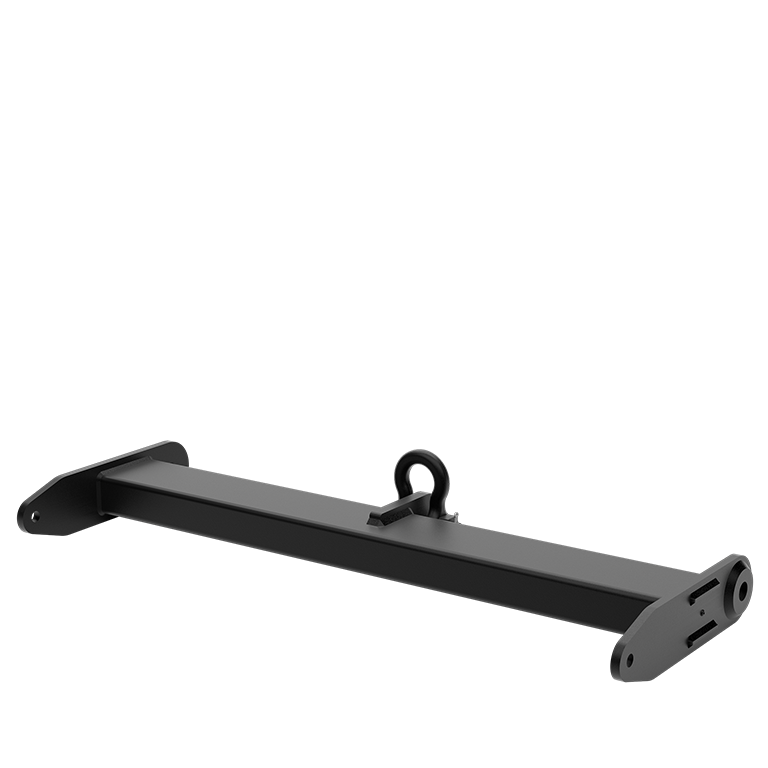

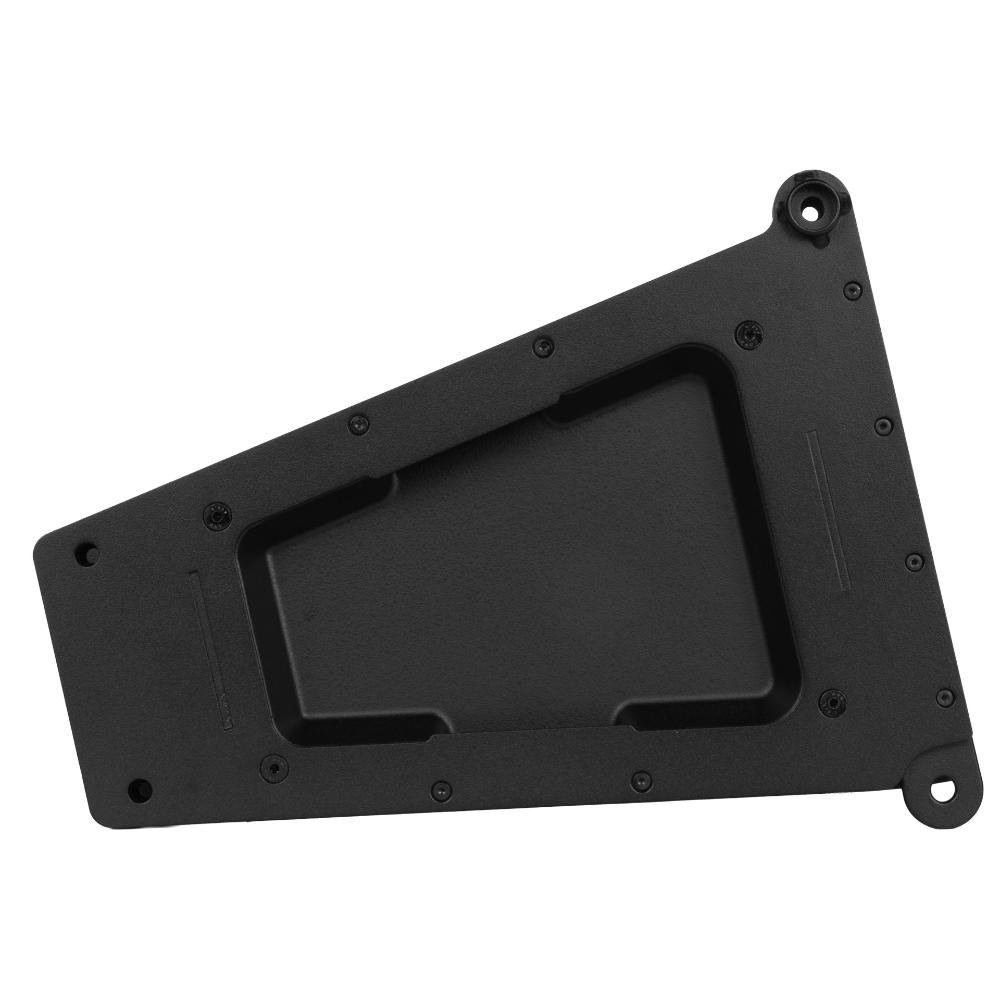

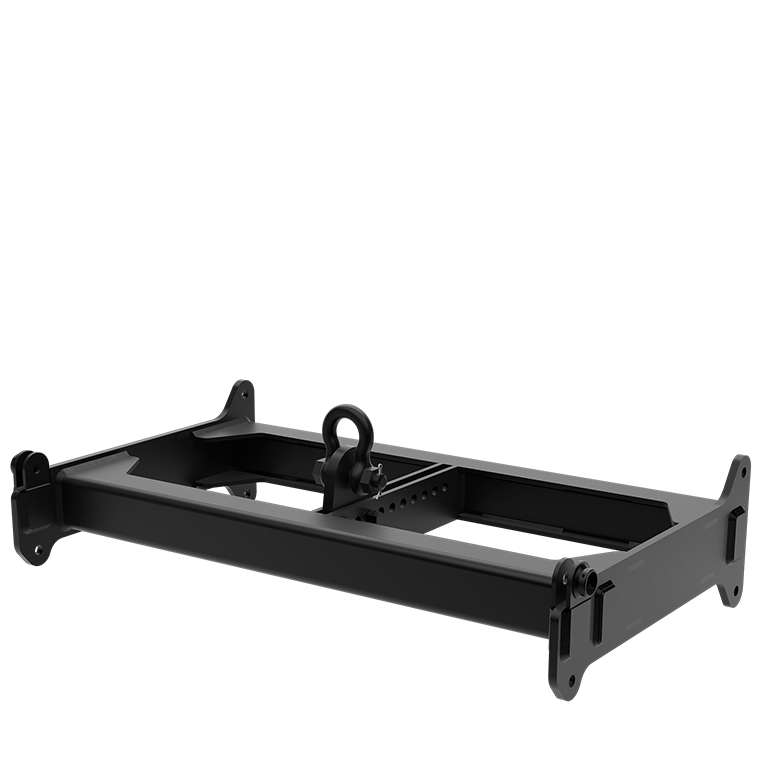

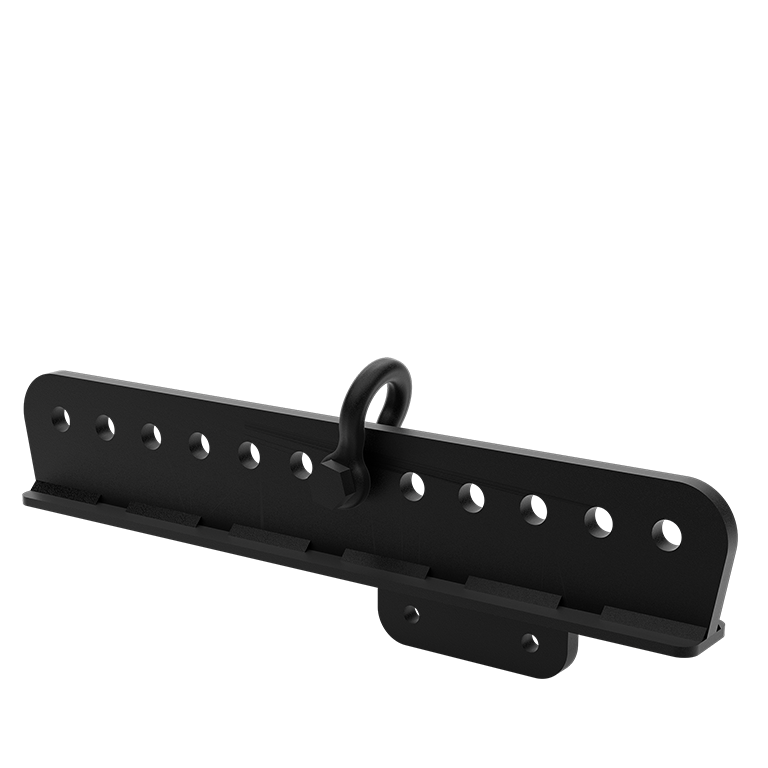

X 28L is equipped with array mechanics that allow angle adjustment between modules from 0° to 20°. Up to 16modules can be connected to the same fly bar.

Polyurethane: the ultimate in durability

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

contact us

Acoustical specifications

Frequency Response (-10dB)

50 Hz - 20000 Hz

Max SPL @ 1m

140 dB

Horizontal coverage angle

110°

Vertical coverage angle

20°

Power section

Amplification

Full Range

Nominal Impedance

8 ohm

Power Handling

800 W RMS

Peak Power Handling

3200 W PEAK

Protections

Dynamic active mosfet

Crossover Frequencies

750 Hz

Recommended Amplifiers

XPS 16K, XPS 16KD

Transducers

Compression Driver

1 x 1.4'' neo, 3.0'' v.c

Woofer

2 x 8'' neo, 2.5'' v.c

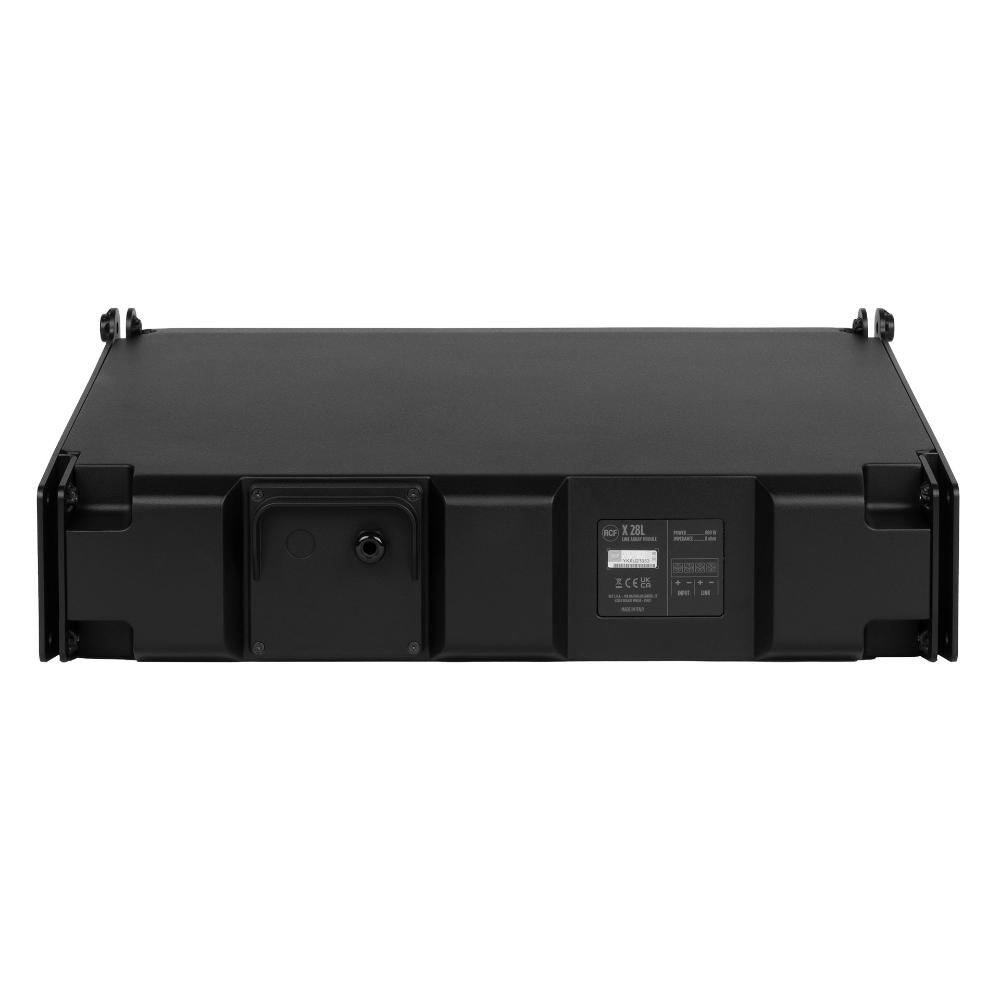

Input/Output section

Input connectors

Screw Terminals

Output connectors

Screw Terminals

Standard compliance

IP protection grade

IP 55

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Structural Polyurethane

Hardware

Array fittings

Grille

Aluminum with water-repellent protection

Color

Black - RAL 9005

Size / Weight

Height

290 mm / 11.42 inches

Width

658 mm / 25.91 inches

Depth

378 mm / 14.88 inches

Weight

24 kg / 52.91 lbs

Shipping information

Package Height

390 mm / 15.35 inches

Package Width

685 mm / 26.97 inches

Package Depth

305 mm / 12.01 inches

Package Weight

28.2 kg / 62.17 lbs
