TWO-WAY PROFESSIONAL SPEAKER

142 dB max SPL
2 x 10" neo woofer, 3.0'' v.c.
4.0" v.c. Titanium Neo compression driver
110° x 60° asymmetric horn

EN 54

WEATHERPROOF

IP55

Where to buy

Features

1200 W RMS power handling
142 dB max SPL
50 ÷ 20000 Hz frequency range
110° x 60° asymmetric horn

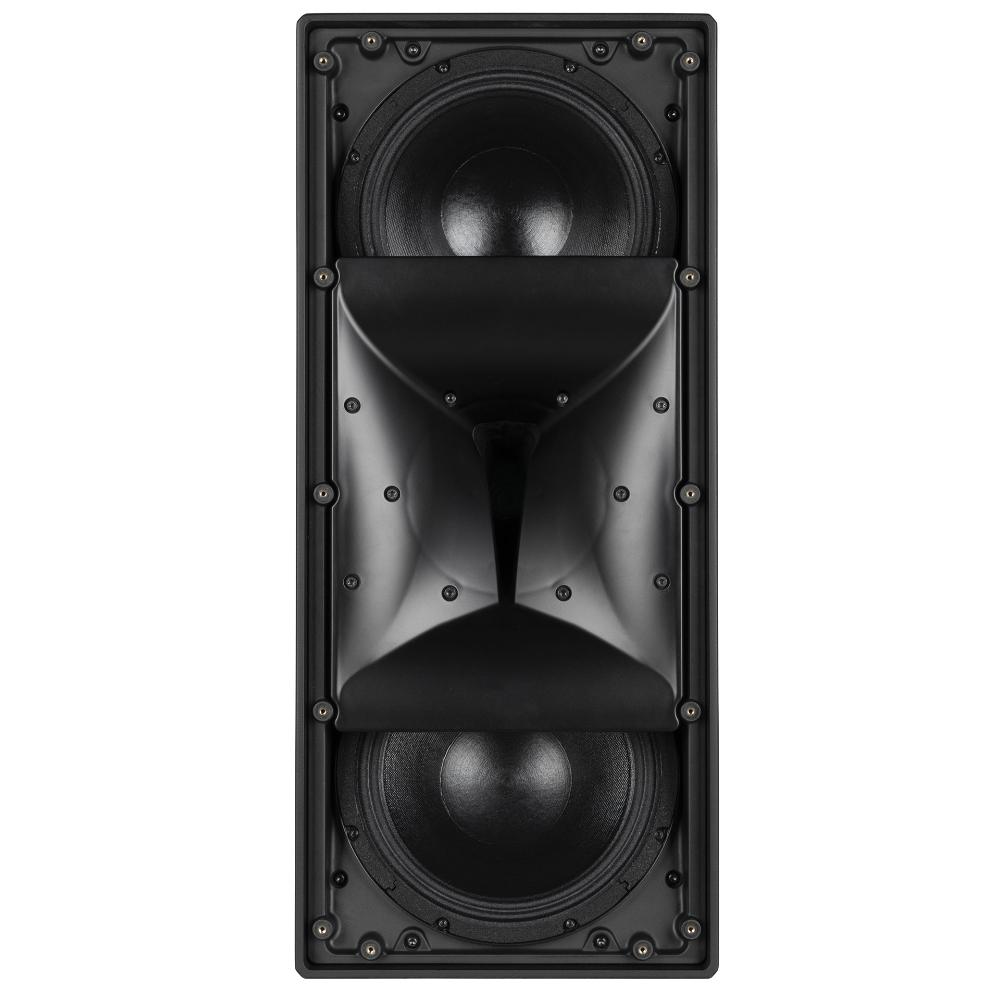

2 x 10" neo woofer, 3.0'' v.c.
4.0" v.c. Titanium Neo compression driver
Polyurethane cabinet / aluminum grille
IP55 protection grade

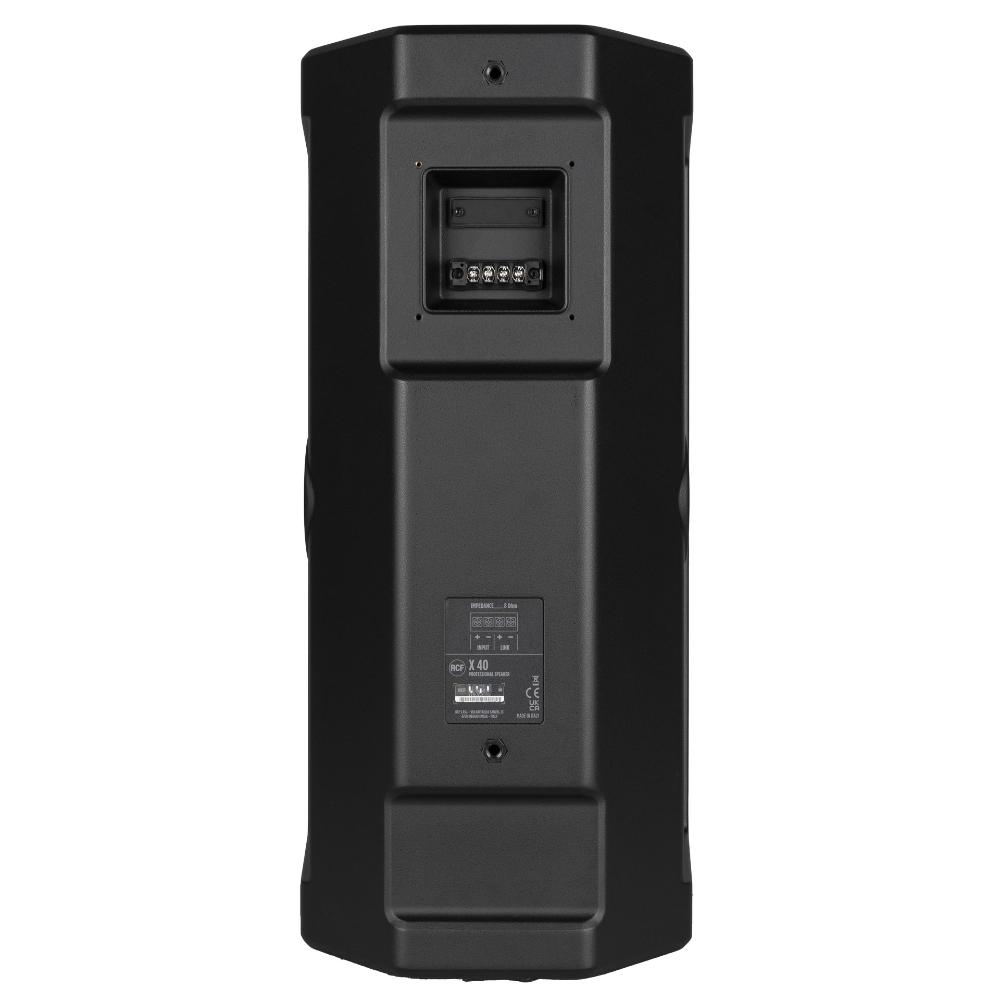

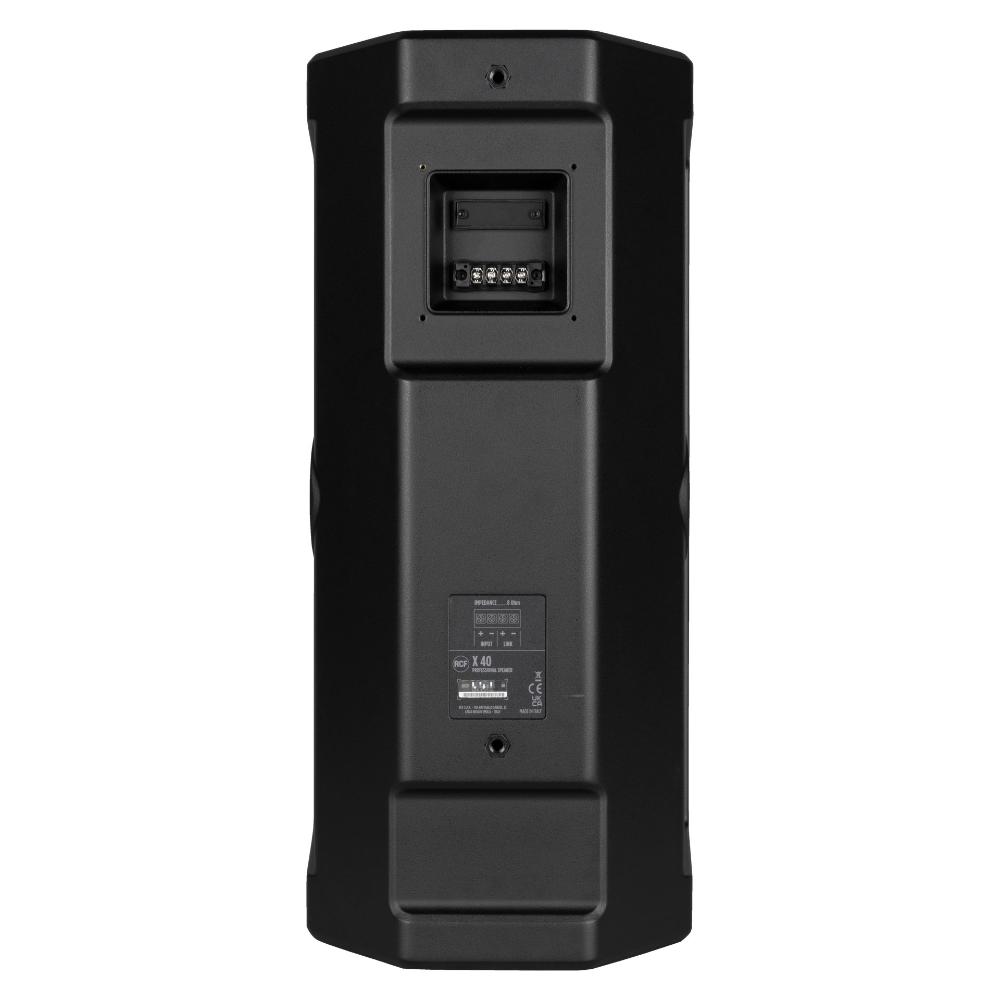

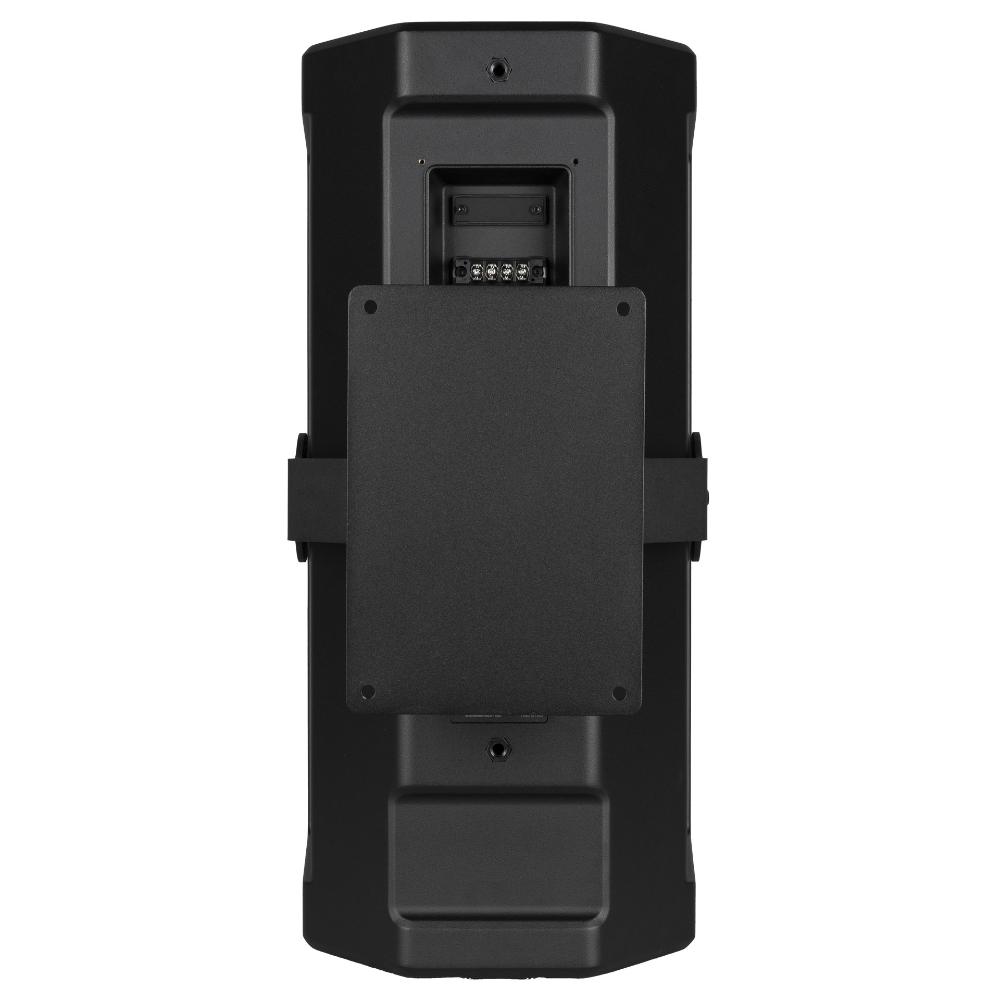

4 pole barrier strip terminals

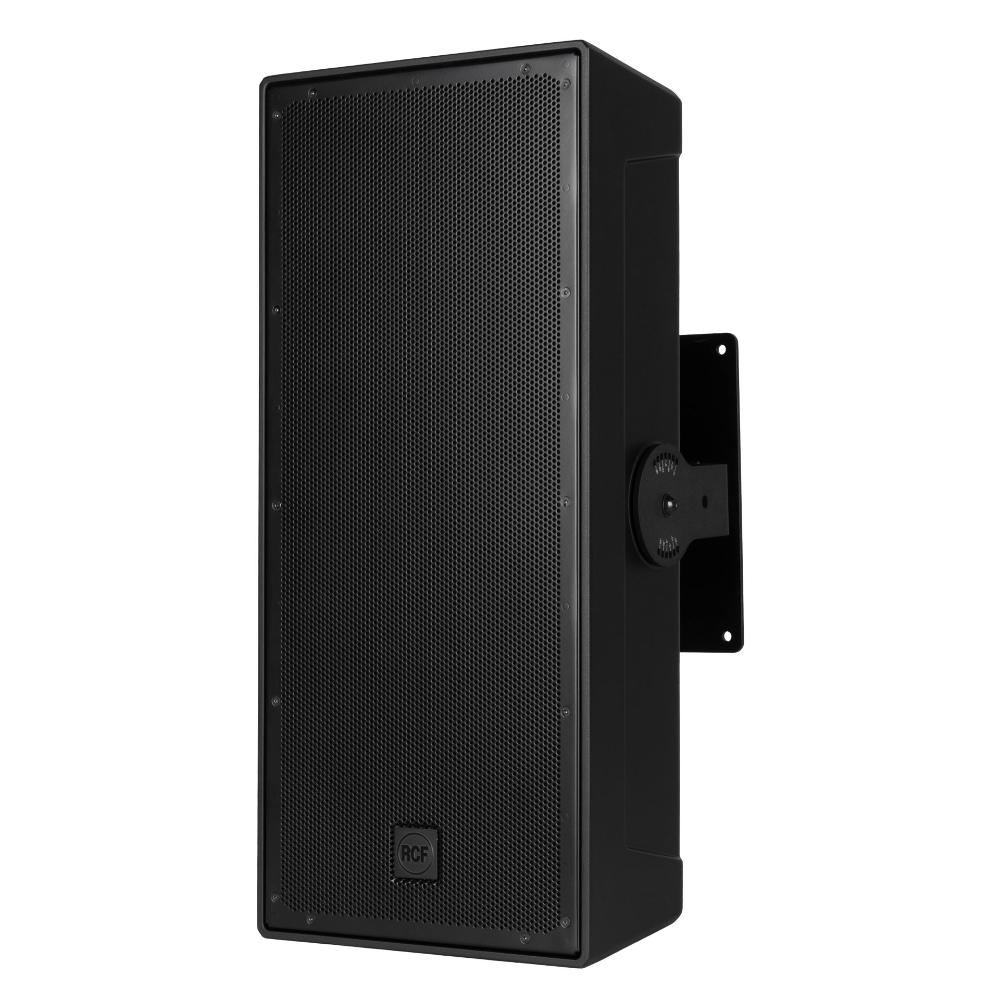

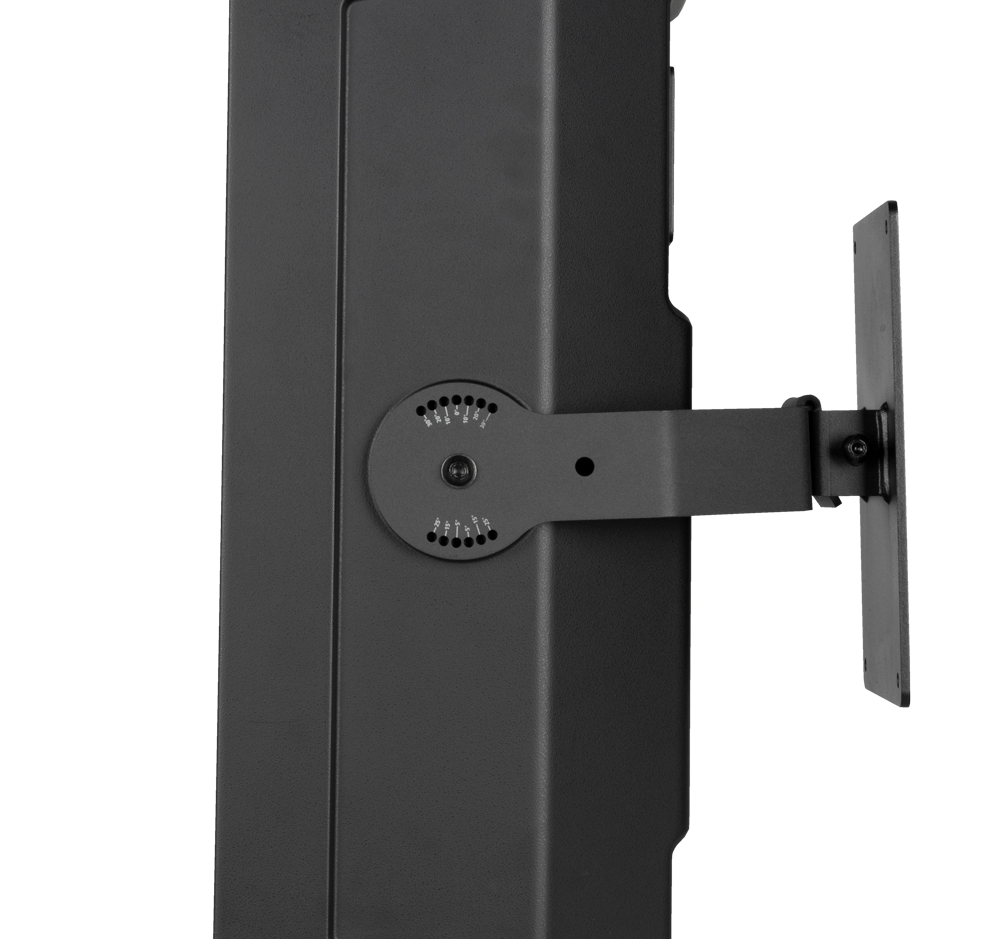

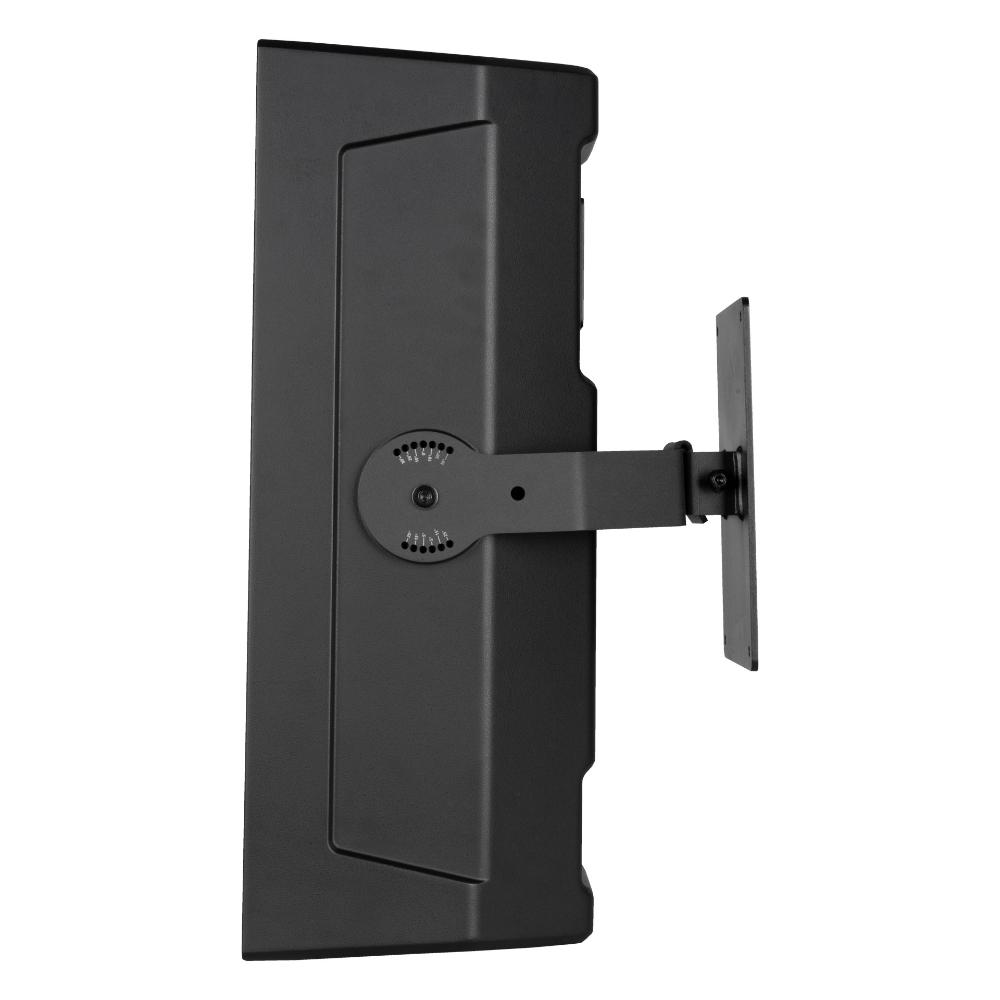

Wall mount vertical bracket included

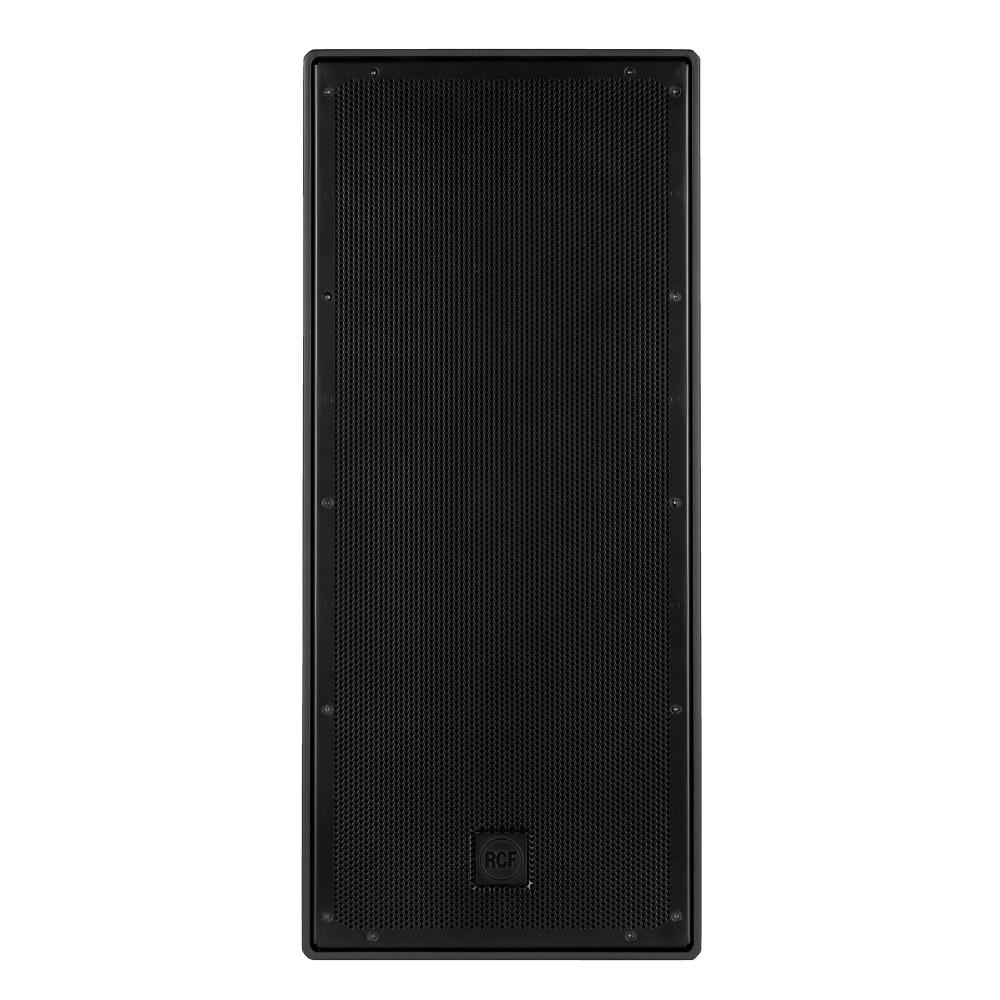

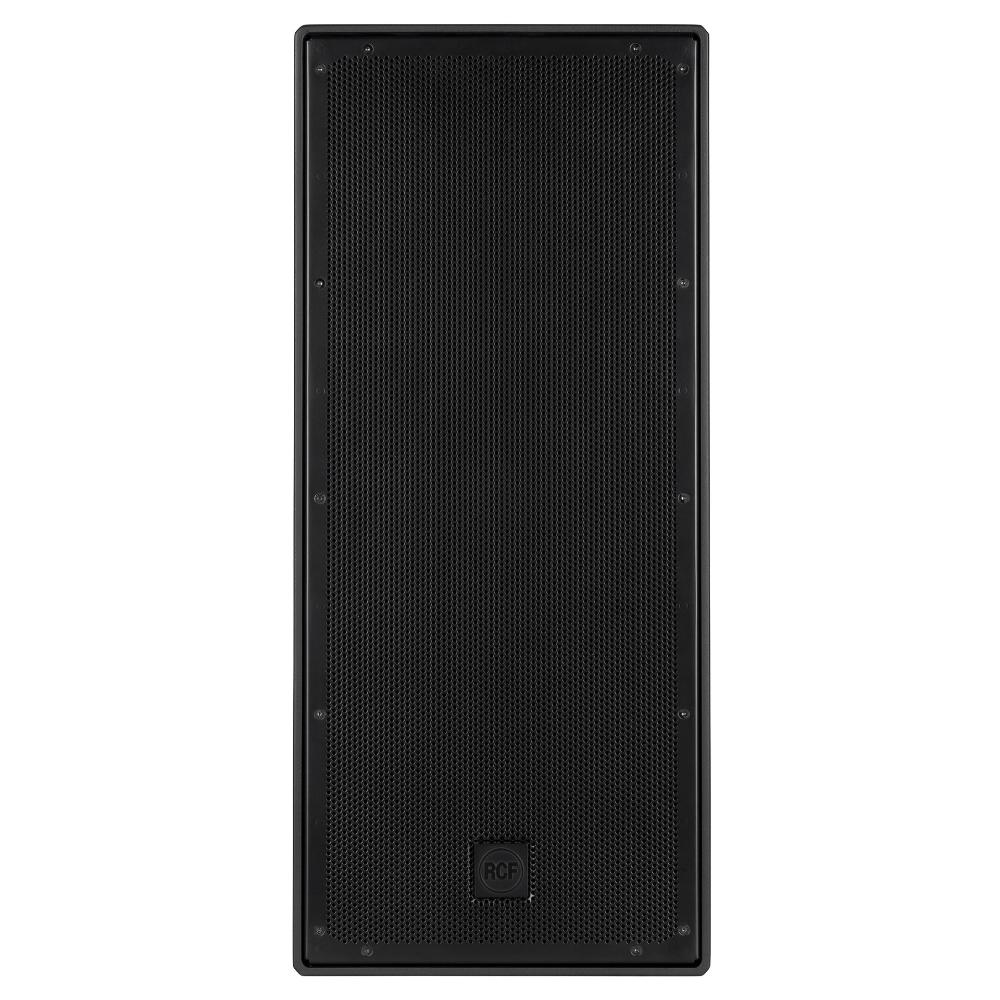

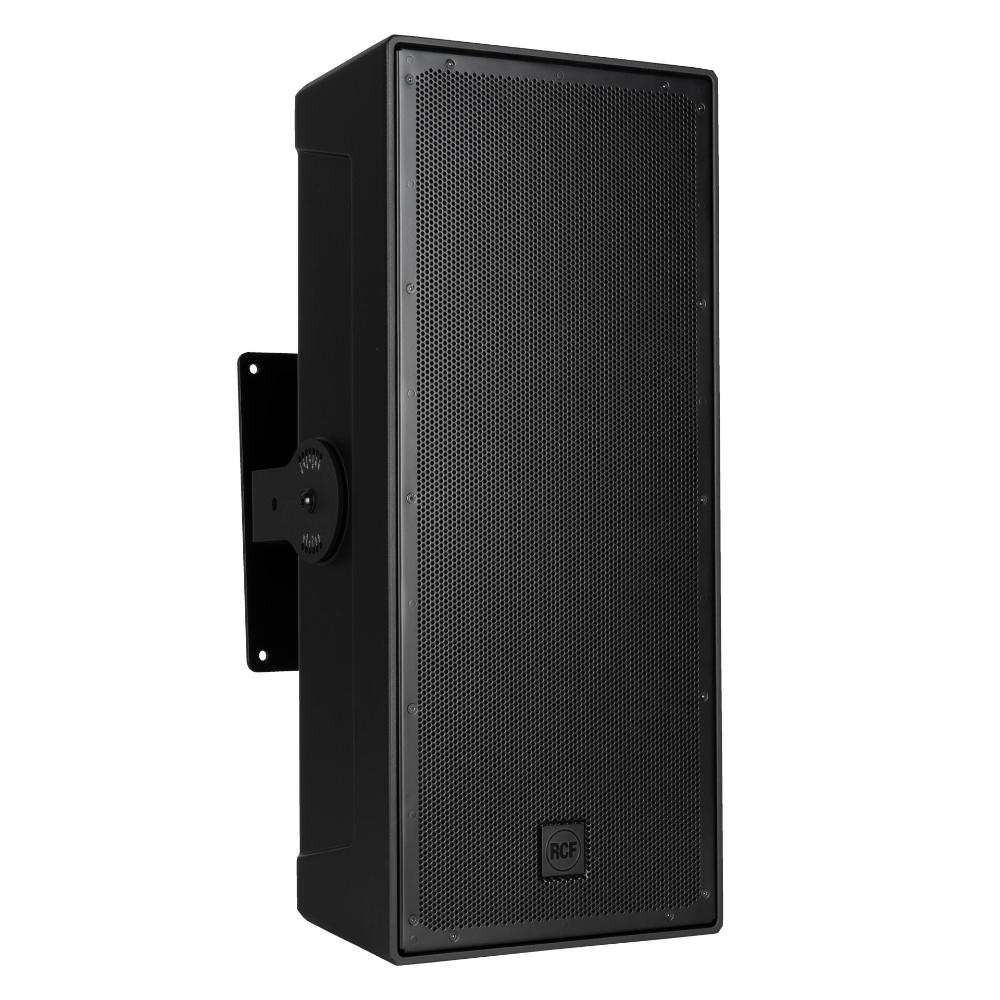

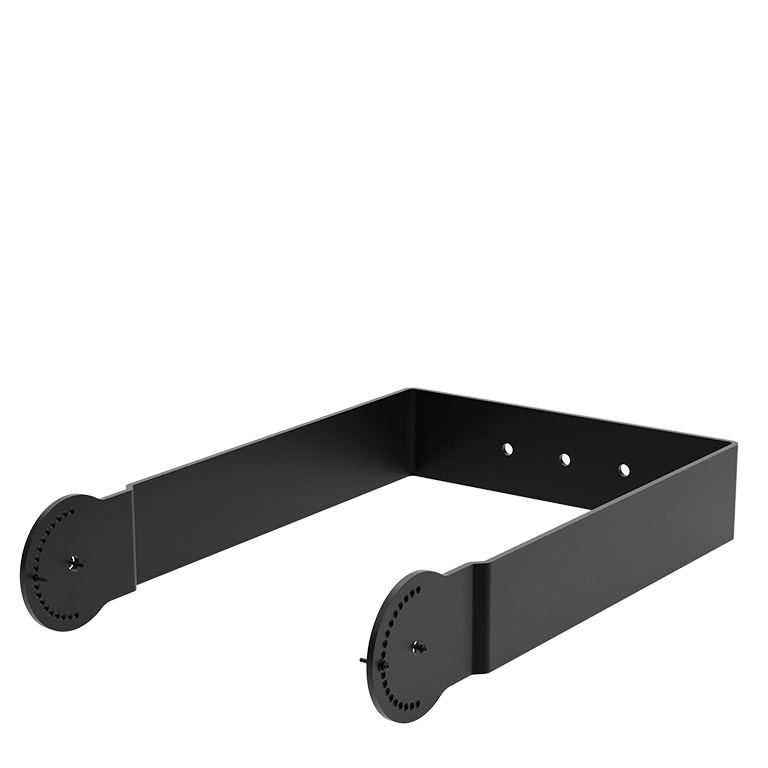

X 40 is a two-way speaker designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 10’ woofers and the 4’’ titanium-dome compression driver on a TRW asymmetric waveguide, it offers a powerful and clear sound with uniform 110° x 60° coverage. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. Vertical mounting bracket included; ceiling-mount bracket available as an accessory. EN 54-24:2008 technical data available in the user manual.

NEW

Part number:

13100121
X 40
Black - RAL 9005, EAN 8024530024277

13100129
X 40 W
White - RAL 9003, EAN 8024530025489

All-weather Performance

Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.

Superior Transducers

Low Frequencies

RCF low-frequency transducers use high-flux neodymium magnets to deliver maximum current stability, reduced distortion, and excellent thermal efficiency. Each woofer undergoes a rigorous endurance signal tests to guarantee reliability under the most demanding conditions.

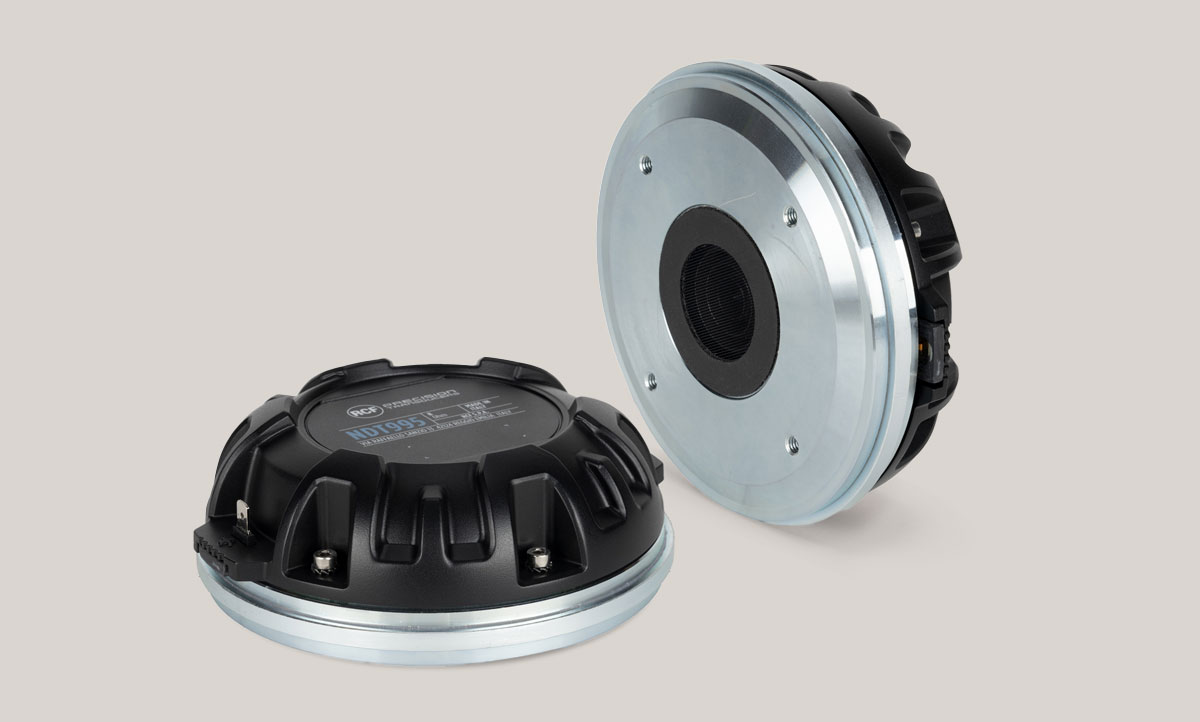

High Frequencies

The compression driver voice coil features high-performance materials—including neodymium magnets and titanium domes—for outstanding power handling, superior durability, and exceptionally natural sound reproduction across the spectrum.

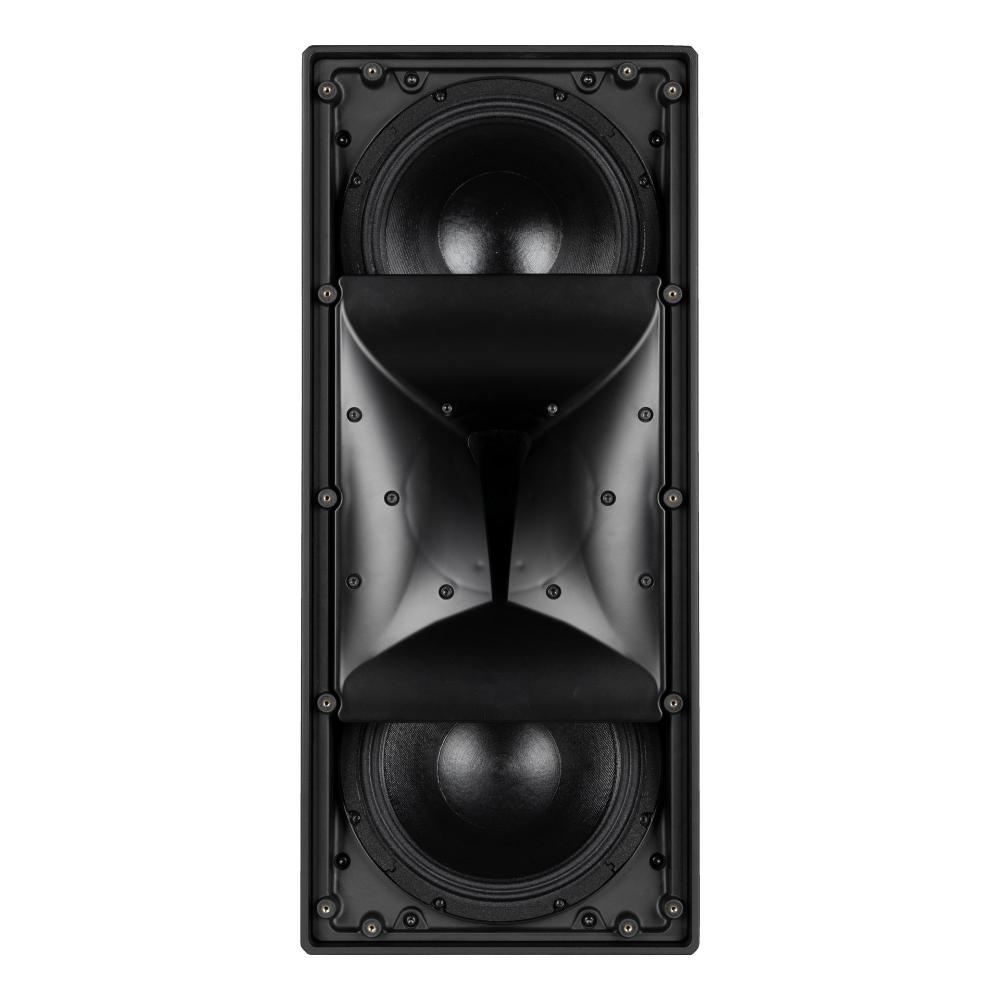

TRW Asymmetric Uniform Coverage Waveguide

X 40’s True Resistive Waveguide (TRW) is engineered as part of a fully integrated system: transducers, enclosure, and vented ports are developed together to control the acoustic load and radiation with higher precision. Acoustically, the waveguide behaves as a pure resistive load, minimizing horn resonances and the high-frequency distortion they typically associated with conventional horns.

When paired with FiRPHASE processing, TRW helps the system behave as a single, coherent source, producing a precise, stable sound image. The 110° × 60° asymmetric pattern is shaped for audience geometries: vertical dispersion is tighter above the horn axis and wider below, keeping energy consistent on the seating plane (e.g. on raked tiers), extending reach to the back rows, and reducing ceiling reflections to support speech intelligibility.

LICC - Low Impedance Compensated Crossover

X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.

Recommended Power Amp

XPS SERIES

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations and presets for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

DISCOVER xps sERIES

Versatility for Any Application

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Polyurethane: the ultimate in durability

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

Acoustical specifications

Frequency Response (-10dB)

50 Hz - 20000 Hz

Max SPL @ 1m

142 dB

Horizontal coverage angle

110°

Vertical coverage angle

60°

Power section

Amplification

Full Range

Nominal Impedance

8 ohm

Power Handling

1200 W RMS

Peak Power Handling

4800 W PEAK

Protections

Dynamic active mosfet

Crossover Frequencies

750 Hz

Transducers

Compression Driver

1 x 1.4'' neo, 4.0'' v.c

Woofer

2 x 10'' neo, 3.0'' v.c

Input/Output section

Input connectors

Screw Terminals

Output connectors

Screw Terminals

Standard compliance

IP protection grade

IP 55

Safety agency

CE compliant

EN54-24 certified

Yes

CPR number

0068-CPR-254/2026

Physical specifications

Cabinet/Case Material

Structural Polyurethane

Hardware

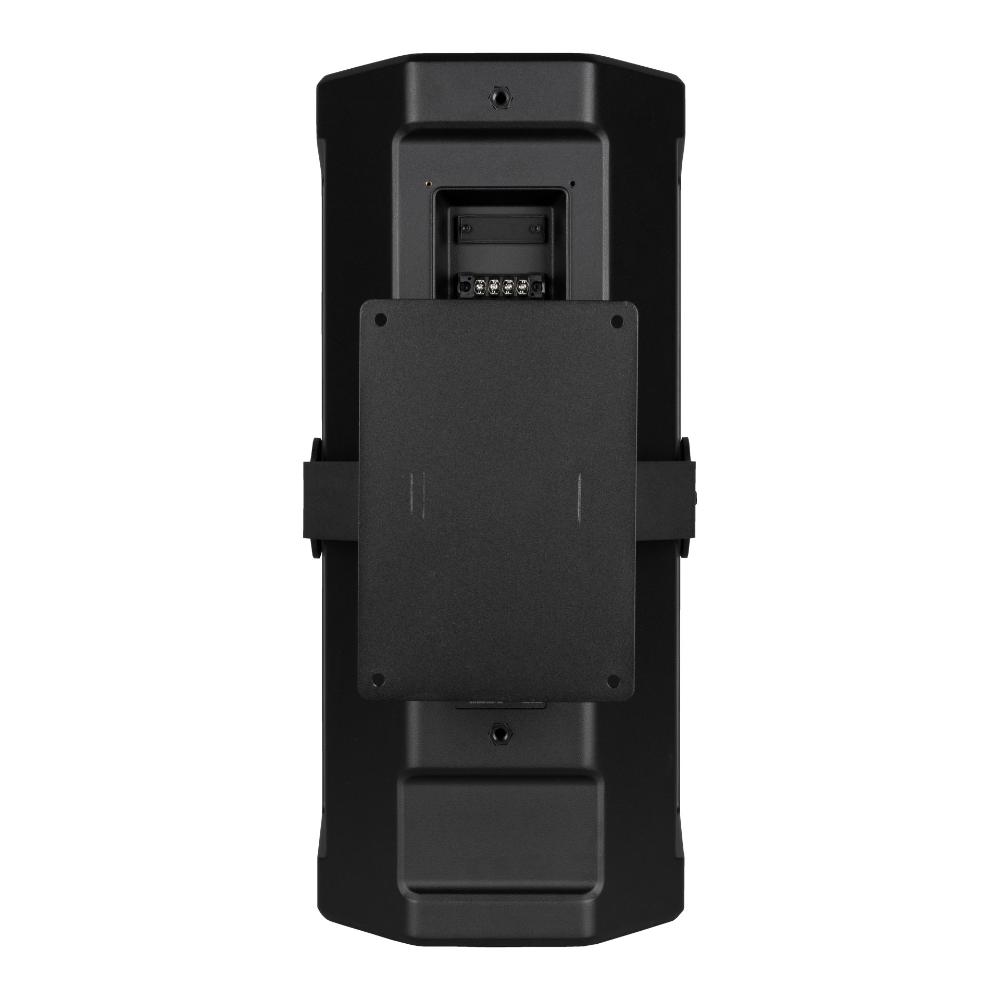

Wall mount vertical bracket included
2 x M10 (top) - 2 x M10 (back)

Grille

Aluminum with water-repellent protection

Color

Black - RAL 9005, White - RAL 9003

Size / Weight

Height

710 mm / 27.95 inches

Width

311 mm / 12.24 inches

Depth

270 mm / 10.63 inches

Weight

25 kg / 55.12 lbs

Shipping information

Package Height

310 mm / 12.2 inches

Package Width

841 mm / 33.11 inches

Package Depth

338 mm / 13.31 inches

Package Weight

28.2 kg / 62.17 lbs
