Features
  • 700 W power handling (RMS)
  • 138 dB max SPL
  • 48 ÷ 20000 Hz frequency range
  • 100° x 50° constant directivity coverage angle
  • 1 x 15" high power neodymium woofer
  • 1 x 4.0" v.c. neodymium compression driver
  • High quality birch plywood cabinet
  • Steel front grille with clothing
  • Installation points available on top, bottom, rear and side panels
  • SPEAKON in/out connectors

COMPACT C 45 is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 4" neodymium compression driver, a 15" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation.

Read More

Part number:

13000602
COMPACT C 45
EAN 8024530020286

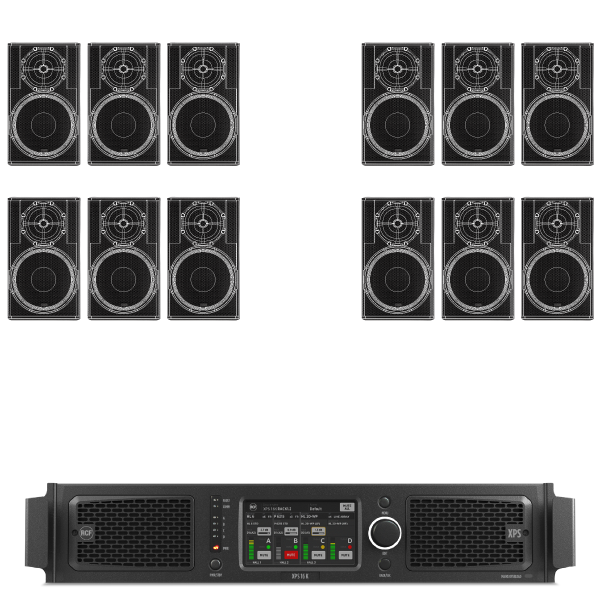

Recommended Power Amp

XPS SERIES

4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image

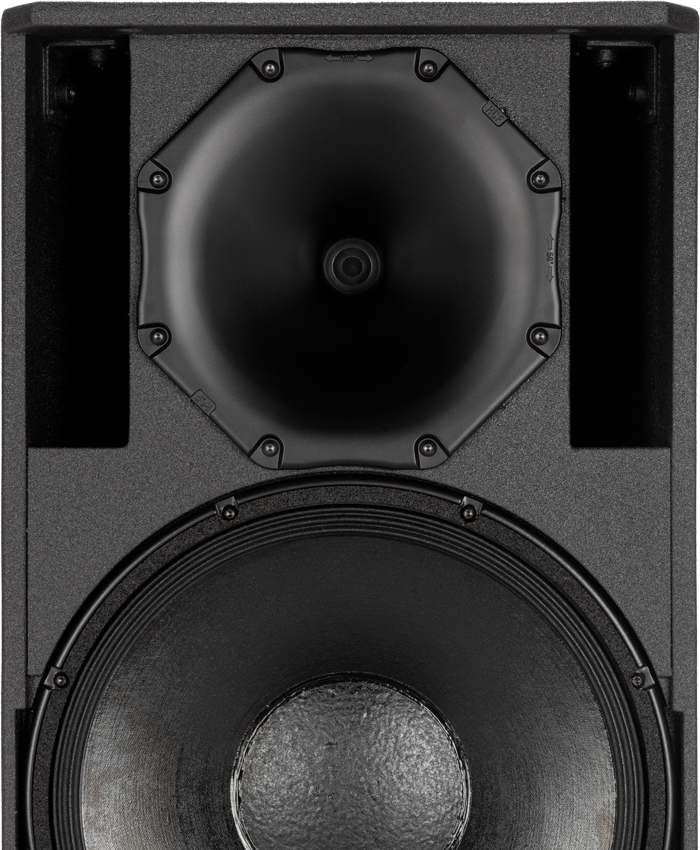

High Frequencies
The compression driver voice-coil design with titanium dome provides very natural sound with high power handling and the best durability over time. This allows lowering the usual crossover point for a perfect vocal performance at mid frequencies, also improving coupling with the low-frequency transducer.
Low Frequencies
Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.
Responsive Image
Responsive Image

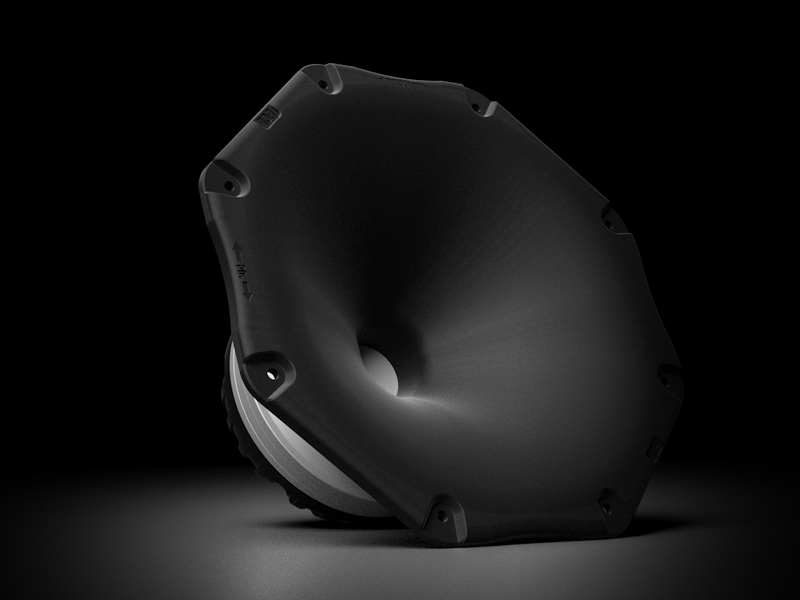

Constant Directivity Waveguide

The special waveguide design allows the deployment of COMPACT C speakers with accurate control of the directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.The speaker also features a 100° x 50° rotatable constant directivity waveguide. Using the optional  HN-KIT COMPACT C 32 C 45 accessory, it is possible to replace the speaker horn with two different horns and change directivity to 100° x 25° or 60° x 25°.

The Solution for Impressively Powerful Sound

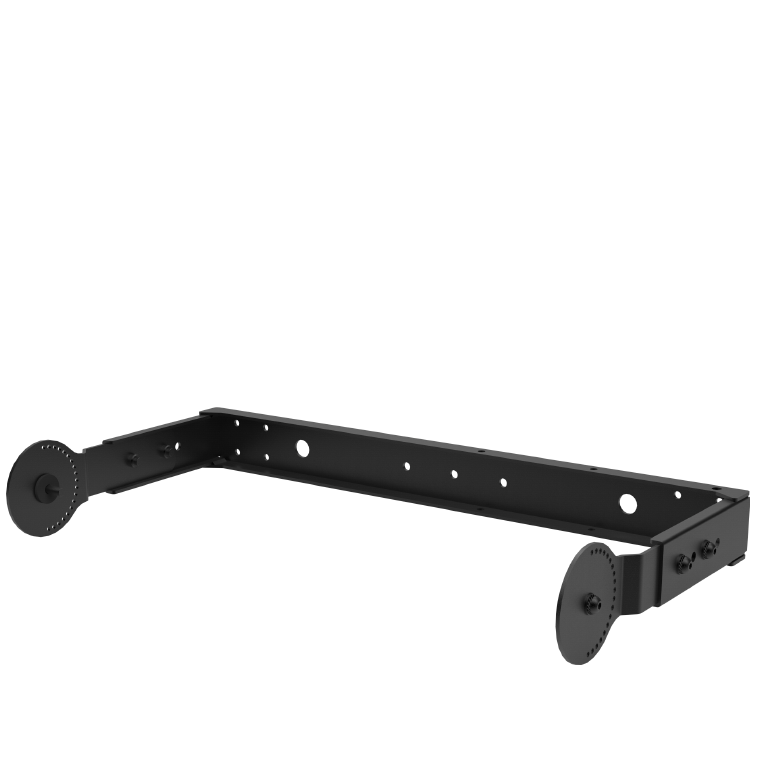

COMPACT C flexibility makes it a smart choice for a wide range of applications. Combining high-quality birch plywood cabinets with a 100° x 50° rotatable constant directivity waveguide, the speaker can be installed either horizontally or vertically. The sleek cabinet features a robust polyurea coating and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two  ‘Neutrik Speakon NL4’ (4-pole) plugs.
Responsive Image

Compact C Series

Compact C Series is composed of two-way point source speakers for near and mid-distance high power applications. Each model combines a compact size with very high output for accurate speech and music reproduction. All cabinets are made with high-quality birch plywood, house a neodymium woofer with a titanium/neodymium compression driver, and a 100° x 50° rotatable constant directivity horn. Speakers can be installed either horizontally or vertically, with optional mounting accessories for walls or ceilings.
Specifications
Acoustical specifications
Frequency Response (-10dB)
48 Hz ÷ 20000 Hz
Max SPL @ 1m
138 dB
Horizontal coverage angle
100°
Vertical coverage angle
50°
Directivity index Q
10
System Sensitivity
98 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
700 W RMS
Peak Power Handling
2800 W PEAK
Protections
Dynamic Active Mosfet
Crossover Frequencies
1100 Hz
Recommended Amplifiers
XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504
Transducers
Compression Driver
1 x 1.4'' neo, 4.0'' v.c
Woofer
1 x 15'' neo, 4.0'' v.c
Input/Output section
Input connectors
Speakon
Output connectors
Speakon
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Birch plywood
Hardware
4 x M8, 14 x M10
Grille
Steel with clothing
Color
Black - RAL 9005
Size
Height
705 mm / 27.76 inches
Width
418.8 mm / 16.49 inches
Depth
460 mm / 18.11 inches
Weight
32.5 kg / 71.65 lbs
Shipping information
Package Height
755 mm / 29.72 inches
Package Width
472 mm / 18.58 inches
Package Depth
513 mm / 20.2 inches
Package Weight
35 kg / 77.16 lbs
