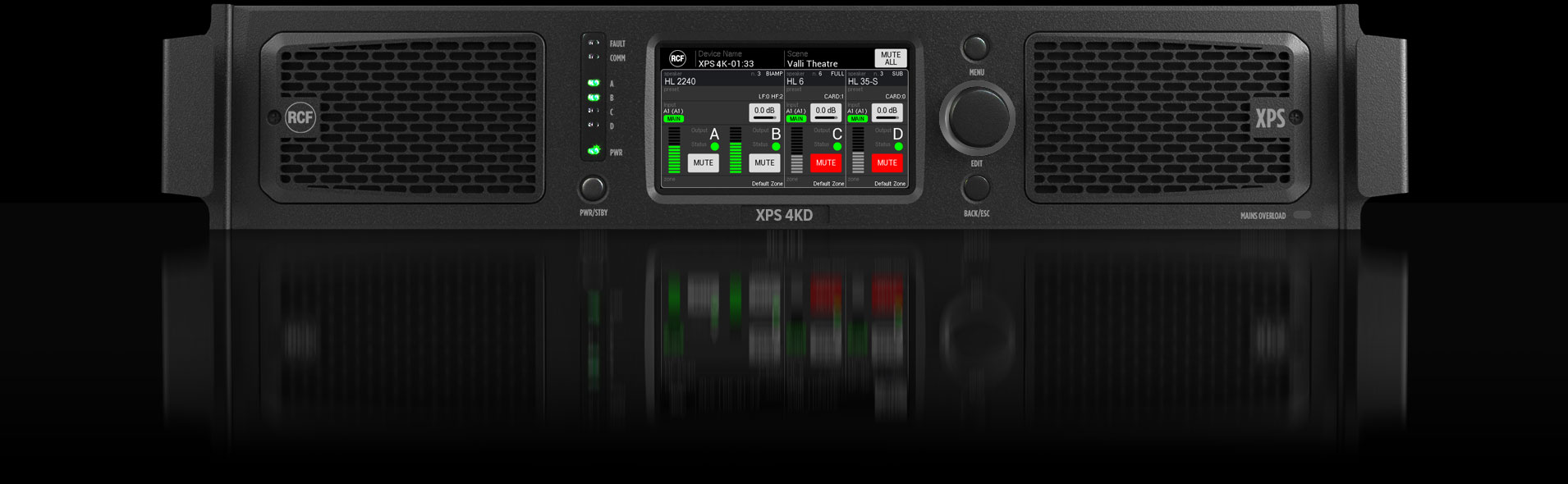

XPS 4KD

FOUR CHANNELS DSP POWER AMPLIFIER WITH DANTE

4000 W Total Continuous Power
Dante Audio Network
On-board Speaker Presets Library
RDNet Networked Management

Dante

RDNet

FiRPHASE

BASS MOTION CONTROL

Where to buy

Features

4000 W Total Continuous Power
40-bit Floating-point DSP and 32-bit routing up to 96 kHz
Dante Audio Network
FiRPHASE, Bass Motion Control, Bass Shaper
RDNet Networked Management
Touch 4.3" Color TFT Interface
Full On-board Processing with Delay, EQ, Comp/Limiter
On-board Speaker Presets Library
Class-D Modules with SMPS and Advanced PFC
8 DANTE digital input channels

XPS 4KD is a four-channel power amplifier with advanced processing and analog/digital routing options for high demanding install sound applications. With 4x1000 W Class D continuous power at 4 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 4KD packs a remarkable power density in a 2U chassis. Designed for top quality installed sound systems, XPS 4KD is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range. In addition to the standard model, it offers 8 DANTE digital input channels.

NEW

Outstanding. Power. Processing.

4 x 1000 W

Class D continuous power at 4 Ohms

40-bit Floating-point
Processing at 96 kHz

Ready-to-Use
Configurations
and presets for RCF speakers

2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O

Advanced Fault Protections
for each amplifier channel and power supply

Installed Audio

Quality Power for Fixed Sound Systems

XPS Series is the best choice for high-power installation systems such as auditoriums, theme parks, and performance venues. Whether perfectly integrating with RCF passive speakers with ready-to-use presets, XPS provides installation-specific features, including enhanced system status monitoring, GPIOs for extended capabilities, flexible routing, and perfect integration with our proprietary RDNet management platform.

Tour Sound

Thinking Out of the Box, and Into The Rack

XPS shines when used in touring applications and live events from medium to very large capacity. Paired with RCF high-powered passive speakers, XPS gives a new perspective in sound system management. The system designer now has complete flexibility in choosing powered, or externally amplified speakers, balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management, via RDNet.

Power to Change Everything

Four-Channel Modular Amplifier

XPS 4KD provides extreme power density with 4 x 1000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network ready design, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of RCF speaker presets is available, with powerful signal processing for complete system tuning.

4 x 1000 W

CONTINUOUS POWER OUTPUTS

New Attitude in Sound Management

XPS 4KD supports the RCF philosophy with a power-agnostic approach, where the sound system engineer has complete freedom in choosing powered, or externally amplified, modules for their system. XPS 4KD offers a new solution for balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management of each connected device, via RDNet.

Power You Can Trust

RCF’s effort in assisting both installers and sound providers with the best audio technology and clear, powerful sound is at the core of the company’s beliefs. Since 1949, providing both power amplifiers and transducers to the professional market, the RCF experience marks a new milestone with XPS 4KD.

XPS SERIES

High-Density Power Amp Solutions designed for high-performance speakers with advanced Processing and flexible Routing.
