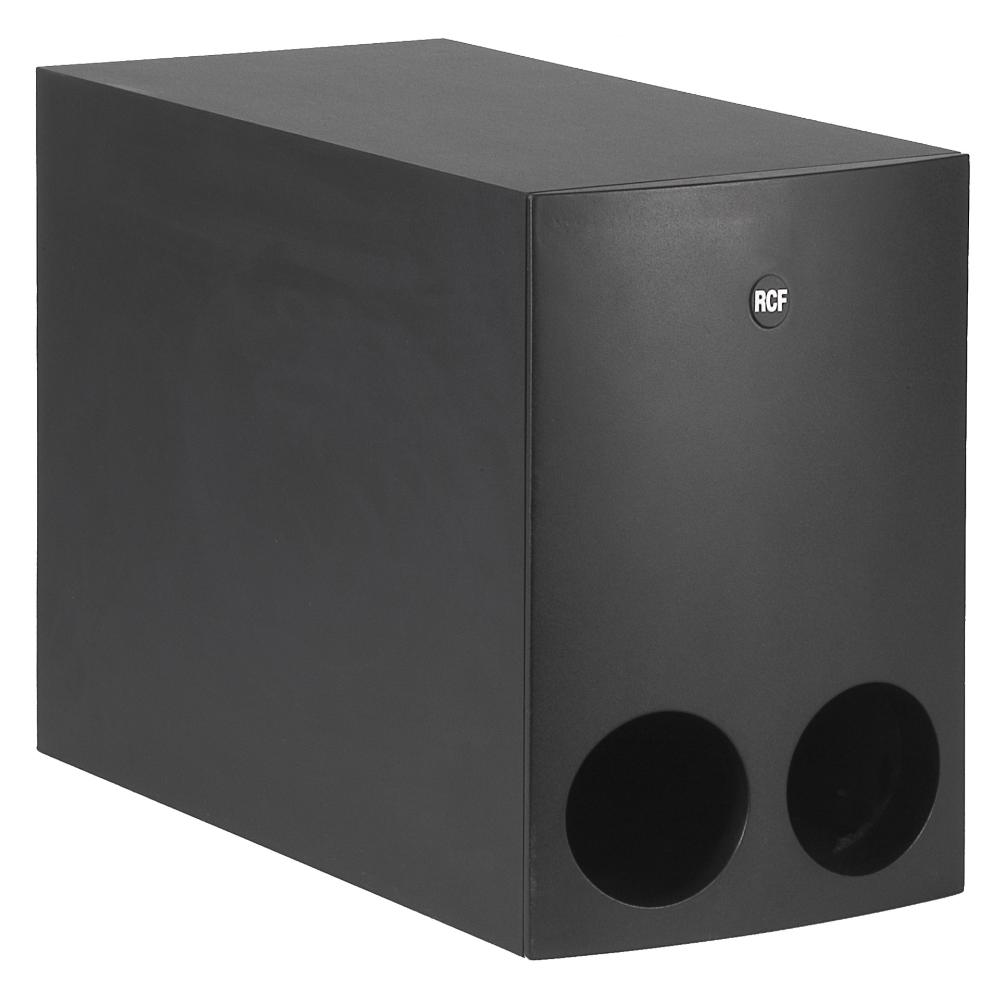

MQ 90S

COMPACT SUBWOOFER
  • 8" woofer
  • Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W
  • 89 dB sensitivity
  • Colour black RAL 9005
Support
Features Specifications Related products Downloads
Support
Features
  • 8" woofer
  • Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W
  • 89 dB sensitivity
  • Colour black RAL 9005
  • PVC covered chipboard and painted front MDF
  • 16 Ohm by-pass

MQ 90S is a compact band-pass 8” subwoofer. It can be connected through a removable Euroblock plug that allows the parallel connection of other loudspeakers. The cabinet material is MDF with a scratch resistant surface. The subwoofer has internally a transformer for constant voltage lines (100 or 70 V). The power selection is made by means of its selector. It is for indoor use only (avoid to use it in very humid places). It should be put on the floor of a room where “satellite” loudspeakers (for mid / high frequencies) are already present. MQ 90S belongs to RCF Monitor Q series.

ARCHIVED

Part number:

13000097
MQ 90S B
EAN 8024530005634

Specifications
Acoustical specifications
Frequency Response (-10dB):
70 Hz ÷ 200 Hz
Max SPL @ 1m:
107 dB
System Sensitivity:
89 dB
Power section
Nominal Impedance:
16 ohm
Power Handling:
60 W
Peak Power Handling:
240 W PEAK
Recommended Amplifier:
120 W
Low-Pass Frequencies:
200 Hz
Transducers
Woofer:
8''
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Power selection 1:
60 W - 167 ohm
Power selection 2:
30 W - 333 ohm
Power selection 3:
15 W - 667 ohm
Power selection 4:
7.5 W - 1333 ohm
Physical specifications
Cabinet/Case Material:
MDF
Color:
Black - RAL 9005
Size
Height:
300 mm / 11.81 inches
Width:
205 mm / 8.07 inches
Depth:
400 mm / 15.75 inches
Weight:
8.06 kg / 17.77 lbs
Shipping information
Package Height:
470 mm / 18.5 inches
Package Width:
370 mm / 14.57 inches
Package Depth:
265 mm / 10.43 inches
Package Weight:
9.25 kg / 20.39 lbs
