NX 985-A

PROFESSIONAL THREE-WAY ACTIVE SPEAKER
  • Up to 138 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 40-20000 Hz linear frequency response
  • 1.75" Neodymium Compression Driver with Peek diaphragm
FiRPHASE
BASS MOTION CONTROL
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • Up to 138 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 40-20000 Hz linear frequency response
  • 1.75" Neodymium Compression Driver with Peek diaphragm
  • 8" Midrange, 2.5" v.c.
  • 15" High Power Woofer
  • Bass Motion Control and FiRPHASE processing
  • M10 Rigging Points
  • IP Rated Powercon TRUE1 TOP IN/OUT

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

READ MORE

Part number:

13000743
NX 985-A
220-240V, EAN 8024530019914

13000757
NX 985-A
100-120V, EAN 8024530020064

Power that moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

Responsive Image
Responsive Image

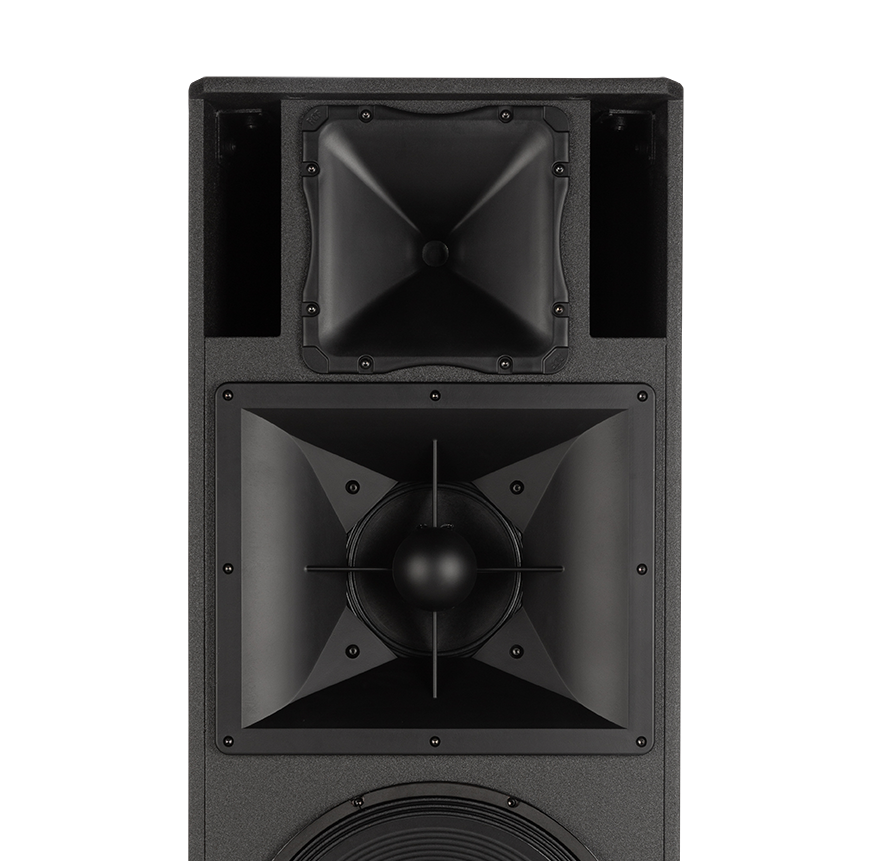

Superior transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.


The extended clarity of the 1.75" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class peek dome and the Polyamide/Kapton voice coil handle extreme power levels with very low distortion.


The midrange section adds detail and vocal clarity with a high-power 8" cone midrange on a constant directivity waveguide.



One high-power 15" low-frequency woofer with a new advanced transducer design gains more stability over higher currents, with less distortion, fast transient response, and better heat handling.

Responsive Image

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

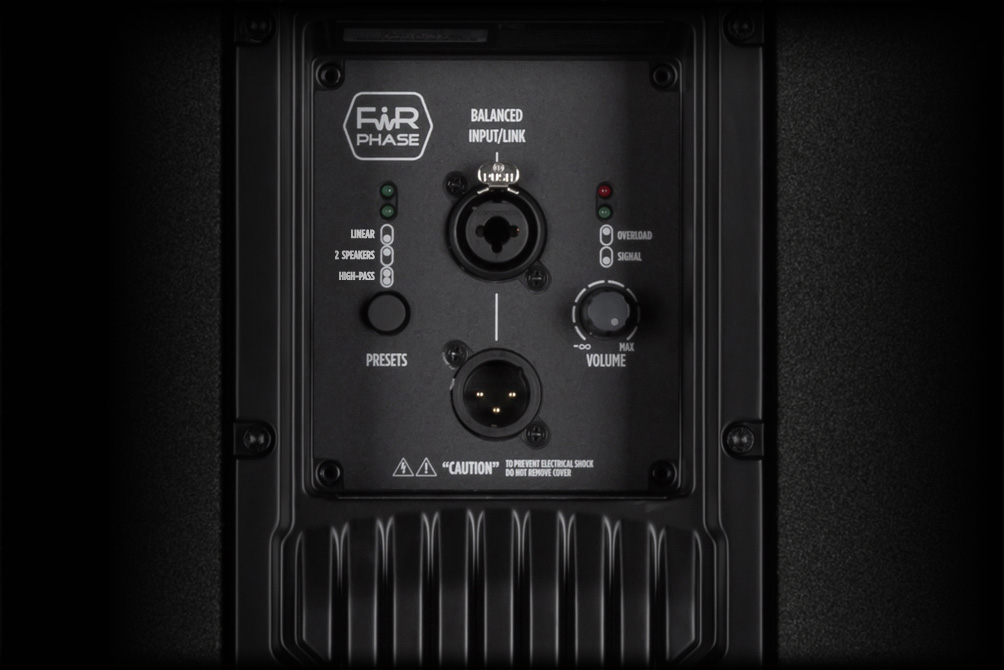

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

Tour-proven workhorse

NX 985-A is a big-sized main system for highly demanding applications. Its flexibility makes it a smart choice for a wide range of live sound applications. The rugged, high-quality all-wood cabinet is easy to carry, with ergonomic handles on each side. It can be coupled for improved coverage and can also be flown or truss-mounted using the included M10 rigging points and special accessories. From the cabinet to the final texture and the rugged protective grille, NX 985-A offers maximum strength for intensive use on the road and can be used for fixed installation.

Ready for heavy-duty applications

The highly innovative entertainment industry is always evolving by increasing demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment. The speaker features True Outdoor Protection (TOP) PowerCON TRUE1 power input connectors. These ruggedized sealed connectors feature IP protection and UV resistance approved according to UL50E.
Responsive Image

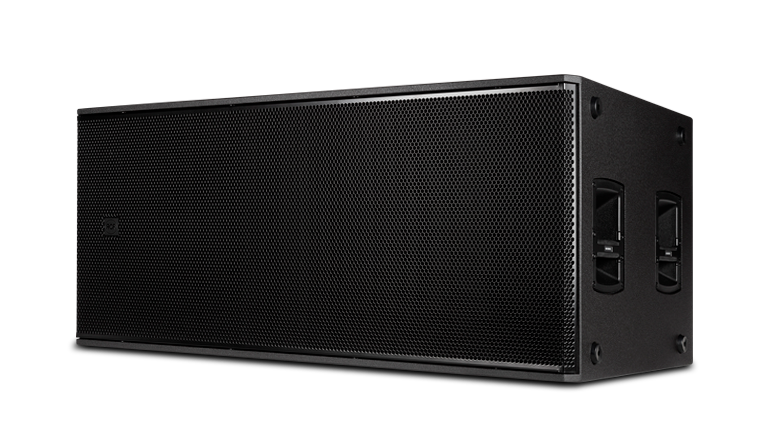

SUB 8008-AS

Pair one or two NX 985-A with SUB 8008-AS to create a high-power four-way sound system for any application that requires an earth-shaking response and extreme clarity on the entire frequency range.

Responsive Image
Specifications
Acoustical specifications
Frequency Response
40 Hz ÷ 20000 Hz
Max SPL @ 1m
138 dB
Horizontal coverage angle
100°
Vertical coverage angle
60°
Transducers
Compression Driver
1 x 1.0'' neo, 1.75'' v.c
Midrange
8'' neo, 2.5'' v.c
Woofer
15'', 3.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
Bass/Mid:320Hz, Mid/High:1200Hz
Protections
Thermal, Excurs., RMS
Limiter
Soft Limiter
Controls
Linear, 2 Speakers, High Pass, Volume
Power section
Total Power
2100 W Peak
High frequencies
200 W Peak
Mid frequencies
500 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Hardware
3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
Handles
1 x Side
Color
Black
Size
Height
1075 mm / 42.32 inches
Width
461 mm / 18.15 inches
Depth
475 mm / 18.7 inches
Weight
45 kg / 99.21 lbs
Shipping information
Package Height
530 mm / 20.87 inches
Package Width
1110 mm / 43.7 inches
Package Depth
490 mm / 19.29 inches
Package Weight
51 kg / 112.44 lbs
