• 600 W RMS power handling
  • 134 dB max SPL
  • 75 Hz ÷ 20000 Hz frequency range
  • 15" neodymium woofer, 3.0" v.c.
  • 2.5" v.c. neodymium compression driver
  • 60° x 60° constant directivity
  • Weatherproof IP55 cabinet with UV protection
  • Aluminum grille
  • AISI 316L stainless steel bracket
  • 12 suspension points (M10)

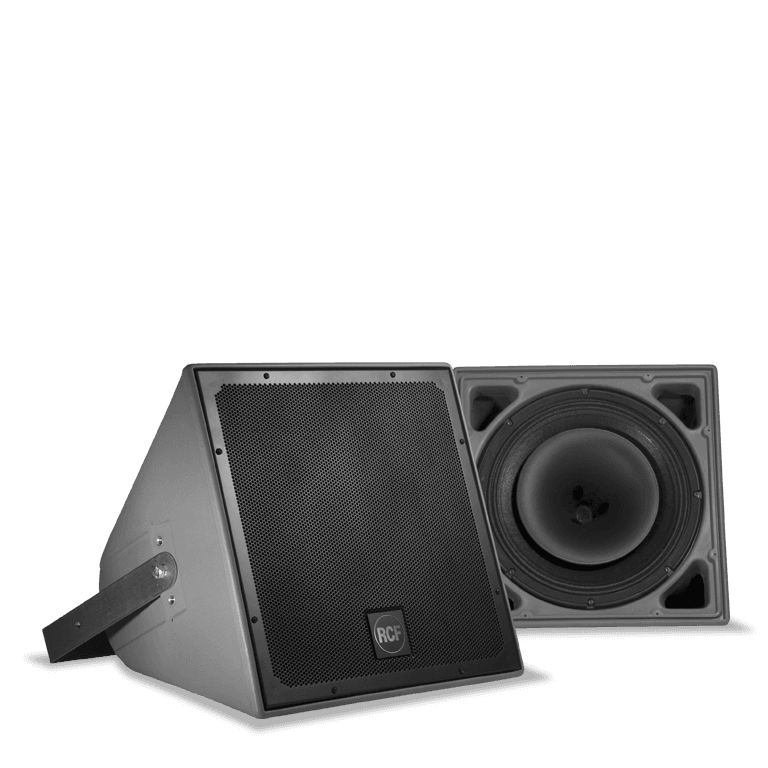

The P 6215 is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for very high output and long-throw applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” neodymium woofer, the high-frequency section combines a 1.3” neodymium RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. Internal circuit provides low crossover frequency for accurate vocal intelligibility and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and one durable and corrosion-resistant 316P stainless steel U-Bracket with f spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.


Part number:

P 6215
EAN 8024530008260

P 6215 W
EAN 8024530017521


All-weather performance

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
Responsive Image

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing to install the loudspeaker either vertically or horizontally.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Acoustical specifications
Frequency Response (-10dB):
75 Hz ÷ 20000 Hz
Max SPL @ 1m:
134 dB
Horizontal coverage angle:
Vertical coverage angle:
Directivity index Q:
System Sensitivity:
100 dB
Power section
Full Range
Nominal Impedance:
8 ohm
Power Handling:
600 W
Peak Power Handling:
2400 W PEAK
Recommended Amplifier:
1200 W
Dynamic active mosfet
Crossover Frequencies:
1100 Hz
Compression Driver:
1.3'' neo, 2.5'' v.c
Coaxial 15'' neo, 3.0'' v.c
Input/Output section
Input connectors:
Neoprene Cable
Standard compliance
IP protection grade:
IP 55
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
PE Low Density
12 x M10 + U-Bracket and Pair of spacers
Aluminum with waterproof clothing
Grey, White - RAL 9003
463 mm / 18.23 inches
463 mm / 18.23 inches
433 mm / 17.05 inches
17 kg / 37.48 lbs
Shipping information
Package Height:
519 mm / 20.43 inches
Package Width:
489 mm / 19.25 inches
Package Depth:
489 mm / 19.25 inches
Package Weight:
21.4 kg / 47.18 lbs
