Features
  • 6balanced XLR inputs with MIC/LINE sensibility and selectable PHANTOM power
  • 3 stereo inputs on RCA connectors

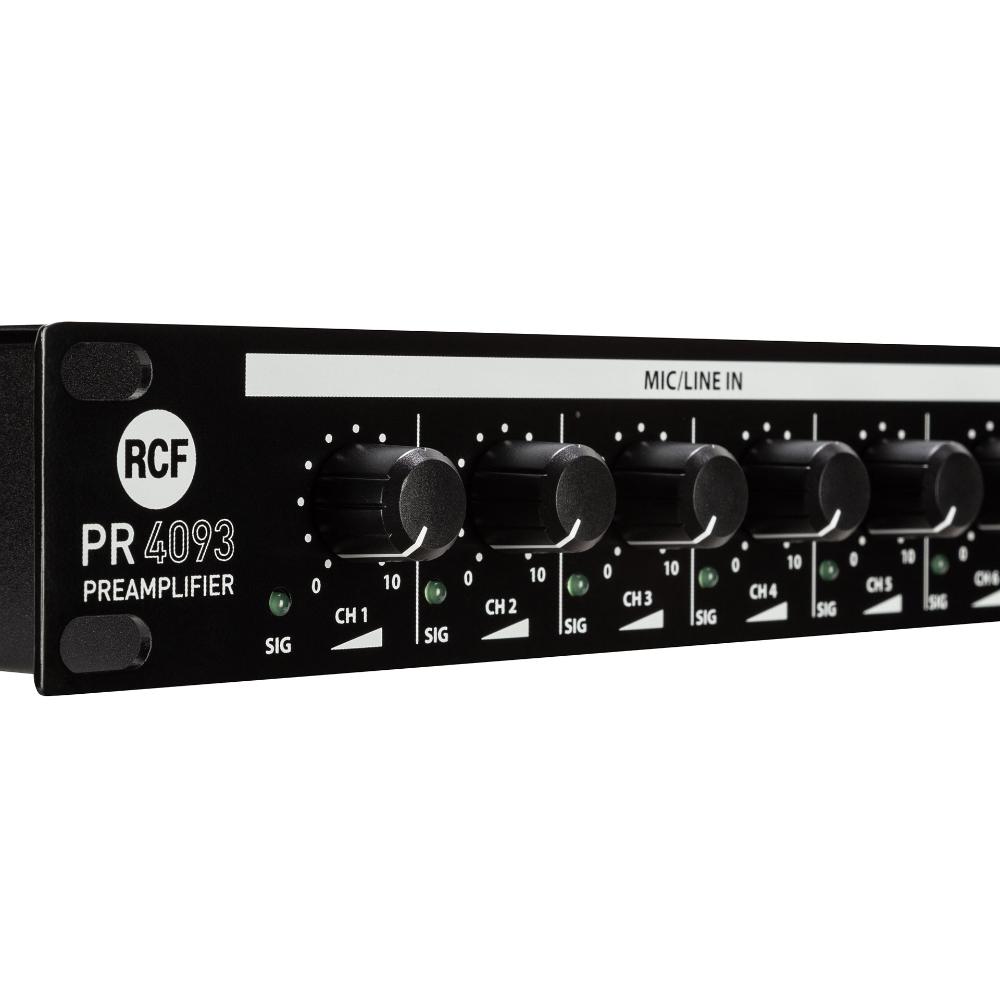

  • SIGNAL presence LED for each input
  • Priority function on input 1, activatable through VOX circuit

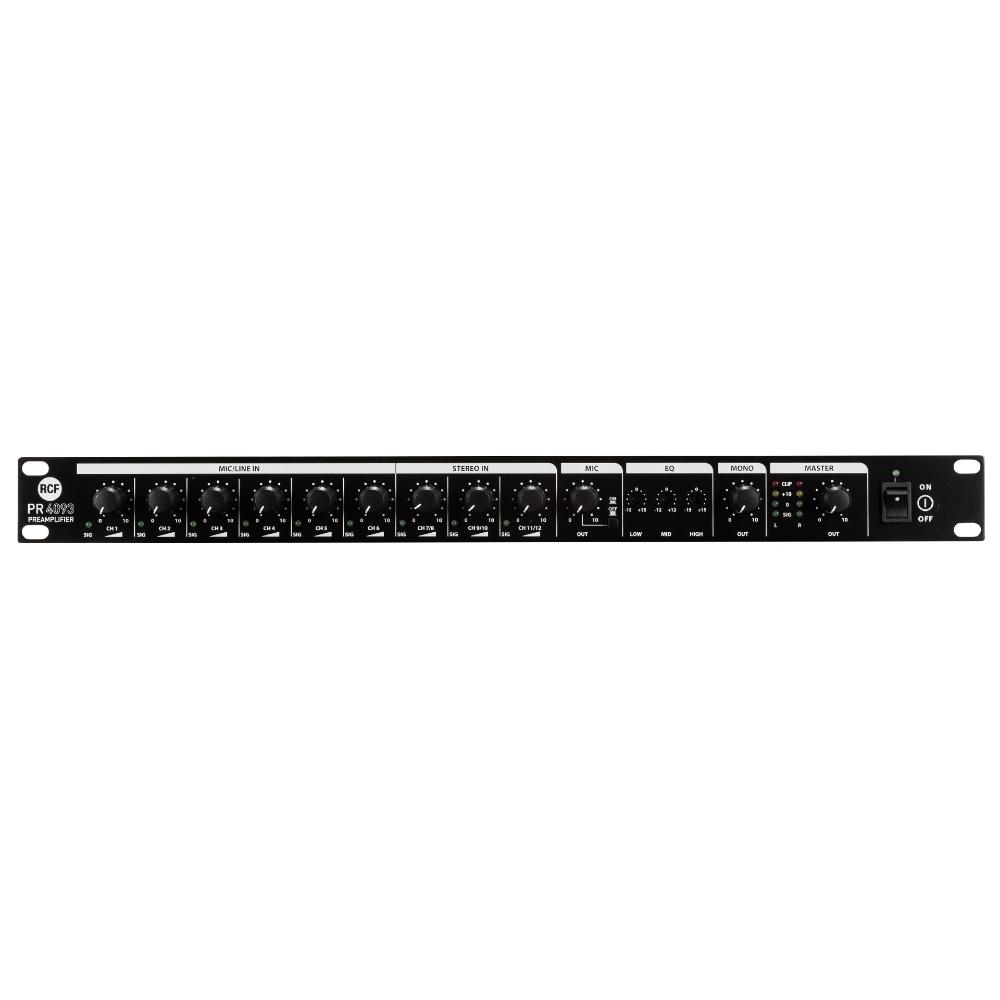

  • 1 XLR stereo output with tone control LOW, MID, HIGH on front panel
  • 1 MONO output on ¼'' jack connnector
  • 1 MIC output on ¼'' jack connnector
  • Connection to recording device on RCA connectors
  • LED output level indicator
  • 230V AC functioning and 24V DC emergency power supply

PR 4093 has been designed to provide a flexible solution for paging and music application in PA systems. It offers 6 balanced inputs mic/line with PHANTOM facility, the first of them with priority triggered by VOX circuit. In addition, 3 stereo input on RCA connectors are available. Outputs offer different functionalities, included tone control on front panel, dedicated mixing of inputs 1-6 e connection to recording devices.

Part number:

17100003
PR 4093
220-240V, EAN 8024530013677

17100007
PR 4093
115V, EAN 8024530015367

Specifications
Audio performance
Frequency Response (-3dB)
20 Hz ÷ 22 kHz
Crosstalk
<-68 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.03 %
Input section
Total number of inputs
9
Balanced
6
Unbalanced
3
Mono
6
Stereo
3
Line inputs
3
Line connectors
RCA
Mic+Line inputs
6
Mic+Line connectors
XLR
Mic+Line Phantom
18 V DC - 21 V DC
VOX
Yes
Output section
Signal output number
3
Signal output connectors
JACK, RCA, XLR
Processing
Tone controls
Yes
Controls
Configuration
Front panel
Protections
Cooling
Convection
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Voltage selection
Internal
DC power
Yes
DC power value
24 V
Power consumption (MAX)
18 W
Physical specifications
Rack mounting
19", 1U
Size
Height
44 mm / 1.73 inches
Width
483 mm / 19.02 inches
Depth
195 mm / 7.68 inches
Weight
2.8 kg / 6.17 lbs
Shipping information
Package Height
95 mm / 3.74 inches
Package Width
540 mm / 21.26 inches
Package Depth
265 mm / 10.43 inches
Package Weight
3.6 kg / 7.94 lbs
