Features
  • MP3 stereo player/recorder
  • Supports SD cards and USB flash drives
  • 32 GB Maximum supported memory
  • Can play/record one file at a time
  • A sequence of 64 file can be programmed
  • Fixed MP3 recording format: 192 kbps

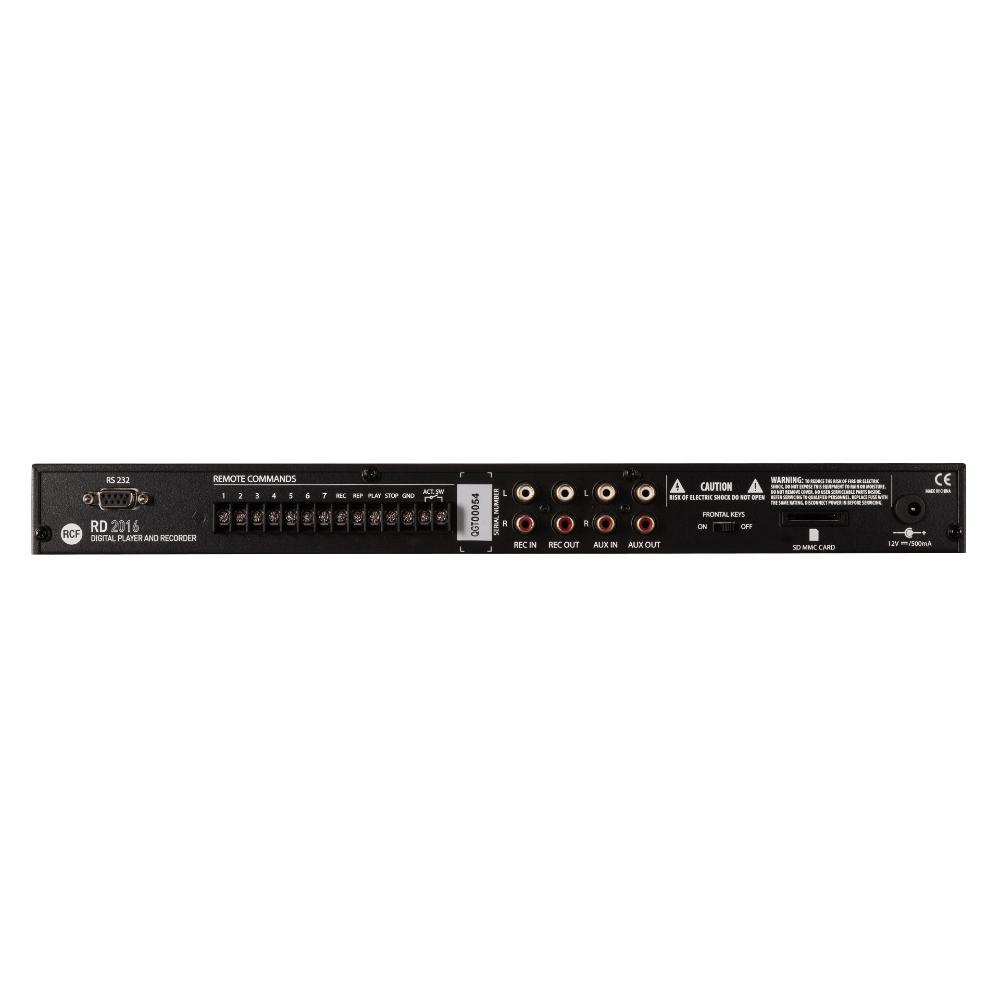

  • 1 AUX INPUT with parallel AUX OUTPUT
  • Disabled front buttons
  • IR remote control included

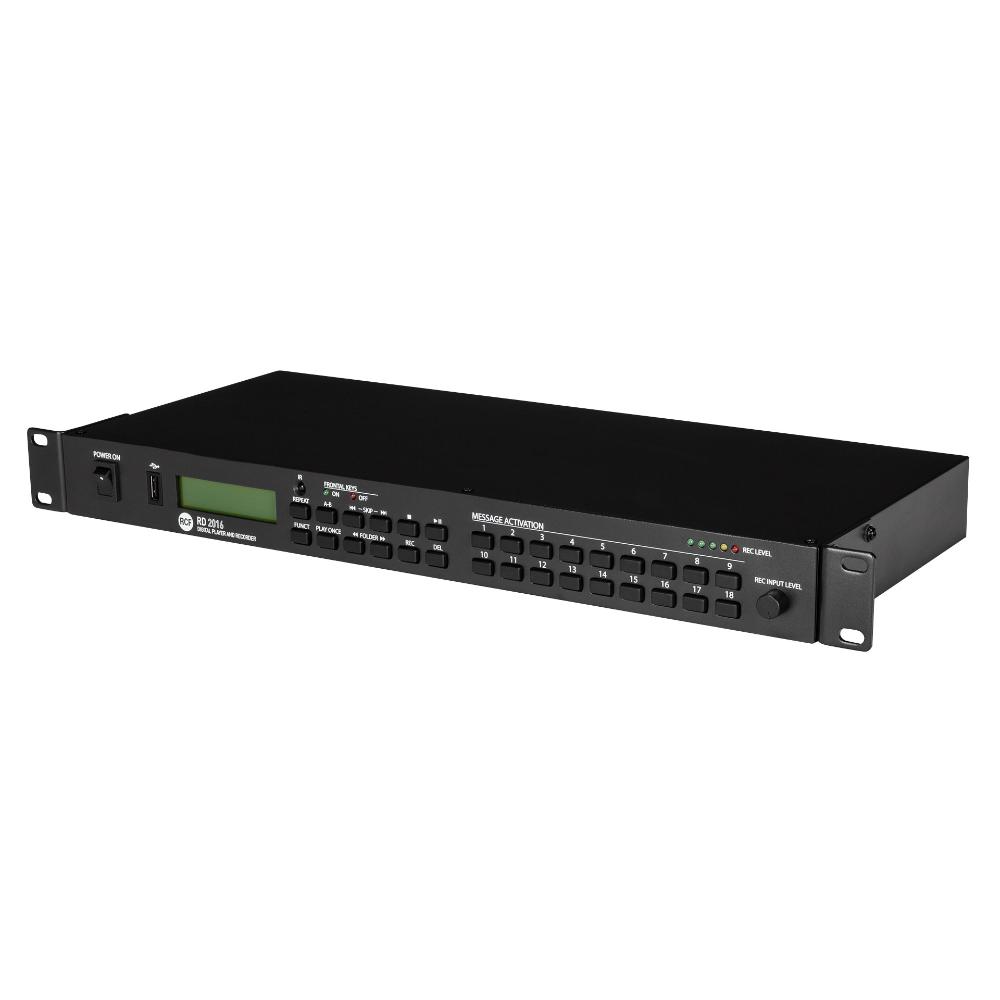

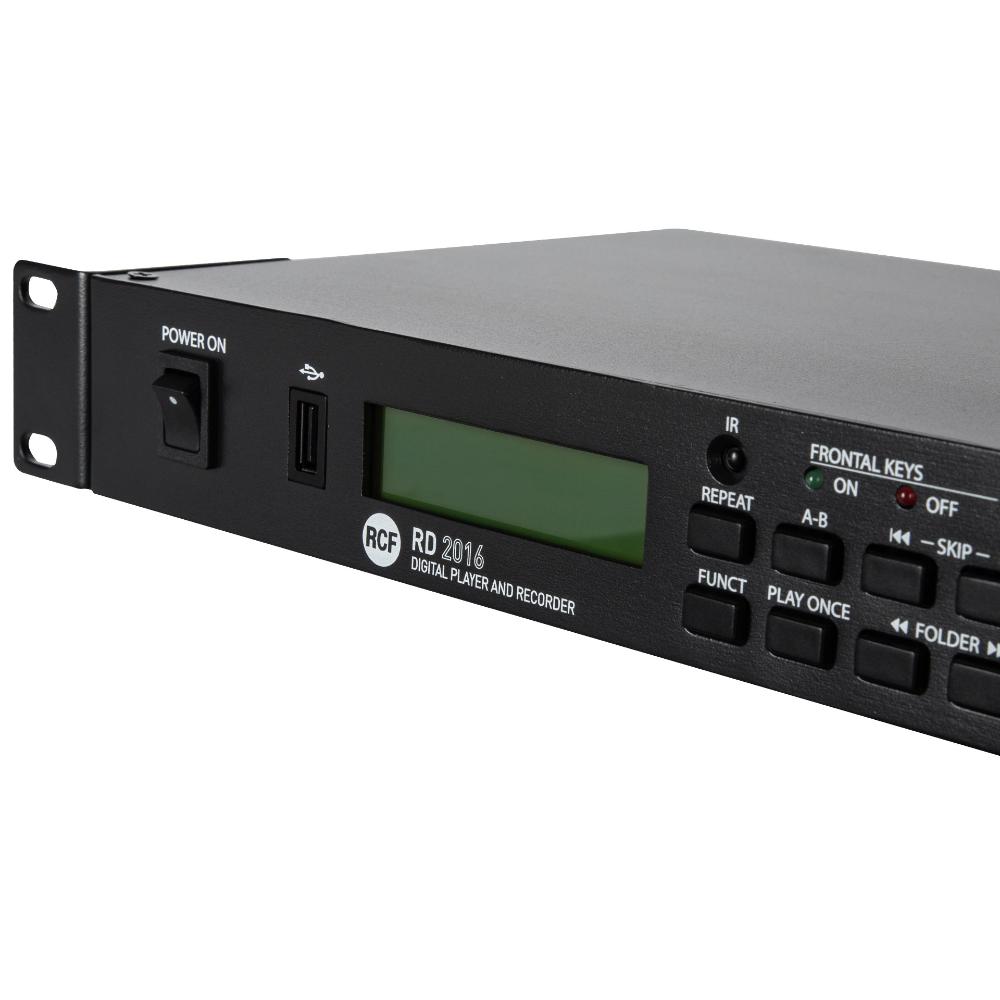

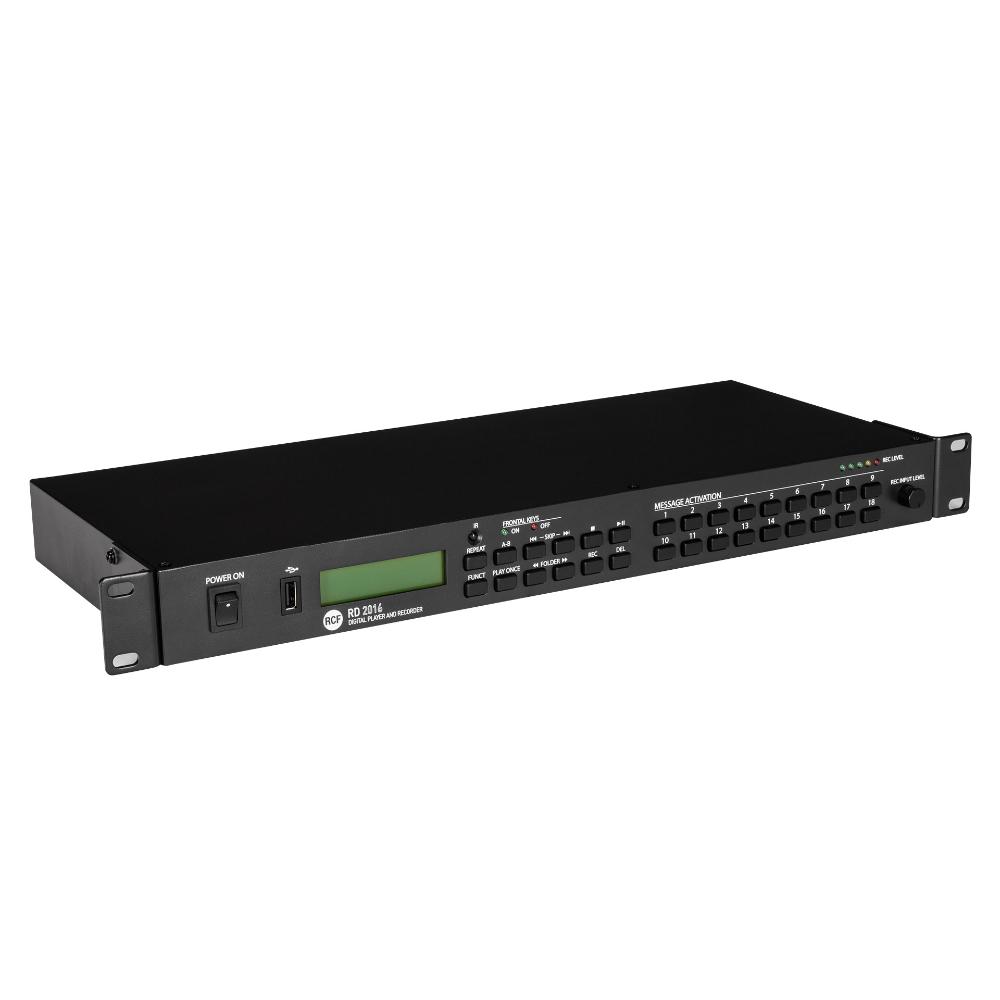

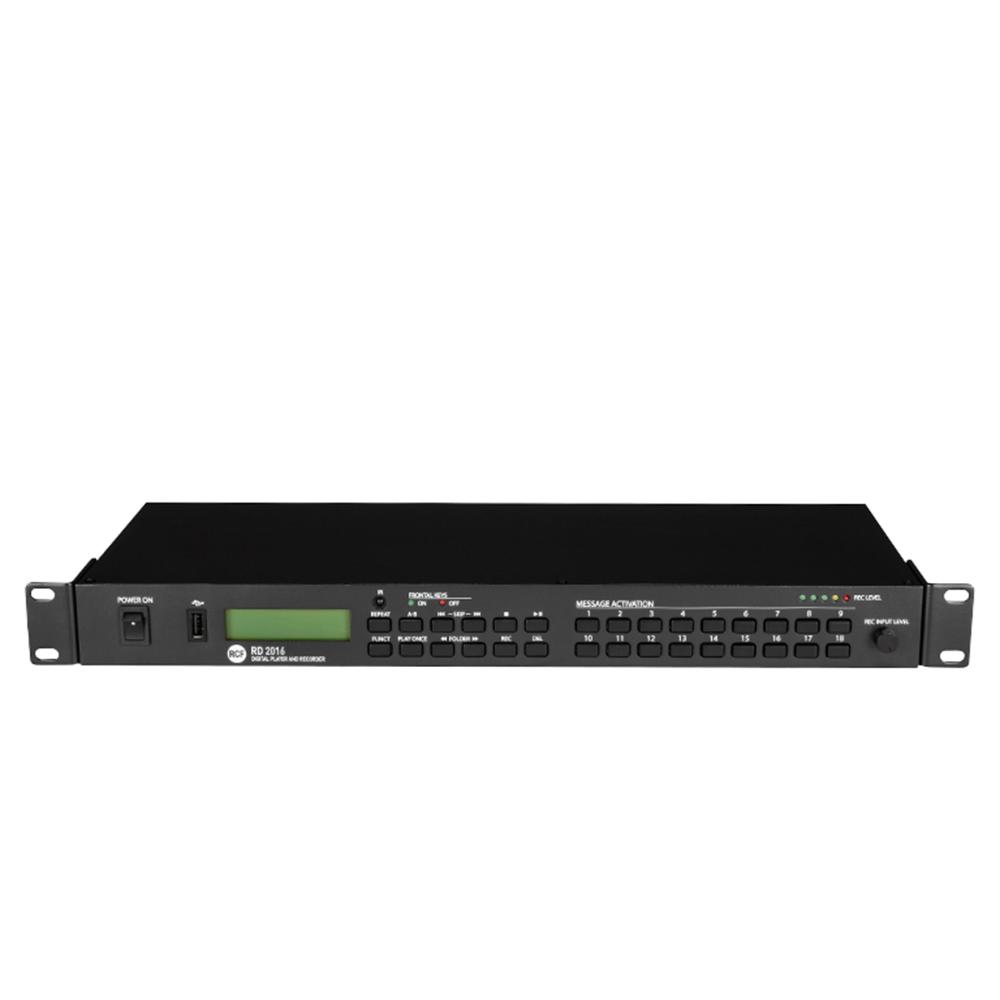

RD 2016 is a MP3 stereo player / recorder on SD cards and USB flash drives, with a maximum memory supported size of 32 GB. The unit can be programmed building up a user defined playing list (up to 64 files). Moreover, the first 7 files can also be triggered by remote commands, and the buttons on the front panel allow to access directly the first 18 files. An auxiliary input and its parallel output could work as priority on the audio signal of another devices when a RD 2016 MP3 file is played. The front panel buttons can be disabled, allowing the device control only via the dedicated remote control (included). SD card not included.


ARCHIVED

Part number:

17170168
RD 2016
EAN 8024530010331

Specifications
Amplifier specifications
Crosstalk
<60 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.2 %
Input section
Total number of inputs
2
Unbalanced
2
Stereo
2
Line inputs
2
Line connectors
RCA
General Purpose Inputs (GPI)
11
Output section
Signal output number
2
Signal output connectors
RCA
General Purpose Outputs (GPO)
2
Configuration and control
Configuration
Front panel
Priority
Yes
Protections
Cooling
Convection
Audio sources
SD card
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Metal
Color
Black
Rack mounting
19", 1U
Size / Weight
Height
44 mm / 1.73 inches
Width
482 mm / 18.98 inches
Depth
185 mm / 7.28 inches
Weight
2.2 kg / 4.85 lbs
Shipping information
Package Height
110 mm / 4.33 inches
Package Width
550 mm / 21.65 inches
Package Depth
300 mm / 11.81 inches
Package Weight
3.1 kg / 6.83 lbs
