INSTALLED SOUND

S 8015LP

BANDPASS SUBWOOFER
  • 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
  • Bandpass woofer
  • 135 dB Max SPL
  • Response down to 43 Hz
Where to buy
Features
  • 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
  • Bandpass woofer
  • 135 dB Max SPL
  • Response down to 43 Hz
  • Rectangular box enclosure

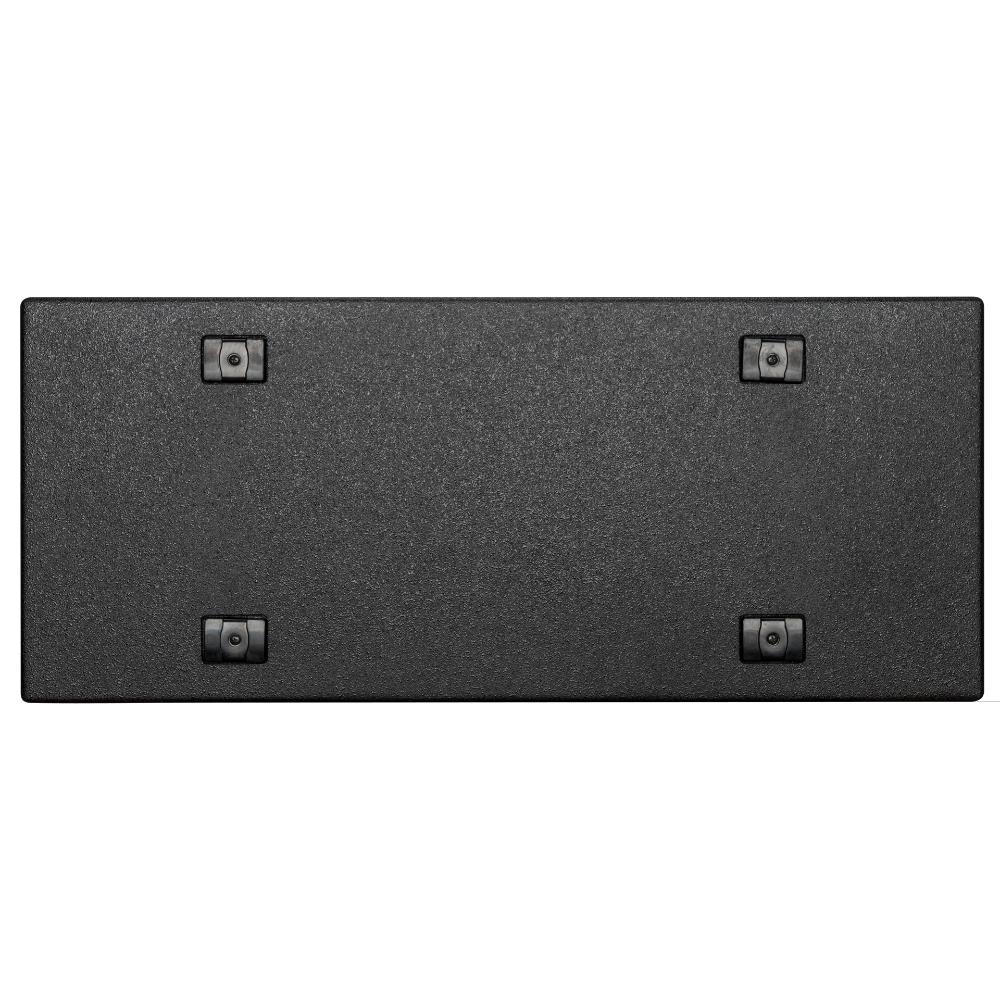

  • Baltic Birch cabinet finished in a very resistant, textured black paint with rubber feet

The S8015 LP is an extremely compact, high output, band-pass subwoofer able to deliver tight and fast controlled bass response. The new high power high sensitivity 15" woofer is the result of the latest RCF experience in sub-bass transducers and compact subwoofer design and manufacturing. The band-pass configuration offers a significant acoustic impact resulting in a fast and controlled reproduction of the bass frequency range. It is capable of a power of 1 kW RMS and able to deliver a MAX SPL in excess of 135 dB. The cabinet's shape is unobtrusive rectangular low profile to be used under sofa or under limited height stages; the cabinet is constructed of Baltic Birch plywood and finished in a very resistant, textured black paint. Rubber feet are also installed.

Part number:

13000168
S 8015LP
EAN 8024530008482

Specifications
Acoustical specifications
Frequency Response (-10dB):
43 Hz ÷ 250 Hz
Max SPL @ 1m:
135 dB
System Sensitivity:
99 dB
Power section
Amplification:
Full Range
Nominal Impedance:
8 ohm
Power Handling:
800 W
Peak Power Handling:
3200 W PEAK
Recommended Amplifier:
1600 W
Transducers
Woofer:
15'', 4.0'' v.c
Input/Output section

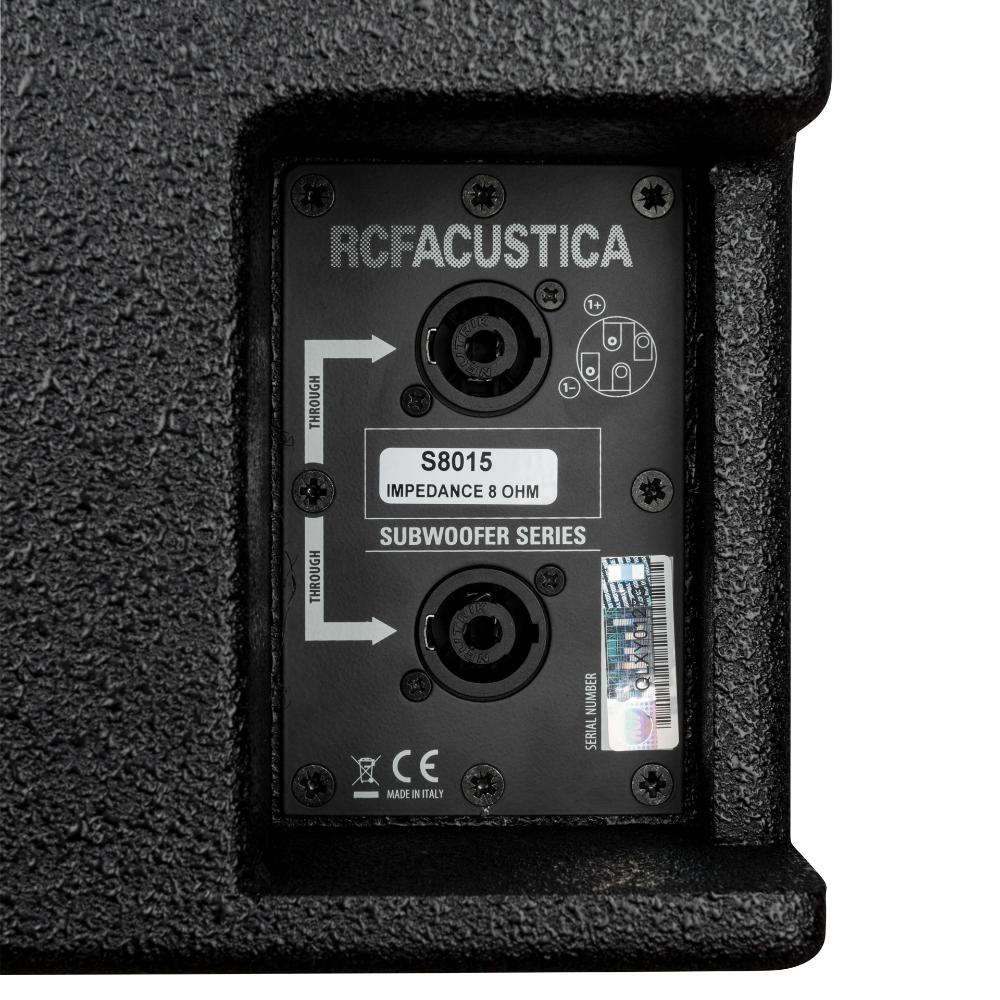

Input connectors:
Speakon® NL4
Output connectors:
Speakon® NL4
Standard compliance
Safety agency:
CE compliant
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Color:
Black
Size
Height:
310 mm / 12.2 inches
Width:
900 mm / 35.43 inches
Depth:
380 mm / 14.96 inches
Weight:
25.2 kg / 55.56 lbs
Shipping information
Package Height:
380 mm / 14.96 inches
Package Width:
900 mm / 35.43 inches
Package Depth:
305 mm / 12.01 inches
Package Weight:
29 kg / 63.93 lbs
