SUB 9007-AS
ACTIVE HIGH POWER SUBWOOFER
- 141 dB max SPL
- 7200 Watt Peak power - 3600 Watt RMS
- 20 Hz ÷ 400 Hz frequency response
- 2 x 21" Woofer
RDNet
Features
- 7200 Watt Peak power - 3600 Watt RMS
- 141 dB max SPL
- 20 Hz ÷ 400 Hz frequency response
- 2 x 21" Woofer

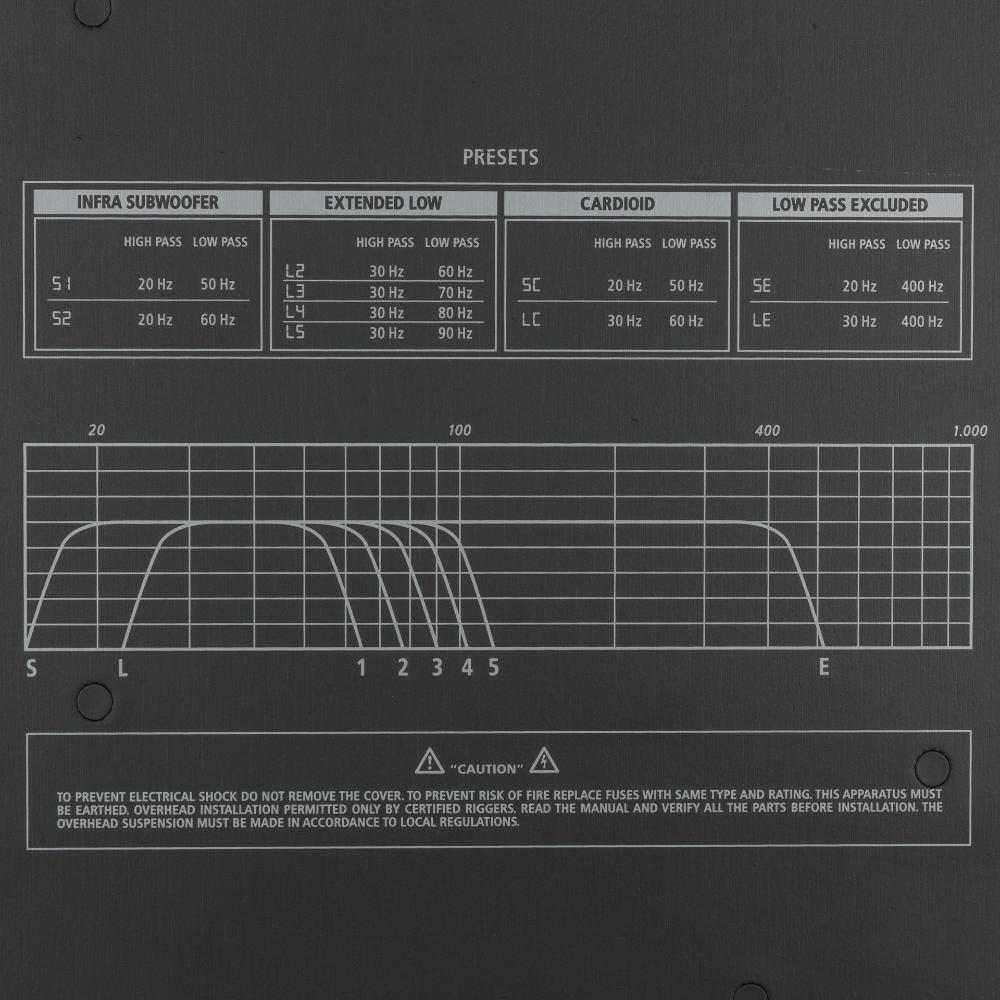

- DSP controlled Input section with selectable presets
- Delay control
- Integrated mechanics for multiple configurations with HDL 50-A 4k, HDL 20-A, HDL 10-A
- RDNet remote and control
- Baltic birch tour grade cabinet

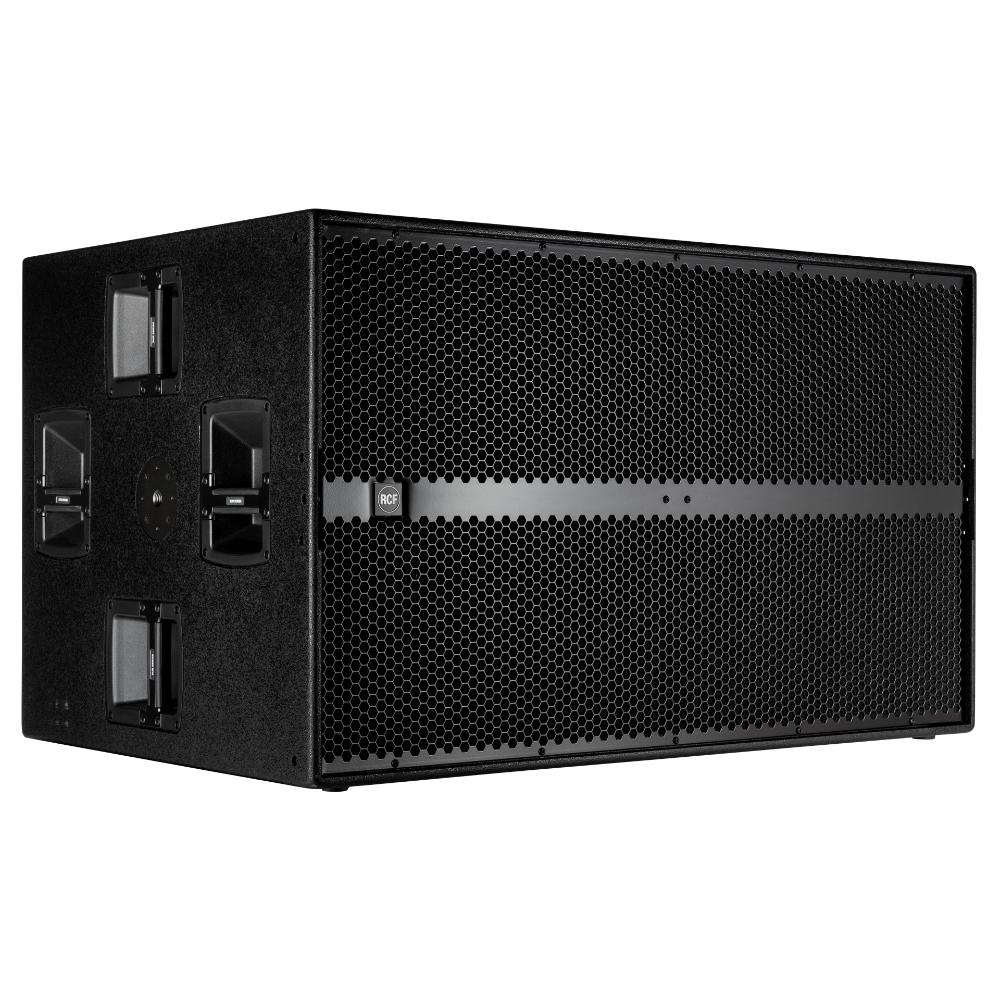

The SUB 9007-AS is one of the most powerful 2x21” subwoofers in the field of live sound. Featuring two, high power, hyper-vented 21” neodymium woofers with 4.0” inside-outside voice coils, this cabinet deliver a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9007-AS can perform in the most demanding situations. The housing of the SUB 9007-AS match the RCF D-Line HDL 50 and HDL 20 array systems, enabling stacked systems matched a perfect combination.
Part number:
13000493
SUB 9007-AS
90-240V, EAN 8024530013578
RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
Top end electronics

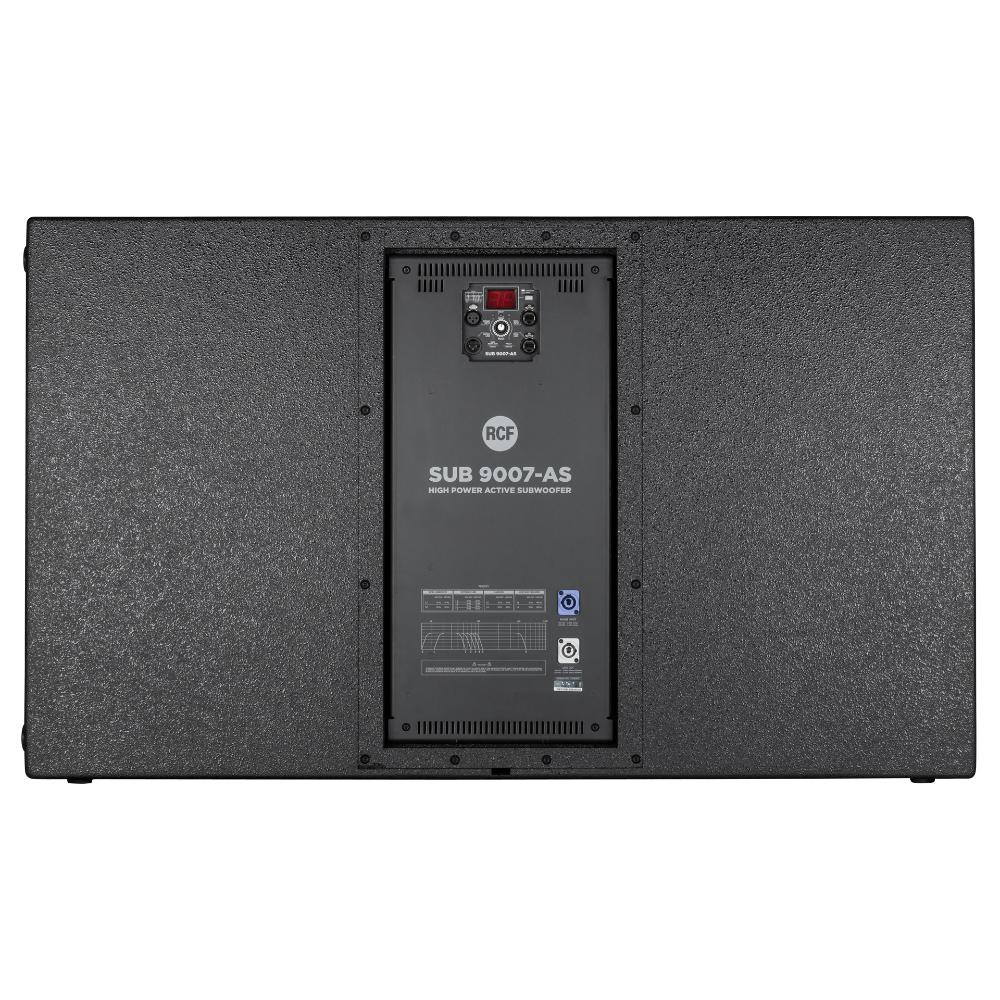

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing and equalisation. All the settings, monitoring and advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay and presets selection. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier houses on a unique Vibrostop floating aluminum panel for extra protection during transportation.
Hyper ventilation system
RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. The 4.0" inside/outside voice coil is wounded on a strong fibreglass former and guarantees a more efficient cooling. The former is internally and externally reinforced with Nomex that stiffen the overall structure for a better energy transfer between the voice coil and the body cone. In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.
Stacking HDL 50-A 4K or HDL 30-A
The cabinet is made of high-quality birch plywood with every layer glued by a special water-resistant adhesive weatherproofing the cabinet. The heavily braced internal structure of the cabinet survives long-term use and transportation. Two separate acoustic chambers for the woofers and separate housing for the amplifier guarantee the best components efficiency and reliability. Dual Stacking: horizontal to fit the HDL 50-A 4K while the vertical fits HDL 30-A (or 20-A).
Cabinet

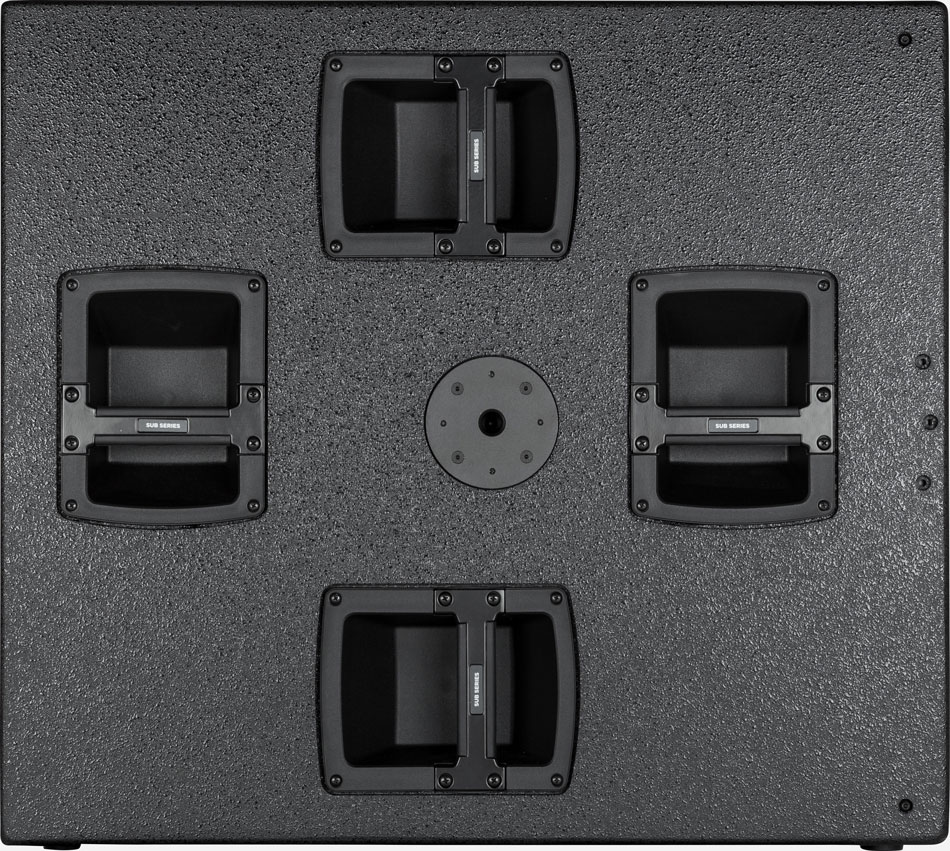

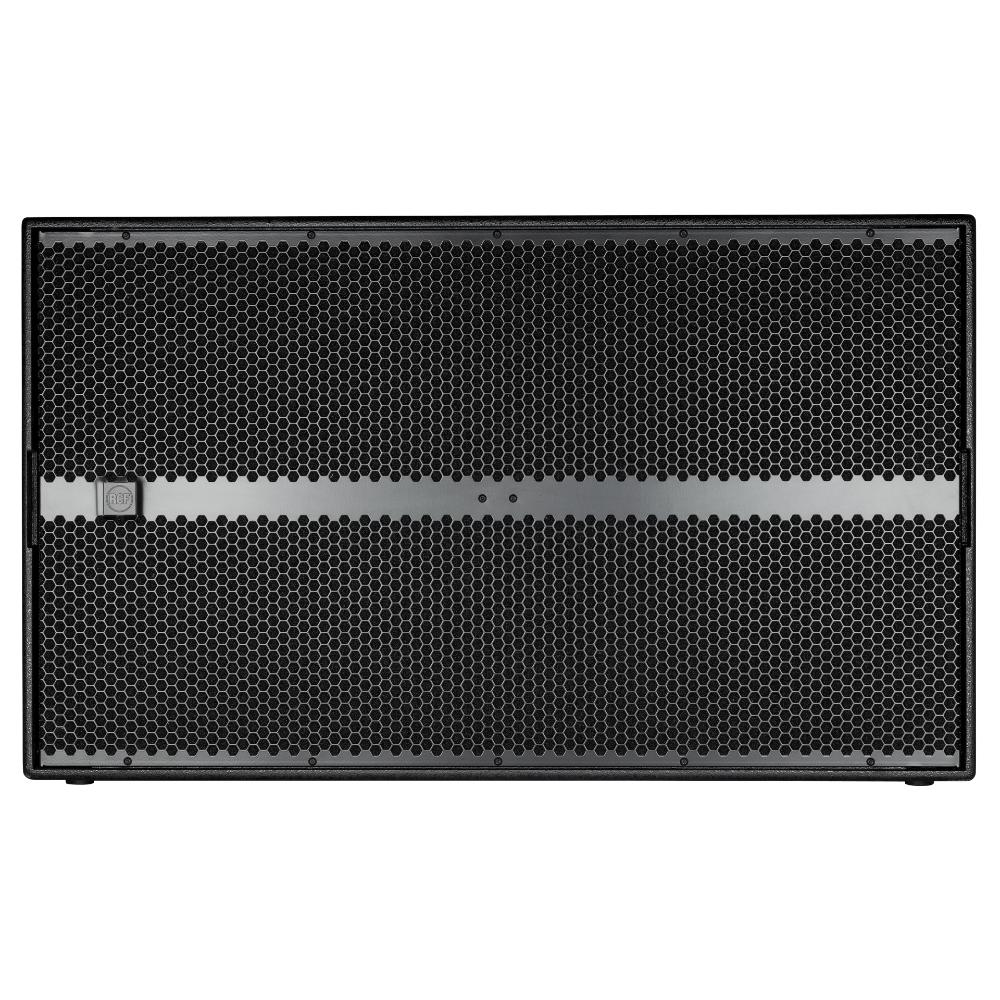

The heavy-duty powder coated front grille integrates a central reinforcement bar and a special transparent-to-sound foam backing on the inside helps to further protect the transducers from dust. The subs are stackable and light-weight, for easy set-up and tear down. The SUB 9007-AS and SUB 9006-AS are equipped with 8 aluminum handles (4 per side) with ergonomic rubber handgrip. The transportation is fast with the detachable Kart kit: a dolly caster-board with rugged tour grade casters and rotating cam mechanism.
Subwoofer alignment tutorials
Please enter a valid video URL.
The URL can point to any video file or a Youtube video.
Please enter a valid video URL.
The URL can point to any video file or a Youtube video.
Specifications
Acoustical specifications
Frequency Response
20 Hz ÷ 400 Hz
Max SPL @ 1m
141 dB
Transducers
Woofer
2 x 21'' neo, 4.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
+4 dBu
Processor section
Hi-Pass Frequencies
25Hz, 35Hz
Low-Pass Frequencies
Variable from 50Hz to 400Hz
Protections
Thermal, RMS
Limiter
Fast Limiter
Controls
Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardiloid
RDNet
Yes
Power section
Total Power
7200 W Peak, 3600 W RMS
Low frequencies
7200 W Peak, 3600 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware

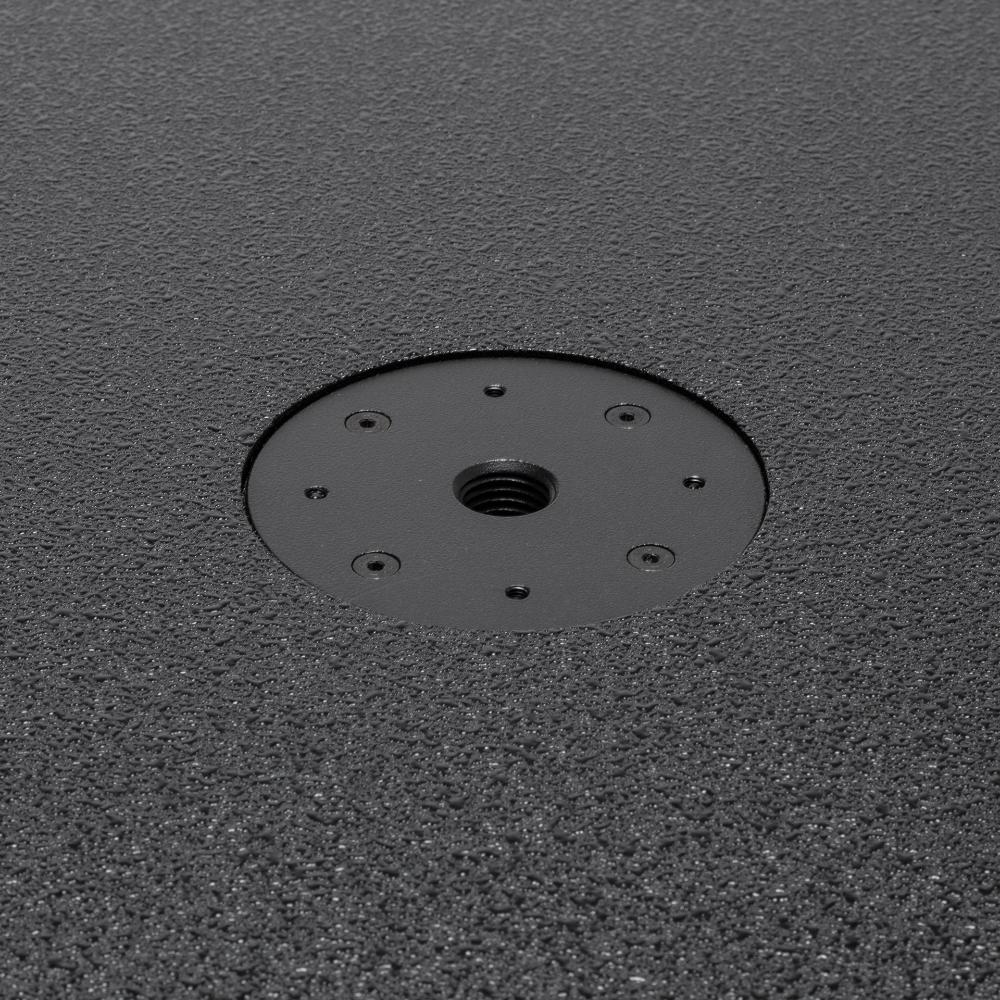

Mounting points, 2 x M20
Handles
8 side
Grille
Steel
Color
Black
Size
Height
708 mm / 27.87 inches
Width
1188 mm / 46.77 inches
Depth
785 mm / 30.91 inches
Weight
96 kg / 211.64 lbs
Shipping information
Package Height
760 mm / 29.92 inches
Package Width
825 mm / 32.48 inches
Package Depth
1135 mm / 44.69 inches
Package Weight
110 kg / 242.51 lbs
