Features
  • 130 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • Rotatable 90° x 70° Constant Directivity Horn
  • Quick Fit Bracket Socket
  • FiRPHASE
  • 10’’ neodymium Woofers, 2.5’’ voice coil
  • Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
  • RDNet Networked Management
  • 60 ÷ 20000 Hz Frequency Range

With 130 dB SPL power and a small footprint, the active two-way RCF TT10-A speaker saves the day when you need top quality sound power and unobtrusive size. Though remarkably compact and lightweight, the TT10-A offers the distinguished high-end TT+ sound quality, DSP capabilities, networked control, rugged hardware and a complete set of rigging options.

Part number:

13000549
TT 10-A
220-240V, EAN 8024530017125

13000559
TT 10-A
115V, EAN 8024530017200

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Touring & theatre performance

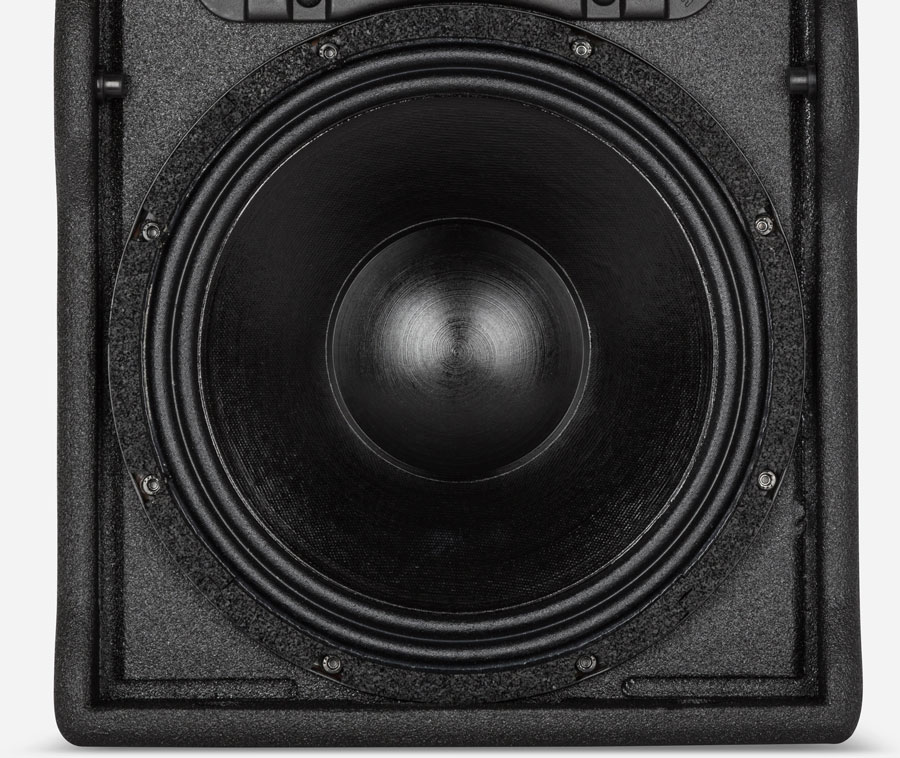

The innovative transducer design ensures extreme power-handling, making the TT 10-A the right choice for top demanding applications. The onboard DSP provides linear phase filters and crossover, system equalization, polarity control, fast limiter, RMS limiter and configuration control from the back panel or advanced management via RDNet.
Responsive Image
Responsive Image

Mutliple applications

Innovative quick fit bracket socket for easy set-up and stable rigging.

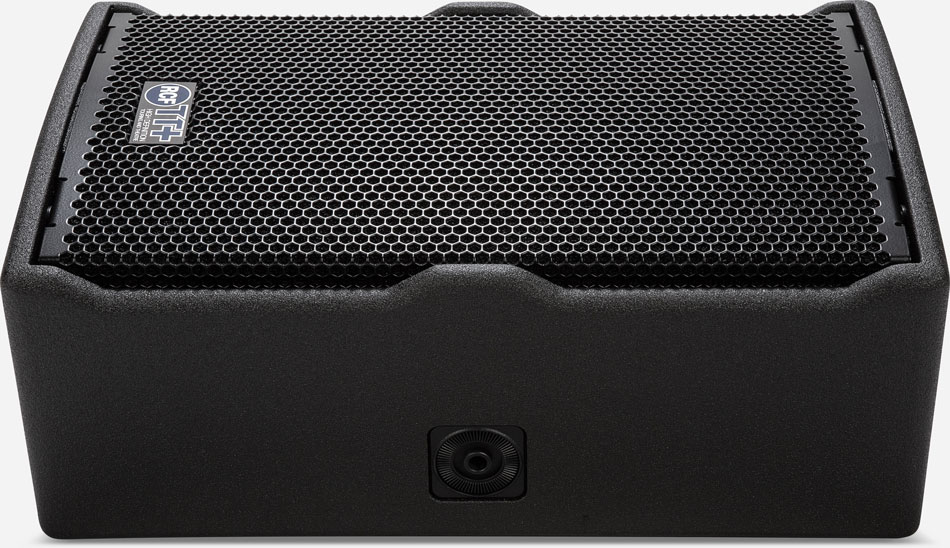

Pole mount, top and bottom M10 suspension points, quick fit bracket side sockets and a forged aluminum handle with rubber handgrip on top: the TT 10-A cabinet it is fully equipped for every application. One side of the cabinet presents a 35° angle, perfect for stage monitoring.

Durable and sturdy

The cabinets feature an aluminum top handle designed to facilitate transport positioning and loading operations. A bottom pole socket allows the use as a point source sound system on a stand or subwoofer pole. The speaker cabinet is made of high-quality Baltic birch plywood with a special adhesive to glue every layer; this makes the cabinet completely water resistant even before the special polyurea paint, applied to make it highly resistant to scratches and bumps.
Responsive Image

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response
60 Hz ÷ 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Transducers
Compression Driver
1.0'' neo, 1.75'' v.c
Woofer
10'' neo, 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
900 Hz
Protections
Thermal, HF
Limiter
Fast Limiter
Controls
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet
Yes
Power section
Total Power
2000 W Peak, 1000 W RMS
High frequencies
600 W Peak, 300 W RMS
Low frequencies
1400 W Peak, 700 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Hardware
3X M10 TOP AND BOTTOM
2X PIN D.10 AND M10 SIDE
Handles
1 TOP
Color
Black
Size
Height
490 mm / 19.29 inches
Width
306 mm / 12.05 inches
Depth
299 mm / 11.77 inches
Weight
11.5 kg / 25.35 lbs
Shipping information
Package Height
540 mm / 21.26 inches
Package Width
350 mm / 13.78 inches
Package Depth
350 mm / 13.78 inches
Package Weight
15.6 kg / 34.39 lbs
