5 Results | FORUM 6000
FORUM 6000
5 related products

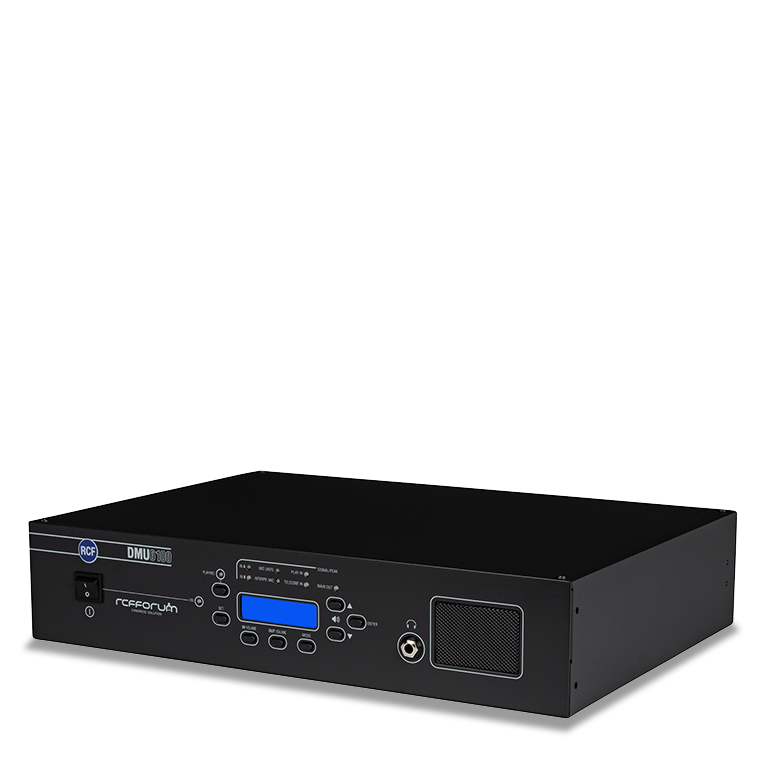

DMU 6100
CENTRAL UNIT CONFERENCE SYSTEM
- Two universal inputs for connecting any additional sources such as a wireless microphone or a lectern microphone or any other complementary device, even a mixer-preamplifier.
- Two inputs can be configured in different ways; for instance they can be mixed with the system audio, have priority on system microphone sets, one mixed and one priority etc.
- Dedicated IN and OUT connections are available echo-free for the link to a teleconference system
- VOX operation or command operation are available

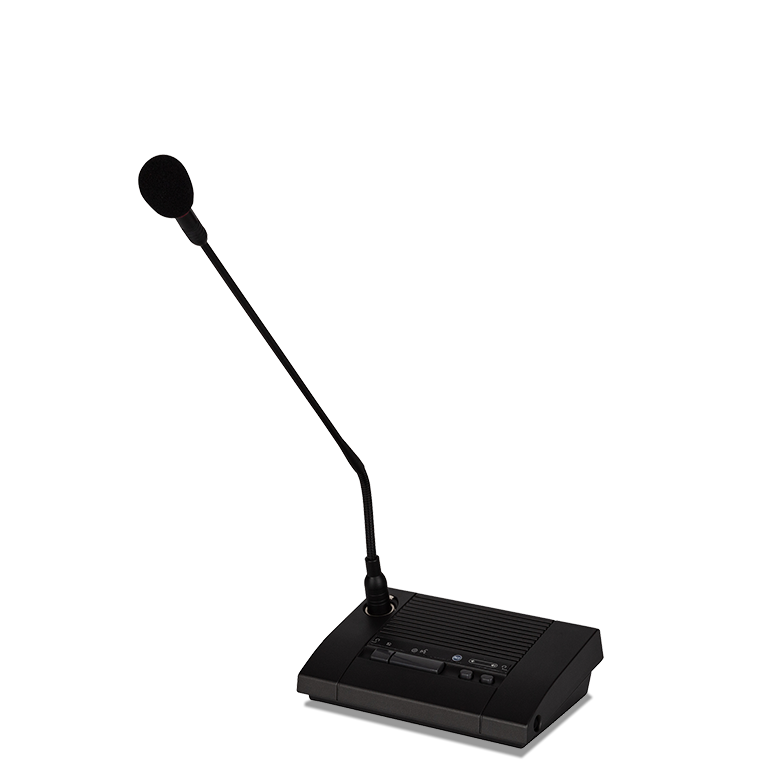

DMS 6410X
MICROPHONE CONSOLE REMOVABLE GOOSENECK
- Standard system: up to 60 consoles DMS 6410 (2 lines; 30 consoles per line connected in daisychain)
- Expanded system: up to 180 consoles DMS 6410 (6 lines; 30 consoles per line connected in daisychain). The further 120 consoles can be added by installing the optional board DEC 6104 into the central unit DMU 6100 and connecting the external power supply unit DPS 6202
- 2 aux inputs, A and B, with XLR sockets, each configurable by means of DIP switches (PHANTOM, MIC / LINE, HIGH-PASS) and with a gain control and an enable / mute command
- Audio input PLAY and audio output SYSTEM for recording
DMS 6410
MICROPHONE CONSOLE
- Standard system: up to 60 consoles DMS 6410 (2 lines; 30 consoles per line connected in daisychain)
- Expanded system: up to 180 consoles DMS 6410 (6 lines; 30 consoles per line connected in daisychain. The further 120 consoles can be added by installing the optional board DEC 6104 into the central unit DMU 6100 and connecting the external power supply unit DPS 6202
- 2 aux inputs, A and B, with XLR sockets, each configurable by means of DIP switches (PHANTOM, MIC / LINE, HIGH-PASS) and with a gain control and an enable / mute command
- Audio input PLAY and audio output SYSTEM for recording
DEC 6104
EXPANDER BOARD
- Up to 180 DMS 6410 microphone consoles on 6 lines (4 line outputs are on the DEC 6104 board)
- The further 120 consoles shall be powered by the DPS 6202 power supply unit
- USB port to connect the system to a PC
- FORUM 6000 control software included
ARCHIVED

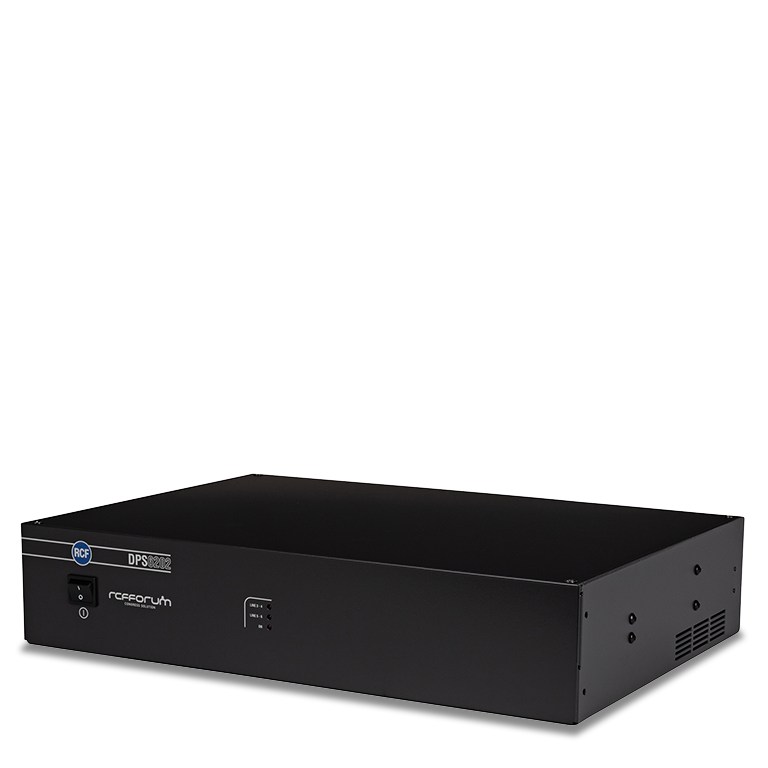

DPS 6202
ADDITIONAL POWER SUPPLY UNIT
- Strictly necessary for the console lines 3 to 6 linked to the DEC 6104 board (to power consoles from the 61 to 180)
- Dual Switching power supply
- Main switch with ON LED indicator on front panel
- LINE LEDs indicate when console lines are correctly powered

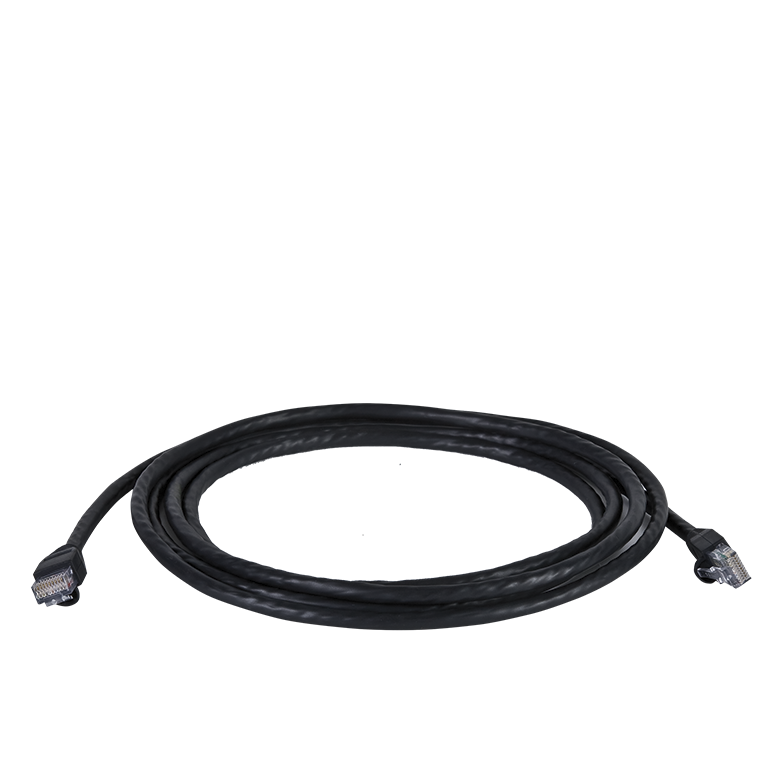

DCA 6000
MULTIPOLAR CABLE
- 10 pole connection cable with 12 RJ 45 connectors
- To connect DMS 6410 and DMS 6410X paging microphones to the DMU 6100
- Available in 100 m coils (the code no. refers to 1 metre of cable)
DCA 6005
MULTIPOLAR CABLE
- 10 pole connection cable, lenght 5 mt, terminated RJ 45
- To connect DMS 6410 and DMS 6410X paging microphones to the DMU 6100
DCA 6020
MULTIPOLAR CABLE
- 10 pole connection cable, lenght 20 mt, terminated RJ 45
- To connect DMS 6410 and DMS 6410X paging microphones to the DMU 6100
