NEW

PORTABLE

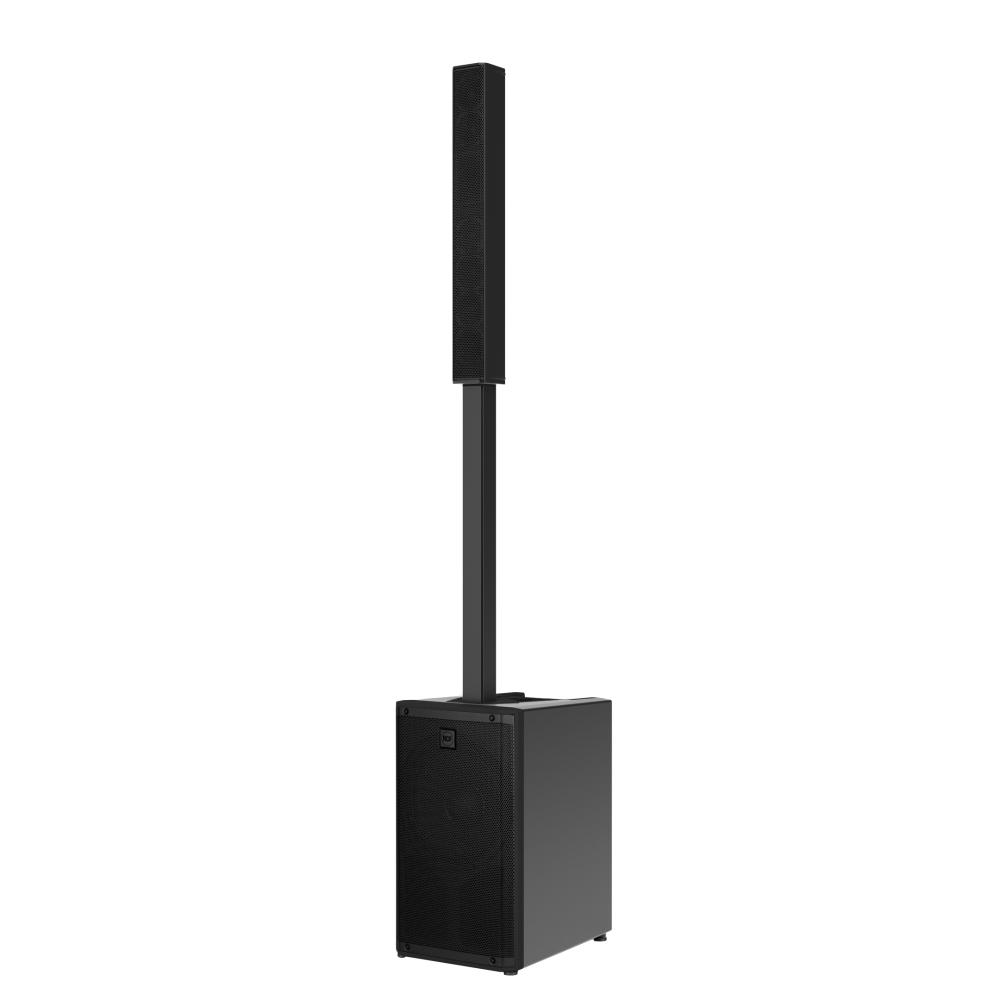

EVOX JMIX9

ACTIVE THREE-WAY COLUMN MUSIC SYSTEM

8-Ch True-Stereo Digital Mixer w/ Bluetooth®
130 dB Max SPL
2100 W Class-D Amplifier - Built-In DSP
1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

FiRPHASE

BASS MOTION CONTROL

Where to buy

Features

8-Ch True-Stereo Digital Mixer w/ Bluetooth®
130 dB Max SPL
2100 W Class-D Amplifier - Built-In DSP
1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
6 × 3” Full-Range Neo Transducers

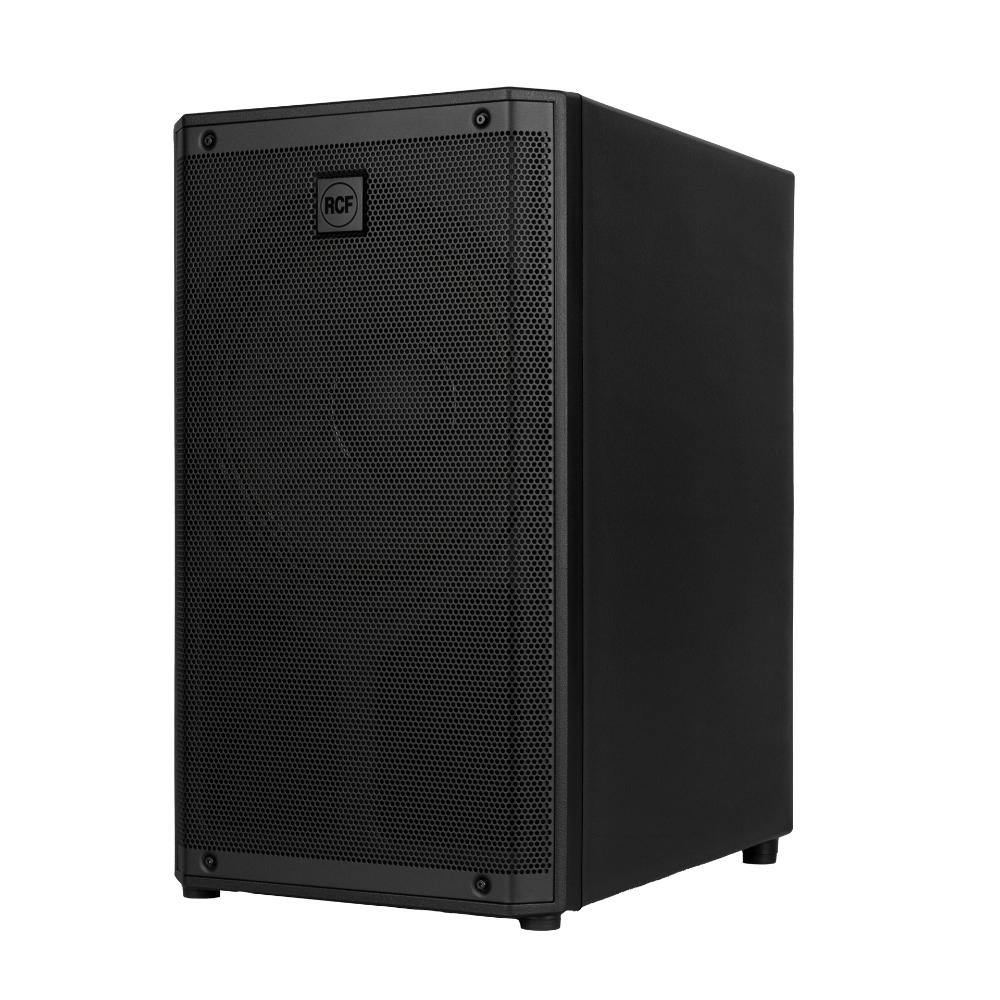

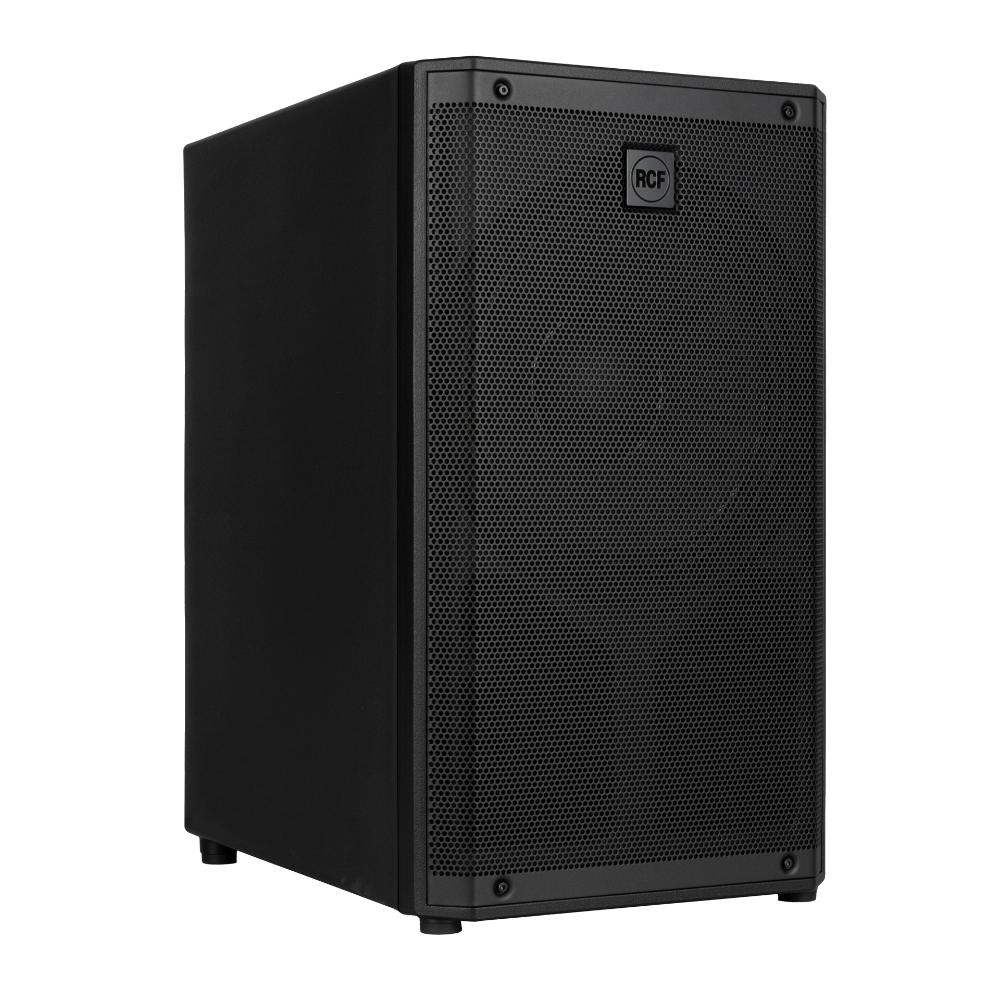

12” High-Power Woofer
Enhanced Coverage And Clarity
Sleek Composite Cabinet With Aluminum Stand Mount
Top Speaker Padded Carrying Bag Included

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

NEW

Part number:

13000930
EVOX JMIX9
220-240V, Black, EAN 8024530024130

13000931
EVOX JMIX9
100-120V, Black, EAN 8024530024178

13000985
EVOX JMIX9 W
220-240V, White - RAL 9003, EAN 8024530024444

13000986
EVOX JMIX9 W
100-120V, White - RAL 9003, EAN 8024530024475

EVOX JMIX9

THE ALL-IN-ONE SOLUTION

ANY VENUE, ANY EVENT

Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It’s the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.

8-Channel Stereo Digital Mixer.

The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4” color touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.

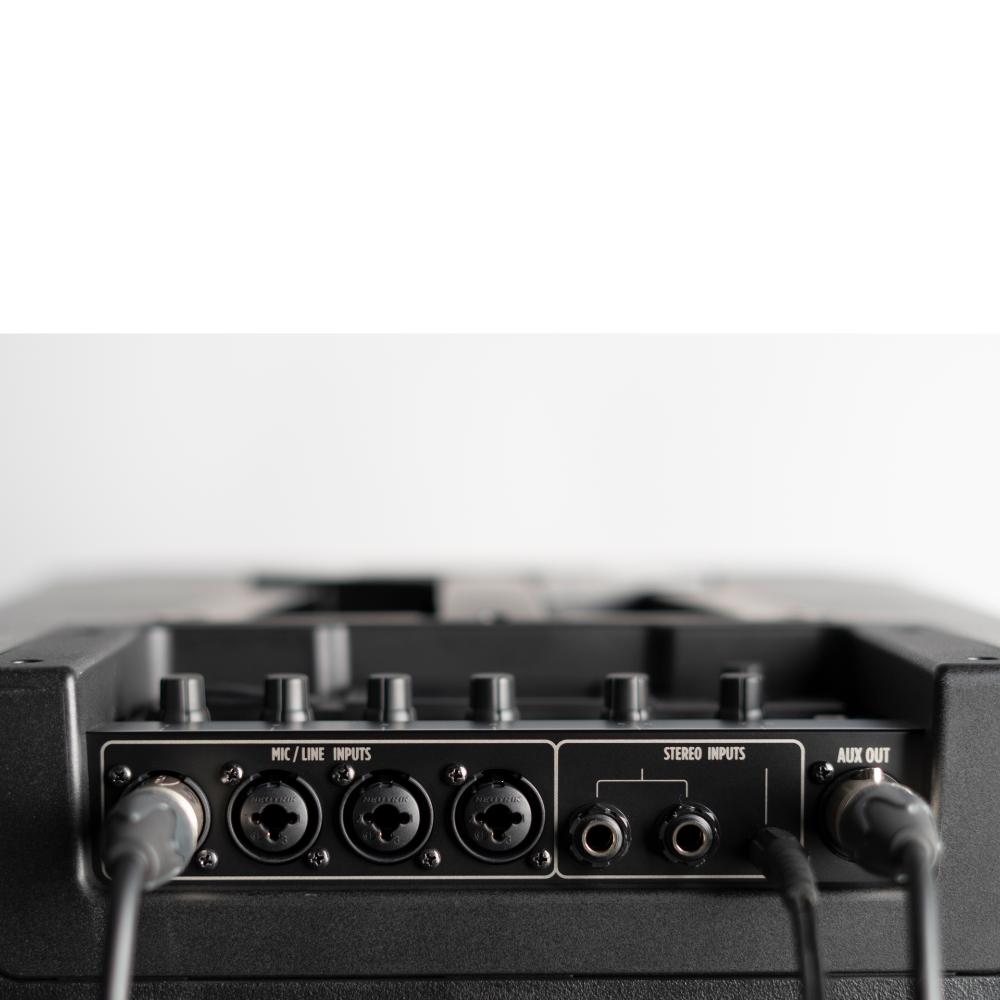

Studio-Quality Input Section

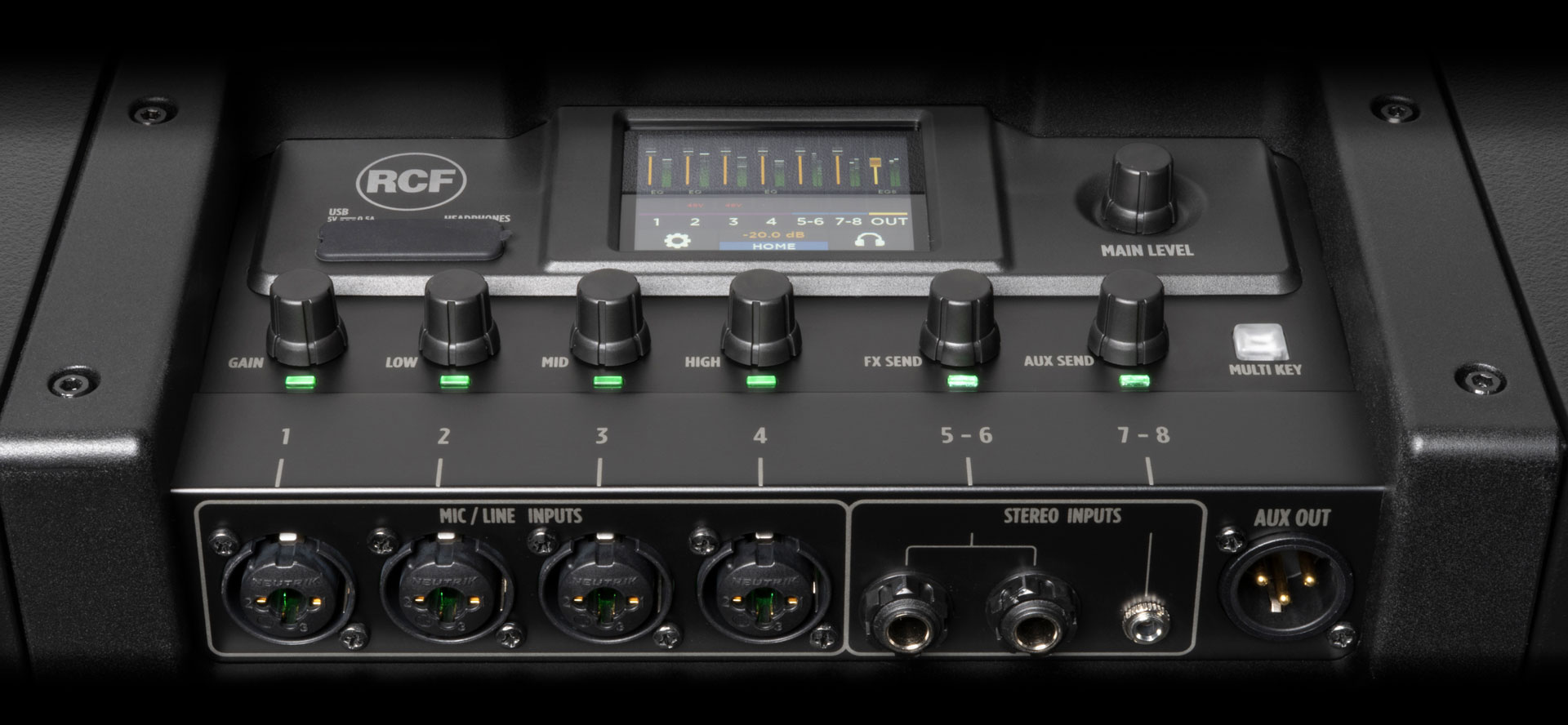

JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT® preamps, (each with individual phantom power) and digital gain control. Inputs 1–4 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 5–8 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth® connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.

Designed for Practical Use

Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9
High-pass filter and a 3-band EQ on each channel, ch 1-4 add a one-knob compression,
Flexible Audio Ducker, Stereo Reverb send
Main Output with stereo 8-band EQ
AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output

Quick Workflow

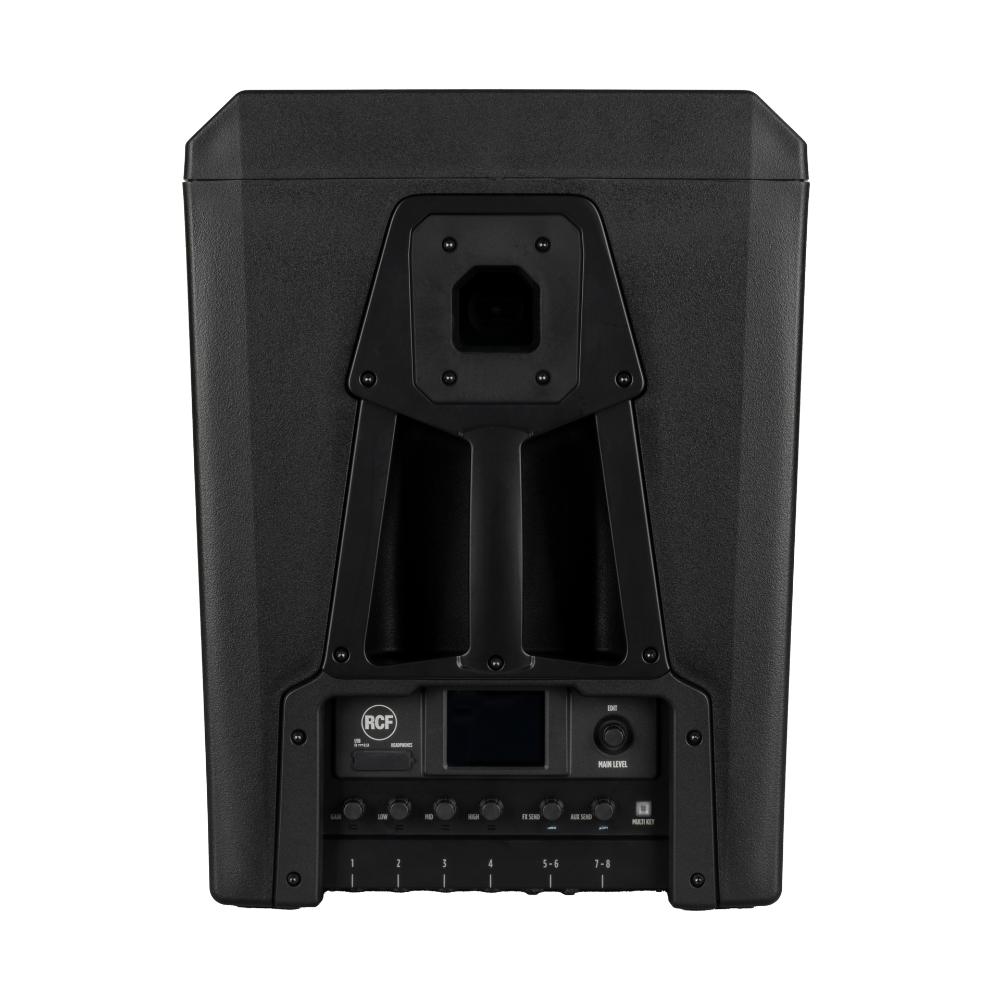

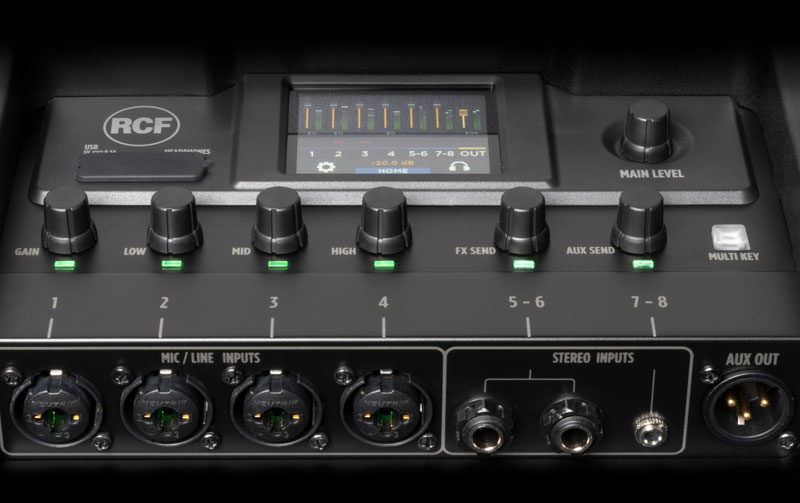

The 2.4” color touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.

AUX Send

Mixer View: Main Mix, FX send, AUX send

Gesture-based switching between views for fast access

Full stereo operation when paired with an EVOX J9

(stereo link-pairing)

Output EQ

Access: press MAIN LEVEL encoder

8-band stereo EQ on Main Mix

4 encoders mapped to EQ band parameters

Programmable MULTI KEY button

Path: SETTINGS > UTILITIES > MULTI FUN KEY

Assignable MUTE: All Outputs, AUX Out, FX Return

Input Edit Page

Access: press/click selected input encoder

Input channel edit: HPF, 3-band EQ, Compressor, Pan

Inputs 1–4: MIC/LINE selection, Gain, per-channel +48 V

6-encoders row reassigned per function

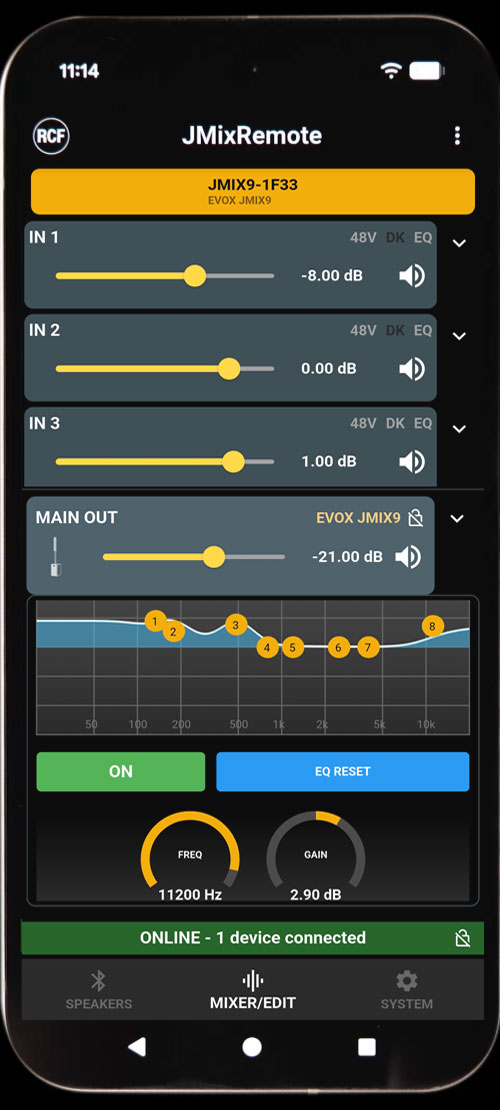

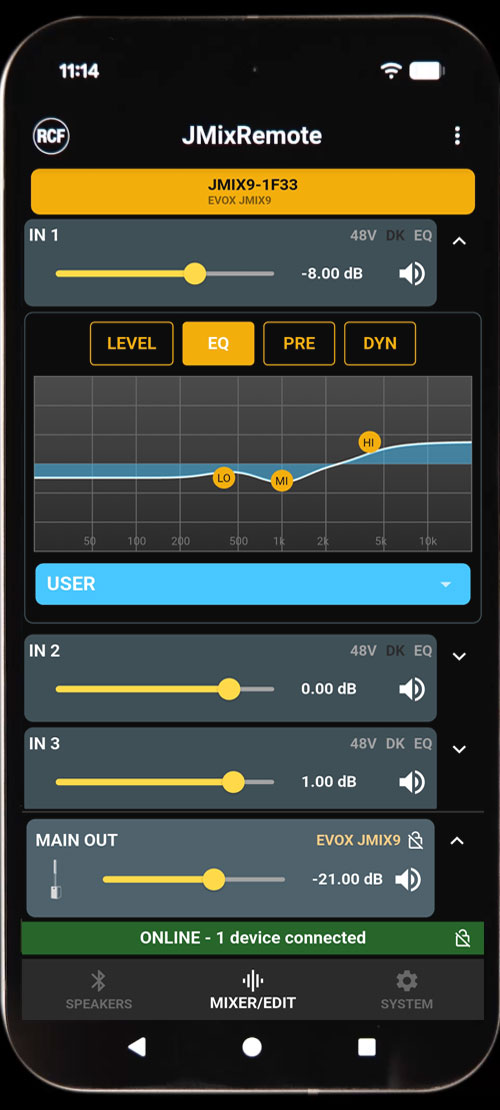

WIRELESS CONTROL

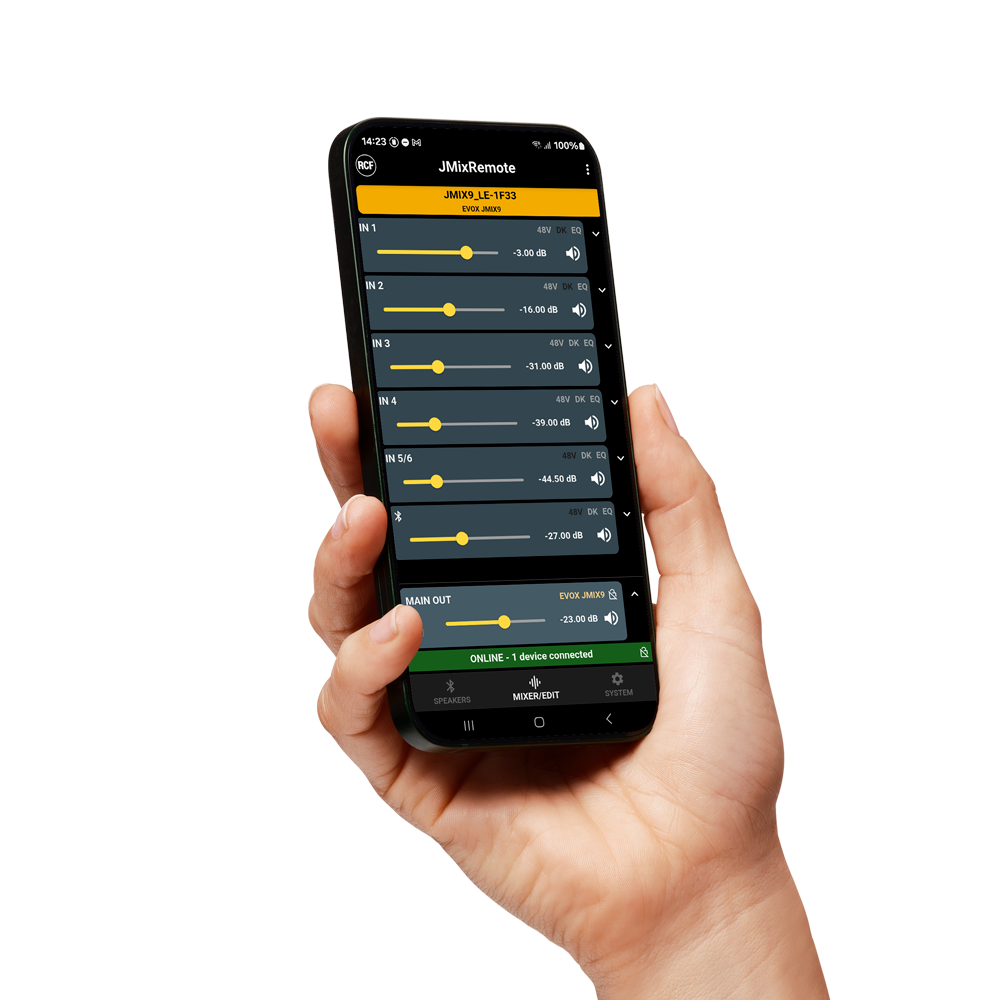

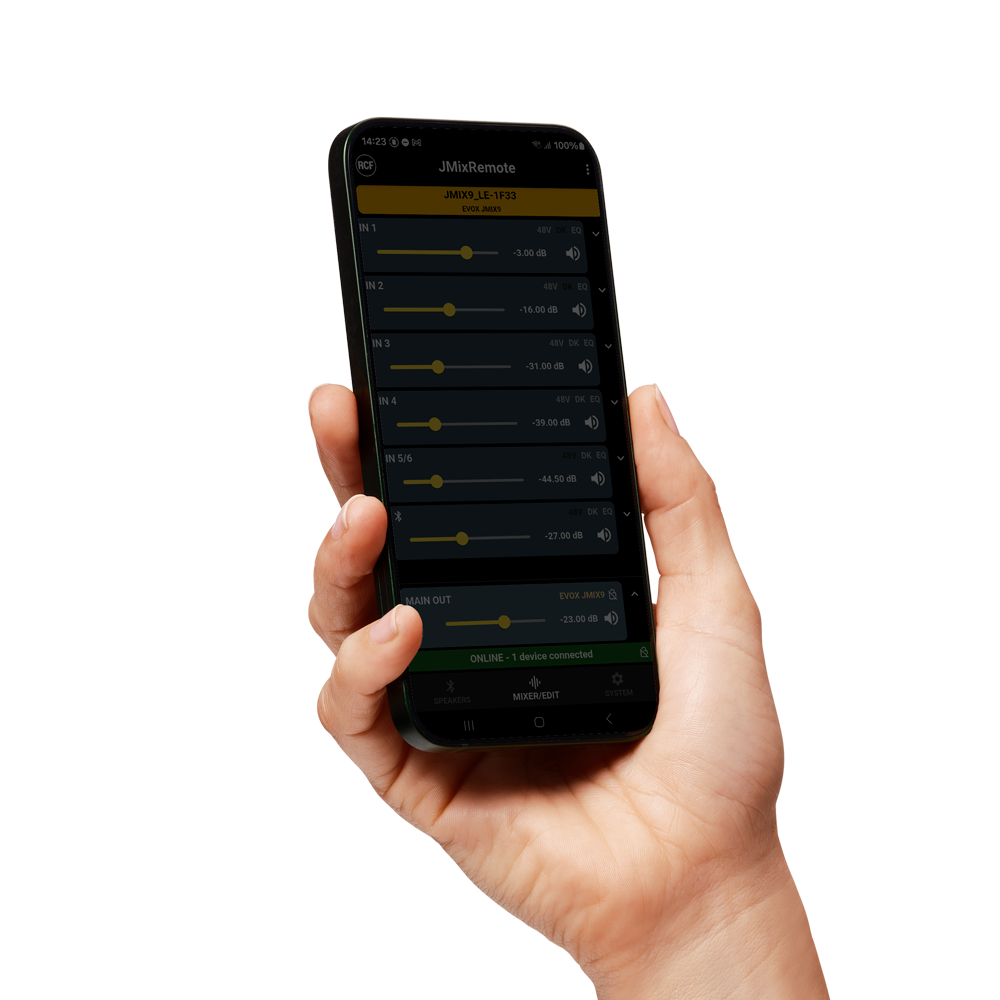

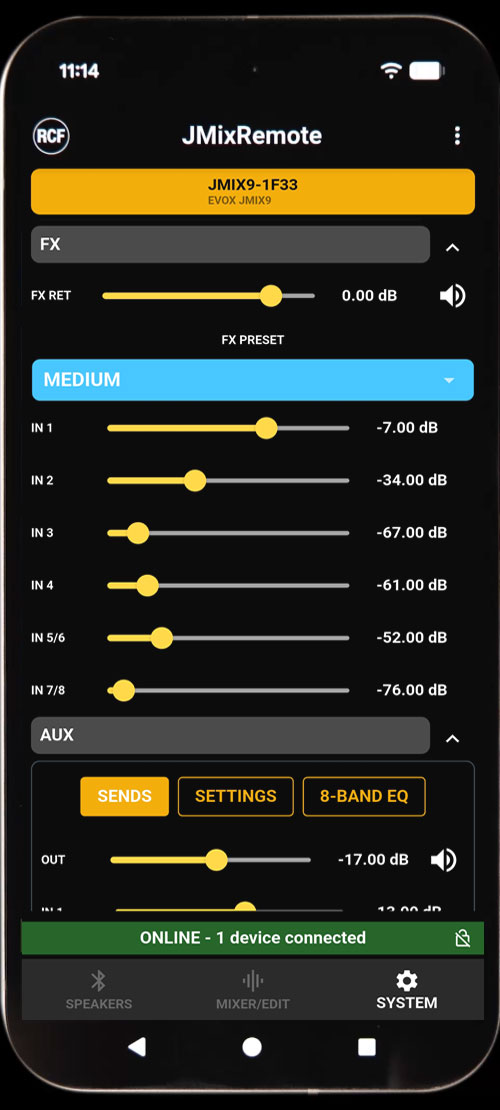

JMIXRemote App

The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).

IOS APP DOWNLOAD

ANDROID APP DOWNLOAD

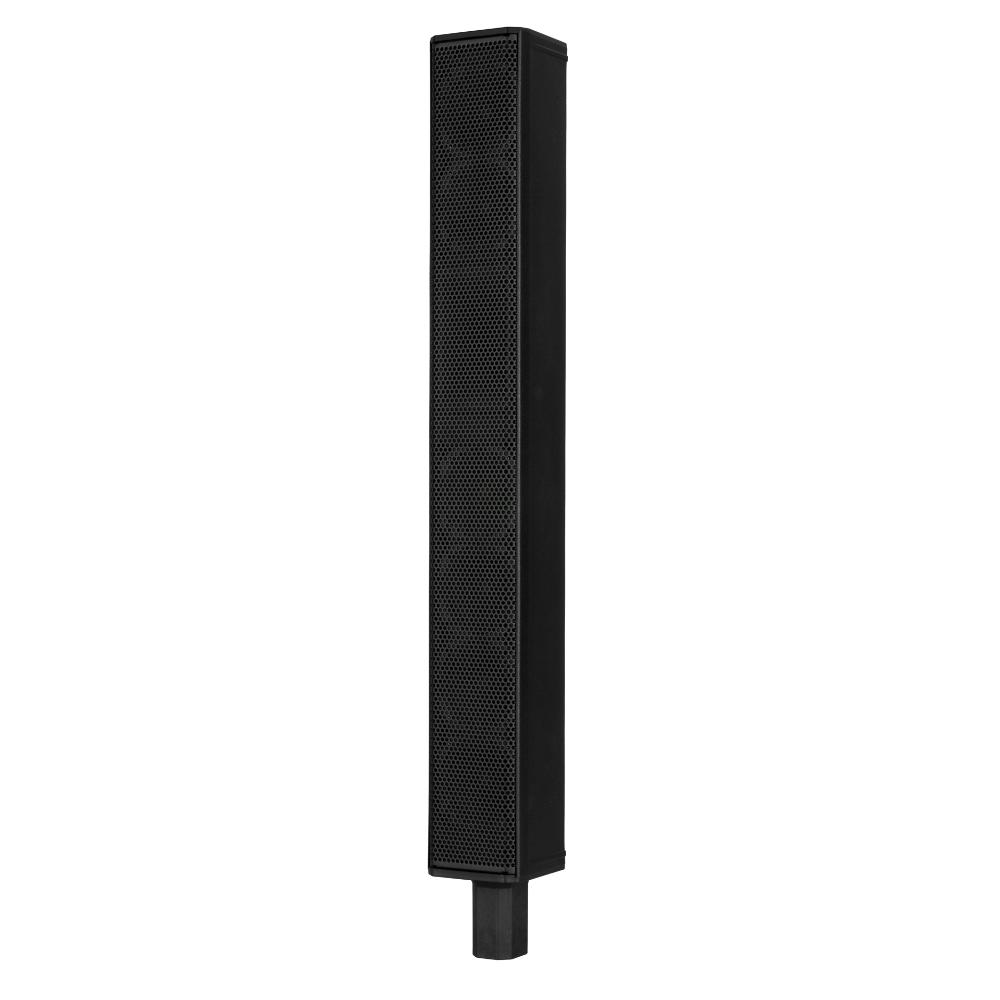

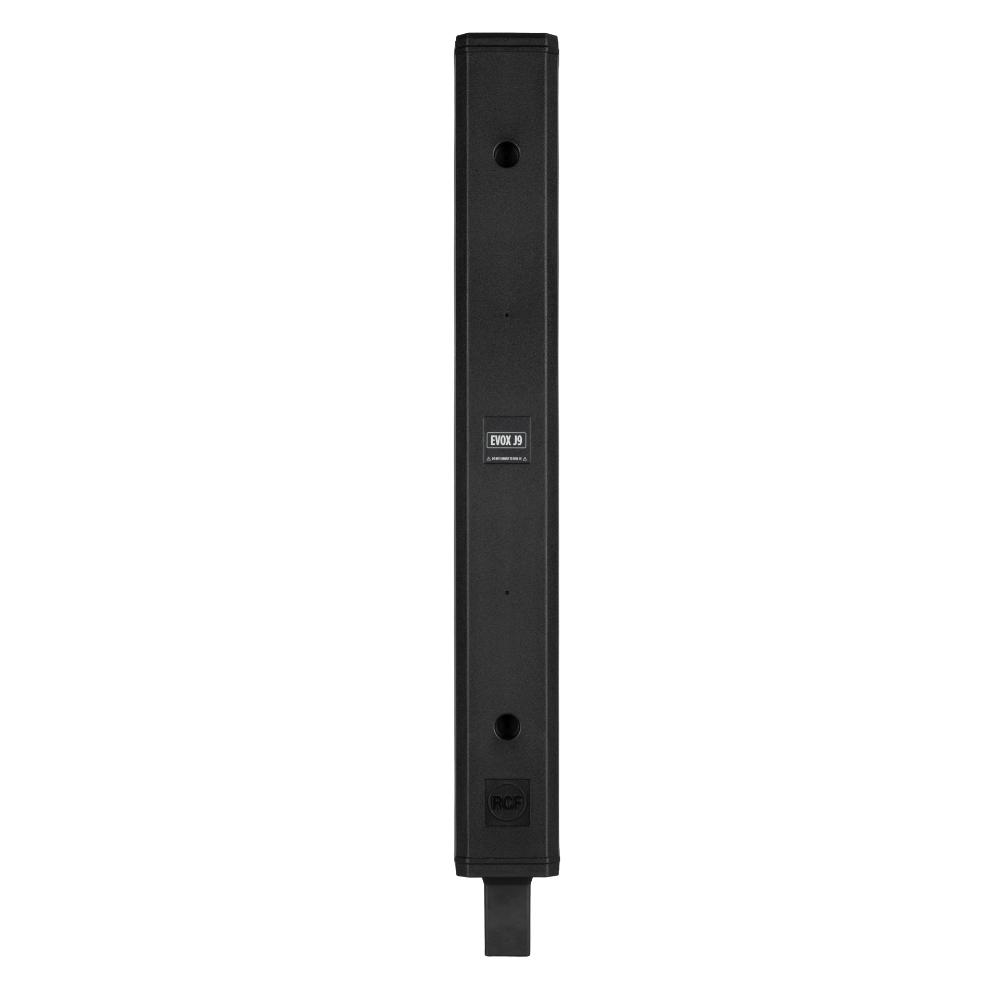

True 3-Way Design

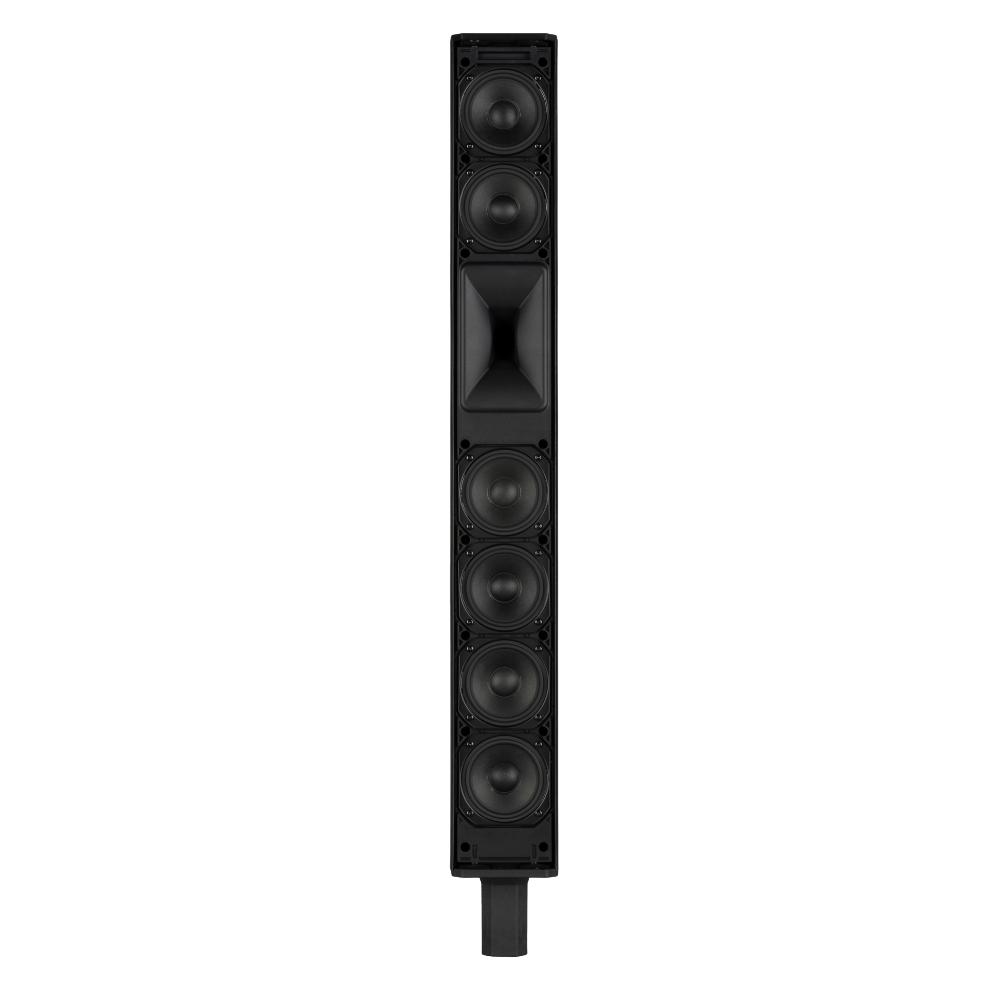

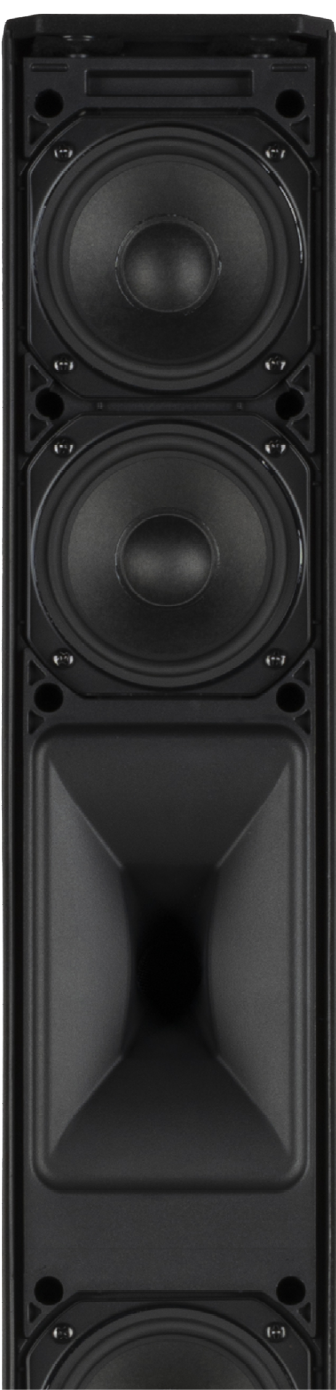

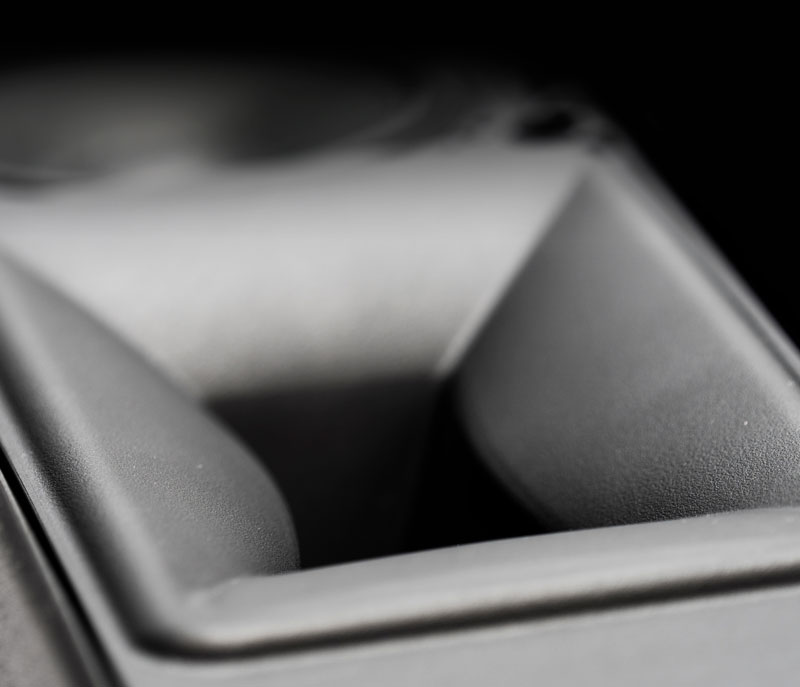

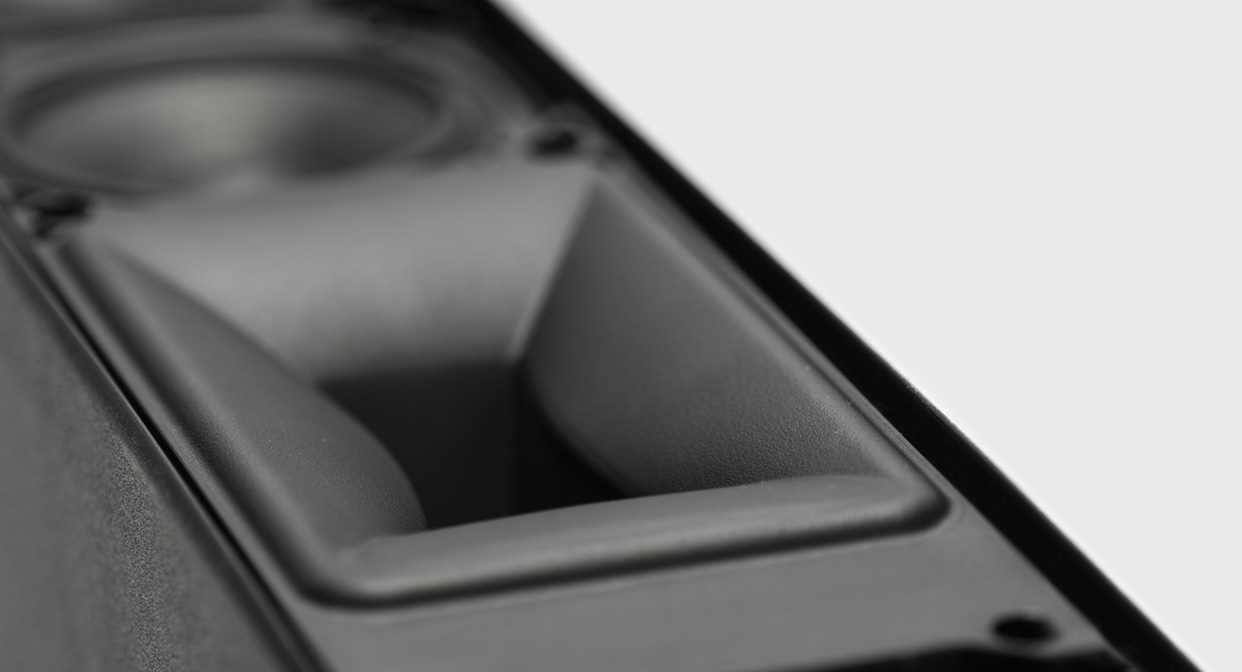

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

The forward radiation of the array of 6x3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

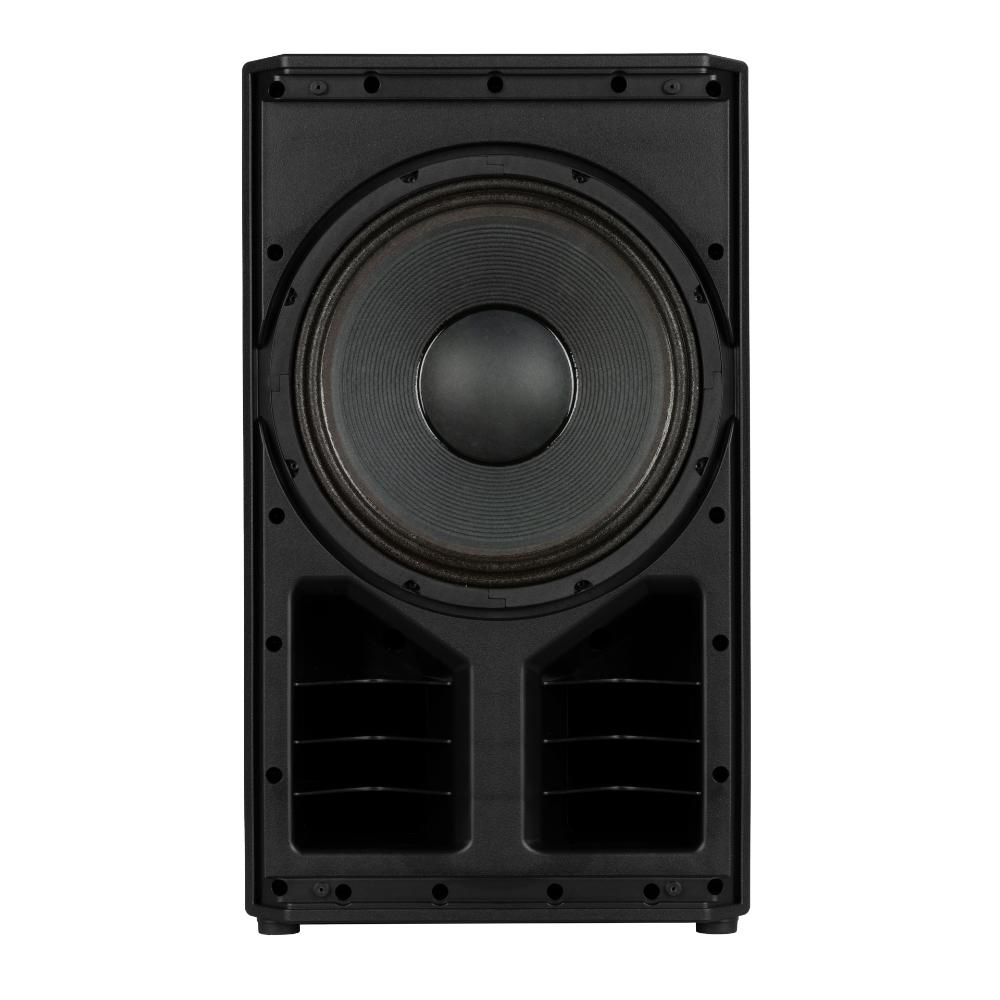

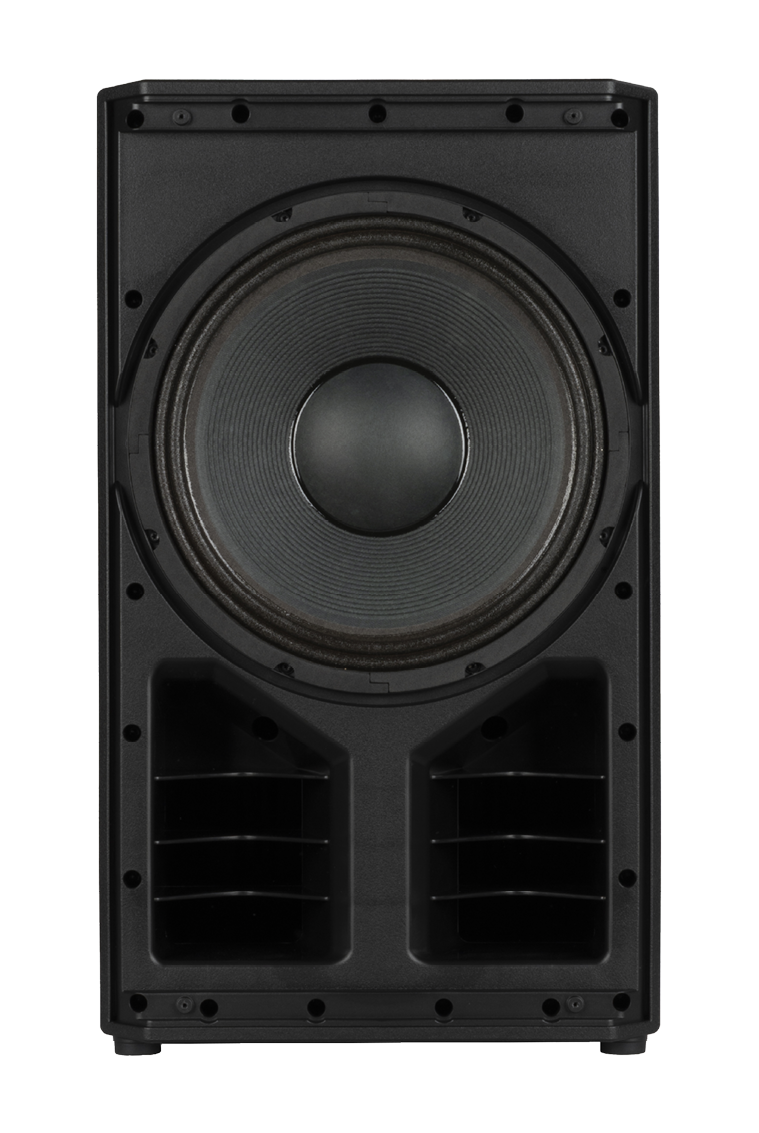

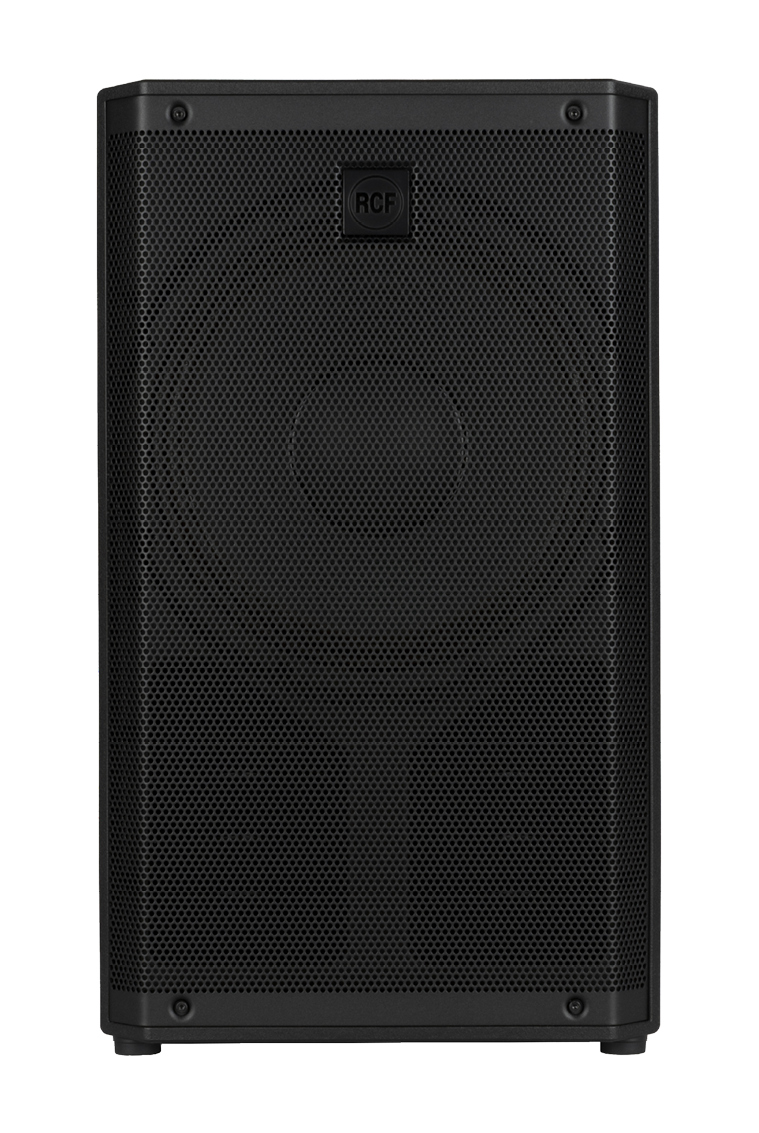

12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

2100 W

Fast Transients. Zero Compromise.

Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.

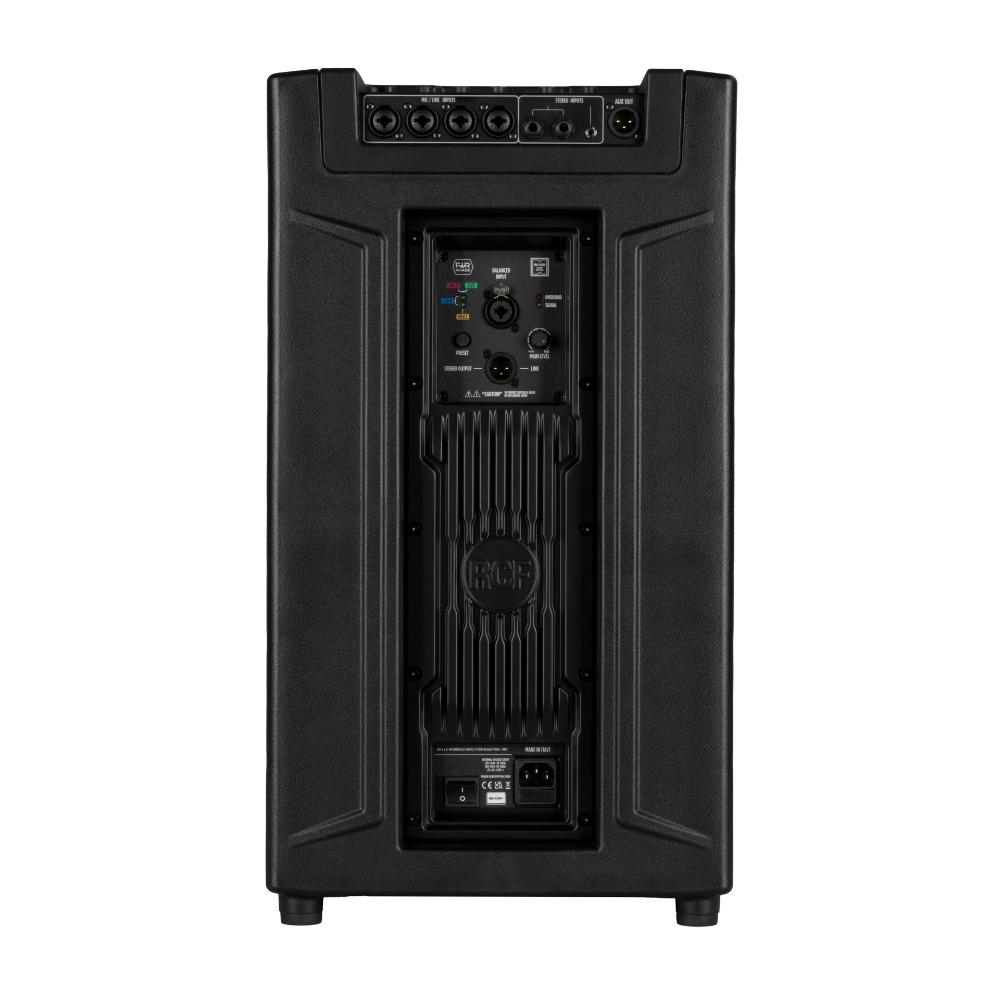

Highly energy-efficient, the JMIX9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.

The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. JMIX9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

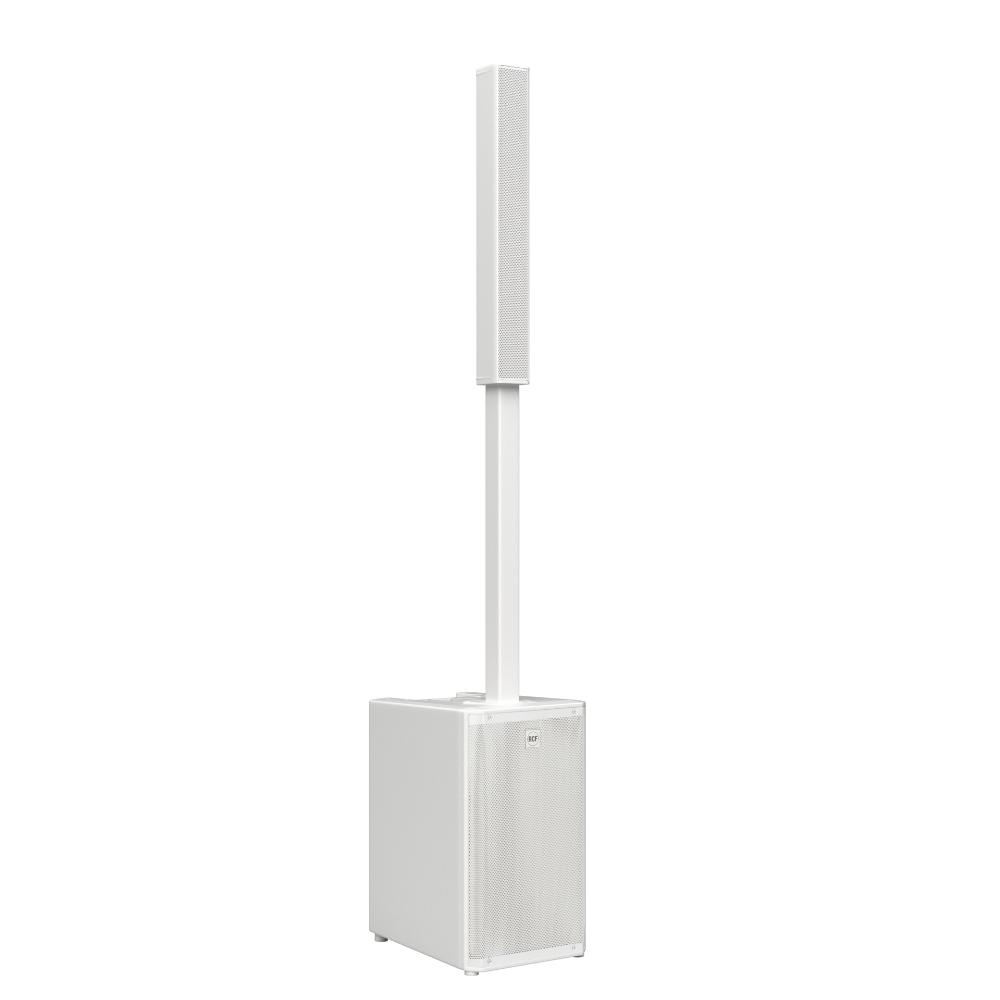

Variable Height Configuration

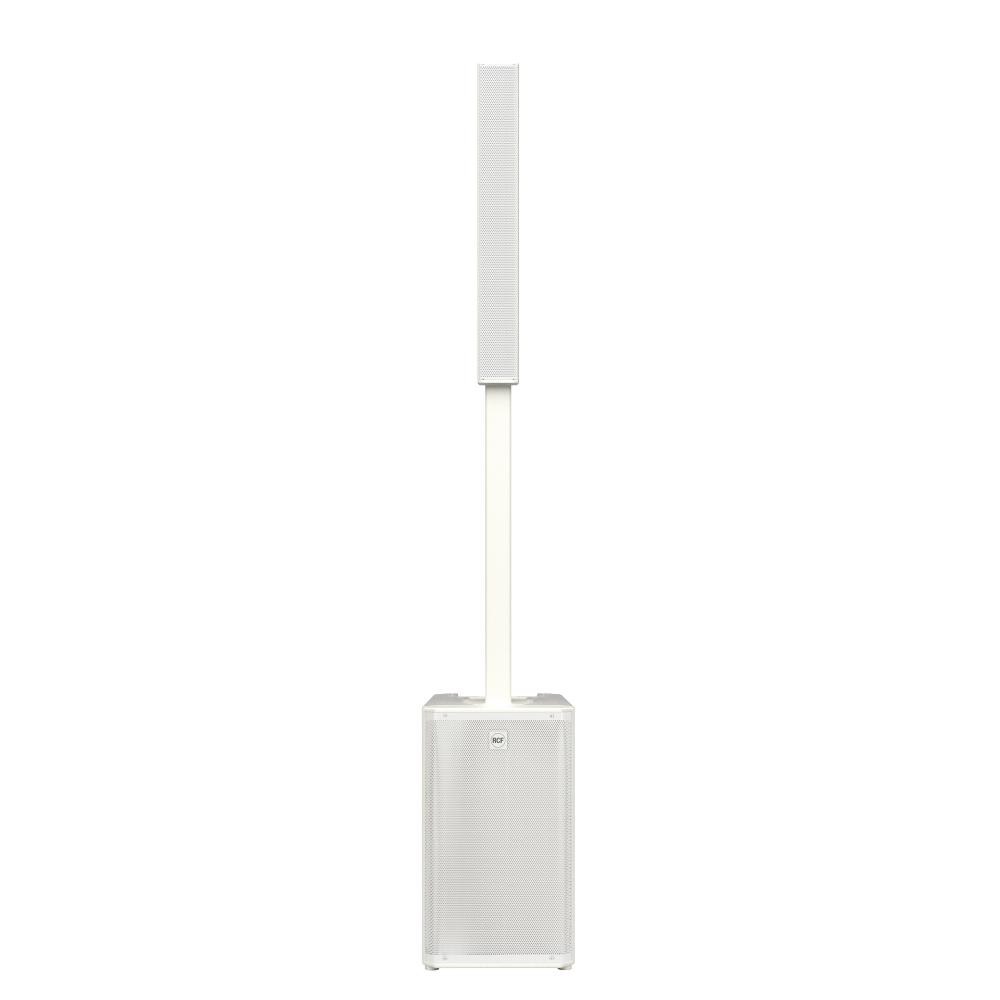

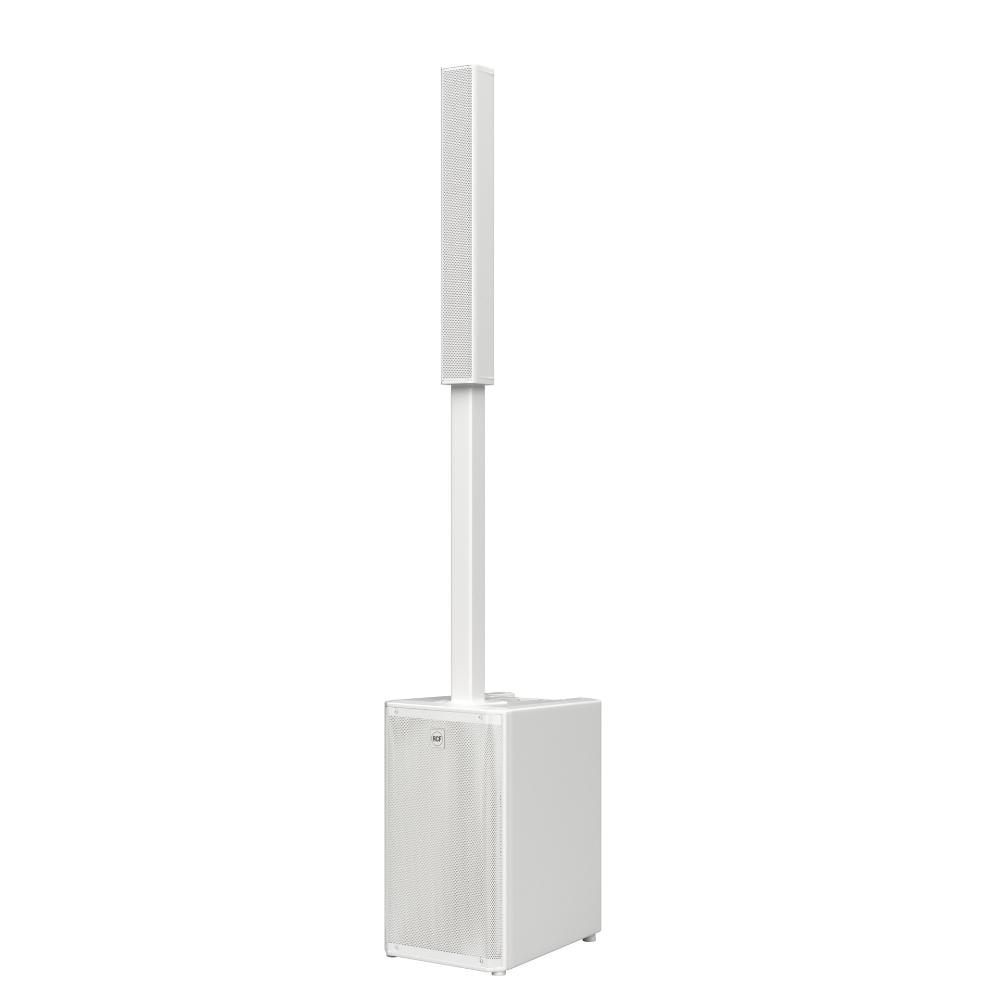

Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.

Quick Setup. Ready to Play.

Available in black or white, EVOX JMIX9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable: mount the column at standard height with the full-length pole, place it at zero offset directly on the bass enclosure, or raise it with full- or half-length pole extensions.

Ready for the Road

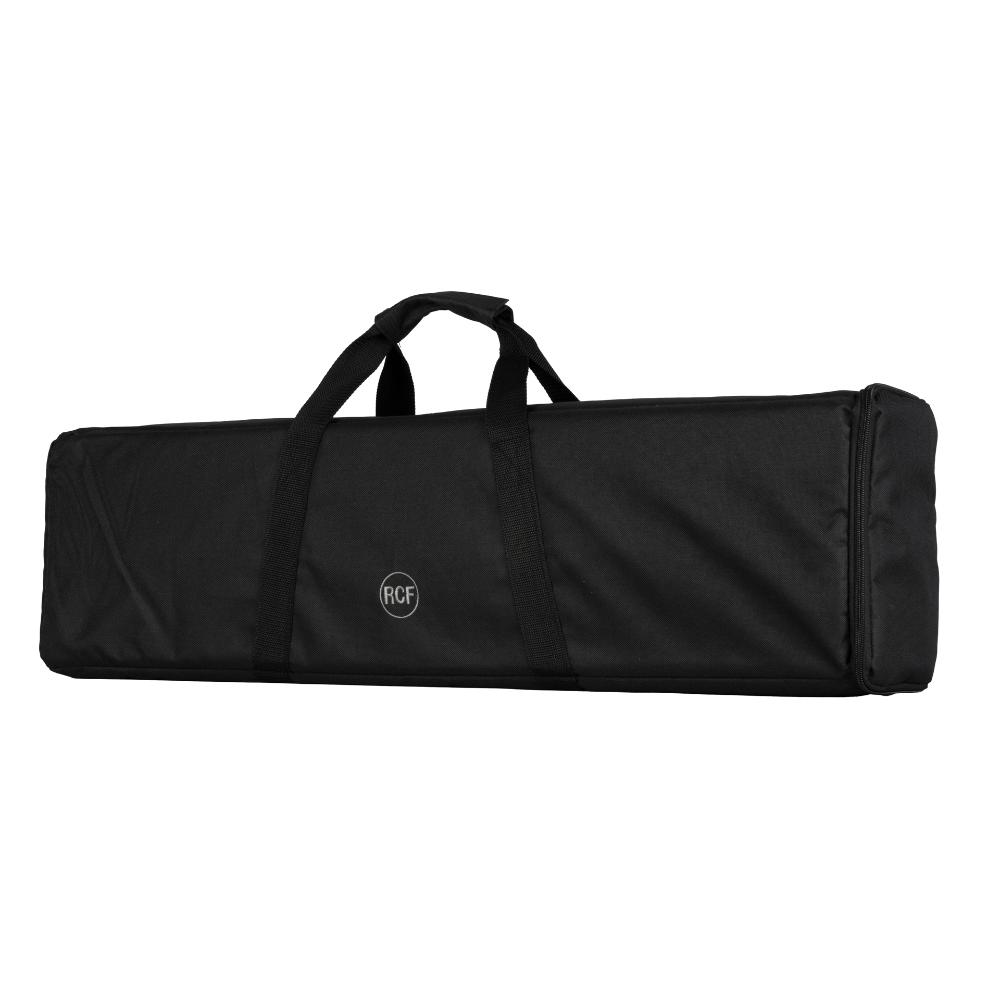

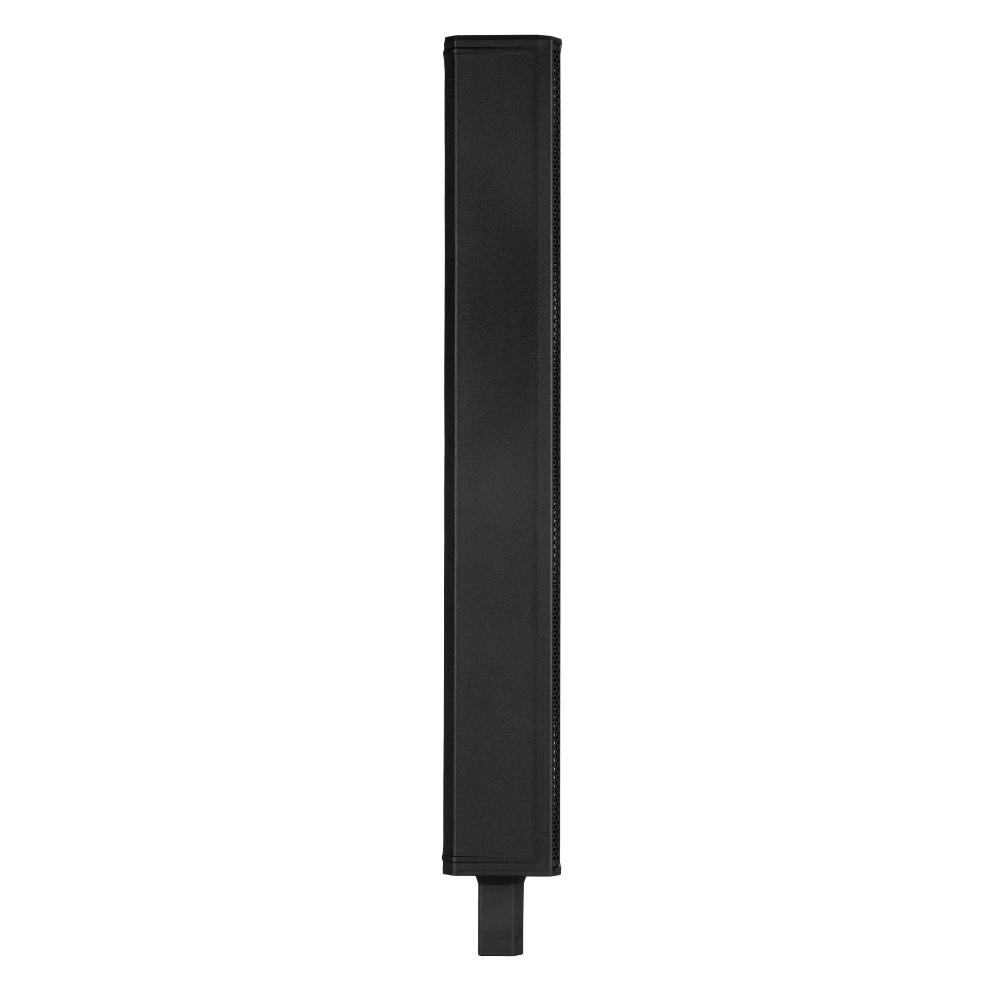

Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility.

Digital Signal Proficiency

The EVOX J DSP platform is a real-time DSP engine that delivers unparalleled processing density and scalability, propelling RCF speakers to a new level of performance, and incorporates all RCF proprietary algorithms for protection and tuning.

Bass Motion Control®

EVOX J speakers equipped with Bass Motion Control (BMC) deliver the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity. The BMC method creates a complete map of the woofer's dynamic behavior to generate a custom algorithm that limits overexcursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer while enabling full freedom in signal reproduction.

New perspective on linearity

EVOX J loudspeakers are engineered with proprietary FiRPHASE processing to deliver transparent sound, exceptional clarity, and precise imaging. FiRPHASE optimizes phase response across the listening area, helping provide consistent coverage and a natural transient response while maintaining low system latency. The algorithm refines the transducer transfer function and, where needed, corrects amplitude, reducing the effects of cabinet-related resonances and acoustic cancellations.

Acoustical specifications

Frequency Response

40 Hz - 20000 Hz

Max SPL @ 1m

130 dB

Horizontal coverage angle

120°

Vertical coverage angle

40°

Transducers

Compression Driver

1 x 0.75'' neo, 1.75'' v.c

Fullrange

6 x 3.0'' neo, 1.0'' v.c

Woofer

1 x 12'', 2.5'' v.c

Input/Output section

Input signal

bal/unbal

Input connectors

Combo XLR/Jack

Output connectors

XLR

Input sensitivity

-2 dBu/+4 dBu

Processor section

Crossover Frequencies

200 Hz/1800 Hz

Protections

Thermal, RMS

Limiter

Soft Limiter

Controls

Digital mixer controlled by touch screen and encoders

Power section

Total Power

2100 W Peak

High frequencies

700 W Peak

Low frequencies

1400 W Peak

Cooling

Convection

Connections

VDE

Electronic specifications

Frequency Response

20 Hz - 20 Hz

THD+N, 20dB gain, 0dBu out

0.003% A-Weighted

Processing

Processing Channels

Signal Processing

32 Bit

A/D-D/A conversion

24 Bit @ 48.0 kHz

Dynamic range

114

Inputs

Mic

Remote Controlled Storable Gain

Yes

Gain Range

0 dB - 36 dB

Input Noise Level

-114 dBu A-Weighted

Mic Inputs Impedance

3 kohm

Low Cut

20 Hz - 400 Hz

Phantom Power +48V

Yes

Mono Line

Gain Selection

0 dB - 36 dB

Line Input Impedance

10 kohm

A/D Dynamic range

120 dB

Stereo Line

Gain Selection

0 dB - 0 dB

Stereo Line Input Impedance (kOhm)

24 kohm

Outputs

Main MIX

FX Send

AUX Send

AUX Output

Phones

Outputs specifications

Main Out Impedance

150 ohm

Main Out Level

20 dBu

Aux Out Impedance (ohm)

150 ohm

Aux Out Level

20 dBu

Phones Out impedance (ohm)

100 ohm

Phones Out Level

20 dBm

D/A Dynamic Range

118 dB

Compressors

RCF Compressors

Compressors on MIC/LINE CH1 to CH4 Inputs

Input Channels EQ

1 Semi Parametric / 2 Shelving

Description

3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.

Auxiliary sends

AUX

1 PRE/POST

FX POST

Internal Effects

Send Effects

Mastering processors

Main OUT processors

Main OUT type

MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.

Electrical specifications

Power supply
