VOICE ALARM EN54

MH 61EN

TWO-WAY PLASTIC HORN SPEAKER
  • 6.5" woofer with 1" dome tweeter.
  • Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W.
  • 99 dB sensitivity.
  • Colour grey RAL 7035.
EN 54
IP66
Where to buy
Features Specifications Downloads
Where to buy
Features
  • 6.5" woofer with 1" dome tweeter.
  • Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W.
  • 99 dB sensitivity.
  • Colour grey RAL 7035.
  • Plastic body.
  • In/out ceramic terminal block.
  • Thermal fuse protection.
  • Protection grade IP66.

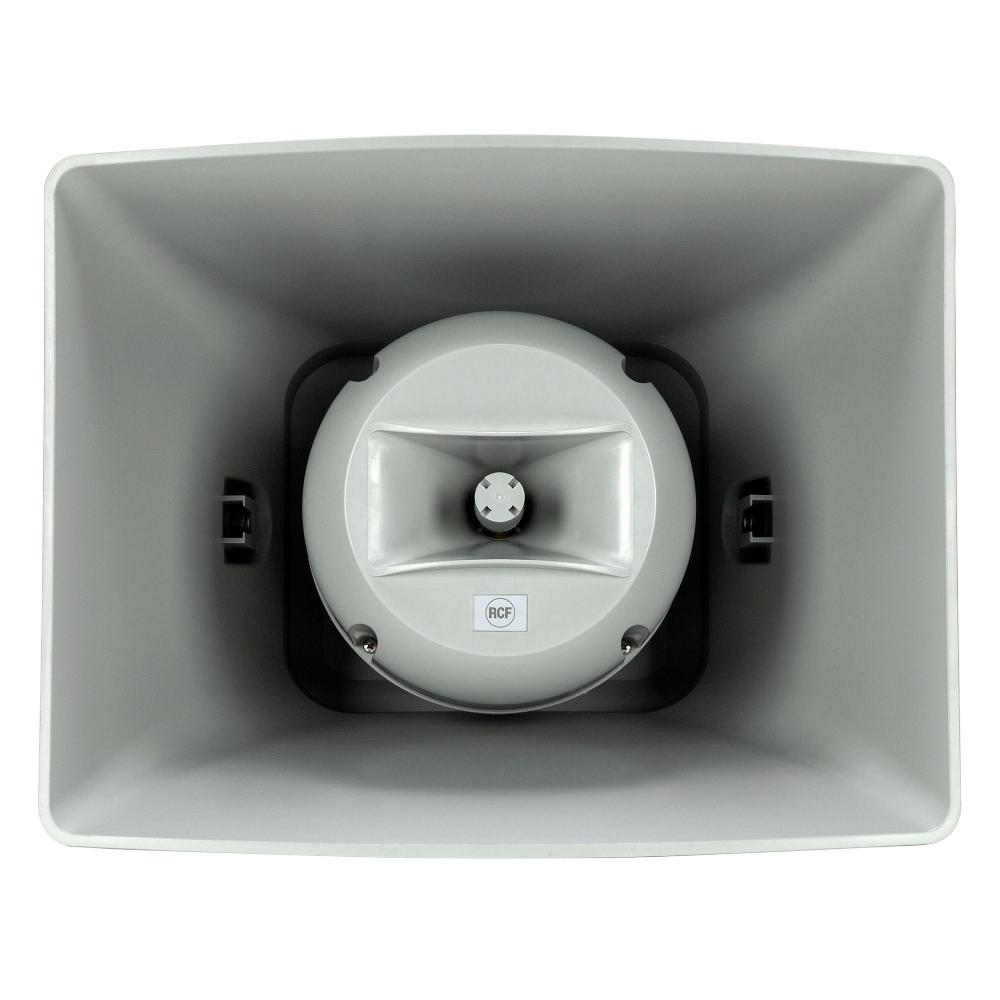

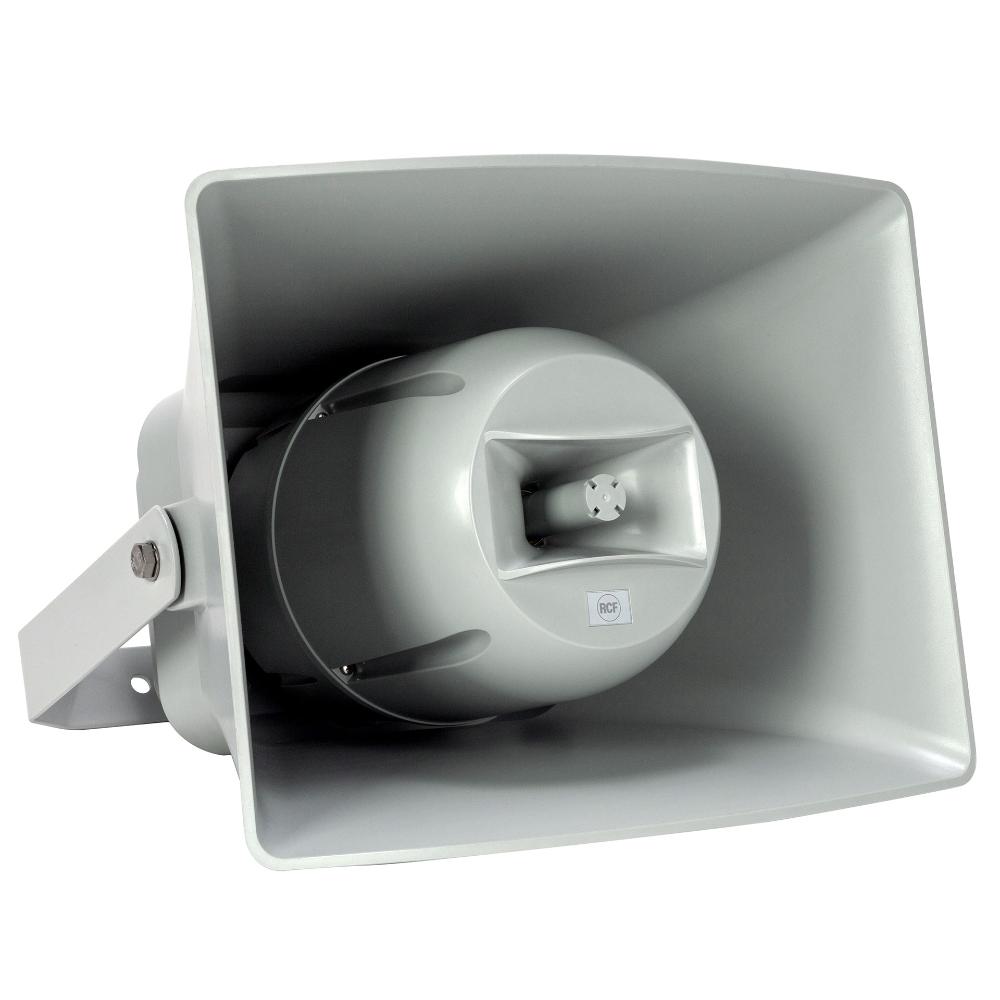

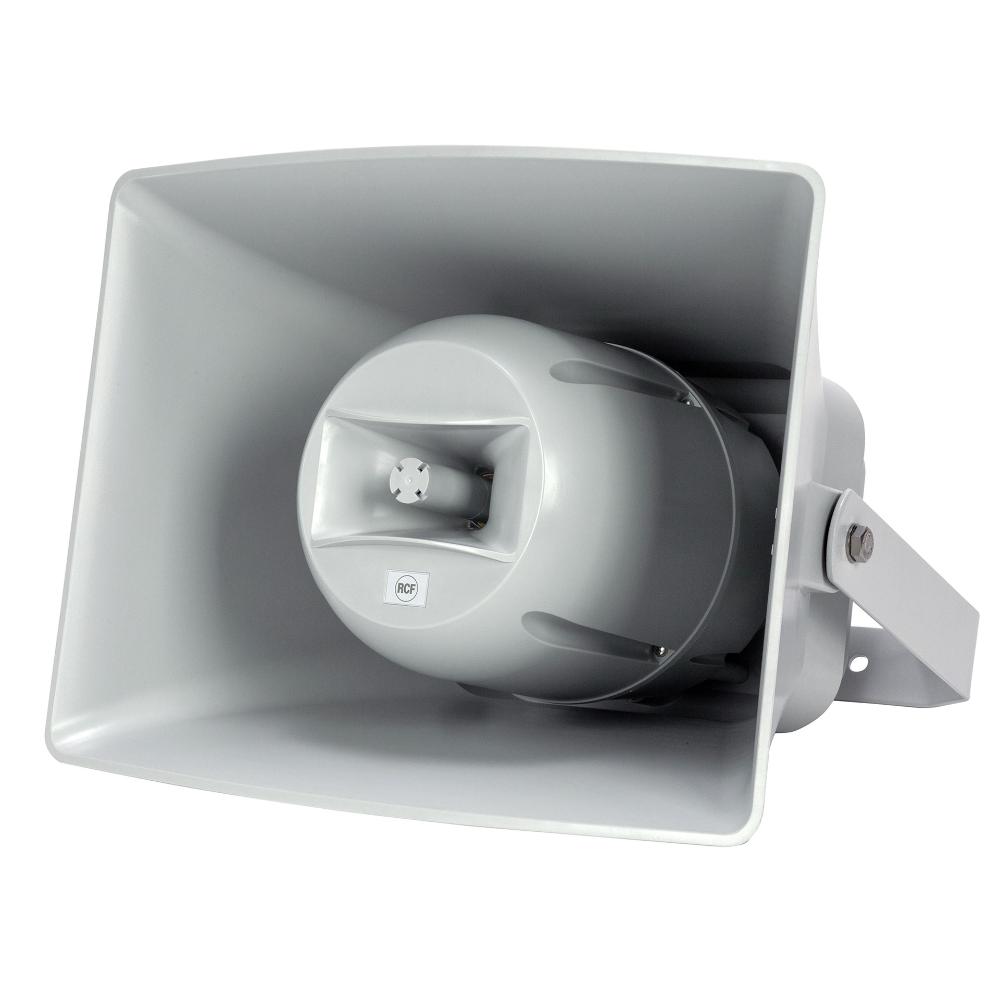

MH 61EN is a two-way plastic horn speaker suitable for both broadcasting alarm messages (thanks to the highly intelligible voice reproduction) and background music, and can be used for sound reinforcement and speech systems in medium and large spaces. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. It can be easily aimed towards any direction through the adjustable wall-mount bracket, and thanks to its IP66 protection grade it can be installed both indoor and outdoor.

Part number:

13100042
MH 61EN
EAN 8024530016364

Specifications
Acoustical specifications
Frequency Response (-10dB)
100 Hz ÷ 20000 Hz
Max SPL @ 1m
115 dB
Max SPL @ 4m
103 dB
Horizontal coverage angle
70°
Vertical coverage angle
90°
System Sensitivity
99 dB
System Sensitivity 1W @ 4m
87 dB
Power section
Nominal Impedance
8 ohm
Power Handling
60 W
Peak Power Handling
240 W PEAK
Protections
Thermal fuse
Recommended Amplifiers
DXT 3000, DXT 4000, DXT 7000
Transducers
Dome Tweeter
1.0''
Woofer
6.5''
Input/Output section
Input connectors
Ceramic screw terminals
Output connectors
Ceramic screw terminals
Constant Voltage Transformer
100 V
Power selection 1
60 W - 167 ohm
Power selection 2
30 W - 333 ohm
Power selection 3
15 W - 667 ohm
Power selection 4
7.5 W - 1333 ohm
Standard compliance
IP protection grade
IP 66
Safety agency
CE compliant
EN54-24 certified
Yes
CPR number
1488-CPR-0672/W
Physical specifications
Hardware
Steel bracket
Color
Grey - RAL 7035
Size
Height
332 mm / 13.07 inches
Width
418 mm / 16.46 inches
Depth
391 mm / 15.39 inches
Weight
7.35 kg / 16.2 lbs
Shipping information
Package Height
450 mm / 17.72 inches
Package Width
360 mm / 14.17 inches
Package Depth
430 mm / 16.93 inches
Package Weight
8.6 kg / 18.96 lbs
